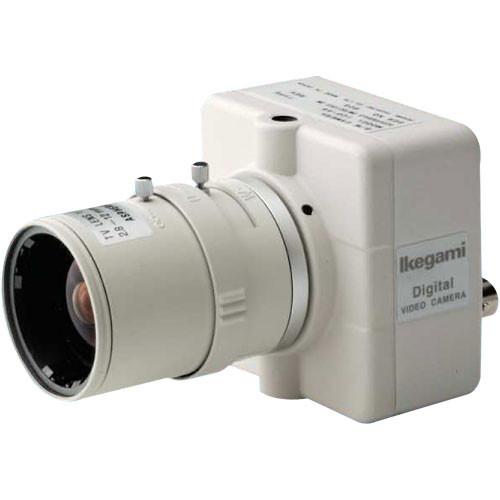

User Manual for Ikegami ICD-49 Super-Cube DSP Monochrome Camera Click to enlarge the picture
Contents of the user manual for the Ikegami ICD-49 Super-Cube DSP Monochrome Camera
- Product category: Wired Analog & HD Cameras Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Wired Analog & HD Cameras
|
User manual for the Ikegami ICD-49 Super-Cube DSP Monochrome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami ICD-49 is a CCTV camera featuring a 1/2" monochrome CCD. The camera's sophisticated digital signal processor technology allows it to reach an extremely high level of sensitivity when compared to conventional surveillance cameras, making it ideal for dimly lit situations. The ICD-49's unique shape makes it easy to install in a variety of cramped locations. - High Sensitivity CCD
- Ideal for a variety of applications including outdoor use, the ICD-49 can perform in extremely low light-levels. The unit boasts a sensitivity rating five times the level of most CCTV cameras! Wow.
UPC: 681716492404 In the Box Ikegami ICD-49 Super-Cube DSP Monochrome Camera Operation Manual C-Mount Adapter Auto-Iris Connector 1-Year Warranty User Manual PDF 188.4kbedvvyfewfbrsxwassaryb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ICD-49 Super-Cube DSP Monochrome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ICD-49 Specs | Signal System | EIA (NTSC) | | Image Sensor | 1/2" B/W CCD | | Resolution | 768 x 494
570 TV Lines | | Number of Pixels | 380,000 | | Lens | CS-Mount C-Mount Adapter Supplied | | Iris Operation | Video Iris/DC Iris | | Minimum Illumination | 0.0075 lux, f/1.2 | | Signal-to-Noise Ratio | >50dB (AGC OFF, Detail OFF, Weight ON) | | Controls | Camera ID, AES/Electronic Shutter, BLC, Iris Level, AGC, Internal Lock/Linelock, Genlock, Detail, Pedestal, Menu Lock | | Sync | Horizontal: 15.734 kHz, 15.75 kHz
Vertical: 59.94Hz, 60Hz | | Video Output | Video: BNC
Genlocl: BNC
Auto Iris Output: 4-Pin Square Type D4-151N-100 (or Equivalent) | | Audio Output | No | | Motion Detection | No | | Alarm I/O | No | | Control Ports | No | | Power Requirements | 24 VAC ±10% 60 Hz
12 VDC | | Power Consumption | 3.3W | | Operating Temperature | 13.5-122°F (-10-50°C) | | Dimensions (WxHxD) | 2.5 x 2.5 x 2.1" (6.4 x 6.4 x 5.3 cm) | | Weight | 0.6 lb (250 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 4.6 x 4.6 x 4.2" |
