User Manual for Ikegami IK-DV3.4X3.8SA-SA1 Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Ikegami IK-DV3.4X3.8SA-SA1 Varifocal Lens
- Product category: Lenses Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Lenses
|
User manual for the Ikegami IK-DV3.4X3.8SA-SA1 Varifocal Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

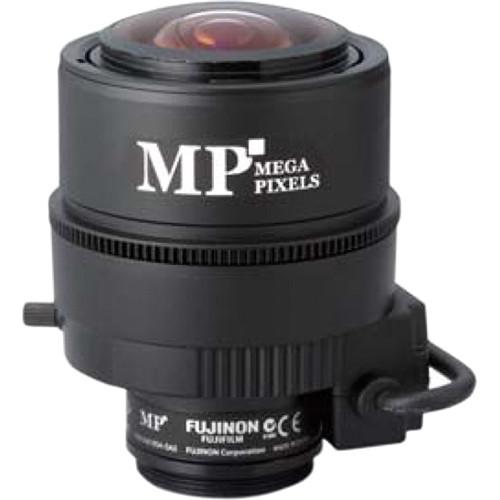

Product description The Ikegami IK-DV3.4X3.8SA-SA1 Varifocal Lens from Fujifilm is a high image quality monitoring lens with optical performance supporting 3 MP resolution. It is compatible with a wide range of — 1/2", 1/3", and 1/4" — cameras. The wide f3.8 to13mm range supports various applications. This lens is designed with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass to maximize optical performance. It has a built-in ND filter of T360 to allow support for high-sensitivity cameras. In the Box Ikegami IK-DV3.4X3.8SA-SA1 Varifocal Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami IK-DV3.4X3.8SA-SA1 Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami IK-DV3.4X3.8SA-SA1 Specs | Mount Type | C | | Focal Length | 3.8 to 13 mm (3.4x) | | Focus | Manual | | Iris Range | F1.4 to T360 (equivalent to F360) | | Iris | Auto (DC type) (*1) (*1) When power is turned off, iris will automatically close. | | Zoom | Manual | | Back Focal Distance | 10.60 mm (in air) | | Exit Pupil Position | 18.14" (461 mm) from image plane | | Object Dimensions at M.O.D. | 4:3 Aspect Ratio:
1/2":
Wide: 28.14 x 17.79" (715 × 452 mm)
Tele: 6.69 x 4.96" (170 × 126 mm)
1/3":
Wide: 17.79 x 12.32" (452 × 313 mm)
Tele: 4.96 x 3.70" (126 × 94 mm)
1/4":
Wide: 12.32 x 8.85" (313 × 225 mm)
Tele: 3.7 x 2.75" (94 × 70 mm)
16:9 Aspect Ratio:
1/2":
Wide: 33.5 x 13.66" (851 × 347 mm)
Tele: 7.28 x 4.05" (185 × 103 mm)
1/3":
Wide: 20.11 x 9.76" (511 × 248 mm)
Tele: 5.43 x 3.03" (138 × 77 mm)
1/4":
Wide: 13.66 x 7.12" (347 × 181 mm)
Tele: 4.05 x 2.24" (103 × 57 mm) | | Angular Field of View | 4:3 Aspect Ratio:
1/2":
Wide: 97°34′ × 71°47′
Tele: 28°23′ × 21°18′
1/3":
Wide: 71°47′ × 53°25′
Tele: 21°18′ × 15°59′
1/4":
Wide: 53°15′ × 39°41′
Tele: 15°59′ × 11°59′
16:9 Aspect Ratio:
1/2":
Wide: 107°12′ × 58°10′
Tele: 30°55′ × 17°25′
1/3":
Wide: 78°34′ × 43°18′
Tele: 23°12′ × 13°04′
1/4":
Wide: 58°10′ × 32°20′
Tele: 17°25′ × 9°48′ | | Focusing Range | From Front of the Lens: ∞ to 0.3 m | | Coil Resistance | Drive Coil: 190 Ω Damping Coil: 500 Ω | | Current Consumption | 23 mA (maximum) at 4 VDC | | Weight | 2.82 oz (80 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 6.0" |
