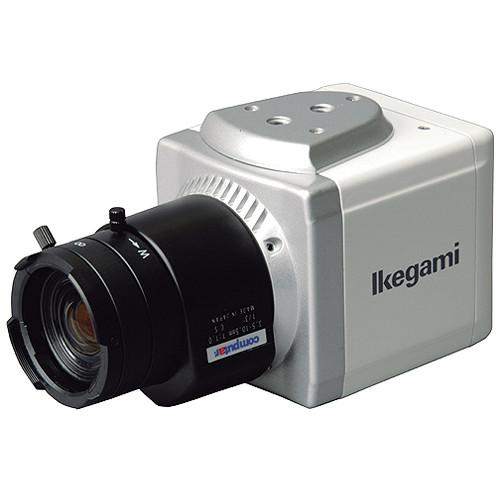

User Manual for Ikegami IPD-BX11 Hyper Wide Light Dynamic True Day Night Color IP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Ikegami IPD-BX11 Hyper Wide Light Dynamic
- Product category: Wired IP Cameras Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Wired IP Cameras
|
User manual for the Ikegami IPD-BX11 Hyper Wide Light Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami IPD-BX11 Hyper Dynamic Hybrid IP Network Box Camera (NTSC & PAL) has the combined benefits of an IP network camera and the Hyper Wide Dynamic technology. The resulting sub-megapixel camera captures clear images regardless of the lighting conditions, and produces more usable pixels per image in difficult lighting conditions. It also does not waste the bandwidth transmitting unusable pixels, making it suitable for video surveillance.
The camera is designed for capturing smear-free images with low noise. Its Digital Signal Processor enhances details for capturing crisp images with a high signal-to-noise ratio.
The advanced internal menu of the IPD-BX11 Camera allows for precision image adjustment. Four preset scene files cover the most common lighting challenges and act as a baseline for quick setup. The camera features an analog BNC service port that is used for delivering true 520TVL images to a local monitor for simplified setup and service without requiring network connection.
The IPD-BX11 Network Camera supports H.264/M-JPEG video compression and has standard PoE (Power over Ethernet) capability. It is ONVIF compliant and can be fully integrated with a large number of network platforms. - Suggested Use: General purposes, bank lobbies, teller lines, etc.
- Built-in Focus EZ, Detail Correction, and Flange Back Adjustment Mechanism
In the Box Ikegami IPD-BX11 Hyper Wide Light Dynamic True Day/Night Color IP Network Box Camera (NTSC & PAL) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami IPD-BX11 Hyper Wide Light Dynamic True Day Night Color IP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami IPD-BX11 Specs | Image Sensor | 1/3" DPS CMOS (PIXIM Seawolf Chip) | | Effective Pixels | Approximately 410,000 pixels, Effective 758 (H) x 540 (V) | | Scanning System | NTSC: 525 lines at 59.94 Hz, 2:1 interlace
PAL: 625 lines at 50 Hz, 2:1 interlace | | Synchronization System | Internal crystal lock | | Analog Video Output | VBS 1.0 Vpp / 75 Ω (for adjusting angle of view)
Horizontal Resolution: 520 TVL or better | | S/N Ratio | 50 dB or better (p-p/rms) | | Minimum Illumination | AGC On:
In Color Mode (Electronic Sensitivity Up Off): 0.22 lux / F1.2 (50 IRE)
In Color Mode (Electronic Sensitivity Up On 32x): 0.007 lux / F1.2 (50 IRE)
In Monochrome Mode (Electronic Sensitivity Up Off): 0.022 lux / F1.2 (25 IRE)
In Monochrome Mode (Electronic Sensitivity Up On 32x): 0.0007 lux / F1.2 (25 IRE) | | Wide Dynamic Range | Built-in, variable | | AGC (Automatic Gain Control) | ON (AGC / Hyper-AGC)
OFF (Low / Mid / High) selectable | | Electronic Sensitivity UP | Built-in, ON /OFF selectable (Up to 32 times) | | Day/Night | Built-In, True Day / Night, Auto / Manual selectable function | | Digital Zoom | Built-in (Up to 4 times) | | Auto Iris | Function: DC Iris | | White Balance | ATW / ATWex / AWC / MANU selectable | | Color Rolling Reduction | Function: Built-in, ON / OFF selectable (CRR function) | | Privacy Masking | Built-in (maximum 8 zones) | | Digital Noise Reduction (DNR) | Built-in, ON / OFF selectable (DNR function) | | Monitor Output Selection | CRT / LCD selectable | | Camera ID | Up to 24 characters (alphanumeric and symbols) | | Lens Mount | CS-mount | | Image Compression | Codec: H.264 / M-JPEG selectable
Image Size:
NTSC: 720 x 480, 720 x 240, 352 x 480, 352 x 240
PAL: 720 x 576, 720 x 288, 352 x 576, 352 x 288
Frame Rate:
NTSC: Up to 30 fps
PAL: Up to 25 fps
Bit Rates (H.264): 64 kb/s to 8 Mb/s
Image quality (M-JPEG): 5 steps
Transmission Mode: VBR / CBR | | Network | Ethernet 10Base-T / 100Base-TX | | Protocol | TCP, UDP, RTP / RTCP, RTSP, HTTP, FTP, NTP, ONVIF support (multicast delivery available) | | Monitoring | Viewer or NVR | | Power Requirement | 12 VDC (10.5 to 15 V)
PoE (IEEE802.3af) Class 0 | | Power Consumption | Approximately: 4 W | | Ambient Temperature | Operating: 14.0 to 122°F (-10 to 50°C) | | Ambient Humidity | Operating: 30 to 90% RH (non-condensing) | | Input / Output Connectors | LAN: RJ-45 (Auto-MDI / MDIX)
12 VDC Input: 2 P
Service MONITOR OUT: BNC
Lens: 4 P (E4-191J-150 Lens Connector or equivalent) | | Dimensions (W x H x D) | 2.36 x 2.28 x 2.76" (59.94 x 57.91 x 70.10 mm) | | Weight | 0.66 lb (0.29 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 9.0 x 7.0" |
