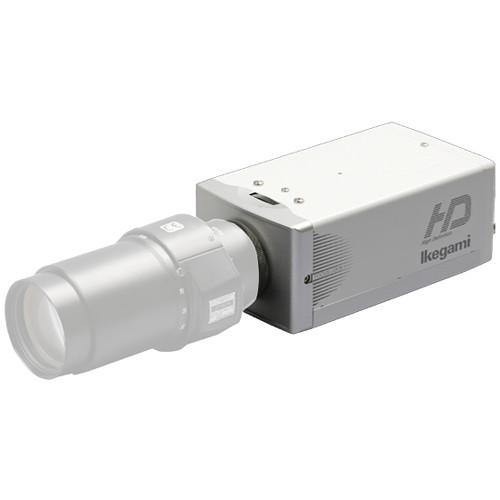

Product description The ISD-2500HD 1.47MP HD-SDI Box Camera (No Lens) from Ikegami utilizes a 2/3" CMOS sensor and HD-SDI technology to capture 1280 x 720 at up to 30 fps over standard coax cable when used with a compatible lens (available separately). The camera's ultra low light sensitivity allows it to capture clear images down to 0.00004 lux. A CS-mount provides compatibility with many lenses to suit your needs.
The camera features a defog function to detect and correct distortion caused by bad weather, ensuring clear images are captured. Wide Dynamic Range (WDR) further helps the camera produce accurate images in varying lighting conditions. - 1.47MP 2/3" CMOS sensor with ultra low light sensitivity
- Capture 720p video using HD-SDI technology
- IR cut filter for automatic switching between day and night to produce accurate images in low light scenes
- Defog function and WDR help correct distortion for accurate image reproduction
- CS-mount for a wide range of lens compatibility
In the Box Ikegami ISD-2500HD 1.47MP HD-SDI Box Camera (No Lens) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ISD-2500HD 1.47MP HD-SDI Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ISD-2500HD Specs | Image Sensor | 1.47 MP 2/3" CMOS sensor | | Encoding | NTSC and PAL | | Effective Pixels (H x V) | 1280 x 720 | | Synchronization | Internal | | Video Output | HD: HD-SDI 1080 (59.94i, 50i, 30p, 29.97p, 25p)
720 (60p, 59.94p, 50p, 30p, 29.97p, 25p)
SD: VBS NTSC/PAL | | External Control | RS-485 | | Horizontal Resolution | 650 TVL (or more) | | Sensitivity | f/22 at 2000 lux | | Minimum Illumination | Color: 0.00016 lux at f/1.2 50%
B&W: 0.00004 lux at f/1.2 50% | | Day/Night | Auto / remote / manual switchable | | Lens Mount | CS-mount | | Auto Iris | DC iris | | AGC (Automatic Gain Control) | On (AGC / hyper-AGC) / Off (low / middle / high) | | Shutter | Electrical: OFF, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, variable
Automatic: On / off | | Slow Shutter | 1, 2, 4, 6, 8, 12, 16, 24, 32, 64x
Off / auto (S/N, STD, move) / manual | | Backlight Compensation | On / off / stop | | White Balance | ATW1, ATW2, AWC, Manual | | Wide Dynamic Range | Off / WDR / auto knee / auto black stretch | | De-Fog | Off / On | | Gamma Correction | 0.45 / 0.75 / 1 | | Noise Reduction | Yes | | Digital Zoom | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10x | | Privacy Masking | Maximum 8 areas (gray / white / black) | | Focus Assist | Focus EZ | | Camera ID | Maximum 24 characters | | Image Flip | Normal / flip / mirror / flip & mirror | | Lens Flange Back | Available with adjustment mechanism | | Power Requirement | 12 VDC ± 10%, 24 VAC ± 10% 50/60 Hz | | Power Consumption | 6 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 30 to 90%, non-condensing | | Dimensions | Camera Body: 3.1 x 2.3 x 5.5" (78 x 58 x 140 mm) | | Weight | 1.4 lb (650 g) approximately |
