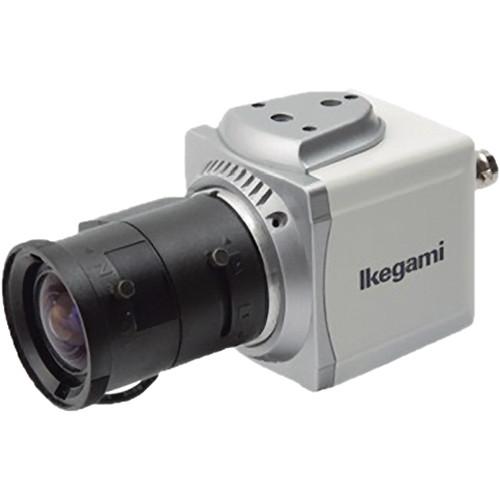

Product description The ISD-A15 Camera with 5 to 50mm Varifocal Lens from Ikegami is a wide light, dynamic range, high-sensitivity and high-resolution camera enabled by a 1/3” Pixim Seawolf sensor and Ikegami’s digital processing technology. It is a Hyper Wide Light Dynamic Range (Hyper WDR) box camera that reproduces clear and natural images even in locations where there is a significant difference in the intensity of illumination. This camera comes with a compact cube body, giving it the flexibility for a broad array of locations and equipment, such as ATM machines and outdoor housings. - Hyper Wide Light Dynamic Range (Hyper WDR)
- The Hyper WDR function provides an effective compensation of high light and dark areas in the screen. This situation may generally occur outside or when viewing outside from indoors. Even in large light fluctuations, bright and dark objects can be captured and viewed clearly with a natural color.
- Compact Body of Super Cube
- This camera comes with a compact cube body that is suitable for the locations such as ATM machines.
- Automatic White Balance
- Thanks to the Automatic Tracking White Balance Control (ATW), the white balance control adjusts itself no matter how much the subject's color temperature fluctuates.
- Good-Quality Picture and High-Resolution
- The camera is designed for smear-free imaging and low noise. The well-designed Digital Signal Processor (DSP) effectively enhances details, which achieves crisp and sharp images with a high signal-to-noise ratio. A horizontal resolution of 480 TVL (690 HTVL-Effective) is assured.
- Automatic Sensitivity Control
- In addition to the wide dynamic control based on multi-sampling system, an automatic sensitivity control function is provided. It helps achieve optimally bright images even with fixed iris lenses.
- Scene File Function (4 positions)
- Along with a normal setting (NORMAL), 4 position scene file (preset file) for each particular scene is provided. Using this function enables an easy setup suitable for a scene without any special adjustment.
- Focus EZ Function
- Thanks to the Level Indicator, a focusing point is visibly recognized. The auto iris lens aperture will be kept open, even in broad daylight. This ensures that an accurate focus can be set readily with the best depth of field.
In the Box Ikegami ISD-A15 Camera with 5 to 50mm Varifocal Lens Power Plug Hexagonal Wrench for Flange Focus Adjustment Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ISD-A15 Camera with 5 to 50mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ISD-A15 Specs | Image Sensor | 1/3" DPS CMOS sensor | | Pixel Pitch (HxV) | Approximately 410,000 pixels, 768 x 540 | | Scanning System | NTSC: 525 TVL/59.94 Hz, 2 : 1 interlaced PAL: 625 TVL/50 Hz, 2 : 1 interlaced | | Sync System | Internal Sync (crystal lock), External Sync (AC line lock) | | Video Output | VBS 1.0 Vpp/75 Ω | | Horizontal Resolution | 520 TVL (690 HTVL-Effective) | | S/N Ratio | 50 dB (p-p/rms) | | Minimum Illumination | 0.3 lx/F1.4 (Electronic Sens. Up OFF, VBS Output 50%) | | Wide Dynamic Range | Built-in, and Variable | | AGC (Automatic Gain Control) | On (AGC, HYPER-AGC) / Off (Low, Mid, High), selectable | | Electronic Sensitivity Control | Built-in, On (AUTO) / Off selectable (Maximum 32 times) | | White Balance | ATW/ATWex/AWC/MANU, selectable | | Detail Correction | Built-in | | Digital Noise Reduction (DNR) | Built-in, On / Off selectable (DNR Function) | | Color Rolling Reduction | Built-in, On / Off selectable (CRR Function) | | Privacy Masking | Built-in (Maximum 8 zones) | | Monitor Output Selection | Built-in, CRT / LCD Selectable | | Camera ID | Up to 24 characters (alphanumeric and symbols) | | Lens Mount | CS Mount (C Mount adaptor is available as an option.) | | Auto Iris | DC Iris (DC Iris level adjustable) | | Lens Flange Focus | Built-in and adjustable | | Power Requirement | 24 VAC ±10%, 50/60 Hz 12 VDC (10.5 to 15V) | | Power Consumption | 2.2 W | | Operating Temperature | 13.5 to 122°F (-10 to 50°C) | | Relative Humidity | RH 30 to 90% (No condensation) | | Input / Output Connectors | Video out - BNC Lens - 4P (applicable plug E4-191J-150 or equivalent) 12VDC/24VAC input - 2P | | Dimensions (W x H x D) | 2.05 x 2.05 x 2.16" (52.00 x 52.00 x 55.00 mm), excluding protrusions | | Weight | Approximately 0.44 lb (200g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 6.0" |
