User Manual for Ikegami ISD-A15-TDN Hyper-Dynamic High-Resolution Compact Cube Camera Click to enlarge the picture
Contents of the user manual for the Ikegami ISD-A15-TDN Hyper-Dynamic High-Resolution Compact Cube
- Product category: Wired Analog & HD Cameras Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Wired Analog & HD Cameras
|
User manual for the Ikegami ISD-A15-TDN Hyper-Dynamic High-Resolution Compact Cube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

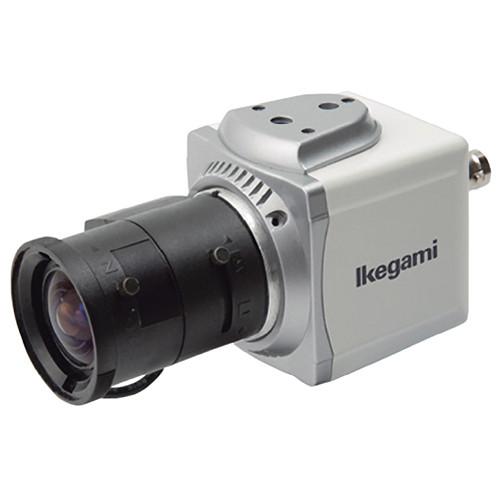

Product description The Ikegami ISD-A15-TDN Hyper-Dynamic High-Resolution Compact Cube Camera features an extremely wide light dynamic range, high sensitivity, and high-resolution enabled by its 1/3” Pixim Seawolf sensor, and digital processing technology. It is a hyper wide light dynamic range box camera that captures clear and natural images even in locations where there is a significant difference in the intensity of illumination, such as window areas or in lobby entrances of buildings.
The camera comes with a compact cube body, giving it the flexibility for installation in a broad array of locations and equipment, such as ATM machines and outdoor housings. - Hyper Wide Light Dynamic Range (Hyper WDR)
- This function provides for very effective compensation of high light and dark areas on the screen. This situation may occur generally outside or viewing from indoor to outside scenes. Even in large light fluctuations, bright-and-dark objects can be captured and viewed clearly with a natural color.
- Compact Body of Super Cube
- This camera comes with a compact cube body that is suitable for locations such as ATM machines.
- Automatic White Balance
- Thanks to ATW (Automatic Tracking White Balance Control), the white balance control adjusts itself no matter how great the subject's color temperature fluctuates.
- High-Quality Picture and High-Resolution
- The camera is designed for smear-free imaging and low noise. The well-designed DSP (Digital Signal Processor) effectively enhances details for crisp and sharp images with a high signal-to-noise ratio. The high resolution of a horizontal resolution of 480 TVL (690 HTVL effective) is assured.
- Automatic Sensitivity Control
- In addition to the wide dynamic control based on multi-sampling system, automatic sensitivity control function is provided. It helps achieve optimally bright images even with fixed iris lenses (sold separately).
- Scene File Function (4 Positions)
- Along with a normal setting (NORMAL), 4 position scene file (preset file) for each particular scene is provided. Using this function enables an easy setup suitable for a scene without any special adjustment.
- Focus EZ Function
- Thanks to the Level Indicator, a focusing point is visibly recognized. The auto-iris lens aperture will be kept open, even in broad daylight. This ensures that an accurate focus can be set readily with the best depth of field.
- TDN (True Day & Night) Function
- The camera contains a filter wheel (IR-cut filter) for the true day & night function.
In the Box Ikegami ISD-A15-TDN Hyper-Dynamic High-Resolution Compact Cube Camera Lens Housing Heater Instruction Manual Hexagonal Wrench for Flange Focus Adjustment Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ISD-A15-TDN Hyper-Dynamic High-Resolution Compact Cube Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ISD-A15 Specs | Image Sensor | 1/3" DPS CMOS sensor | | Lens | 2.8 to 12 mm | | Aperture | F1.2 | | Total Pixel Number | Approximately 410,000 pixels, 768 (H) x 540 (V) | | Scanning System | NTSC: 525 TVL / 59.94 Hz, 2:1 interlaced | | Sync System | Internal synchronization (crystal lock), External synchronization (AC line lock) | | Video Output | VBS 1 Vpp / 75 Ω | | Horizontal Resolution | 520 TVL (690 HTVL effective) | | S/N Ratio | 50 dB (pp/rms) or better | | Minimum Illumination | 0.3 lux / F1.4 (Electronic Sens-up Off, VBS output 50%) | | Day & Night | Function: True day & night | | Wide Dynamic Range | Built-in and variable | | AGC (Automatic Gain Control) | On (AGC, HYPER-AGC) / Off (low, mid, high), selectable | | Electronic Sensitivity Control | Built-in, On (auto) / Off selectable (maximum 32 times) | | White Balance | Control: ATW / ATWex / AWC / MANU, selectable | | Detail Correction | Built-in | | Digital Noise Reduction (DNR) | Built-in, On / Off selectable (DNR function) | | Color Rolling Reduction | Function: Built-in, On / Off selectable (CRR function) | | Privacy Masking | Built-in (maximum 8 zones) | | Monitor Output Selection | Built-in, CRT / LCD selectable | | Camera ID | Up to 24 characters (alphanumeric and symbols) | | Remote Setup | Function: Available (with a separately sold remote setup unit) | | Lens Mount | CS-mount (C-mount adapter is available as an option) | | Auto Iris | Function: DC-iris (DC-iris level adjustable) | | Lens Flange Focus | Built-in and adjustable | | Power Requirement | 24 VAC ±10%, 50 / 60 Hz
12 VDC (10.5 to 15 V) | | Power Consumption | 2.2 W | | Operating Temperature | 13.5 to 122°F (-10 to 50°C)
Relative Humidity: RH 30 to 90% (No condensation) | | Input/Output Connectors | Video Output: BNC
Lens: 4P (applicable plug E4-191J-150 or equivalent)
12 VDC / 24 VAC input- 2P | | Dimensions (W x H x D) | 2.05 x 2.05 x 2.16" (52 x 52 x 55 mm) excluding protrusions | | Weight | 0.44 lb (0.19 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.0 x 9.0 x 7.0" |
