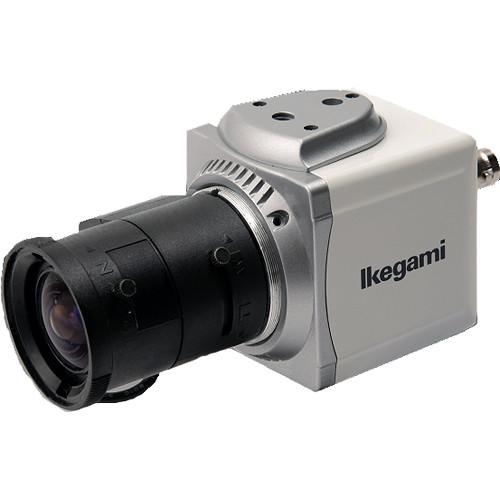

Product description The ISD-A15S 1.23MP Hyper-Dynamic VBS Compact Cube Camera from Ikegami offers wide dynamic range, high sensitivity, and high resolution using a 1/3.2" CMOS sensor with digital processing technology. It is designed to reproduce clear and natural images even in locations with sharp brightness contrasts in areas with lots of windows, like lobby entrances. Featuring a compact cubical body of just 2.05 x 2.05 x 2.16", it can be deployed in a wide variety of locations. - Hyper Wide Light Dynamic Range (Hyper WDR)
- The Hyper WDR function provides compensation for extremely bright and dark areas in a scene. High-contrast lighting situations may occur outdoors and when looking through a glass door or window to the outside. WDR technology allows bright and dark subjects to be captured and viewed clearly and with natural color.
- Compact Body
- The ISD-A15S's compact cubical body allows for flexible positioning. The camera fits into a variety of outdoor housings (available separately) and can be used to monitor ATM machines.
- Defog Function
- This function enables the ISD-A15S to capture clear images under foggy conditions.
- High-Quality Images and High Resolution
- The camera is designed to deliver smear-free, low-noise video. Its DSP (Digital Signal Processor) enhances details to achieve crisp and sharp images with a high signal-to-noise ratio and 700 TVL horizontal resolution.
UPC: 681716015153 In the Box Ikegami ISD-A15S 1.23MP Hyper-Dynamic VBS Compact Cube Camera (No Lens) Hexagonal Wrench for Flange Focus Adjustment Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ISD-A15S 1.23MP Hyper-Dynamic VBS Compact Cube Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ISD-A15S Specs | Image Sensor | 1/3.2" CMOS | | Total Pixel Number | Approx. 1.23 MP, 1280 x 960 | | Scanning System | NTSC: 525 TV lines / 59.94 Hz, 2:1 interlaced | | Sync System | Internal sync (crystal lock) | | Video Output | VBS 1.0 V p-p / 75 Ohms | | Horizontal Resolution | 700 TV lines | | S/N Ratio | 50 dB (p-p/rms) or better | | Minimum Illumination | 0.1 lx / f/1.4 (color, VBS output 50%) | | Day/Night Mode | Built-in, auto/manual selectable digital day/night | | Wide Dynamic Range | Built-in and variable | | AGC | On (AGC, HYPER-AGC) / off (low, mid, and high) selectable | | Defog | Built-in | | White Balance Control | ATW (indoor/outdoor/auto1/auto2) / push / pushlock / manual | | Detail Correction | Built-in | | Digital Noise Reduction | Built-in, on/off selectable | | Color Rolling Reduction | Built-in, on/off selectable | | Privacy Masking | Built-in (max 16 zones) | | Camera ID | Up to 24 characters (alphanumerical & symbols) | | Lens Mount | CS-mount (C-mount adapter available separately) | | Auto Iris Control | DC iris, level adjustable | | Lens Flange Focus | Built-in and adjustable | | Input and Output Connectors | BNC, video output
4-pin lens connector (compatible with plug E4-191J-150 and equivalent)
2-pin 12 VDC / 24 VAC input | | Power Requirements | 24 VAC +/-10%, 50/60 Hz
12 VDC (10.5 to 15 V) | | Power Consumption | 2 W | | Operating Temperature | 13.5 to 122°F / -10 to 50°C | | Humidity | 30-90% RH (no condensation) | | Dimensions | 2.05 x 2.05 x 2.16" / 5.2 x 5.2 x 5.5 cm | | Weight | 0.44 lb / 200 g | | | | Package Weight | 1.01 lb | | Box Dimensions (LxWxH) | 6.1 x 4.55 x 3.45" |
