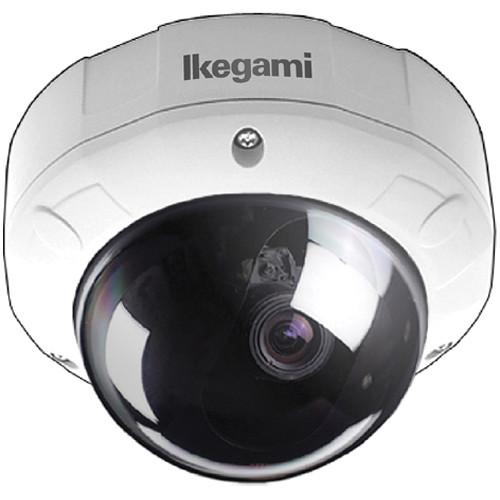

Product description The Ikegami ISD-A35 Type 31 Vandal-Resistant Hyper-Dynamic Dome Camera (White) with its day/night functionality provides crisp and clear images of both illuminated and low-light areas. Its Pixim Seawolf DPS CMOS sensor accurately captures every aspect of any scene and reproduces it as a high-resolution image. Along with the sensor, the 2.9-10mm varifocal lens enhances details to capture crisp images up to 520 TVL in high resolution mode. The camera's Hyper Wide Light Dynamic Range feature strikes a proper balance between the bright and dark regions of an image to highlight the important details of a scene.
The Focus EZ feature allows the camera to make accurate focus adjustments. When the Focus EZ button is pressed, the iris opens to reduce the depth of field and make focusing significantly easier. At the same time, the shutter is automatically set to obtain the correct exposure. Once you've adjusted the camera as per your requirement, you can select the scene file function to store the settings for up to 4 different shooting conditions. This way you can easily set up a scene quickly without any special adjustment. Furthermore, the IP66-rated vandal-resistant housing ensures uninterrupted surveillance in exposed and high-risk locations. - 1/3" Pixim Seawolf DPS CMOS sensor and 2.9-10mm varifocal lens
- Captures high resolution images up to 520 TVL (690 HTVL - effective)
- Operates well in locations even with a minimum illumination of 0.22 lux
- Varifocal lens with tri-axial adjustment
- Focus EZ feature ensures that an accurate focus can be set readily with the best depth of field
- Hyper Wide Light Dynamic Range feature reproduces a clear and natural image even in locations where there is a significant difference in the intensity of illumination, such as window areas, or in lobby entrance of building
- True day/night function ensures accurate color reproduction during the day and enhanced B&W images at night
- Automatic Gain control adjusts the camera settings depending on the illumination conditions
- White balance feature adjusts the red, green, and blue colors taking a standard white reference to get clear images
- Scene file function uses up to 4 preset patterns, with the help of an external trigger these presets can be recalled to correct and enhance the video out signal
- Privacy masking function (8 configurable regions) allows you to block certain portions of an image for security reasons
- Optimum monitor output select function for choosing an output to display the best pictures on the monitor screen
- IP66-rated vandal-resistant housing ensures uninterrupted surveillance in exposed and high-risk locations
- 24 VAC or 12 VDC dual voltage operation
- Supports NTSC and PAL standards
In the Box Ikegami ISD-A35 Type 31 Vandal-Resistant Hyper-Dynamic Dome Camera (White) Instruction Manual MON.OUT Output Harness Special Wrench Silicone Rubber Bushing for Water-Resistant Treatment 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ISD-A35 Type 31 Vandal-Resistant Hyper-Dynamic Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ISD-A35 Specs | Image Sensor | 1/3" DPS CMOS sensor | | Total Pixel Number | Approximately 410,000 pixels, 768 (H) x 540 (V) | | Scanning System | NTSC: 525 TVL / 59.94 Hz, 2 : 1 interlaced
PAL: 625 TVL / 50 Hz, 2 : 1 interlaced | | Sync System | Internal sync (crystal lock), external sync (AC line lock) | | Video Output | VBS 1.0 Vpp /75 ohms | | Horizontal Resolution | 480 TVL / 520 TVL-High-Reso mode (690 HTVL-Effective) | | S/N Ratio | 50 dB (p-p/rms) or better | | Minimum Illumination | 0.22 Lux / F1.2 (AGC ON, 50IRE) | | Day/Night | Built-in (true day/night), AUTO / MANUAL, selectable | | Wide Dynamic Range | Built-in and variable | | AGC (Automatic Gain Control) | ON (AGC, HYPER-AGC) / OFF (low, mid, high), selectable | | White Balance | ATW / ATWex / AWC / MANU, selectable | | Detail Correction | Built-in | | Digital Noise Reduction (DNR) | Built-in, On / OFF selectable (DNR Function) | | Color Rolling Reduction | Built-in, On / OFF selectable (CRR Function) | | Privacy Masking | Built-in (maximum 8 zones) | | Monitor Output | Built-in, CRT / LCD selectable | | Camera ID | Up to 24 characters (alphanumeric and symbols) | | Remote Setup | Available (with an optional remote setup unit) | | Lens | Built-in Vari-focal lens | | Mount | Φ14 straight | | Focal Length | 2.9 - 10 mm | | Maximum Aperture Ratio | 1.2 | | Horizontal Viewing Angle | 94.6 to 28.8° | | Vertical Viewing Angle | 68.4 to 21.6° | | Input/Output Connectors | Pig-tail type
Video out: BNC, 12 VDC / 24 VDC input (open-end wire)
Dome Inside
MON. OUT: special connector output (connector harness with BNC output is available) | | Protection | IP66 compliant | | Dome Cover | Vandal resistance type | | Power Requirement | 24 VAC ±10%, 50/60 Hz
12 VDC (10.5 to 15 V) | | Power Consumption | Approximately 2 W | | Relative Humidity | RH 30 to 90% (no condensation) | | Operating Temperature | 13.5 to 122°F (-10 to 50°C) | | Dimensions (Ø x H) | 5.6 x 4" (142.8 x 103.5 mm) | | Weight | Approximately 2.18 lb (990 g) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 10.0 x 9.0 x 7.0" |
