User Manual for Ikegami KIT-879 ID1 Surveillance Kit with ICD-879 Day Night Camera, 3.16-18mm Lens, & Wall Bracket Click to enlarge the picture
Contents of the user manual for the Ikegami KIT-879 ID1 Surveillance Kit with
- Product category: Wired Analog & HD Cameras Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Wired Analog & HD Cameras
 |
User manual for the Ikegami KIT-879 ID1 Surveillance Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

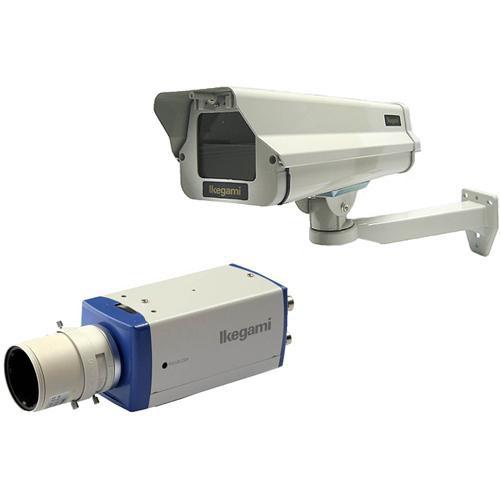

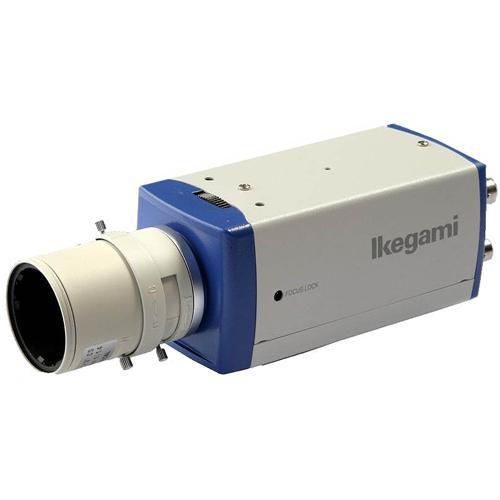

Product description To save you the time and hassle involved in putting together an outdoor camera system on your own, Ikegami presents you with the KIT-879 ID1 camera package. In this kit you'll find the ICD-879 color box camera, a 3.16-18mm varifocal lens, and a power supply. Through the use of a 1/2" CCD along with a Day/Night function and advanced electronic controls, the ICD-879 camera is able to generate outstanding quality video images in virtually any lighting or scene situation. With the camera's high level of performance and with the housing's built-in heater and blower, here's a system you can count on to faithfully secure your outdoor perimeters. - Optimized for Day & Night Surveillance
- When light levels fall, the camera switches from color to an ultra sensitive B/W mode while removing an IR cut filter from the front of the CCD. As a result, the camera is able to produce visible images in light levels down to 0.005 lux.
- Intelligent BLC
- A sophisticated BLC function helps the camera cope with scenes exhibiting high contrast and backlighting.
- User Adjustable Image Controls
- While most box cameras offer some sort of auto picture controls, all of this camera's controls are user adjustable. There are multiple settings for Day/Night, AGC, White Balance, Detail Correction, BLC and Electronic Shutter functions. There is also a Privacy Mask function to block certain areas from appearing on the monitor for privacy or legal reasons.
- Optional Coaxial Remote Control Available
- You can access camera controls via buttons on the back of the camera or from a distance using the optional RCU-801 Remote Control Unit. The great thing about this controller is that it communicates with the camera via the same coaxial BNC cable used to transmit video, eliminating the need to run a separate control cable. This controller also has an RS-232C connector for controlling the camera from a PC using Ikegami's I-LAN camera control program.
- Low Smear and Noise
- A large (1/2") CCD, improved DSP, 115dB S/N ratio - all come together to produce an outstanding quality picture with minimal noise and light smearing. This feature is particularly useful in reducing the obscuring effects of streaks and halos caused by a vehicle's headlights.
- CRT/LCD Monitor Switch
- To compensate for the different ways a CRT and LCD monitor processes video signals, this camera has an LCD/CRT monitor switch.

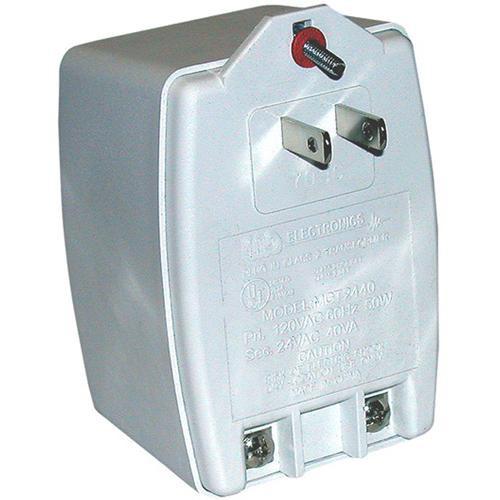

- Includes 24VAC Power Supply
- The included power supply can be used to power both the camera and housing.
- 10-Year Warranty (on Camera)
- You'll appreciate the fact that the camera in this package comes with a 10-year warranty, a time period unheard of in the CCTV industry.

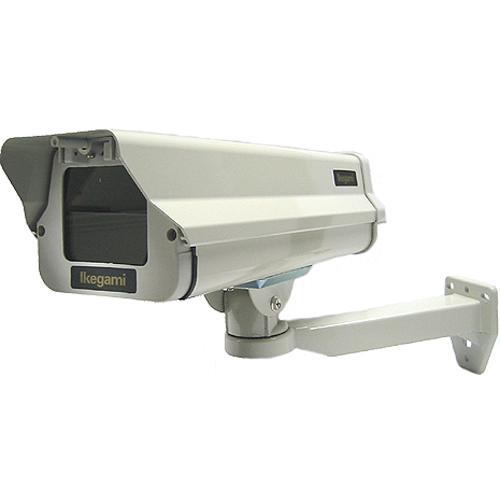

In the Box Ikegami KIT-879 ID1 Surveillance Kit with ICD-879 Day/Night Camera, 3.16-18mm Lens, & Wall Bracket Color Camera (ICD-879) 3.16-18mm Varifocal Lens Outdoor Housing (CAMH-200B) Wall Mount Bracket 24VAC Power Supply (MGT2450) 10-Year Warranty on Camera (1-year on lens & housing) Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami KIT-879 ID1 Surveillance Kit with ICD-879 Day Night Camera, 3.16-18mm Lens, & Wall Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami KIT-879 ID1 Specs | Signal System | NTSC | | Image Sensor | 1/2" Color IT CCD | | Resolution | 540 TVL (570 TVL B/W mode) | | Number of Pixels | 768 x 494 | | Lens | 3.16-18mm Varifocal lens (CS mount) | | Iris Operation | Video Iris/DC Iris Switchable (camera) | | Minimum Illumination | Color: 0.005 Lux at F1.4, 0.0037 at F1.2 lux
B/W: 0.0005 Lux at F1.4, 0.00037 lux at F1.2 | | Signal-to-Noise Ratio | 52dB | | Controls | Day/Night (Auto/Remote/Manual)
AGC (selectable intensity levels)
White Balance (adjustable levels)
Detail Correction (adjustable)
BLC (selectable)
Electronic Shutter (selectable, 1/100-1/10000 sec)
Privacy Masking (8 zones) | | Sync | Internal: Crystal lock or Line-Lock
External: GENLOCK | | Video Output | BNC (also BNC GENLOCK input) | | Audio Output | N/A | | Motion Detection | No | | Alarm I/O | N/A | | Control Ports | RS-485 5-pin (input/output terminal), Coaxial control | | Power Requirements | 12VDC or 24VAC (includes 24VAC power supply) | | Power Consumption | 5.3W or less | | Operating Temperature | 14 - 122°F (-10 ~ +50°C) | | Dimensions (WxHxD) | 2.4 x 2.2 x 4.8" (52 x 55 x 122mm) | | Weight | 1.1 lbs (500g) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 17.0 x 16.0 x 8.0" |
