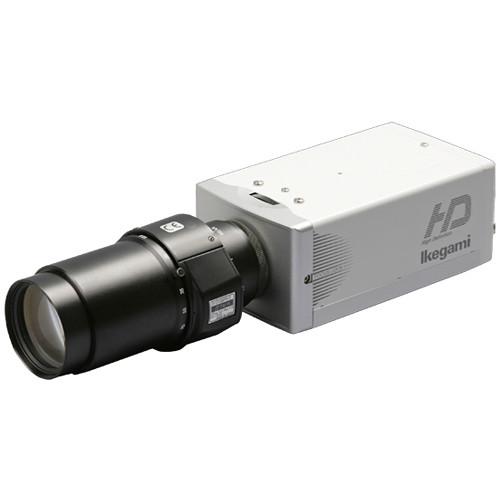

Product description The KIT-ISD2500-J25 1.47MP HD-SDI Box Camera Kit from Ikegami consists of the Ikegami ISD-2500HD box camera and a Myutron C-mount 9.6-240mm varifocal lens as well as the IKH-52300 camera housing and IK-WBLA wall bracket to mount the camera securely to a wall.
The ISD-2500HD box camera uses a 2/3" CMOS sensor and HD-SDI technology to capture 1280 x 720 at up to 30 fps over standard coax cable. The camera's ultra-low light sensitivity allows it to capture clear images down to 0.00004 lux.
The Myutron 9.6-240mm varifocal lens features DC iris control and has a large f/1.9 aperture to produce accurate images in low-light scenes. The IKH-52300 outdoor housing is an IP66- and IP67-rated camera housing that attaches to the included wall bracket in order to provide a complete mounting solution for outdoor use. The housing has an integrated triple heater and a built-in wiper to ensure constant operation even in extreme temperatures. - ISD-2500HD 1.47MP HD-SDI Box Camera (No Lens) The ISD-2500HD 1.47MP HD-SDI Box Camera (No Lens) from Ikegami utilizes a 2/3" CMOS sensor and HD-SDI technology to capture 1280 x 720 at up to 30 fps over standard coax cable when used with a compatible lens (available separately). The camera's ultra low light sensitivity allows it to capture clear images down to 0.00004 lux. A CS-mount provides compatibility with many lenses to suit your needs.
The camera features a defog function to detect and correct distortion caused by bad weather, ensuring clear images are captured. Wide Dynamic Range (WDR) further helps the camera produce accurate images in varying lighting conditions. - 1.47MP 2/3" CMOS sensor with ultra low light sensitivity
- Capture 720p video using HD-SDI technology
- IR cut filter for automatic switching between day and night to produce accurate images in low light scenes
- Defog function and WDR help correct distortion for accurate image reproduction
- CS-mount for a wide range of lens compatibility
In the Box Bundle Items ISD-2500HD 1.47MP HD-SDI Box Camera (No Lens)
Also Includes - Myutron 2/3" C-Mount 9.6-240mm f/1.9-3.7 25x Motorized Zoom Lens
- IKH-52300 Outdoor Housing for ISD2500HD Single-Chip Camera
- IK-WBLA Wall Bracket for IKH52300 Housing (Beige)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami KIT-ISD2500-J25 1.47MP HD-SDI Box Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ISD-2500HD 1.47MP HD-SDI Box Camera (No Lens)
| Image Sensor | 1.47 MP 2/3" CMOS sensor | | Encoding | NTSC and PAL | | Effective Pixels (H x V) | 1280 x 720 | | Synchronization | Internal | | Video Output | HD: HD-SDI 1080 (59.94i, 50i, 30p, 29.97p, 25p)
720 (60p, 59.94p, 50p, 30p, 29.97p, 25p)
SD: VBS NTSC/PAL | | External Control | RS-485 | | Horizontal Resolution | 650 TVL (or more) | | Sensitivity | f/22 at 2000 lux | | Minimum Illumination | Color: 0.00016 lux at f/1.2 50%
B&W: 0.00004 lux at f/1.2 50% | | Day/Night | Auto / remote / manual switchable | | Lens Mount | CS-mount | | Auto Iris | DC iris | | AGC (Automatic Gain Control) | On (AGC / hyper-AGC) / Off (low / middle / high) | | Shutter | Electrical: OFF, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, variable
Automatic: On / off | | Slow Shutter | 1, 2, 4, 6, 8, 12, 16, 24, 32, 64x
Off / auto (S/N, STD, move) / manual | | Backlight Compensation | On / off / stop | | White Balance | ATW1, ATW2, AWC, Manual | | Wide Dynamic Range | Off / WDR / auto knee / auto black stretch | | De-Fog | Off / On | | Gamma Correction | 0.45 / 0.75 / 1 | | Noise Reduction | Yes | | Digital Zoom | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10x | | Privacy Masking | Maximum 8 areas (gray / white / black) | | Focus Assist | Focus EZ | | Camera ID | Maximum 24 characters | | Image Flip | Normal / flip / mirror / flip & mirror | | Lens Flange Back | Available with adjustment mechanism | | Power Requirement | 12 VDC ± 10%, 24 VAC ± 10% 50/60 Hz | | Power Consumption | 6 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 30 to 90%, non-condensing | | Dimensions | Camera Body: 3.1 x 2.3 x 5.5" (78 x 58 x 140 mm) | | Weight | 1.4 lb (650 g) approximately |
