Product description

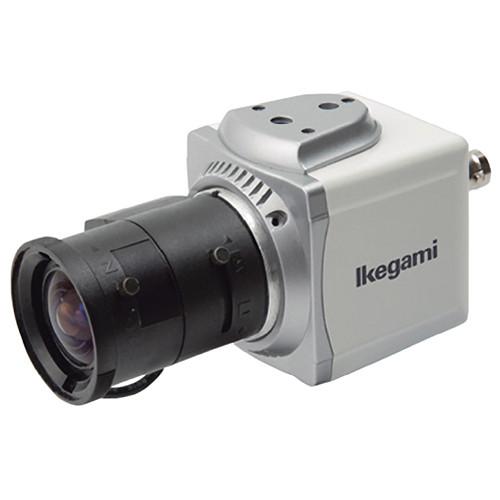

• ISD-A15 Hyper Wide Light Dynamic Compact Cube Color Camera The Ikegami ISD-A15 Hyper Wide Light Dynamic Compact Cube Color Camera is specifically designed for use in surveillance areas that require discreet monitoring, such as retail stores, banks, and office buildings. With its Pixim Seawolf DPS CMOS sensor, the camera accurately captures every aspect of any scene and reproduces high-resolution images up to 520 TVL. The camera's Hyper Wide Light Dynamic Range feature strikes a proper balance between the bright and dark regions of an image to highlight the important details of a scene. In addition to the wide dynamic control, automatic sensitivity control function helps achieve optimally bright images even with iris lenses. Once you've adjusted the camera as per your requirement, you can select the scene file function to store the settings for up to 4 different shooting conditions. This way you can easily set up a scene quickly without any special adjustment. Its compact and lightweight cube body gives it the flexibility to be installed in a broad array of locations such as ATM machines.
  • 1/3" Pixim Seawolf DPS CMOS sensor captures high resolution images up to 520 TVL (690 HTVL - effective)
  • Operates well in locations even with a minimum illumination of 0.3 lux at F1.4
  • Auto iris function constantly adjusts the iris opening on the lens according to the available light levels to maintain picture clarity in varied lighting conditions
  • Digital Day/Night function drops the intensity of color in low light and allows the camera to reproduce crisp images
  • Hyper Wide Light Dynamic Range reproduces a clear and natural image even in locations where there is a significant difference in the intensity of illumination, such as window areas or lobby entrances of buildings
  • Automatic sensitivity control function helps achieve optimally bright images even with fixed iris lenses
  • Focus EZ feature ensures that an accurate focus can be set readily with the best depth of field
  • Automatic Gain Control adjusts the camera settings depending on the illumination conditions
  • White balance feature adjusts the red, green, and blue colors taking a standard white reference to get clear images
  • Scene file function uses up to 4 preset patterns, with the help of an external trigger these presets can be recalled to correct and enhance the video out signal
  • Privacy masking function allows you to block up to 8 configurable regions of an image for security reasons
  • Optional remote control function ¹

    Please Note:

    RC-ISD2012 Remote control sold separately. close
  • Supports NTSC and PAL standards
  • 24 VAC or 12 VDC dual voltage operation
• MGT2450 24VAC Plug-In Transformer The Ikegami MGT2450 24VAC Plug-In Transformer is a 50VA Class II plug-in power supply for CCTV cameras and panels. The MGT2450 is UL and CSA listed.
  • UL and CSA Listed
  • 24VAC
  • 50VA
• CAMH-400K 9" Outdoor Camera Housing Before you install your camera outdoors, you'll need to provide it with some sort of weather protection. The Ikegami CAMH-400K is an inexpensive enclosure that you can use with your Ikegami camera or with a fixed CCTV camera from any other manufacturer.
  • Compact outdoor housing, accommodates most camera and lens combinations

• Instruction Manual

• Hexagonal Wrench for Flange Focus Adjustment

• 1-Year Warranty

• 90-Day Limited Warranty

• 1-Year Warranty

Also Includes

• Limited 1-Year Warranty on Parts & Labor

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ISD-A15 Hyper Wide Light Dynamic Compact Cube Color Camera

  Image Sensor	1/3" DPS CMOS sensor
  Total Pixel Number	Approximately 410,000 pixels, 768 (H) x 540 (V)
  Scanning System	NTSC: 525 TVL / 59.94 Hz, 2 : 1 interlaced PAL: 625 TVL / 50 Hz, 2 : 1 interlaced
  Sync System	Internal sync (crystal lock), external sync (AC Line Lock)
  Video Output	VBS 1.0 Vpp / 75 ohms
  Horizontal Resolution	520 TVL (690 HTVL-Effective)
  S/N Ratio	50 dB (p-p/rms)
  Minimum Illumination	0.3 lux / F1.4 (electronic sens. up OFF, VBS output 50%)
  Day & Night	Built-in, AUTO/MANUAL selectable, Digital Day/Night function
  Wide Dynamic Range	Built-in and variable
  AGC (Automatic Gain Control)	ON (AGC, HYPER-AGC) / OFF (LOW, MID, HIGH), selectable
  Electronic Sensitivity Control	Built-in, ON (AUTO) / OFF selectable (maximum 32 times)
  White Balance	ATW / ATWex / AWC / MANU, selectable
  Detail Correction	Built-in
  Digital Noise Reduction (DNR)	Built-in, On / OFF selectable (DNR function)
  Color Rolling Reduction	Built-in, On / OFF selectable (CRR function)
  Privacy Masking	Built-in (maximum 8 zones)
  Monitor Output Selection	Built-in, CRT / LCD selectable
  Camera ID	Up to 24 characters (alphanumeric & symbols)
  Remote Setup	Available (with an optional remote setup unit)
  Lens Mount	CS Mount (C mount adaptor is available as an option)
  Auto Iris	DC Iris (DC Iris level adjustable)
  Flange Focus	Built-in and adjustable
  Power Requirement	24 VAC ±10%, 50/60 Hz 12 VDC (10.5 to 15 V)
  Power Consumption	2.2 W
  Input/Output Connectors	VIDEO OUT -- BNC LENS -- 4P (applicable plug E4-191J-150 or equivalent) 12 VDC / 24 VAC input -- 2P
  Relative Humidity	RH 30 to 90% (no condensation)
  Operating Temperature	13.5 to 122°F (-10 to 50°C)
  Dimensions (W x H x D)	2.05 x 2.05 x 2.16" (52 x 52 x 55 mm) excluding protrusions
  Weight	Approximately 0.44 lb (200 g)

  Box Dimensions (LxWxH)	6.1 x 4.45 x 3.35"

• CAMH-400K 9" Outdoor Camera Housing

  Indoor/Outdoor	Outdoor
  Mount Type	Wall
  Compatible Cameras	Any fixed camera
  Clear or Tinted	Clear
  Maximum Camera/Lens Size	Not Specified by Manufacturer
  Construction	Aluminum
  Operating Temperature	Not Specified by Manufacturer
  Dimensions (WxHxD)	6 x 4.5 x 9" (152 x 114 x 229mm)
  Weight	2.2 lbs (1kg)

  Box Dimensions (LxWxH)	16.0 x 17.0 x 6.0"

• MGT2450 24VAC Plug-In Transformer
