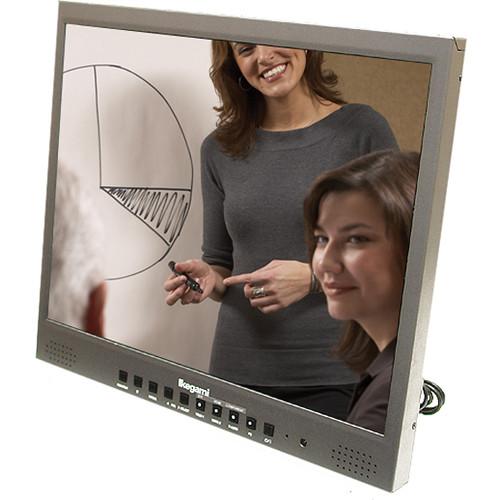

Product description The Ikegami LCM-151 TFT Color LCD Monitor (15") offers a high-resolution of XGA (1024 x 768) with a contrast ratio of 700:1 and 250cd/m² brightness with a viewing angle of 140° (H) and 125° (V). The monitor accepts Composite A/B, S-Video (Y/C), and PC inputs and offers loop-through composite video. While a 3D comb filter and deinterlacing reduces visual artifacts such as dot crawl for improved image quality, the response time of 8ms ensures minimal ghosting of images.For added strength and durability, the LCM-151 LCD monitor is equipped with a front LCD protection glass and a metal frame. A remote control is included with the unit and the power required is 100-240 VAC. The monitor can be mounted on a rack using the optional IK-RMK-08 rack mount adapter and is suitable for security surveillance applications. - 15" TFT color LCD monitor
- High resolution - XGA (1024 x 768)
- Viewing angle - 140° (H) / 125° (V)
- Composite A/B / S-Video (Y/C) / PC IN
- Loop-through composite video
- 3D comb filter and deinterlacing reduce visual artifacts such as dot crawl for improved image quality
- Front LCD protection glass and a metal frame for added strength and durability
- Mounted on a rack using the optional IK-RMK-08 rack mount adapter
- Suitable for security surveillance applications
- Power - 100-240 VAC @ 50/60Hz (with AC adapter)
- FCC / CE / RoHS compliant
UPC: 681716301539 In the Box Ikegami LCM-151 TFT Color LCD Monitor (15") Power Cord (USA Type, Length 5.9'/1.8m) Power Adapter RGB Cable (Length 4.9'/1.5m) Installation/Operation Manual Remote Control Battery AAA x 2 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami LCM-151 TFT Color LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami LCM-151 Specs | Type | 15" TFT LCD | | Colors | 16.8M colors | | Pixel Pitch | 0.297mm x 0.297mm | | Aspect Ratio | 4:3 | | Contrast Ratio | 700:1 (Typical) | | Luminance | 250cd/m2 | | Response Time | 8msec (Typical) | | Video Impedance | 75 Ohms | | Resolution | XGA (1024 x 768) | | Viewing Angle | L/R 140 degrees, U/D 125 degrees | | Active Area | 304.128mm x 228.096mm | | Video System | NTSC / PAL / SECAM | | Panel Life | 35,000 hours | | Connectors | Composite BNC IN/OUT x2
S-Video IN/OUT x1
Video Audio L/R x1
PC Audio x1
D-Sub 15P IN (PC) x1 | | Sync | (PC sync)
H Sync Frequency: 31 ~ 48KHz
V Sync Frequency: 55 ~75Hz | | Built-in Speaker | 2W x2 | | Front Panel Control | Menu/exit, auto, volume, video 1, video 2, S-video, PC, power | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Power | Power Input: DC12V/3A (includes AC Adaptor AC100V ~ 240V; 50/60Hz)
Power Consumption: Maximum 25W (DPMS under 3W) | | VESA Mount Size | 100 x 100mm | | Dimensions (WxHxD) | Approx. 13.7 x 11.7 x 3.8" (348 x 298 x 96.1mm) | | Weight | Approx. 10.6 lbs (4.8kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 20.787 x 16.929 x 6.693" |
