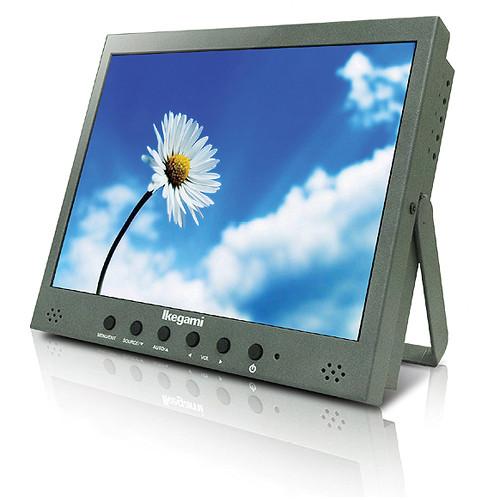

User Manual for Ikegami LCM-971 9.7" High Resolution LED Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami LCM-971 9.7" High Resolution LED
- Product category: Surveillance Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Surveillance Monitors
|
User manual for the Ikegami LCM-971 9.7" High Resolution LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami LCM-971 9.7" High Resolution LED Monitor delivers images in 6-bit, 262,144 colors at a resolution of up to 1024 x 768 at 75 Hz. It has a contrast ratio of 600:1, a luminance of 300 cd/m², and a wide 178° viewing angle, which will allow you to view the images clearly even from room corners or when the monitor is mounted at height. With a response time of less than 35 ms, the monitor displays clear images with minimal blurring.
The integrated 2.5D comb filter and deinterlacer are designed to ensure that dot crawl is reduced to produce a sharp picture with reduced noise. The deinterlace circuitry converts interlaced video, such as common analog television signals or 1080i format HDTV signals, into a non-interlaced form. The built-in 2W mono speaker provides sound to augment the multimedia experience, eliminating the need for external speakers. The monitor features a metal chassis with a tilt-back stand. - 2.5D comb filter, deinterlacing, noise reduction
- 1024 x 768 at 75 Hz maximum resolution
- BNC video in x 2 / out x 2, S-Video in x 1, HDMI in x 1, VGA in x 1
- Audio in x 1, PC stereo x 1
- LED BLU (back light unit) display monitor
- 300 cd/m² high brightness
UPC: 681716009718 In the Box Ikegami LCM-971 9.7" High Resolution LED Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami LCM-971 9.7" High Resolution LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami LCM-971 Specs | | | Screen Size | 9.7" (25 cm) | | Viewable Area | (H x V): 7.74 x 5.81" (196.61 x 147.46 mm) | | Pixel Dot Pitch | 0.192 x 0.192 mm | | Display Color | 262,144 colors (6-bit) | | Resolution | 1024 x 768 @ 75 Hz | | Contrast Ratio | 600:1 | | Brightness | 300 cd/m² | | Viewing Angle | 178° / 178° | | Response Time | < 35 msec | | | | System | NTSC / PAL | | Aspect Ratio | Correction: 4:3 | | Color Temperature | Normal / 6500 K / 9300 K | | | | Input | Video (composite): BNC jack x 2
S-Video (Y/C): Din jack x 1
PC Analog: D-sub 15-pin x 1
HDMI x 1
Audio: RCA jack x 1
PC Stereo jack x 1 | | Output | Video (composite): BNC jack x 2
Audio: No | | | | Power Supply | 100 to 240 VAC (50 / 60 Hz)
12 VDC / 1.5 A | | Consumption | < 20 W | | | | Rackmountable | Dual | | VESA Mount Size | 75 x 75 mm | | Regulations | CE, FCC, CE-Emc | | Dimensions (W x H x D) | 8.47 x 7.44 x 1.75" (215 x 189 x 44.5 mm) | | Weight | 3.75 lb (1.7 kg) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 12.2 x 11.1 x 5.3" |
