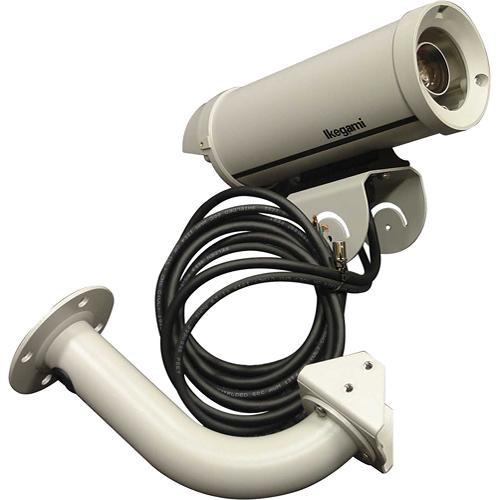

Product description The Ikegami PAC-508 OD combines a high resolution camera, varifocal lens, outdoor camera housing, and wall bracket in a single package that is both stylish and easy to install. To speed installation, this package comes pre-assembled from the manufacturer, and is also pre-wired with 5' video and power cables. You'll also appreciate the way the cables can be threaded through the bracket via a 1/2" conduit connection for a secure and neat install.
These Ikegami 'PAC' series kits are available with either the ICD-508 or ICD-509 cameras. While both are called Day/Night cameras, only the ICD-509 is a true Day/Night camera with an IR cut filter mechanism, while the ICD-508 simply switches from color to B/W to enhance low light images. The ICD-509 also offers a higher resolution and a slightly better signal to noise ratio. Camera - High Sensitivity
- With its high sensitive 1/3" CCD along with ON-Chip Micro Lens and high performance signal processing, this camera delivers high sensitivity with a minimum illumination of 0.35 lux at F1.2.
- High Performance
- A Lower Smear level of -110dB, a low noise design and optimum detail compensation by DSP provide excellent 48dB S/N ratio as well as crisp and sharpness images. All these are in addition to its high resolution of over 520 TV lines.
- Auto White Balance
- Thanks to an Auto Tracking White Balance (ATW) function, appropriate correction can always be achieved to compensate for changes in the color temperature of the scene.
- AES and BLC
- An Automatic Electronic Shutter (AES) and a high quality Back Light Compensation (BLC) function further aid the camera in maintaining optimum image quality in a variety of lighting environments.
- LL and INT Lock
- The camera supports AC Line Lock and Crystal Internal Lock to ensure roll-free camera switching.
- Auto Iris Function
- An auto iris function auto adjusts the iris on the lens in response to changing light intensities.

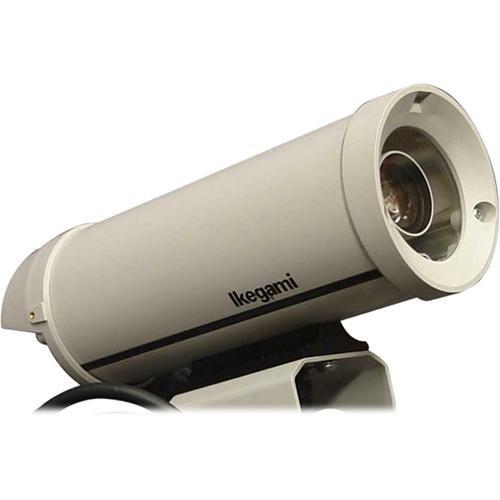

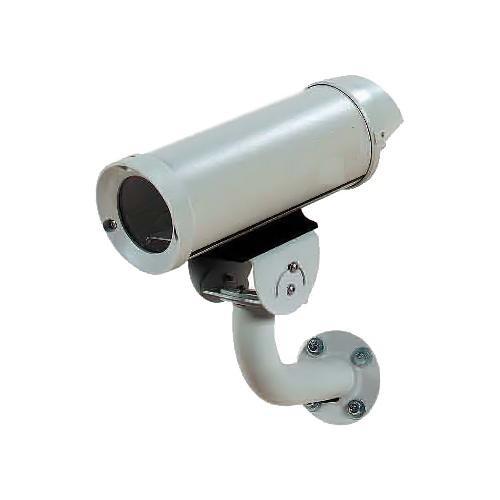

Housing - Aluminum and advanced polymer construction
- Cylindrical shape for maximum rain protection
- Sleek look complements modern installations
- Full camera accessibility
In the Box Ikegami PAC-508 OD Pre-Assembled Outdoor Day & Night Camera Hi-Res Camera (ICD-508) 2.8-12mm F1.4 Lens 10.9" (0.3 m) Outdoor Housing (HS9480) Wall Mount Bracket (MT9215S) 5' (1.5 m) Pre-Wired BNC Cable 5' (1.5 m) Power Cable 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami PAC-508 OD Pre-Assembled Outdoor Day & Night Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami PAC-508 OD Specs | | | Signal System | NTSC | | Image Sensor | 1/3" Color | | Number of Pixels | 380,000 | | Resolution | 768 x 494
520 TV Lines | | Lens | 2.8-12mm , F1.4 Lens (CS mount) | | Iris Operation | Supplied lens is DC Iris (camera supports DC/Video iris) | | Minimum Illumination | ACK Off Color
F1.2: 0.35 lux (30 IRE), 0.7 lux (50 IRE)
F1.0: 0.25 lux (30 IRE), 0.5 lux (50 IRE)
ACK On Monochrome
F1.2: 0.15 lux (30 IRE), 0.3 lux (50 IRE)
F1.0: 0.10 lux (30 IRE), 0.2 lux (50 IRE) | | IR Illumination | No | | Signal-to-Noise Ratio | >48dB (AGC OFF, Detail OFF, Weight ON) | | Controls | Day/Night: No IR cut filter
White Balance: TTL method, ATW
BLC: On/Off, switchable
AES: On/Off, switchable, AES range 1:1600
ACK: On/Off, switchable | | Video Output | Video: BNC
Genlock: BNC
Auto Iris Output: 4-Pin Square Type D4-151N-100 (or Equivalent) | | Audio Output | No | | Sync System | Internal or Line Lock | | Power Requirements | 24VAC | | Power Consumption | <4W | | Operating Temperature | 13.5-122°F (-10-50°C) | | Dimensions (WxHxD) | 2.4 x 2.2 x 3.7" (6.2 x 5.5 x 9.8 cm) | | Weight | 0.8 lb (370 g) | | | | Housing | Construction: Aluminum and advanced polymer
Heater: No
Dimensions (HxD): 3.8 x 10.9" (96 x 277mm) | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 14.7 x 11.9 x 10.0" |
