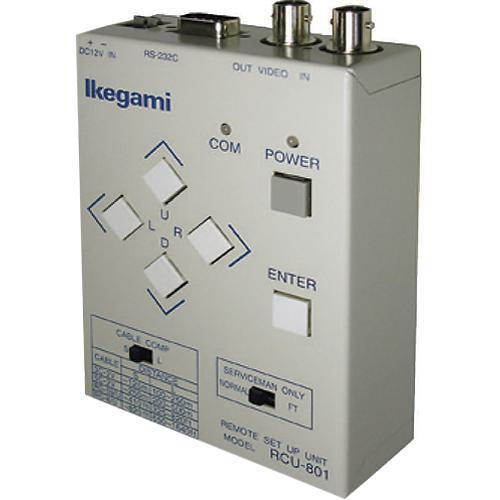

User Manual for Ikegami RCU-801 Remote Control Unit for ICD-8X8, ICD-8X9, ISD-A21 Cameras Click to enlarge the picture
Contents of the user manual for the Ikegami RCU-801 Remote Control Unit for
- Product category: Interface Modules Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Interface Modules
|
User manual for the Ikegami RCU-801 Remote Control Unit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami RCU-801 is a remote control box for camera setup menus and features available through the On-Screen-Display. It is designed for the ICD-8X8, ICD-8X9, ISD-A21 Series. It can also be used with the ICD-700, ICD-703, ICD703W, ICD-803, OCD-374 and the ICD-870, however not through the RC232C control. This DC12V or AA Battery operated control box makes camera setup and adjustment effortless and is particularly useful when camera installation location is not easily accessible. In the Box Ikegami RCU-801 Remote Control Unit for ICD-8X8, ICD-8X9, ISD-A21 Cameras Operation Manual 4 x AA Batteries 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami RCU-801 Remote Control Unit for ICD-8X8, ICD-8X9, ISD-A21 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami RCU-801 Specs | Compatible Devices | ICD-8X8, ICD-8X9, ISD-A21 Series ICD-700, 703, 703W, 803, 374 or 870 | | Maximum Device Control | 1 camera | | Maximum Number of Controllers Supported | Not Specified By Manufacturer | | Control Interface | RS-232C | | Control Protocol | Asynchronous | | Baud Rate | 4800bps or 9600 bps | | Video Inputs | BNC | | Video Outputs | 1.0Vp-p/75ohms | | Power Requirements | DC12V or AA Battery | | Power Consumption | Approx. 1.2W (External DC power) | | Operating Temperature | 41 - 122°F (5 - 40°C) | | Dimensions (WxHxD) | 3.5 x 1.4 x 4.9" (88 X 35 X 125 mm) | | Weight | Less than 1.2 lbs (500 g) (excluding batteries) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.9 x 6.9 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
