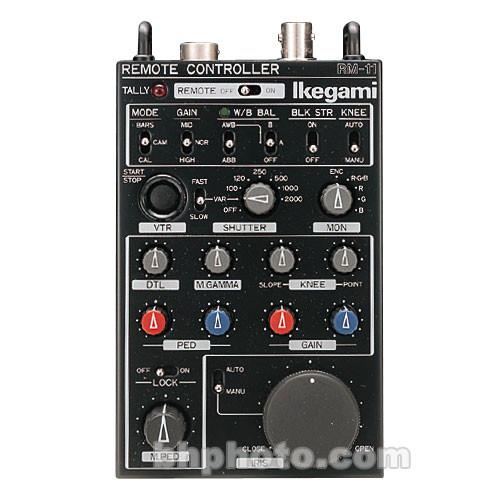

User Manual for Ikegami RM-11 Digital Remote Control "Paint-Box" for HL and HK Series Cameras and Camcorders Click to enlarge the picture
Contents of the user manual for the Ikegami RM-11 Digital Remote Control "Paint-Box"
- Product category: RCPs & MCPs Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami RCPs & MCPs
|
User manual for the Ikegami RM-11 Digital Remote Control "Paint-Box" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami RM-11 is a digital remote controller that is used to set up broadcast cameras for color and contrast parameters as well as controlling shutter, iris, white balance and gain controls. It is made to be used with HL and HC cameras and camcorders. The RM-11 can also be used as a control panel for the BS-45 Base station or the OCP-45 control panel. The paint-box uses RC-45 prefix cables for the HL-45 camera. The other cameras use RC-10 prefix cables. Cables length run from 3 meters to 30 meters. A similar model called the RM-11NA was designed with the HL-59WNA camera in mind. Where the standard RM-11 has a switch for 3 menu selected gain values the RM-11NA allows for gain selection using an UP/DOWN switch. This system gives the user access to the full range of gain values without having to access the camera menu. The HL-59WNA where access to the camera body to pre-select gain positions is often difficult. - Color, Contrast and Other Camera Controls
- For such a small and lightweight box the RM-11 does an amazing amount of work. The unit has switches and knobs for controlling Test Bars, Gain, White Balance, Black Stretch, Shutter selection, Scan Matching function, Gamma settings and more critical picture-look functions.
In the Box Ikegami RM-11 Digital Remote Control "Paint-Box" for HL and HK Series Cameras and Camcorders 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami RM-11 Digital Remote Control "Paint-Box" for HL and HK Series Cameras and Camcorders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami RM-11 Specs | Input and Output Connectors | Camera- 10-Pin (x 1 output only)
Monitor- BNC (x 1 output only) | | Power Requirements | 12 Volts DC | | Power Consumption | 1 Watt at 12 Volts | | Dimensions (WxHxD) | 3.15 x 4.88 x 1.34 inches
80 x 124 x 34 mm | | Weight | 10.6 Oz.
300 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
