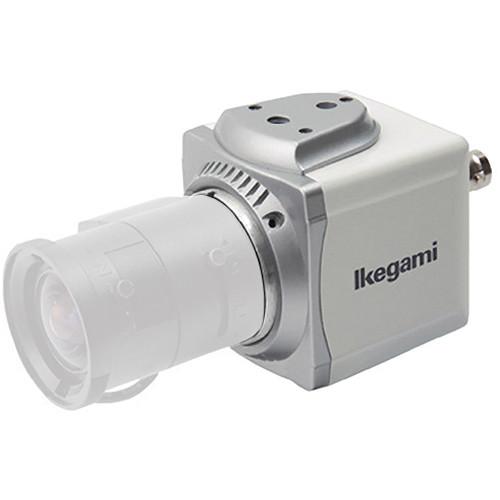

User Manual for Ikegami SD-A15-TDN Hyper Wide Light Dynamic Compact Cube Color Camera Kit Click to enlarge the picture
Contents of the user manual for the Ikegami SD-A15-TDN Hyper Wide Light Dynamic
- Product category: Wired Analog & HD Cameras Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Wired Analog & HD Cameras
|
User manual for the Ikegami SD-A15-TDN Hyper Wide Light Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami ISD-A15-TDN Hyper Wide Light Dynamic Compact Cube Color Camera Kit with true day/night function is specifically designed for use in surveillance areas that require discreet monitoring, such as retail stores, banks, and office buildings. With its Pixim Seawolf DPS CMOS sensor, the camera accurately captures every aspect of any scene and reproduces high-resolution images. Its built-in 5-50mm varifocal lens enhances details to capture crisp images up to 520 TVL. The camera's Hyper Wide Light Dynamic Range feature strikes a proper balance between the bright and dark regions of an image to highlight the important details of a scene.
Defined by its true day & night function with a filter wheel (IR cut filter), the camera ensures accurate color reproduction during the day and enhanced B&W images at night. In addition to the wide dynamic control, the automatic sensitivity control function helps achieve optimally bright images even with iris lenses. Once you've adjusted the camera as per your requirement, you can select the scene file function to store the settings for up to 4 different shooting conditions. This way you can easily set up a scene quickly without any special adjustment.
Its compact and lightweight cube body gives it the flexibility to be installed in a broad array of locations such as ATM machines. - 1/3" Pixim Seawolf DPS CMOS sensor and 5-50mm varifocal lens
- Captures high resolution images up to 520 TVL (690 HTVL - effective)
- Operates well in locations even with a minimum illumination of 0.3 lux at F1.4
- Auto iris function constantly adjusts the iris opening on the lens according to the available light levels to maintain picture clarity in varied lighting conditions
- True day/night function with a filter wheel (IR cut filter) ensures accurate color reproduction during the day and enhanced B&W images at night
- Hyper Wide Light Dynamic Range reproduces a clear and natural image even in locations where there is a significant difference in the intensity of illumination, such as window areas or lobby entrances of buildings
- Automatic sensitivity control function helps achieve optimally bright images even with fixed iris lenses
- Focus EZ feature ensures that an accurate focus can be set readily with the best depth of field
- Automatic Gain Control adjusts the camera settings depending on the illumination conditions
- White balance feature adjusts the red, green, and blue colors taking a standard white reference to get clear images
- Scene file function uses up to 4 preset patterns, with the help of an external trigger these presets can be recalled to correct and enhance the video out signal
- Privacy masking function allows you to block up to 8 configurable regions of an image for security reasons
- Optional remote control function 1
Please Note: RC-ISD2012 Remote control sold separately. close - Supports NTSC and PAL standards
- 24 VAC or 12 VDC dual voltage operation
In the Box Ikegami SD-A15-TDN Hyper Wide Light Dynamic Compact Cube Color Camera Kit Instruction Manual Hexagonal Wrench for Flange Focus Adjustment 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami SD-A15-TDN Hyper Wide Light Dynamic Compact Cube Color Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ISD-A15 Specs | Image Sensor | 1/3" DPS CMOS sensor | | Total Pixel Number | Approximately 410,000 pixels, 768 (H) x 540 (V) | | Scanning System | NTSC: 525 TVL / 59.94 Hz, 2:1 interlaced
PAL: 625 TVL / 50 Hz, 2:1 interlaced | | Sync System | Internal sync (crystal lock), external sync (AC Line Lock) | | Video Output | VBS 1.0 Vpp / 75 ohms | | Horizontal Resolution | 520 TVL (690 HTVL-Effective) | | Lens | 5 to 50 mm varifocal lens | | Iris Operation | Auto DC | | Iris Range | F1.6 | | Zoom | Manual | | S/N Ratio | 50 dB (p-p/rms) | | Minimum Illumination | 0.3 lux / F1.4 (electronic sens. up OFF, VBS output 50%) | | Day & Night | Built-in, AUTO/MANUAL selectable, True Day/Night function | | Wide Dynamic Range | Built-in and variable | | AGC (Automatic Gain Control) | ON (AGC, HYPER-AGC) / OFF (LOW, MID, HIGH), selectable | | Electronic Sensitivity Control | Built-in, ON (AUTO) / OFF selectable (maximum 32 times) | | White Balance | ATW / ATWex / AWC / MANU, selectable | | Detail Correction | Built-in | | Digital Noise Reduction (DNR) | Built-in, On / OFF selectable (DNR function) | | Color Rolling Reduction | Built-in, On / OFF selectable (CRR function) | | Privacy Masking | Built-in (maximum 8 zones) | | Monitor Output Selection | Built-in, CRT/LCD selectable | | Camera ID | Up to 24 characters (alphanumeric & symbols) | | Remote Setup | Available (with an optional remote setup unit) | | Lens Mount | CS Mount (C mount adaptor is available as an option) | | Auto Iris | DC Iris (DC Iris level adjustable) | | Flange Focus | Built-in and adjustable | | Power Requirement | 24 VAC ±10%, 50/60 Hz 12 VDC (10.5 to 15 V) | | Power Consumption | 2.2 W | | Input/Output Connectors | VIDEO OUT -- BNC
LENS -- 4P (applicable plug E4-191J-150 or equivalent)
12 VDC / 24 VAC input -- 2P | | Relative Humidity | RH 30 to 90% (no condensation) | | Operating Temperature | 13.5 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 2.05 x 2.05 x 2.16" (52 x 52 x 55 mm) excluding protrusions | | Weight | Approximately 0.44 lb (200 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.0 x 9.0 x 7.0" |
