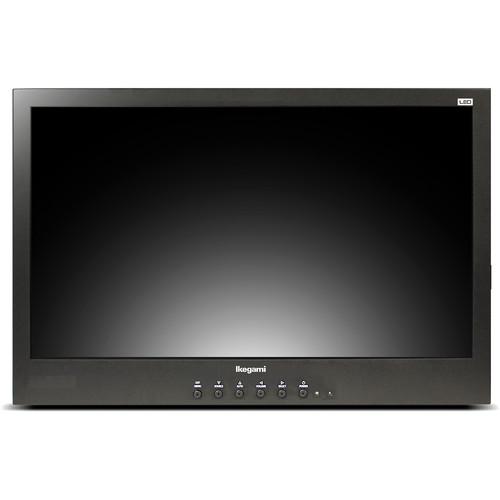

User Manual for Ikegami ULE-185U 18.5" HDTV Professional Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami ULE-185U 18.5" HDTV Professional Monitor
- Product category: Production Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Production Monitors
|
User manual for the Ikegami ULE-185U 18.5" HDTV Professional Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description Built for industrial applications, the Ikegami ULE-185U 18.5" HDTV Professional Monitor features high contrast and high-quality hardware scaling. The LED backlighting allows this monitor to run continuously without excessive effect on image quality, good for surveillance and other situations which require constant monitoring over long periods.With a multitude of inputs, the ULE-185U can accept input from almost any source. The rear input panel holds Composite, S-video, VGA, DVI, HDMI, and SDI terminals with loop outputs for Composite, S-video, and SDI. Analog audio is accepted through RCA stereo inputs for the Composite and S-video channels, and a 3.5mm stereo jack for the VGA channel.A wireless remote control for accessing all functions of the monitor is included in the box, although, functionality can also be accessed using the front-panel controls. For professional installations, the monitor can be mounted in a rack with separately available rack ears or wall, ceiling, or otherwise mounted with separately available standard mounting hardware (see specs for compatibility). - Full HD 3G Multi-format LED monitor
- LED backlight to extend the lifetime and save power
- Non-glare surface coating
- SD / HD / 3G-SDI (level A) supported
- PC (VGA), Component, DVI-D and HDMI inputs
- PIP / PBP multi display function
UPC: 681716001859 In the Box Ikegami ULE-185U 18.5" HDTV Professional Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ULE-185U 18.5" HDTV Professional Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ULE-185U Specs | | | Screen Size | 18.5" (46.9 cm) | | Maximum Resolution | 1366 x 768 @ 60 Hz | | Pixel Pitch | 0.012 x 0.012" (0.300 x 0.300 mm) | | Surface | Non-glare coating | | Brightness | 250 cd/m² | | Contrast Ratio | 1000 : 1 | | Aspect Ratio | 16 : 9 | | Viewing Angle | 170° / 170° | | Display Color | < 5 ms (Gray to Gray) | | Response Time | 16.7 Million | | Video System | NTSC / PAL | | | | SDI Input & Output | 1 input / 1 output | | SD-SDI | 480i (59.94), 575i (50) | | HD-SDI | 720p (50, 59.94, 60)
1080i (50, 59.94, 60)
1080p (24, 25, 29.97, 30) | | 3G-SDI | 1080p (50, 59.94, 60) | | Video Input / Output | 2 input / 2 output | | S-Video In / Out | 1 input / 1 output | | DVI-D In / HDMI In | 1 input / 2 input | | VGA In (15Pin D-Sub) | 1 input | | Component | 1 input | | Audio In (RCA Type) | 3 left and right | | PC Stereo In | 1 input | | | | Material | Metal | | Power | < 2 7W
12 VDC / 3.33 A 100 - 240 VAC (50 / 60 Hz) | | Operating Temperature | 32 to 104°F (0 to 40 °C) | | Desktop Stand | Kick type | | Dimensions | 17.64 x 11.72 x 3.58" (44.8 x 29.7 x 9.1 cm) | | Weight | 10.58 lb (4.8 kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 21.5 x 18.3 x 9.4" |
