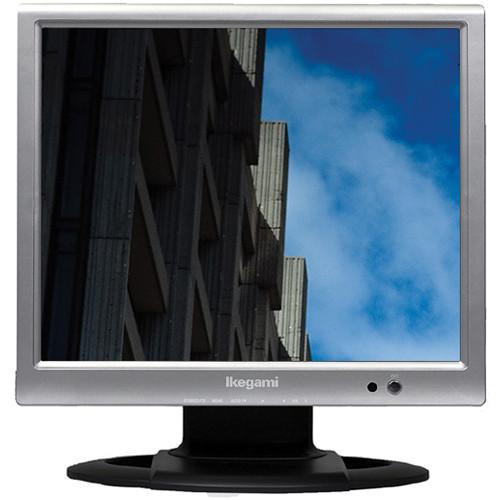

User Manual for Ikegami ULM-193 19" CCTV LCD Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami ULM-193 19" CCTV LCD Monitor
- Product category: Surveillance Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Surveillance Monitors
|
User manual for the Ikegami ULM-193 19" CCTV LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami ULM-193 is an Active Matrix super TFT LCD having a color reproduction of 16.2 million colors. It provides top quality images with a high resolution of 1280 x 1024 pixels. The monitor's 2D Comb Filters reduce artifacts such as dot crawl, and response time of 5msec. ensures minimal ghosting of images.
The TFT LCD has a viewing angle of 80° left/ right and up/down. With a resolution of 550 TVL, brightness of 300cd/m2, and contrast ratio of 800:1, it delivers accurate color reproduction required for CCTV video surveillance applications. Additionally, the unit has Stereo 4W (2W x 2) built-in speakers.
Maximum power consumption of the 19" TFT Color LCD Monitor is 50W. The monitor comes with a 100mm x 100mm VESA standard mounting bracket and can be mounted in a 19" EIA Standard Rack. - High resolution image 550 TVL
- Composite 1& 2-NTSC/PAL(BNC), S-Video(Y/C) and Analog VGA(D-Sub)
- Wide viewing angle - 160° (H/V)
- Loop-through composite video
- Fast response time of 5msec.
- Safety Standards (FCC, UL, RoHS)
UPC: 681716001934 In the Box Ikegami ULM-193 19" CCTV LCD Monitor 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ULM-193 19" CCTV LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ULM-193 Specs | Signal System | NTSC/PAL | | Screen Type | TFT Color LCD | | Screen Size | 19" | | Aspect Ratio | 4:3 | | Resolution | 1280 x 1024 / 550 TVL | | Pixel Pitch | 0.294mm x 0.294mm | | Brightness | 300cd/m2 | | Contrast Ratio | 800:1 | | Viewing Angle | 80/80° (L/R) | | Colors | 16M | | Response Time | 5msec. | | Speaker | x2 | | Video Inputs | VGA x1
BNC x2
S-Video x1 | | Video Outputs | BNC x2 | | Audio Inputs | RCA x1 | | Audio Out | No | | Mount | 100mm x 100mm | | Power Requirements | 100-264VAC | | Power Consumption | 50W max | | Operating Temperature | For indoor use | | Dimensions (WxHxD) | 19.5 x 19.9 x 9.3" (495 x 505 x 236mm) | | Weight | 18.54 lbs (8.4kg) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 10.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
