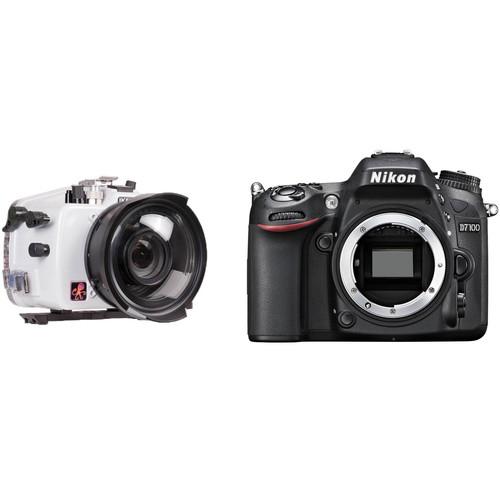

User Manual for Ikelite 200DL Underwater Housing and Nikon D7100 Camera Body Kit Click to enlarge the picture
Contents of the user manual for the Ikelite 200DL Underwater Housing and Nikon
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite 200DL Underwater Housing and Nikon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture full HD 1080i video and beautiful photos at depths as great as 200' with the 200DL Underwater Housing and Nikon D7100 Camera Body Kit from B&H. Bundling the durable waterproof enclosure with the 24.1MP digital SLR camera body, this package gets you well on your way to a photo or video adventure beneath the surface. Once you grab your favorite lens, the appropriate port, and a strobe or video light, you'll be ready to start your dive. - Ikelite 200DL Underwater Housing for Nikon D7100 or D7200 with Dry Lock Port Mount Capture brilliant images at depths as great as 200' with your Nikon D7100 or D7200 DSLR in Ikelite's 200DL Underwater Housing, which features their Dry Lock Port Mount and vacuum valve. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. Using an optional TTL hot shoe and the Nikon TTL Converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push-buttons, dials, and levers, afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the port chart. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface
- Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
- Nearly neutral buoyancy in fresh water
- Open-groove design suspends the rear O-ring in the natural position, allowing for easier maintenance and preventing accidental twisting or stretching
- Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
- Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
- Strobe Connection and Operation
-
- Use of an optional external strobe is highly recommended for color correction and adequate brightness, and basically essential once you descend deeper than 15-20' underwater
- Strobe restores hues that get absorbed by the water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from your subject to preserve natural colors in images
- Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
- Optional #46061 NT2 Nikon TTL hot shoe and #4301.3 Nikon TTL Converter enable TTL operation with compatible Ikelite DS strobes, which use #4103.51 Single and #4103.52 Dual Cords
- Exposure compensation can be adjusted using the control in the camera
- Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only, and can be attached via the following cords: #4118.1 Single INON or Sea & Sea, #4118.2 Dual INON or Sea & Sea, #4116.31 Single Nikonos SB, and #4116.32 Dual Nikonos SB
- Older non-digital strobes can be used in manual mode via #4103.51 Single and #4103.52 Dual Cords
- Housing ships without a required sync cord for a strobe
- Bulkhead has been moved to the top of the enclosure to keep the cord out of your way and reduce strain on the ends
- Optical Slave Converter and Aquatica Water Wizard system are available options that will allow you to trigger wireless slave strobes
- Controls and Handling
-
- Sensitive, redesigned shutter and AF-On levers are curved and extendable for comfortable use when holding the optional right-hand quick-release grip
- Extra-large, soft-touch zoom knob is located next to the grip handle
- Push-buttons have been modified to reduce weight and salt buildup
- Ergonomic mechanical push-buttons, dials, and levers afford access to all camera functions except for the mode dial lock release, AF mode button, focus mode selector, diopter adjustment control, Pv button, Fn button, and focus selector lock
- Control symbols are laser-etched into the back of the housing, so they won't fade or fall off with time
- Supereye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
- You can remove the Supereye quickly if you'd like to attach the optional Straight or 45° Magnified Viewfinder instead
- Hard-anodized aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- Optional right-hand grip can be added easily
- 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
- Tray is more than 3/4 lb lighter than Ikelite's previous model
- Housing is 1/2 lb lighter than its FL-mount counterpart
- Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light, GoPro action camera, or other lightweight piece of equipment
- Optional Cable Grip or Aluminum Top Handle can be added for easier carrying if you're using 2 strobes
- Lens Port System
-
- Ships without a required lens port
- Accepts all Ikelite Dry Lock (DL) dome and flat ports, allowing you to shoot with a wide variety of lenses
- Zoom gears are available for many lenses
- For complete compatibility details, see the port chart linked above
- DL port system accommodates lenses with large diameters
- Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
- #47011 pump is required in order to remove excess air and actually create a vacuum
- DL mount can be removed and replaced by the older FL (Four Lock) port locks, though this change would be irreversible unless you sent the housing back to Ikelite to have the DL mount installed again
UPC: 883711052779 - Nikon D7100 DSLR Camera (Body Only) The D7100 DSLR Camera from Nikon is a high performance, compact DSLR camera with high resolution photo and Full HD video capability. The 24.1MP DX-format CMOS sensor provides superior images with accurate colors and, designed without an optical low-pass filter, it maximizes its resolution for exceptionally sharp details. The EXPEED 3 image processor brings with it stable, high-speed response, including a continuous shooting speed of up to 6 frames per second. With an ISO sensitivity range that expands to a 25600 ISO equivalent, low-light photography is sharp and detailed with less noise and fast-moving subjects are captured with more accuracy and less blur. At the low end of ISO sensitivity (ISO 100) images display vibrant colors with rich tones. Autofocus performance on the D7100 is on par with professional-level DSLRs and includes a 51-point focus area with 15 cross-type sensors for detecting both vertical and horizontal variations to achieve fast, precise focus. The central cross-type sensor works down to f/8, which is an advantage when using compatible tele-converters. The D7100 features the option of a 1.3x crop which allows you to get closer to your subject, as well as providing more image size options and faster processing of your images, including a faster 7fps burst rate. Full HD 1080p video is supported on the D7100 and offers professional-level control including continuous autofocus, manual exposure control, a built-in stereo microphone and an external microphone and headphone jack. Recording at 60i, 50i, 30, 25 and 24 frames per second is possible and an HDMI output allows for direct screening on an HDTV. At 720p HD you can record at 60p frames per second for smooth slow-motion sequencing. A 3.2" 1229k-dot TFT-color LCD provides 100% coverage for accurate playback and live view composition and the pentaprism optical viewfinder features an OLED display element for clear reading of the camera's settings without removing your eye from the finder. Dual SD card slots offer large memory capacity and the ability to designate which images go to each card. A built-in flash with commander function supports Advanced Wireless Lighting and a hot-shoe/accessory mount is available for speedlights. The D7100 is lightweight and durable with magnesium alloy top and rear covers and weather sealing to prevent dust and moisture damage. The D7100 is compatible with all NIKKOR F mount lenses, both DX and FX format, and can provide wireless connectivity with the optional WU-1a Wireless Mobile Adapter. With the WU-1a and Nikon's free Wireless Mobile Utility app installed on your smartphone or tablet, you can instantly share images and use your phone or tablet as a Live View monitor.
- 24.1MP DX-Format Sensor + EXPEED 3 Image Processing System
- With its 24.1MP CMOS image sensor and Nikon's EXPEED 3 image processing system, the D7100 DSLR delivers high quality images with low noise. The EXPEED 3 image processor combined with 14-bit analog/digital conversion provides even tonal gradations while managing color, contrast, exposure, and noise resulting in brilliant image quality. EXPEED 3 also provides the D7100 with fast response time, autofocus speed and a rapid six frames-per-second (fps) burst speed up to 100 images.
- Omitted Optical Low Pass Filter
- The D7100 is designed without the optical low-pass filter which will allow the sensor to capture images with exceptional sharpness and detail.
- Full HD 1080p Video
- With full-time autofocus and manual exposure control during video recording, a built-in stereo microphone and an external stereo microphone jack, headphone and HDMI jacks, the D7100 achieves exceptional cinematic reproduction and quality. Record in several high-definition formats: 1080p at 60i/50i/30/25/24 fps or 720p at up to 60p for ultra-smooth slow-motion sequences. Dual SD card slots give you additional recording time, and an all new 60i function enables smooth playback on HDTVs or external monitors.
- 3.2" 1229k-dot LCD and Optical Viewfinder with OLED Display
- The D7100 features a new 3.2" ultra-high-resolution 1,229K-dot LCD monitor which provides crisp image playback, menu adjustments and Live View shooting. The pentaprism eye-level optical viewfinder contains a low-power consumption OLED display element for bright, high contrast data readout and provides 100% frame coverage.
- Fast Autofocus
- The D7100 uses 51 focus points, including 15 cross-type sensors for detecting both vertical and horizontal contrast variations, to achieve fast, precise focus.
- 1.3x Crop
- Get closer to your subject with the new 1.3x crop of DX sensor. Using the 1.3x crop option allows the 51 autofocus points to cover almost the entire frame as well as providing longer equivalent focal lengths and faster image processing.
- Built-in HDR
- Built-in HDR (High Dynamic Range) combines shots taken simultaneously at different exposures into one rich, high-contrast image. When shooting high contrast scenes with bright spots and shadows, HDR will create a balanced image in which no details are lost.
- Picture Control
- Picture Control gives you instant access to the color characteristics of your images and allows you to tweak colors for optimization or completely redesign the look of your image for creative variations.
- Spot White Balance
- Spot White Balance control for Live View shooting makes setting the white balance as easy as pointing to the area in the frame that should be white.
- Built-in i-TTL Flash and Speedlight Compatibility
- The built-in pop-up iTTL Speedlight offers wide-angle flash-coverage. The camera also has Wireless Commander support so users can maximize the potential of Nikon's creative lighting options. Using the integral flash set to Wireless Commander in combination with one or several off-camera Nikon Speedlights, you can create a unique look for each and every photograph. Up to eight Speedlights can be fired at once. A hot shoe/accessory mount is also available for external Speedlights.
- Dual Memory Card Slots
- The D7100 DSLR features dual SD card slots with SD, SDHC, SDXC memory card compatibility that offers a several recording options including designating separate NEF (RAW) JPEG and movie files.
- Durable Build and Weatherproofing
- The D7100 combines lightweight handling and durability with magnesium alloy top and rear covers and weather and dust sealing.
- Scene Modes
- Portrait, Landscape, Child, Sports, Close-up, Night Portrait, Night Landscape, Party/Indoor, Beach/Snow, Sunset, Dusk/dawn, Pet Portrait, Candlelight, Blossom, Autumn Colors, Food, Special Effects Mode (Nigh Vision, Color Sketch, Miniature, Selective Color, Silhouette, High Key, Low Key), User Setting 1, User Setting 2
- Playback
- Full-frame and Thumbnail (4, 9 or 72 images or calendar) Playback with playback zoom, Movie Playback, Photo and/or Movie Slide Shows, Histogram Display, Highlights, Photo Information, GPS Data Display and Auto Image Rotation
- Supported Languages
- Arabic, Bengali, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese (European and Brazilian), Romanian, Russian, Spanish, Swedish, Tamil, Thai, Turkish, Ukrainian, Vietnamese
- Optional WU-1a Wireless Mobile Adapter
- Connect the optional WU-1a Wireless Mobile Adapter to the D7100 and instantly transfer shots to a compatible smartphone or tablet, then upload them to the web, send by email or text-share them however you like. With Nikon's free Wireless Mobile Utility installed on your smartphone or tablet (available for both Android and iOS), you can also remotely control the D7100. Use your phone or tablet as a Live View monitor to take shots without having the camera in your hands.
UPC: 018208015139 In the Box - 200DL Underwater Housing for Nikon D7100 or D7200 with Dry Lock Port Mount cbbcbrcsxauddrttqwb
- O-Ring for Large SLR Housings
- 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
- Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
- Port Hole Cover for Housings with Dry Lock Mount
- DL Zoom Gear Retainer
- #0945.06 Tool for Zoom Gear Retainer
- ICS Bulkhead Cap (Replacement)
- 4-40 Hex Head Allen Wrench
- 1/16" Hex Head Allen Wrench for Gears on Housings
- 1/8" Hex Head Allen Wrench for Control Knobs on Housings
- #9299.68 Control + Push-Button Tip Accessory Package
- 2cc Tube of Silicone Lubricant for O-Rings
- Limited 2-Year Warranty
- Nikon - D7100 DSLR Camera (Body Only)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing and Nikon D7100 Camera Body Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ikelite 200DL Underwater Housing for Nikon D7100 or D7200 with Dry Lock Port Mount
| Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Access to all camera functions except for the following: Mode dial lock release, AF mode button, focus mode selector, diopter adjustment control, Pv button, Fn button, and focus selector lock | | Material of Construction | Polycarbonate and ABS plastic | | Lens Port | Ships without required lens port
Dry Lock (DL) interchangeable port system
Accepts dome and flat ports for a broad array of lenses, including those with large diameters
For complete compatibility details, see port chart linked in overview | | Buoyancy | Housing Only: Nearly neutral in fresh water
Complete System: Varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 bulkhead with manual hot shoe connection for optional external strobes
Optional TTL hot shoe and Nikon Converter will allow for TTL operation with compatible Ikelite DS strobes
Non-Ikelite strobes will still work in manual mode only | | Mounting | 1/4"-20 threaded mounts with 3.5" / 88.9 mm spacing for connecting included tray/base with left QR grip
Optional right-hand QR grip with extension available | | Dimensions | 9.4 x 7.0 x 6.5" / 23.9 x 17.8 x 16.5 cm | | Weight | 4.9 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 14.0 x 9.0 x 8.0" | - Nikon D7100 DSLR Camera (Body Only)
| | | Lens Mount | Nikon F | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | Actual: 24.71 Megapixel
Effective: 24.1 Megapixel | | Maximum Resolution | 6000 x 4000 | | Aspect Ratio | 3:2, 16:9 | | Sensor Type | CMOS | | Sensor Size | 23.5 x 15.6 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 100 to 6400 (Extended: 12800 to 25600) | | Shutter Speed | Electronic Shutter
1/8000 to 30 Seconds | | Metering Method | 3D Color Matrix, Center-Weighted Average, Spot | | Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3 EV Steps) | | White Balance | Auto, Cloudy, Daylight, Flash, Fluorescent, Fluorescent (Day White), Fluorescent (Natural White), Fluorescent (White), Fluorescent H, Incandescent, Kelvin, Preset Manual, Shade | | Interval Recording | Yes | | Self Timer | 2/5/10/20-Second Delay | | Mirror Lock-Up | Yes | | | | Recording Modes | MOV/H.264
Full HD (1920 x 1080) at 23.976p/25p/29.97p/50i/59.94i
HD (1280 x 720) at 50p/59.94p | | External Recording Modes | Full HD (1920 x 1080)
HD (1280 x 720) | | Recording Limit | Up to 20 Minutes for Full HD (1920 x 1080)
Up to 29 Minutes, 59 Seconds for HD (1280 x 720) | | Video Encoding | NTSC/PAL | | ISO Sensitivity | Auto: 100 to 6400 (Extended: 25600) | | Audio Recording | External Microphone Input | | Audio File Format | Linear PCM | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Focus Lock AF Area Mode, Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | 51 | | Autofocus Sensitivity | -2 to +19 EV | | | | Viewfinder Type | Optical (Pentaprism) | | Viewfinder Eye Point | 19.5 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.94x | | Diopter Adjustment | -2 to +1 m | | Monitor Size | 3.2" | | Monitor Resolution | 1,229,000 Dot | | Monitor Type | LCD | | | | Built-in Flash | Yes | | Flash Modes | Auto, Auto/Red-Eye Reduction, Fill Flash, First-Curtain Sync, Off, Rear Curtain/Slow Sync, Red-Eye Reduction, Second-Curtain Sync, Slow Sync, Slow Sync/Red-Eye Reduction | | Guide Number | 39' / 11.89 m at ISO 100 | | Maximum Sync Speed | 1/250 Second | | Flash Compensation | -3 to +1 EV (1/3, 1/2 EV Steps) | | Dedicated Flash System | iTTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 2 x SD/SDHC/SDXC | | Connectivity | 3.5mm Microphone, HDMI C (Mini), USB 2.0 | | Wireless | None | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Battery | 1 x EN-EL15 Rechargeable Lithium-Ion Battery Pack | | Dimensions (W x H x D) | 5.3 x 4.2 x 3.0" / 134.6 x 106.7 x 76.2 mm | | Weight | 1.49 lb / 675.85 g (Body Only) | | | | Box Dimensions (LxWxH) | 8.7 x 6.7 x 5.8" |
