Product description

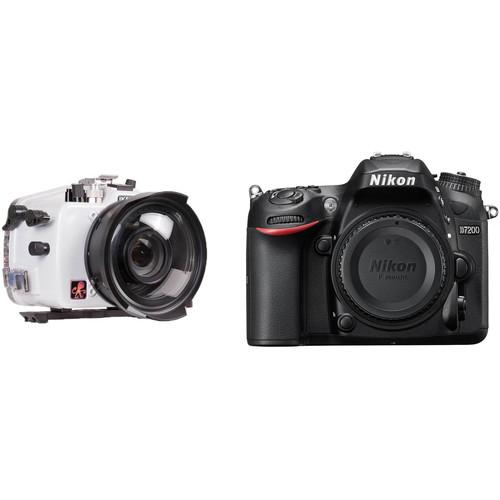

• Ikelite 200DL Underwater Housing for Nikon D7100 or D7200 with Dry Lock Port Mount Capture brilliant images at depths as great as 200' with your Nikon D7100 or D7200 DSLR in Ikelite's 200DL Underwater Housing, which features their Dry Lock Port Mount and vacuum valve. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. Using an optional TTL hot shoe and the Nikon TTL Converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.

  Ergonomic mechanical controls, including push-buttons, dials, and levers, afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.

  The housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the port chart. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum.
  Construction Details
  • • Depth rating of 200'
    • Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
    • White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface
    • Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
    • Nearly neutral buoyancy in fresh water
    • Open-groove design suspends the rear O-ring in the natural position, allowing for easier maintenance and preventing accidental twisting or stretching
    • Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
    • Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
  Strobe Connection and Operation
  • • Use of an optional external strobe is highly recommended for color correction and adequate brightness, and basically essential once you descend deeper than 15-20' underwater
    • Strobe restores hues that get absorbed by the water, so your images are vibrant and accurate
    • Try to stay no more than 3-4' away from your subject to preserve natural colors in images
    • Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
    • Optional #46061 NT2 Nikon TTL hot shoe and #4301.3 Nikon TTL Converter enable TTL operation with compatible Ikelite DS strobes, which use #4103.51 Single and #4103.52 Dual Cords
    • Exposure compensation can be adjusted using the control in the camera
    • Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only, and can be attached via the following cords: #4118.1 Single INON or Sea & Sea, #4118.2 Dual INON or Sea & Sea, #4116.31 Single Nikonos SB, and #4116.32 Dual Nikonos SB
    • Older non-digital strobes can be used in manual mode via #4103.51 Single and #4103.52 Dual Cords
    • Housing ships without a required sync cord for a strobe
    • Bulkhead has been moved to the top of the enclosure to keep the cord out of your way and reduce strain on the ends
    • Optical Slave Converter and Aquatica Water Wizard system are available options that will allow you to trigger wireless slave strobes
  Controls and Handling
  • • Sensitive, redesigned shutter and AF-On levers are curved and extendable for comfortable use when holding the optional right-hand quick-release grip
    • Extra-large, soft-touch zoom knob is located next to the grip handle
    • Push-buttons have been modified to reduce weight and salt buildup
    • Ergonomic mechanical push-buttons, dials, and levers afford access to all camera functions except for the mode dial lock release, AF mode button, focus mode selector, diopter adjustment control, Pv button, Fn button, and focus selector lock
    • Control symbols are laser-etched into the back of the housing, so they won't fade or fall off with time
    • Supereye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
    • You can remove the Supereye quickly if you'd like to attach the optional Straight or 45° Magnified Viewfinder instead
    • Hard-anodized aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
    • Optional right-hand grip can be added easily
    • 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
    • Tray is more than 3/4 lb lighter than Ikelite's previous model
    • Housing is 1/2 lb lighter than its FL-mount counterpart
    • Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light, GoPro action camera, or other lightweight piece of equipment
    • Optional Cable Grip or Aluminum Top Handle can be added for easier carrying if you're using 2 strobes
  Lens Port System
  • • Ships without a required lens port
    • Accepts all Ikelite Dry Lock (DL) dome and flat ports, allowing you to shoot with a wide variety of lenses
    • Zoom gears are available for many lenses
    • For complete compatibility details, see the port chart linked above
    • DL port system accommodates lenses with large diameters
    • Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
    • #47011 pump is required in order to remove excess air and actually create a vacuum
    • DL mount can be removed and replaced by the older FL (Four Lock) port locks, though this change would be irreversible unless you sent the housing back to Ikelite to have the DL mount installed again
  UPC: 883711052779
• Nikon D7200 DSLR Camera (Body Only) Poised to deliver in the most challenging of situations, Nikon's D7200 is a versatile DX-format DSLR that caters to both still photography and video users. Featuring a 24.2MP CMOS sensor which lacks an optical low-pass filter, and an EXPEED 4 image processor, the D7200 is able to record up to 6 fps at full-resolution, or 7 fps at a 1.3x crop, with a 100-frame buffer for extended high-speed shooting. This sensor and processor combination also avails a top native sensitivity of ISO 25600, which can further be expanded to black & white-dedicated ISO 51200 and ISO 102400 sensitivities. Full HD 1080p video recording is supported up to 60 fps, and in-camera time lapse shooting with automatic exposure smoothing is possible for up to 9,999 consecutive frames. In addition to the sheer imaging benefits, the D7200 also incorporates a large 3.2" 1,229k-dot LCD monitor, dual SD card slots, and features built-in snapbridge Wi-Fi connectivity with NFC for simple linking of your mobile device. Capable of performing in both still and video realms, the D7200 is an all-around shooter that blends sophisticated imaging technologies with refined handling and design.

  Rounding out its feature-set, the D7200 is also characterized by an apt 51-point AF system, with 15 cross-type points, for quick and accurate focusing in a variety of conditions. The 3D Color Matrix Metering II system, which utilizes a 2,016-pixel RGB sensor, also benefits the focusing capabilities in addition to providing precise exposure metering capabilities. Further realizing a complete imaging solution, a series of Picture Control profiles can be applied to refine the color and tonal handling of imagery.
  24.2MP DX-Format CMOS Sensor and EXPEED 4 Image Processor
  • The 24.2MP DX-format CMOS sensor enables recording high-resolution still imagery and full HD 1080p video with the utmost clarity, low noise, and smooth color gradations. The sensor's design also omits the traditional optical low-pass filter in order to gain increased image sharpness and resolution. Additionally, the sensor pairs with the advanced EXPEED 4 image processor to provide native sensitivity to ISO 25600, as well as expanded Hi BW1 ISO 51200 and Hi BW2 ISO 102400 sensitivities for monochromatic shooting in even dimmer lighting conditions.

    The sensor and processor combination also enables a top continuous shooting rate of 6 fps at full resolution, or 7 fps shooting at a 1.3x crop of the DX sensor area. Enhanced buffer capacity allows you to record up to 100 sequential JPEGs (Fine/Large), 27 12-bit NEF files, or 18 14-bit NEF files.
  Full HD Video Recording
  • The EXPEED 4 processing power extends beyond still imaging performance to benefit full HD 1080p video recording in multiple frame rates up to 60 fps, with the added ability to record 60/50p using just a 1.3x crop of the DX format for added reach while maintaining the full 1920 x 1080 resolution. During recording, fully manual control is possible over shutter speed and ISO settings, along with the ability to utilize Auto ISO adjustment in manual mode with a top sensitivity of ISO 25600. Zebra stripe highlighting can be applied to aid in controlling overexposure during recording, too, along with in-camera Picture Control profiles, custom tone curves, and a flat profile to benefit color grading applications. Recording to an optional external recorder is possible in order to gain uncompressed 4:2:2 8-bit output through the HDMI port and, when recording externally, use of the camera's LCD monitor for simultaneous live view monitoring is possible.

    In regard to audio recording, an in-camera stereo microphone can be used or, alternatively, an input is available for utilizing an optional external stereo microphone. Sound levels can be adjusted across 20 levels prior to and during recording, along with the ability to monitor audio via the headphone output. Additionally, the D7200 is compatible with the optional ME-W1 Wireless Microphone for recording clear mono sound of your subject up to 164' away.
  Advanced Multi-CAM 3500 II DX AF Sensor
  • Supporting the imaging capabilities of the D7200 is an apt autofocus system that employs up to 51 distinct points, with options available to use 9, 21, or all 51 points depending on the situation, with AF detection sensitivity down to -3 EV. 15 cross-type points are also integrated within this array to provide even greater accuracy to centrally-located subjects. Benefitting the use of telephoto lenses and teleconverters, the center-most point is also sensitive down to an aperture value of f/8. 3D Tracking, a part of the intelligent Scene Recognition System, also works to benefit maintained focusing on moving subjects for greater accuracy when shooting at high continuous shooting speeds. Furthermore, Single-point AF, Dynamic-area AF (with 9, 21, or 51 points selectable), 3D-tracking (using all 51 points), and Auto-area AF modes are also available. And when working in either horizontal or vertical shooting orientations, you can individually select your focus point and AF area settings to best fit the frame.

    When working in live view, for either still or movie shooting, a contrast-based AF system is employed to acquire focus precisely and can function in continuous, full-time servo mode to better-suit working with moving subjects.
  Scene Recognition System and Exposure Metering
  • The intelligent Scene Recognition System with 3D Color Matrix Metering II utilizes a 2,016-pixel RGB sensor to evaluate and analyze all aspects within a scene, including brightness, contrast, subject distance, and the scene colors, to quickly determine an accurate exposure and white balance setting to best render the scene at hand. The information gathered is also checked against onboard reference images to ensure consistency from image to image in regard to exposure, white balance, i-TTL flash settings, and subject-tracking AF performance.
  Camera Design Features
  • • A large 3.2" 1,229k-dot LCD monitor is incorporated into the D7200's design, and features an RGBW alignment for improved visibility when working in bright lighting conditions.
    • A bright pentaprism optical viewfinder offers 100% frame coverage and incorporates an organic EL display system to provide shooting information for seamless adjustment over camera settings without removing your eye from the viewfinder. Additionally, the optical glass features enhanced coatings for increased brightness, contrast, and color neutrality for more lifelike viewing.
    • A built-in pop-up flash can be used to provide additional illumination to scenes and can also be used as a flash commander to wirelessly communicate with other Nikon CLS-compatible Speedlights. Additionally, a hot shoe is available for utilizing optional external flashes.
    • Dual SD card slots are available to extend file saving capabilities by permitting either overflow recording or in-camera file duplicating. Additionally, optional HDMI-connected external recorders are supported for recording uncompressed video and time lapse sequences.
    • The front Pv button is designated as a depth of field preview button for manually checking your depth of field prior to shooting. This button, along with the front Fn button, can also be assigned to other shooting controls.
    • The included EN-EL15 rechargeable lithium-ion battery pack provides up to approximately 1110 shots or up to 80 minutes of recording per charge (based on CIPA standards).
  Snapbridge Wi-Fi Connectivity
  • Supporting a wealth of sharing and tagging possibilities, the D7200 features built-in snapbridge Wi-Fi connectivity to enable seamless transfer of imagery as well as remote shooting capabilities. Once the Nikon Wireless Mobile Utility app has been installed on an Android or iOS mobile device, you can use that device to browse the contents of the memory card, select images, and seamlessly transfer files between devices for immediate sharing online. Additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance. NFC (Near Field Communication) is also supported to provide a quick and simple tap-to-connect method for linking your mobile devices with the camera.

    For faster wireless performance, the D7200 is also compatible with the optional WT-5A Wireless Transmitter and UT-1 Communication Unit, which can transmit image files via FTP.
  Other Camera Features
  • • Pairing video and still imaging capabilities, in-camera time lapse shooting is possible using the built-in intervalometer to record up to 9,999 consecutive exposures at variable intervals. Exposure smoothing can also be applied to groups of sequentially-recorded images in order to produce a naturally-appearing time lapse straight from the camera.
    • Dedicated Photo Shooting and Movie Shooting menus aid in easily accessing dedicated settings and controls depending on the medium you are working with.
    • RAW (NEF) files can be recorded as lossless compressed or compressed at either 12 or 14-bit depth.
    • Automated exposure bracketing is possible for up to 9 frames with 1/3 or 1/2 EV steps between each frame.
    • Active D-Lighting helps to preserve both highlight and shadow details when working in contrast-rich scenarios, such as backlit lighting. Utilizing the EXPEED 4's processing power, a more controlled image will be produced with brightness values closer to how they are naturally seen. This mode is suitable for working with moving subjects.
    • Built-in HDR works to extend the tonal and exposure range of a single image by recording sequential exposures and blending them together in order to gain greater highlight and shadow details with an extended range of mid-tones. This mode is best suited for working with stationary subjects.
    • Auto ISO sensitivity control allows you to select a minimum shutter speed at which camera shake can be controlled from and then will automatically set the ISO value in order to best render the scene. A maximum sensitivity level can also be set in order to maintain overall noise levels.
    • Spot White Balance control for live view shooting makes setting the white balance as easy as pointing to the area in the frame that should be white.
    • MC-DC2 port enables the connection of optional accessories, such as remote shutter releases.
    • Picture Control modes allow you to set predefined looks to imagery in-camera and include Landscape, Neutral, Portrait, Standard, Vivid, Flat, and user-customizable settings. A Clarity control setting can be used to refine the amount of definition with each of these profiles, and fine-tuned control in 0.25-step increments allows you to adjust the settings to your personal needs.
    • Special Effects modes allow you to creatively enhance imagery in-camera: Night Vision, Color Sketch, Miniature Effect, Selective Color, Silhouette, High Key, and Low Key.
    • A range of scene modes can be employed to base exposure settings on pre-defined, detected scene types: Autumn Colors, Beach/Snow, Blossom, Candlelight, Child, Close-up, Dusk/Dawn, Food, Landscape, Night Landscape, Night Portrait, Party/Indoor, Pet Portrait, Sports, and Sunset.
    • In-camera image editing: Color Balance, Color Outline, Color Sketch, D-Lighting, Distortion Control, Edit Movie, Filter Effects, Fisheye, Image Overlay, Miniature Effect, Monochrome, NEF (RAW) Processing, Perspective Control, Quick Retouch, Red-Eye Correction, Resize, Selective Color, Side-by-Side Comparison, Straighten, and Trim.
    • Language support: Arabic, Bengali, Brazilian Portuguese, Bulgarian, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, and Vietnamese.
  UPC: 018208015542

• 200DL Underwater Housing for Nikon D7100 or D7200 with Dry Lock Port Mount urbryayeuvyzwwuudwvrbebuzscxquzarcef
• O-Ring for Large SLR Housings
• 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
• Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
• Port Hole Cover for Housings with Dry Lock Mount
• DL Zoom Gear Retainer
• #0945.06 Tool for Zoom Gear Retainer
• ICS Bulkhead Cap (Replacement)
• 4-40 Hex Head Allen Wrench
• 1/16" Hex Head Allen Wrench for Gears on Housings
• 1/8" Hex Head Allen Wrench for Control Knobs on Housings
• #9299.68 Control + Push-Button Tip Accessory Package
• 2cc Tube of Silicone Lubricant for O-Rings
• Limited 2-Year Warranty

• Nikon - D7200 DSLR Camera (Body Only)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite 200DL Underwater Housing for Nikon D7100 or D7200 with Dry Lock Port Mount

  Depth Rating	200' / 60 m
  Control Type	Mechanical push-buttons, dials, and levers
  Controls	Access to all camera functions except for the following: Mode dial lock release, AF mode button, focus mode selector, diopter adjustment control, Pv button, Fn button, and focus selector lock
  Material of Construction	Polycarbonate and ABS plastic
  Lens Port	Ships without required lens port Dry Lock (DL) interchangeable port system Accepts dome and flat ports for a broad array of lenses, including those with large diameters For complete compatibility details, see port chart linked in overview
  Buoyancy	Housing Only: Nearly neutral in fresh water Complete System: Varies depending on choice of lens and port
  External Flash Connector	Ikelite ICS-5 bulkhead with manual hot shoe connection for optional external strobes Optional TTL hot shoe and Nikon Converter will allow for TTL operation with compatible Ikelite DS strobes Non-Ikelite strobes will still work in manual mode only
  Mounting	1/4"-20 threaded mounts with 3.5" / 88.9 mm spacing for connecting included tray/base with left QR grip Optional right-hand QR grip with extension available
  Dimensions	9.4 x 7.0 x 6.5" / 23.9 x 17.8 x 16.5 cm
  Weight	4.9 lb / 2.2 kg

  Box Dimensions (LxWxH)	14.0 x 9.0 x 8.0"

• Nikon D7200 DSLR Camera (Body Only)

  Lens Mount	Nikon F
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	Actual: 24.72 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	23.5 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 51200 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds
  Metering Method	3D Color Matrix, Center-Weighted Average, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 6 fps
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p/50p/59.94p HD (1280 x 720) at 50p/59.94p SD (640 x 480) at 25p/29.97p
  External Recording Modes	Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 20 Minutes for Full HD (1920 x 1080) at 59.94p Up to 29 Minutes for Full HD (1920 x 1080) at 29.97p
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 25600
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 51 (15 Cross-Type)
  Autofocus Sensitivity	-3 to +19 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	19.5 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.94x
  Diopter Adjustment	-2 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,228,800 Dot
  Monitor Type	LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Auto/Red-Eye Reduction, Fill Flash, Hi-Speed Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	39.37' / 12 m at ISO 100
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	2 x SD/SDHC/SDXC
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C

  Battery	1 x EN-EL15 Rechargeable Lithium-Ion Battery Pack, 7 VDC, 1900 mAh
  Dimensions (W x H x D)	5.3 x 4.2 x 3.0" / 135.5 x 106.5 x 76.0 mm
  Weight	1.49 lb / 675 g

  Box Dimensions (LxWxH)	8.8 x 6.8 x 4.9"
