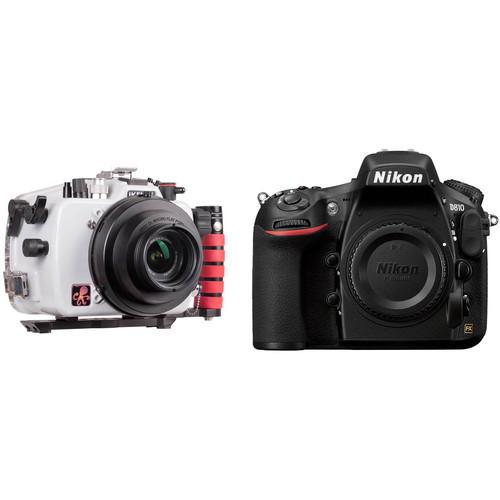

Product description Capture brilliant images of coral reefs, pygmy seahorses, and blue-ringed octopi with this Ikelite 200DL Underwater Housing and Nikon D810 DSLR Camera Body Kit from . The durable ABS and polycarbonate housing allows you to descend to depths as great as 200'. Its mechanical controls afford access to most of the functions of the 36MP, full-frame D810. Additionally, the omission of the low-pass filter enables the camera's sensor to deliver a higher resolution with greater detail.
The waterproof enclosure's DL mount accepts various dome and flat ports to accommodate a broad array of lenses. Add an external strobe or video light to your system to ensure sufficient illumination and color accuracy on cloudy days, and when diving beyond 20' or so on clear, sunny days. - Ikelite 200DL Underwater Housing for Nikon D810 with Dry Lock Port Mount (200') Capture brilliant images at depths as great as 200' with your Nikon D810 DSLR in Ikelite's 200DL Underwater Housing, which features their Dry Lock Port Mount and vacuum valve. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. Using an optional TTL hot shoe and the #4301.3 Nikon TTL Converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push-buttons, dials, and levers, afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the port chart. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface
- Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
- Nearly neutral buoyancy in fresh water
- Open-groove design suspends the rear O-ring in the natural position, allowing for easier maintenance and preventing accidental twisting or stretching
- Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
- Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
- Strobe Connection and Operation
-
- Use of an optional external strobe is highly recommended for color correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
- Strobe restores hues that get absorbed by the water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from your subject to preserve natural colors in images
- Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
- Optional #46064 NT2 TTL hot shoe and Nikon TTL Converter #4301.3 enable TTL operation with compatible Ikelite DS strobes, which use #4103.51 Single and #4103.52 Dual Cords
- Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only, and can be attached via the following cords: #4118.1 Single INON or Sea & Sea, #4118.2 Dual INON or Sea & Sea, #4116.31 Single Nikonos SB, and #4116.32 Dual Nikonos SB
- Older non-digital strobes can be used in manual mode via #4103.51 Single and #4103.52 Dual Cords
- Housing ships without a required sync cord for a strobe
- Bulkhead has been moved to the top of the enclosure to keep the cord out of your way and reduce strain on the ends
- Controls and Handling
-
- Sensitive, redesigned shutter and AF-On levers are curved and extendable for comfortable use when holding the optional right-hand quick-release grip
- Extra-large, soft-touch zoom knob is located next to the grip handle
- Push-buttons have been modified to reduce weight and salt buildup
- Ergonomic mechanical push-buttons, dials, and levers afford access to all camera functions except for the mode dial lock release, diopter adjustment, eyepiece shutter lever, Pv button, Fn button, focus mode selector, focus selector lock, and BKT button
- Control symbols are laser-etched into the back of the housing, so they won't fade or fall off with time
- Supereye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
- You can remove the Supereye quickly if you'd like to attach the optional Straight or 45° Magnified Viewfinder instead
- Hard-anodized aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- Optional right-hand grip can be added easily
- 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
- Tray is more than 3/4 lb lighter than Ikelite's previous model
- Housing is 1/2 lb lighter than model # 6812.81, its FL-mount counterpart
- Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light or other lightweight accessory
- Lens Port System
-
- Ships without a required lens port
- Accepts all Ikelite Dry Lock (DL) dome and flat ports, allowing you to shoot with a wide variety of lenses
- Zoom gears are available for many lenses
- For complete compatibility details, see the port chart linked above
- DL port system accommodates lenses with large diameters
- Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
- Pump is required in order to remove excess air and actually create a vacuum
- DL mount can be removed and replaced by the older FL (Four Lock) port locks, though this change would be irreversible unless you sent the housing back to Ikelite to have the DL mount installed again
UPC: 883711052793 - Nikon D810 DSLR Camera (Body Only) The Nikon D810 DSLR Camera takes its place as the high resolution option in the Nikon DSLR lineup. It features a 36.3MP FX-format CMOS sensor without an Optical Low Pass Filter for particularly sharp and detailed still imaging. With the addition of the EXPEED 4 Image Processor, performance speed is increased compared to the EXPEED 3 and noise is effectively reduced throughout the ISO range. Continuous shooting speed in FX format is 5 fps and in DX format hits a maximum of 7 fps. In addition, the Full HD video capabilities of the D810 have been upgraded to include 1080p capture at 24, 30 and 60 fps. Also, the improved efficiency of the processor enables up to 1200 shots on one battery charge and 40 minutes of video recording. Low light performance has been upgraded thanks to a wide native ISO sensitivity range that runs from 64 to 12,800 and can be expanded from 32 to 51,200. The advanced Multi-CAM 3500FX autofocus sensor offers 51 AF points with 15 cross-type sensors and Group Area AF enables five AF sensors to be used as one group. This is useful when shooting subjects that cannot be tracked easily by one AF point due to lighting conditions. As a camera optimized for video capture, the D810 features recording in both FX and DX formats including simultaneous recording to memory cards and an external recorder as well as recording 60p output to an external recorder. The ISO range for video has also been expanded to run from ISO 64 to 12,800 and expand to 51,200. Automatic ISO adjustment in manual mode enables smooth exposure transitions. A built-in stereo microphone is supported as are jacks for an external mic and headphones. A selectable audio frequency range provides exacting control over sound recording.A 3.2" LCD with 1,229K-dot resolution provides playback viewing and live view, and improved coatings on the optical viewfinder components provide brighter images and more accurate colors. Live View function now includes split screen display zoom for stills, and zebra highlighting display in video mode. Full aperture metering during live view for still shooting is supported.Interval and time-lapse shooting feature exposure smoothing, and the maximum number of images per sequence is now 9,999. Improved Picture Control settings now offer Flat Picture Control to enable maximum dynamic range and color adjustments in post-production.The D810 utilizes dual media slots for both Compact Flash and SD cards, and it provides a built-in flash with i-TTL metering as well as a hot shoe mount. A larger grip enables comfortable control for extended shooting, and a secondary "i" button has been added to back panel for faster access to important settings.
- 36.3MP FX-Format CMOS Sensor without an Optical Low Pass Filter
- Nikon's highest resolution sensor is housed in the D810, and by omitting the Optical Low Pass Filter, the sensor provides superior sharpness and detail. The sensor boasts fast channel readout, wide dynamic range, rich tones and improved imaging at high sensitivities.
- EXPEED 4 Image Processor
- The EXPEED 4 processor provides 30% faster performance over the EXPEED 3 as well improved low noise imaging throughout the ISO range. Support for 1080p video capture at 60 fps is featured and the processor's increased efficiency enables up to 1200 still shots and 40 minutes of video recording per charge.
- Native ISO Range of 64 to 12,800
- The improved ISO range compared to the D800 enables more effective low light imaging, and the ISO can be expanded from 32 to 51,200.
- Advanced Multi-CAM 3500FX Auto Focus Sensor
- Versatile AF Modes of 9, 21, and 51 points and 3D tracking enable fast, precise auto focus control. AF sensitivity down to -2 EV is effective in low light and 15 cross-type sensors are compatible with AF NIKKOR lenses with open aperture of f/5.6 or faster. Eleven central focus points work with an open aperture of f/8. Improvements include upgraded 'lock-on', expanded 'store by orientation,' and more options for AF mode restrictions.
- Group Area AF
- Group Area AF enhances subject detection and tracking in challenging lighting conditions or when shooting comparatively small subjects against a high-contrast background by grouping and monitoring 5 individual AF points. The 5-point AF area can be shifted across the 51-point array as your composition changes.
- RAW Size S
- Accelerate your workflow with Nikon's RAW Size S file format which delivers 12-bit uncompressed Nikon NEF files that enable faster image transfer and smoother post-production.
- Continuous Shooting
- In FX mode, the D810 can shoot up to 5 fps, and in DX mode it can capture up to 7 fps when utilizing the MB-D12 battery grip with AA batteries.
- Reduced Vibration for Sharper Imaging
- The D810's shutter/mirror box architecture and electronic front-curtain feature improve overall image clarity. The shutter/mirror mechanism reduces image shake for a steady viewfinder image with minimal blackout during high-speed shooting. When activated, the electronic front-curtain shutter reduces the risk of blur in even subtle details by minimizing internal vibrations during exposure.
- Quiet Continuous Mode
- A redesigned Sequencer/Balancer Mechanism enables Quiet Continuous Mode for near silent sequential shooting.
- Picture Control
- In addition to standard, neutral, vivid, monochrome, portrait and landscape, image control options have been expanded to include Flat Picture Control which is geared for shooting in RAW modes and for video capture when adjustments will be made in post-production. Also, a clarity option has been added to all Picture Control settings and better control over Picture Control is enabled by fine 0.25 steps.
- Full HD 1080p Video Capture in 60/30/24 fps
- Video recording is supported in both FX and DX formats with an ISO range from 64 to 12,800 and expandable to 51, 200. Simultaneous recording to memory cards and to an external recorder is now supported. Auto ISO adjustment is possible in manual mode for smooth exposure transitions. Nikon's 3D noise reduction reduces random noise, distortion, and flicker when filming at high sensitivities. Zebra mode on the camera monitor shows you exactly where highlights are. A built-in stereo microphone as well as jacks for external microphone and headphones are provided. You can fine-tune audio levels in isolation both before and during recording and select the sound range (wide/voice).
- 3.2" LCD Monitor with 1,229k-dot Resolution
- A high resolution LCD provides detailed playback viewing and live view capture with color balance and brightness control. A split screen display zoom for still shooting lets you compare two enlarged points in the image for sharpness and exposure.
- Optical Viewfinder
- Improved coatings on the optical components render brighter and more accurate color, and the Organic EL information display makes it easier to make adjustments under bright/dim conditions.
- Interval Timer/Time-Lapse Shooting
- Exposure smoothing is supported in time-lapse and interval shooting modes and the number of recordable images has been increased to 9,999.
- Flash
- Both a built-in flash and hot shoe mount are supported with i-TTL metering, as is a flash sync terminal. The built-in flash offers commander mode for wireless control of up to two groups of off-camera flash units.
- CF and SD Card Slots
- Two card slots are supported for versatile image storage and smoother workflow. One CF card slot for high-speed UDMA 7 cards, and one SD card slot for high-speed, high-capacity SDXC and UHS-I cards allow you to use one card as back-up or place still images on one card and video on the other or RAW on one and JPEG on the other.
- Wi-Fi with Optional Transmitter
- The D810 offers wireless connectivity for image transfer to a computer or FTP server and for remote camera control using Nikon's Camera Control Pro 2 software via the optional WT-5A Wireless Transmitter in combination with the optional UT-1 Communications Unit. The WT-5 attaches to the UT-1 unit which mounts to the camera's accessory hot shoe.
- Form Factor
- A deeper hand grip improves handling, and a secondary "i" button has been added for easier access to important settings. A durable magnesium alloy body with extensive weather and dust sealing ensure the D810 is moisture- and dust-resistant.
UPC: 018208015429 In the Box - 200DL Underwater Housing for Nikon D810 with Dry Lock Port Mount (200')
- Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
- O-Ring for Large SLR Housings
- 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
- Port Hole Cover for Housings with Dry Lock Mount
- DL Zoom Gear Retainer
- #0945.06 Tool for Zoom Gear Retainer
- ICS Bulkhead Cap (Replacement)
- 1/16" Hex Head Allen Wrench for Gears on Housings
- 1/8" Hex Head Allen Wrench for Control Knobs on Housings
- Control and Push Button Covers
- 2cc Tube of Silicone Lubricant for O-Rings
- Limited 2-Year Warranty
- Nikon - D810 DSLR Camera (Body Only)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing and Nikon D810 DSLR Camera Body Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ikelite 200DL Underwater Housing for Nikon D810 with Dry Lock Port Mount (200')
| Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Access to all camera functions except for mode dial lock release, diopter adjustment, eyepiece shutter lever, Pv button, Fn button, focus mode selector, focus selector lock, and BKT button | | Material of Construction | Polycarbonate and ABS plastic | | Lens Port | Ships without required lens port
Dry Lock (DL) interchangeable port system
Accepts dome and flat ports for a broad array of lenses, including those with large diameters
For complete compatibility details, see port chart linked in overview | | Buoyancy | Nearly neutral in fresh water
Precise buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 bulkhead with manual hot shoe connection for optional external strobes
Optional TTL hot shoe and #4301.3 Nikon Converter will allow for TTL operation with compatible Ikelite DS strobes
Non-Ikelite strobes will still work in manual mode only | | Mounting | 1/4"-20 threaded mounts with 3.5" / 88.9 mm spacing for connecting included tray/base with left QR grip
Optional right-hand QR grip with extension available
Spare threaded mount on front of housing for accessories | | Dimensions | 9.1 x 7.0 x 6.5" / 23.1 x 17.8 x 16.5 cm | | Weight | 4.9 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 14.6 x 9.3 x 8.4" | - Nikon D810 DSLR Camera (Body Only)
| | | Lens Mount | Nikon F | | Camera Format | Full-Frame (1x Crop Factor) | | Pixels | Actual: 37.09 Megapixel
Effective: 36.3 Megapixel | | Maximum Resolution | 7360 x 4912 | | Aspect Ratio | 3:2 | | Sensor Type | CMOS | | Sensor Size | 35.9 x 24 mm | | Image File Format | JPEG, RAW, TIFF | | Bit Depth | 14-Bit | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 64 to 12800 (Extended: 32 to 51200) | | Shutter Speed | Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Bulb Mode | | Metering Method | 3D Color Matrix, Center-Weighted Average, Spot, Highlight Weighted | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) | | Metering Range | 0 to 20 EV | | White Balance | Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (Warm White), Fluorescent (White), Incandescent, Preset Manual, Shade | | Continuous Shooting | Up to 5 fps | | Interval Recording | Yes | | Self Timer | 2/5/10/20-Second Delay | | Mirror Lock-Up | Yes | | | | Recording Modes | MOV/H.264
Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p
HD (1280 x 720) at 50p/59.94p | | External Recording Modes | Full HD (1920 x 1080)
HD (1280 x 720) | | Recording Limit | Up to 20 Minutes for Full HD (1920 x 1080) at 50p/59.94p
Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) at 23.976p/25p/29.97p
Up to 29 Minutes, 59 Seconds for HD (1280 x 720) at 50p/59.94p | | Video Encoding | NTSC | | ISO Sensitivity | 64 to 12800 (Extended: 51200) | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | Linear PCM | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | 51 (15 Cross-Type) | | Autofocus Sensitivity | -2 to +19 EV | | | | Viewfinder Type | Optical (Pentaprism) | | Viewfinder Eye Point | 17 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.7x | | Diopter Adjustment | -3 to +1 m | | Monitor Size | 3.2" | | Monitor Resolution | 1,229,000 Dot | | Monitor Type | LCD | | | | Built-in Flash | Yes | | Flash Modes | Auto, First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction | | Guide Number | 39' / 11.89 m at ISO 100 | | Maximum Sync Speed | 1/250 Second | | Flash Compensation | -3 to +1 EV (1/3, 1/2, 1 EV Steps) | | Dedicated Flash System | iTTL | | External Flash Connection | Hot Shoe, PC Terminal, Wireless | | | | Memory Card Slot | 1 x SD/SDHC/SDXC
1 x CompactFlash | | Connectivity | 3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), USB 3.0 Micro-B | | Wireless | Wi-Fi (Via Adapter) | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Battery | 1 x EN-EL15 Rechargeable Lithium-Ion, 7.0 VDC, 1900 mAh | | Dimensions (W x H x D) | 5.7 x 4.8 x 3.2" / 146.0 x 123.0 x 81.5 mm | | Weight | 31.04 oz / 880 g | | | | Box Dimensions (LxWxH) | 9.7 x 6.6 x 6.1" |
