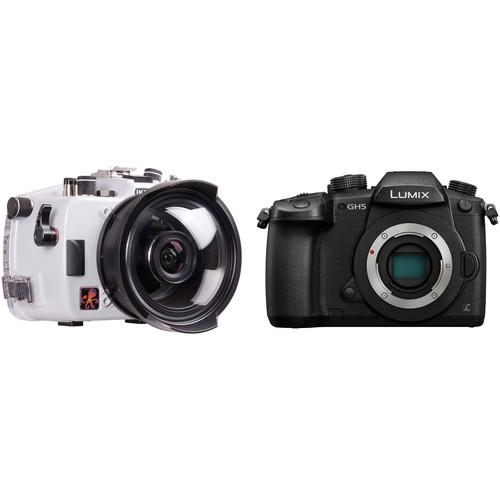

User Manual for Ikelite 200DL Underwater Housing and Panasonic Lumix GH5 Micro Four Thirds Camera Body Kit Click to enlarge the picture
Contents of the user manual for the Ikelite 200DL Underwater Housing and Panasonic
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
|
User manual for the Ikelite 200DL Underwater Housing and Panasonic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture brilliant images of coral reefs, pygmy seahorses, and blue-ringed octopi with this Ikelite 200DL Underwater Housing and Panasonic Lumix GH5 Micro Four Thirds Camera Body Kit from . The durable ABS and polycarbonate housing allows you to descend to depths as great as 200'. Its mechanical controls afford access to most of the functions of the 20MP, 4K GH5 mirrorless camera.
The waterproof enclosure's DL mount accepts various dome and flat ports to accommodate a broad array of lenses. Add an external strobe or video light to your system to ensure sufficient illumination and color accuracy on cloudy days, and when diving beyond 20' or so on clear, sunny days. - Ikelite 200DL Underwater Housing for Panasonic GH5/GH5S with Dry Lock Port Mount and Vacuum Valve Capture sharp, detailed images at depths as great as 200' with Ikelite's 200DL Underwater Housing with Dry Lock Port Mount and Vacuum Valve for your Panasonic Lumix GH5 or GH5S Mirrorless Camera. An Ikelite bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Using the optional #46031 TTL circuit and hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including pushbuttons, knurled knobs/dials, and levers, afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts all Ikelite Dry Lock (DL) series dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. See the Port Chart. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
- White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface
- Clear in back to allow you to monitor O-ring seal and maintain your view of camera's rear controls
- Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
- Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
- Strobe Connection and Operation
-
- Use of external strobe highly recommended for color-correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
- Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from subject to preserve natural colors in images
- Ikelite ICS-5 bulkhead connector with manual hot shoe connection enables reliable electrical triggering of optional, external strobes
- Using optional #46031 TTL circuit and hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers
- Controls afford access to all camera functions except for diopter adjustment control, rear control dial, and mode dial lock
- Mode dial must be unlocked prior to installation in housing to enable use underwater
- Extra-large, soft-touch zoom knob works with universal zoom gear system
- Control symbols are laser-etched into back of housing so they won't fade or be rubbed off over time
- Supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- Nearly neutral buoyancy in fresh water. Precise buoyancy varies depending on choice of lens and port
- Lens Port System
-
- Ships without a required lens port
- Accepts all Ikelite Dry Lock (DL) series dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
- See Port Chart linked above for full compatibility details
- DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to included vacuum valve for checking watertight integrity before dive
- Pump required in order to remove excess air and actually create a vacuum
UPC: 883711054124 - Panasonic Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera (Body Only) Upgraded, redesigned, and filled with features, the Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera from Panasonic provides an outstanding imaging platform for shooters who demand some of the best video and still photography quality they can get in a single compact camera. At the heart of the camera is a 20.3MP Digital Live MOS sensor and a newly developed Venus Engine processor, which both offer dramatically improved processing times over its predecessor. This enables the ability to record 4K video at up to 60 fps, 10-bit 4:2:2 internal recording with select settings, Full HD video at up to 180 fps, 12 fps continuous shooting, and sensitivities up to ISO 25600. Also, the camera features built-in 5-axis sensor stabilization, which can work with certain lenses to activate Dual I.S. 2 for highly effective shake correction that can compensate for up to 5 stops of shutter speed. Other improvements include a speedier and more accurate Advanced DFD autofocus system that can lock on in just 0.05 seconds, as well as 6K PHOTO at 30 fps and 4K PHOTO at up to 60 fps.
Along with all these internal improvements, the body received some significant upgrades as well. For viewing and composing images both the 0.76x OLED viewfinder and 3.2" free-angle touchscreen received resolution bumps to 3.68m dots and 1.62 m dots, respectively. This will make shooting more comfortable and more accurate. The magnesium alloy body is now freezeproof to 14°F in addition to splash and dustproof. For fast image transfer and saving, there are now two UHS-II SD card slots. Additionally, for a completely wireless setup it offers both Wi-Fi and Bluetooth for advanced functionality when paired with a mobile app. - 20.3MP Digital Live MOS Sensor and Venus Engine
- Packing in a newly developed 20.3MP Digital Live MOS sensor without an optical low-pass filter and a new Venus Engine processor, the GH5 claims to produce the best image quality to date from a Lumix camera. Using Multipixel Luminance Generation and Intelligent Detail Processing, it will maximize sharpness and details as well as accuracy in a variety of lighting conditions. It offers excellent three-dimension color control and precise noise reduction techniques to help with shooting at sensitivities up to ISO 25600. It also enables shooting speeds of up to 12 fps with AF-S or manual focus modes.
- 4K Video Recording
- The GH5 is an exceptionally capable video camera in addition to its outstanding stills capabilities. The flagship feature is UHD 4K video at up to 60 fps, though another excellent spec is the ability to record 4:2:2 10-bit files at resolutions up to DCI and UHD 4K at 24/30 fps. A full-size HDMI port is present on the camera for high-quality output at 4:2:2 10-bit in all settings for use with external monitors and recorders. The camera also offers high bit-rate recording for highly detailed images free of compression artifacts.
For more advanced users, multiple picture styles are available to provide a more gradable image, such as CINELIKE V and CINELIKE D, as well as an in-camera LUT to make monitoring easier. Also, users will have access to overcranking and undercranking settings which provide speeds up to 2.5x slower in 4K (60 fps) and 7.5x slower in Full HD (180 fps). Also, a 4K Anamorphic mode is available, which will let you record in a proper 4:3 ratio for adjustment in post-production.
The GH5 is designed to be an expandable system, with multiple options available to help improve video recording capabilities. Examples of this are an optional V-Log L upgrade and separately available accessories such as the XLR Microphone Adapter that provides XLR inputs and physical controls through a hot shoe connection. Users can also use standard microphones and headphones via the 3.5mm input and output jacks. - 6K and 4K PHOTO
- Utilizing the GH5's video recording capabilities, a trio of still shooting modes are available for recording continuous 8MP stills at a 60 or 30 fps shooting rate or 18MP stills at a 30 fps shooting rate:
- Burst: This mode will allow you to continuously record, making it ideal for instances where you need a fast frame rate in order to capture the best moment.
- Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record images one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
- Burst (S/S): This mode most closely follows the video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8 or 18 MP frame.
- Dual I.S. 2
- Helping to achieve the utmost sharpness when photographing handheld, Dual I.S. 2 combines the GH5's sensor-shift image stabilization technology with lens-based image stabilization to compensate for a broader range of movement types to render sharper, clearer imagery. Dual I.S. 2 requires the use of compatible Lumix lenses featuring O.I.S. This stabilization system is able to compensate for approximately 5 stops of camera shake.
- Body Design and Built-In Wi-Fi
-
- A large OLED Live View Finder has an impressive 3.86m-dot resolution and 0.76x magnification for eye-level composition.
- A larger means for image composition and playback, the 3.2" 1.62m-dot rear RGBW LCD monitor has a free angle, tilt and swivel design to support viewing from a variety of angles. It is also a touchscreen, which permits intuitive menu navigation and settings control.
- Dual UHS-II SD card slots are present which provides settings such as Relay Recording to automatically switch cards when one is full; Backup Recording, which recording the same data to both cards simultaneously; and Allocation Recording, which lets you save certain files to each card for easier organization.
- Constructed from magnesium alloy with die-cast front and rear frames, the GH5 features a durable design that also incorporates extensive sealing at each joint, dial, and button to render it both splash- and dust-proof as well as freezeproof to 14°F.
- A joystick is available on the rear of the camera to make changing many settings easier and more intuitive, such as changing a focus point.
- The sleek flat-body profile incorporates both front and rear dials for intuitive control over aperture and shutter speed settings. Multiple assignable function buttons are also available, as well as a dedicated exposure compensation dial.
- Built-in 5 GHz Wi-Fi connectivity with NFC and Bluetooth 4.2 Low Energy allows for wireless image sharing and remote camera control from linked smartphones and tablets. Bluetooth LE also enables a constant connection to your mobile device, allowing for functions such as geolocation and automatic image transfer.
- 225-Area Advanced Depth-From-Defocus AF System
- For accelerated autofocus performance, and Advanced DFD (Depth-From-Defocus) technology is employed to quickly calculate the distance to subjects and adjust the focusing position in as little as 0.05 seconds, which enables continuous shooting up to 9 fps with continuous AF. This contrast-detection type focus method benefits both still and video recording modes, as well as subject tracking applications where subject color, size, and motion vectors are used to intelligently lock-onto the moving subjects and ensure precise focus. The sensitivity and speed can be adjusted to further improve performance with certain subjects. It also features 225 AF areas which provide excellent control over where the camera will focus. Additionally, supporting working in low-light conditions, a Starlight AF feature enables accurate AF performance down to -4 EV.
Benefitting manual focus operation, focus peaking is available that highlights bright edges of contrast with a colored outline for quickly recognizing your focus point, as well as Touch MF Assist for touch-to-focus operation. - Other Camera Features
-
- A mechanical focal plane shutter enables a fast maximum shutter speed of 1/8000 sec., as well as a top flash sync speed of 1/250 sec. An electronic shutter function also avails a top shutter speed of 1/16,000 sec. to better enable working in bright conditions and with wider aperture settings.
- Raw image files can be processed in-camera for a more streamlined post-production workflow.
- Depending on the lens in use, the included DMW-BLF19 battery provides approximately 400 shots per charge when using the rear monitor, or 380 with the electronic viewfinder.
- Photo Style modes: Standard, Vivid, Natural, Monochrome, Scenery, Portrait, Custom, Cinelike D, and Cinelike V.
- Creative Control modes: Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, and Sunshine.
- Firmware Update Schedule
-
- Full HD 4:2:2 10-bit video recording.
- 400 Mbps 4:2:2 10-bit All-Intra video recording in 4K 30p, 25p, and 24p as well as Full HD.
- Higher resolution Anamorphic mode.
- Hybrid Log Gamma in Photo Style mode for 4K HDR video recording.
- USB tethering.
UPC: 885170307100 In the Box - 200DL Underwater Housing for Panasonic GH5/GH5S with Dry Lock Port Mount and Vacuum Valve ucqqxwqesbyqvdrf
- O-Ring for Large SLR Housings
- 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
- Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
- Port Hole Cover for Housings with Dry Lock Mount
- DL Zoom Gear Retainer
- ICS Bulkhead Cap (Replacement)
- 2cc Tube of Silicone Lubricant for O-Rings
- Control and Push Button Covers
- 1/16" Hex Head Allen Wrench for Gears on Housings
- 1/8" Hex Head Allen Wrench for Control Knobs on Housings
- Limited 2-Year Warranty
- Panasonic - Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera (Body Only)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing and Panasonic Lumix GH5 Micro Four Thirds Camera Body Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ikelite 200DL Underwater Housing for Panasonic GH5/GH5S with Dry Lock Port Mount and Vacuum Valve
| Depth Rating | 200' / 61 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and levers | | Controls | Provide access to most camera functions | | Material of Construction | Polycarbonate and ABS plastic blend | | Lens Port | Ships without a required lens port
Accepts all Ikelite Dry Lock (DL) series dome and flat ports for various lenses
See Port Chart linked in Overview for full compatibility details | | Buoyancy | Nearly neutral in fresh water
Precise buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 bulkhead connector with manual hot shoe
Optional #46031 TTL circuit and hot shoe will allow for TTL operation with compatible Ikelite DS strobes
Non-Ikelite strobes will work in manual mode only | | Mounting | 2x 1/4"-20 threaded mounts with 3.5" / 8.9 cm spacing for included tray
1x spare 1/2-20 threaded accessory port | | Dimensions | 9.2 x 7.1 x 6.5" / 23.4 x 18 x 16.5 cm | | Weight | 5.1 lb / 2.3 kg excluding tray and handles | | | | Box Dimensions (LxWxH) | 14.6 x 9.4 x 8.4" | - Panasonic Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera (Body Only)
| | | Lens Mount | Micro Four Thirds | | Camera Format | Micro Four Thirds (2x Crop Factor) | | Pixels | Actual: 21.77 Megapixel
Effective: 20.3 Megapixel | | Maximum Resolution | 5184 x 3888 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type | MOS | | Sensor Size | 17.3 x 13 mm | | Image File Format | JPEG, RAW | | Image Stabilization | Sensor-Shift, 5-Axis | | | | ISO Sensitivity | Auto, 200 to 25600 (Extended: 100 to 25600) | | Shutter Speed | Electronic Front Curtain Shutter
1/8000 to 60 Seconds
1 to 30 Minutes in Bulb Mode
1/16000 to 1/24 Second in Movie Mode
Electronic Shutter
1/16000 to 1 Second | | Metering Method | Center-Weighted Average, Multiple, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3 EV Steps) | | Metering Range | 0 to 18 EV | | White Balance | Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 | | Continuous Shooting | Up to 12 fps at 20.3 MP
Up to 30 fps at 18 MP
Up to 60 fps at 8 MP | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MOV/MP4 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.976p/24p [150 to 400 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [150 to 400 Mb/s]
Full HD (1920 x 1080) at 50p/59.94p [100 to 200 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p [100 to 200 Mb/s]
MOV/MP4 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.976p/24p [100 Mb/s]
UHD 4K (3840 x 2160) at 50p/59.94p [150 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [100 Mb/s]
Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
Full HD (1920 x 1080) at 25p/29.97p [20 Mb/s]
Full HD (1920 x 1080) at 23.976p/24p [24 Mb/s]
MP4 4:2:0 10-Bit
UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [72 Mb/s]
AVCHD
Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
Full HD (1920 x 1080) at 50i/59.94i [17 to 24 Mb/s]
Full HD (1920 x 1080) at 23.976p [24 Mb/s] | | External Recording Modes | 4:2:2 10-Bit
| | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | AAC, Dolby Digital 2ch | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Contrast Detection: 225 | | Autofocus Sensitivity | -4 to +18 EV | | | | Viewfinder Type | Electronic | | Viewfinder Resolution | 3,686,000 Dot | | Viewfinder Eye Point | 21 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.76x | | Diopter Adjustment | -4 to +3 m | | Monitor Size | 3.2" | | Monitor Resolution | 1,620,000 Dot | | Monitor Type | Articulating Touchscreen LCD | | | | Built-in Flash | None | | Flash Modes | Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction | | Maximum Sync Speed | 1/250 Second | | Flash Compensation | -3 to +3 EV (1/3 EV Steps) | | Dedicated Flash System | TTL | | External Flash Connection | Hot Shoe, PC Terminal | | | | Memory Card Slot | 2 x SD/SDHC/SDXC | | Connectivity | 3.5mm Headphone, 3.5mm Microphone, 2.5mm Sub-Mini, HDMI A (Full Size), USB 3.0 | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Operating Humidity | 10 to 80% | | | | Battery | 1 x DMW-BLF19 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1860 mAh | | Dimensions (W x H x D) | 5.5 x 3.9 x 3.4" / 138.5 x 98.1 x 87.4 mm | | Weight | 1.59 lb / 725 g (Body with Battery and Memory) | | | | Box Dimensions (LxWxH) | 7.5 x 6.0 x 5.8" |
