Product description

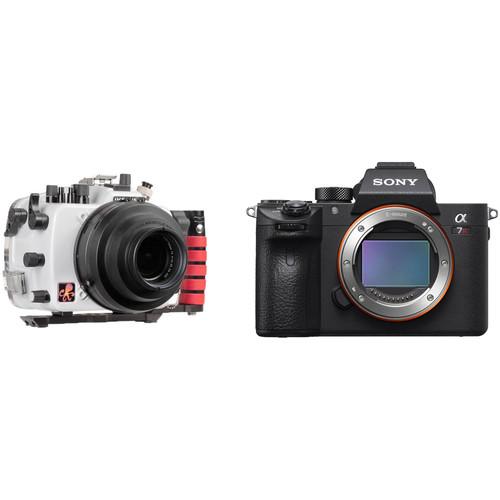

• Ikelite 200DL Underwater Housing for Sony A9 / A7R III with Dry Lock Port Mount Capture brilliant images of the aquatic world with your Sony A9 or A7R III in Ikelite's 200DL Underwater Housing with Dry Lock Port Mount, which has a depth rating of 200'. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. The use of an optional TTL hot shoe and converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.

  Ergonomic mechanical controls, including push-buttons, dials, and levers, afford access to all essential camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.

  This housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for an array of lenses. For full compatibility details, see the port chart. The Dry Lock (DL) port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum.
  Construction Details
  • • Depth rating of 200'
    • Two double-passivated, stainless steel locking latches are corrosion-resistant and virtually unbreakable
    • Housing is made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
    • White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface
    • Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
    • Housing alone has nearly neutral buoyancy in fresh water, though your choice of lens and port may change the overall buoyancy of the system
    • Open-groove design suspends the rear O-ring in the natural position, making maintenance easier and preventing accidental twisting or stretching
    • Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
    • Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
  Strobe Connection and Operation
  • • Use of an optional external strobe is highly recommended for color correction and adequate brightness, and basically essential once you descend deeper than 15-20' underwater
    • Strobe restores hues that are absorbed by the water, so your images are vibrant and accurate
    • Try to stay no more than 3-4' away from your subject to preserve natural colors in images
    • Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
    • Optional TTL hot shoe and converter, e.g., Ikelite's ST1K Sony Alpha TTL Kit, will enable TTL operation with compatible Ikelite DS strobes, which use the #4103.51 Single and #4103.52 Dual Sync Cords
    • Non-Ikelite strobes, such as those from Sea & Sea, INON, and Retra, will still work in manual mode only, and can be connected via #4118.1 Single and #4118.2 Dual Sync Cords
    • Older non-digital strobes can be used in manual mode via #4103.51 Single and #4103.52 Dual Cords
    • Housing ships without a required sync cord for a strobe
    • Bulkhead has been moved to the top of the enclosure to keep the cord out of your way and reduce strain on the ends
    • Ikelite's #4403 Optical Slave Converter and Aquatica's Water Wizard system are available options that will let you trigger wireless slave strobes
    • Exposure compensation is available via the camera's controls
  Controls and Handling
  • • Sensitive shutter and AF-On levers are curved and extendable, in order to increase comfort when using the optional right-hand grip
    • Push-buttons have been modified to reduce weight and salt buildup
    • Upgraded soft-touch knobs, including the zoom knob on the side, allow for a better, more comfortable grip with or without gloves
    • Ergonomic, mechanical push-buttons, knobs, and levers afford access to all camera functions except for the diopter adjustment dial, multi-selector, focus mode dial / lock-release button, and media slot cover switch
    • Control symbols are etched into the back of the housing with lasers, so they won't fade or fall off with time
    • Control placement is as close as possible to the layout of functions on the camera, allowing your muscle memory to guide you--so you don't have to learn another set of controls
    • LCD monitor can be tilted during camera installation to give you a better viewing angle
    • Supereye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
    • You can remove the Supereye quickly if you'd like to attach the optional Straight or 45° Magnified Viewfinder instead
    • Hard-anodized aluminum tray with a left-hand quick-release grip improves balance and handling, while offering an attachment point for an optional lighting arm
    • Optional right-hand grip can be added easily
    • 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
    • Tray is more than 3/4 lb lighter than Ikelite's previous model
    • Housing is a 1/2 lb lighter than its FL-mount counterpart
    • Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light, GoPro action camera, or other lightweight piece of equipment
    • Spare 1/2-20 threaded port on top of the enclosure allows for the addition of various accessories
    • Optional Cable Grip or Aluminum Top Handle can be added for easier carrying if you're using 2 strobes
  Lens Ports
  • • Ships without a required lens port
    • Accepts all Ikelite Dry Lock (DL) dome and flat ports, enabling you to shoot with a wide variety of lenses
    • Zoom and focus gears are available for many lenses
    • For complete compatibility details, see the port chart linked above
    • DL port system accommodates lenses with large diameters
    • Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
    • Removal of excess air to create a vacuum requires #47011 Pump with Gauge
    • DL mount can be removed and replaced by the older FL (Four Lock) port locks, though this change would be irreversible unless you sent the housing back to Ikelite to have the DL mount installed again
  UPC: 883711055312
• Sony Alpha a7R III Mirrorless Digital Camera (Body Only) Proving that speed, resolution, and video capabilities can all coexist, the Alpha a7R III Mirrorless Digital Camera from Sony is a versatile, high-performance camera characterized by not only its resolution, but by its multimedia versatility. Revolving around a full-frame 42.4MP Exmor R BSI CMOS sensor and updated BIONZ X image processor, the a7R III affords an impressive 10 fps continuous shooting rate along with improved autofocus performance for faster, more reliable subject tracking along with wide frame coverage. This updated Fast Hybrid AF System employs a combination of 399 phase-detection points and 425 contrast-detection areas for quicker acquirement of focus in a variety of lighting conditions, and also maintains focus on subjects more effectively. In addition to speed and AF, the processing improvements also help to realize greater image clarity throughout the sensitivity range from ISO 100-32000, which can further be expanded to ISO 50-102400. Video recording capabilities have also been extended for enhanced quality when recording UHD 4K video with the full width of the full-frame sensor, or when using a Super35 area and 5K oversampling to minimize moiré and aliasing. Additionally, benefitting both stills and video operation, the a7R III retains the 5-axis SteadyShot INSIDE sensor-shift image stabilization, which is now effective to minimize the appearance of camera shake by up to 5.5 stops.

  In addition to imaging updates, the a7R III also sports a revised body design, which includes a 3.69m-dot Tru-Finder OLED electronic viewfinder for bright, clear, and realistic eye-level monitoring. A rear 3.0" 1.44m-dot tilting touchscreen LCD is also available for intuitive settings control and to better support working from high and low angles. For greater shooting flexibility, dual SD memory card slots are now featured, and a larger NP-FZ100 battery is also employed to achieve up to approximately 530 shots per charge when using the viewfinder. Suiting the camera's use in trying conditions, the magnesium alloy chassis and extensive weather-sealing also render the a7R III dust- and moisture-resistance
  42.4 MP Exmor R BSI CMOS Sensor and BIONZ X Image Processor
  • Featuring a back-illuminated design, the full-frame 42.4-megapixel Exmor R CMOS sensor works with the BIONZ X image processor to offer high-resolution stills and video while minimizing noise and improving speed. This sensor structure works with gapless on-chip lens design and an anti-reflection coating, as well as eliminating the optical low-pass filter, to improve light collection and enhance detail. Also, the copper wiring layer dramatically improves data transmission speed for creating 14-bit, high-resolution 42.4-megapixel stills with a native sensitivity range from ISO 100-32000, which can be further expanded to ISO 50-102400. Also, it enables internal UHD 4K video recording with a wide dynamic range using the full width of the full-frame sensor. The BIONZ X processor also works in conjunction with a high-speed front-end LSI to realize faster processing times along with the ability to capture an impressive 15-stop dynamic range at low sensitivity values.

    The sensor and processor combination also avails fast continuous shooting at up to 10 fps at full resolution, for up to 76 consecutive frames, and with full-time AF/AE when working with either a mechanical shutter or an electronic shutter. If shooting in live view mode, a continuous shooting rate of up to 8 fps is also possible.
  Fast Hybrid AF System
  • An evolved 4D FOCUS system now employs a combination of 399 phase-detection points, which cover approximately 68% of the frame, along with 425 contrast-detection areas for reliable and quick autofocus and subject tracking performance. This Fast Hybrid AF System now achieves twice the focusing speed and more reliable tracking compared to previous a7R models, as well as improved low-light focusing response down to -3 EV. The use of phase-detection points also enables the use of A-mount lenses via the optional LA-EA3 or LA-EA1 lens mount adapters with full continuous AF/AE tracking compatibility.

    The apt focus system also lends itself to a variety of focusing functions for refined accuracy, including Lock-on AF, which maintains focus on moving subjects throughout the use of a configurable frame that is set over the desired moving subject, and Expand Flexible Spot, which employs neighboring focus points to retain focus on moving subjects even if the originally selected point loses focus. Additionally, Eye AF can be used to base focus on recognized subjects' eyes for portraits and is available in both AF-S and AF-C modes. Autofocus can also be used in conjunction with the Focus Magnifier function for critical focus when homing in on minute subject details. The rear touchscreen can also be used for Touch Focus control, and a Touchpad Focus Control mode lets you use the rear screen intuitively while keeping your eye to the viewfinder.

    For more personalized control over focus, and benefitting working in either vertical or horizontal shooting orientation, the AF area can be switched in orientation to better suit your subject matter. AF tracking sensitivity can also be customized in five steps to match how a subject is moving and frequently used focus point settings can be memorized and recalled with a custom button for faster switching between focus settings.
  5-Axis SteadyShot INSIDE Image Stabilization
  • Packed into the robust a7R III is a 5.5-stop effective 5-axis SteadyShot INSIDE image stabilization system that compensates for five different types of camera shake encountered during handheld shooting of stills and video. This allows users to confidently use any lens, even adapted lenses, for critical imaging without encountering blur from camera shake.

    For long focal lengths, the system will correct for pitch and yaw adjustments. Macro and high-magnification imagery, on the other hand, will benefit from the inclusion of horizontal and vertical shift compensation. All shooting styles will get usage out of the roll compensation. All 5 axes of stabilization will function at all times, even when used with third-party lenses and adapters or lenses with built-in optical stabilization.
  UHD 4K Video Recording in XAVC S Format
  • Internal recording of UHD 4K movies is possible in multiple frame rates up to 30 fps and, based on the Super35mm recording area and effective 5K resolution, oversampling renders greater detail and full pixel readout is possible, that is void of pixel binning, for higher quality imagery with reduced moiré and aliasing. Full-frame 4K recording has also been dramatically improved for improved quality when working at mid to high sensitivities to permit full use of the entire sensor width. Full HD 1080p recording is also supported in frame rates up to 120 fps, and both resolutions utilize the 100 Mbps XAVC S format contained within an MP4 wrapper with 4:2:0 sampling. The high-speed, 120 fps recording also enables 4x and 5x slow-motion movie recording with the frame rate set to either 30p or 24p. In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling.

    4K video recording also avails the ability to produce 8MP stills during playback by taking a frame grab from a movie and storing it as a separate file.
  Additional Video Features
  • Support for HDR Content:

    • Affording extensive customizable color and gamma controls, the a7R III allows users to adjust the gamma, black level, knee, color level, and more. Also, users can use the same S-Log2 Gamma Curve that is found on high end Sony Cinema cameras that squeezes up to 1300% more dynamic range into the video signal then traditional REC709, for increased post-production flexibility. HLG (Hybrid Log-Gamma) support is also available, along with the BT.2020 color space, for recording within a wide color gamut and, in addition to S-Log2, S-Log3 is also available for producing an effective 14-stop dynamic range with increased grading control in the shadow to mid-tone regions of the image.

    Slow & Quick Motion:

    • Take more control over your video capture capabilities with a variety of new frame rates available in an S&Q mode. This will allow shooters to capture Full HD video at one of either steps between 1-120 fps. These settings will allow you to slow down action as well as speed up a slow-moving scene. This setting is also NTSC/PAL switchable.

    Enhanced Zebra Function:

    • An enhanced Zebra function is ideally suited to aid in monitoring exposure values in high-contrast scenes. Video signal level targets can be set from 0 to 109, and specific ranges can be set to make exposure level adjustments easier.

    Time Code and User Bit Settings:

    • A time code can be used to record hours, minutes, seconds, frames on image data for more precise editing while the User Bit function can record date, time, and scene number to aid in editing together footage from multiple cameras.

    Proxy Recording:

    • UHD 4K movies and lower-resolution proxy movies can be simultaneously recorded. The smaller proxy files are ideal for quick previewing or pre-editing that can reduce the time required for final 4K editing.
  Body Design and Built-In Wi-Fi/Bluetooth
  • • An updated Quad-VGA OLED Tru-Finder EVF is featured, and has a 3.69m-dot resolution for bright, clear viewing in high detail. Both Standard and High quality settings can be used, depending on the shooting situation, in order to optimize the viewing experience. This updated viewfinder design also affords the use of autofocus in the Focus Magnifier mode as well as improved focusing peaking to benefit manual focus operation.
    • In addition to the EVF, a 3.0" 1.44m-dot rear LCD is also available, which has a touch panel design for intuitive operation and focusing control. The screen also tilts upward 107° and downward 41° to benefit working from high and low angles.
    • Magnesium alloy chassis assures rigidity, durability, and stability while remaining lightweight. The lens mount has also been improved to better support heavy lenses and the grip rigidity has been improved for more comfortable hand-holding.
    • A durable shutter unit incorporates a coreless motor and brake system that reduces vibrations to better control shutter shock as well as extend its rated lifespan to approximately 500,000 actuations.
    • Weather-sealing has been employed to resist dust and moisture for reliable operation in harsh weather conditions.
    • Using the same NP-FZ100 battery as the a9, the a7R III has improved battery life and is now rated for approximately 530 shots per charge with the EVF or 650 shots with the rear LCD.
    • Dual SD memory card slots allow for flexible file saving and handling, and can be configured to partition raw and JPEG files or can be used for overflow recording. One of the card slots is rated to support UHS-II memory cards.
    • Integrated PC sync terminal for wired flash sync with strobe packs or wireless radio remotes.
    • A USB 3.1 Gen 1 Type-C port has been added, in addition to a micro-USB port, for faster, more reliable tethering support. The USB Type-C connection allows the camera to be charged from the host power source while connected.
    • The a7R III features a 3.5mm microphone input jack for compatibility with external microphones. And for users needing more, the camera is also compatible with the Sony XLR-K2M XLR Adapter for recording professional balanced XLR audio signals with phantom power and adjustable mic/line inputs. For monitoring audio, a 3.5mm headphone jack is available as well as real time audio levels for a visual reference.
    • Built-in Wi-Fi enables the a7R III to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.
    • Bluetooth connectivity allows for location data acquisition.
  Pixel Shift Multi Shooting
  • This unique compositing mode allows you to achieve even greater resolution than the 42.4MP sensor affords. Working in conjunction with the sensor-shift image stabilization, this mode shifts the sensor while making four consecutive exposures in order to acquire approximately 169.6MP of information for greater color accuracy and detail than possible with a single exposure. These files can then be merged together during post-production by using the Sony Imaging software suite.
  Other Camera Features
  • • A Ratings function lets you assign star values, from 1-5, to images in-camera for faster editing and sorting at home during post-production.
    • An advanced 1200-zone evaluative exposure metering sensor delivers consistent and accurate results using multi-segment, center-weighted, or spot metering modes.
    • Highlight and Average metering modes helps avoid blown-out highlights and provide stable auto-exposure, respectively.
    • Anti-flicker shooting automatically recognizes and times the shutter action to minimize the flicker effect for more consistent results on still images.
    • Picture Effect modes: Posterization (Color), Posterization (B/W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera (Normal/Cool/Warm/Green/Magenta), and Soft High-Key.
    • Creative Style modes: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn leaves, Black & White, Sepia, Style Box (1-6), (Contrast (-3 to +3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3 steps).
  UPC: 027242909854

• 200DL Underwater Housing for Sony A9 / A7R III with Dry Lock Port Mount urbryayeuvyzwwuudwvrbebuzscxquzarcef
• O-Ring (Replacement)
• 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement)
• Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings
• Port Hole Cover for Housings with Dry Lock Mount
• DL Zoom Gear Retainer
• 0945.06 Tool for Zoom Gear Retainer
• ICS Bulkhead Cap (Replacement)
• 4-40 Hex Head Allen Wrench
• 1/16" Hex Head Allen Wrench for Gears on Housings
• 1/8" Hex Head Allen Wrench for Control Knobs on Housings
• Control and Push Button Covers
• 2cc Tube of Silicone Lubricant for O-Rings
• Limited 2-Year Warranty

• Sony - Alpha a7R III Mirrorless Digital Camera (Body Only) urbryayeuvyzwwuudwvrbebuzscxquzarcef

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite 200DL Underwater Housing for Sony A9 / A7R III with Dry Lock Port Mount

  Depth Rating	200' / 60 m
  Control Type	Mechanical push-buttons, dials, and levers
  Controls	Afford access to all camera functions except for diopter adjustment dial, multi-selector, focus mode dial / lock-release button, and media slot cover switch
  Material of Construction	Polycarbonate and ABS plastic
  Lens Port	Ships without required lens port Dry Lock (DL) interchangeable port system Accepts dome and flat ports for an array of lenses, including those with large diameters For complete compatibility details, see port chart linked in overview
  Buoyancy	Housing Only: Nearly neutral in fresh water Complete System: Depends on choice of lens and port
  External Flash Connector	Ikelite ICS-5 bulkhead with manual hot shoe connection for optional external strobes Optional TTL hot shoe and converter will allow for TTL operation with compatible Ikelite DS strobes Ikelite ST1K Sony Alpha TTL Kit is recommended Non-Ikelite strobes will still work in manual mode only
  Mounting	1/4"-20 threaded mounts with 3.5" / 88.9 mm spacing for included tray and grip
  Dimensions	9.0 x 7.2 x 6.6" / 22.9 x 18.3 x 16.8 cm
  Weight	5.1 lb / 2.3 kg

  Box Dimensions (LxWxH)	14.6 x 9.3 x 8.4"

• Sony Alpha a7R III Mirrorless Digital Camera (Body Only)

  Lens Mount	Sony E
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 43.6 Megapixel Effective: 42.4 Megapixel
  Maximum Resolution	7952 x 5304
  Aspect Ratio	3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	35.9 x 24 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 100 to 32000 (Extended: 50 to 102400)
  Shutter Speed	1/8000 to 30 Seconds 1/8000 to 1/4 Second in Movie Mode Bulb Mode
  Metering Method	Center-Weighted Average, Multi-Zone, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-3 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
  Continuous Shooting	Up to 10 fps at 42.4 MP for up to 76 Exposures (Raw Format) Up to 8 fps at 42.4 MP for up to 76 Exposures (Raw Format) Up to 6 fps at 42.4 MP for up to 76 Exposures (Raw Format) Up to 3 fps at 42.4 MP for up to 76 Exposures (Raw Format) Up to 10 fps at 42.4 MP for up to 76 Exposures (JPEG Format) Up to 8 fps at 42.4 MP for up to 76 Exposures (JPEG Format) Up to 6 fps at 42.4 MP for up to 76 Exposures (JPEG Format) Up to 3 fps at 42.4 MP for up to 76 Exposures (JPEG Format)
  Self Timer	2/5/10-Second Delay

  Recording Modes	XAVC S UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [60 to 100 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/120p [100 Mb/s] HD (1280 x 720) at 100p/120p [50 Mb/s] AVCHD Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/50i/59.94i [17 to 24 Mb/s] MP4 Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s] Full HD (1920 x 1080) at 25p/29.97p [16 Mb/s] HD (1280 x 720) at 25p/29.97p [6 Mb/s]
  External Recording Modes	4:2:2 8-Bit UHD 4K (3840 x 2160) at 24.00p/25p/29.97p Full HD (1920 x 1080) at 24.00p/50i/50p/59.94i/59.94p
  Recording Limit	Up to 29 Minutes
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AC3, Dolby Digital 2ch, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 399 Contrast Detection: 425
  Autofocus Sensitivity	-2 to +20 EV

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	3,686,400 Dot
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.78x
  Diopter Adjustment	-4.0 to +3.0 m
  Monitor Size	3"
  Monitor Resolution	1,440,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	None
  Flash Modes	Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync, Wireless
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x SD/SDHC/SDXC/Memory Stick PRO HG-Duo/Memory Stick Pro Duo
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B, USB 3.0, USB Type-C
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C

  Battery	1 x NP-FZ100 Rechargeable Lithium-Ion, 7.2 VDC, 2280 mAh (Approx. 530 Shots per Charge)
  Dimensions (W x H x D)	5.0 x 3.8 x 2.9" / 126.9 x 95.6 x 73.7 mm
  Weight	1.45 lb / 657 g

  Box Dimensions (LxWxH)	10.0 x 6.0 x 6.0"
