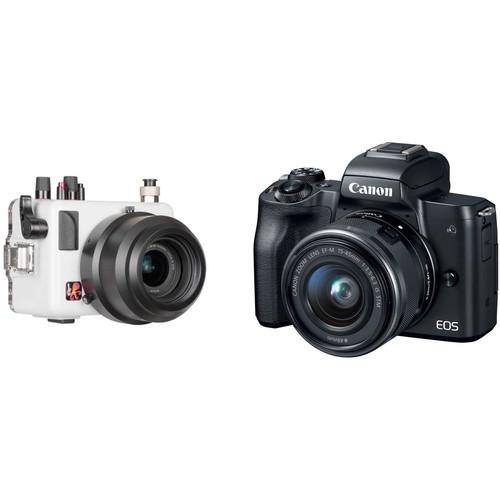

User Manual for Ikelite 200DL Underwater Housing & Canon EOS M50 Mirrorless Camera Kit

• Product category: Still Cameras & Housings Others
• Brand: Others
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Others Still Cameras & Housings

Product description

• Ikelite 200DLM/A Underwater TTL Housing for Canon EOS M50 With your Canon EOS M50 mirrorless camera inside this Ikelite 200DLM/A Underwater Housing, you can capture brilliant images and video at depths as great as 200'. An Ikelite sync bulkhead and built-in TTL circuitry enable the connection of optional external strobes. Ikelite DS flash units can be used in TTL or manual exposure mode, while third-party strobes will work in manual mode.

  Ergonomic controls, including push-buttons, dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. An optional aluminum tray with a quick release grip or two will afford improved balance and handling, while offering a way to attach optional lighting arms.

  The housing ships without a required lens port, and accepts various interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the DLM Type A Port Chart.
  Construction Details
  • • Depth rating: 200'
    • Made by hand in the USA from corrosion-resistant polycarbonate and ABS plastic blend
    • Stainless-steel locking latches
    • Open-groove rear O-ring is easy to maintain and offers visual confirmation of seal
    • 1/2"-20 threaded accessory port for optional Vacuum Kit
    • Camera is installed and removed through the front of the housing
    • Mounting plate allows for secure camera placement without hindering access to battery compartment or memory card slot
    • Mounting plate has 1/4"-20 threaded hole for connection to a tripod
  Controls and Handling
  • • Large, ergonomic controls including push-buttons, dials, and levers
    • Afford access to all camera functions except Wi-Fi
    • Soft-touch knobs are easy to grip with or without gloves
    • Curved shutter lever hugs side of housing
    • Optional Shutter Trigger Extension can be added on to allow for easy shutter activation when using a grip
    • Laser-engraved control symbols on the back of the housing won't come off or fade with time
    • Supereye Viewfinder gives you a clear view through the camera's optical finder when you're wearing a dive mask
    • Camera's LCD screen can be tilted prior to installation for easier viewing
    • Two 1/4"-20 threaded mounts on the bottom of the housing allow for connection to optional tray
  Lens Ports
  • • Ships without a required lens port
    • Accepts various interchangeable dome and flat ports for a broad array of lenses
    • For complete compatibility details, see the port chart linked above
    • Simply press the port on and tighten three thumbscrews
  Strobe Connection and Operation
  • • Circuit is powered by strobe
    • Exposure compensation in TTL mode is supported using the camera's built-in control
    • Ikelite DS strobe are operable in TTL or manual mode
    • Third-party strobes operable in manual mode only
    • Sync cord is sold separately
  UPC: 883711056067
• Canon EOS M50 Mirrorless Digital Camera with 15-45mm Lens (Black) Comprising a versatile feature-set to suit both stills and video applications, the black EOS M50 Mirrorless Digital Camera from Canon separates itself from the pack with UHD 4K video recording, a high-resolution electronic viewfinder, and improved Dual Pixel CMOS AF with Eye Detection AF. Utilizing a 24.1MP APS-C CMOS sensor and DIGIC 8 image processor, improved Auto Lighting Optimizer helps to ensure clean image quality with low noise, along with top 10 fps shooting rate and a native sensitivity range of ISO 100-25600, which can be extended to ISO 51200 for working in low-light conditions. The sensor and processor combination also enables UHD 4K video recording at 23.98 fps, along with Full HD 1080p60 and HD 720p120 for slow motion capture. The sensor's design also facilitates Dual Pixel CMOS AF, which uses phase-detection autofocus for quick, accurate, and smooth performance to suit both stills and video use. Additionally, Combination IS 5-axis image stabilization also helps to realize steady, shake-free recording by minimizing the appearance of camera shake.

  Complementing the imaging attributes, the EOS M50 also incorporates a 2.36m-dot OLED electronic viewfinder and a 3.0" touchscreen LCD for intuitive control. The screen's vari-angle design permits working from high and low working angles and its touchscreen interface allows working with Touch and Drag AF for easier manipulation of the AF area. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device.
  24.1MP APS-C CMOS Sensor and DIGIC 8 Image Processor
  • Both a 24.1MP APS-C CMOS sensor and DIGIC 8 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible ISO 100-25600 range, with an expandable ISO 51200 setting, suits working in a variety of lighting conditions, and the processing capabilities minimize noise and afford Auto Lighting Optimizer for notable clarity in various shooting situations. UHD 4K video recording is also supported at 23.98 fps, along with Full HD 1080p60 and HD 720p120 settings for slow motion recording. Additionally, the processor affords a 10 fps continuous shooting rate, fast camera startup time, and short interval times between each frame for a more intuitive and efficient shooting process.
  Dual Pixel CMOS AF
  • Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. Eye Detection AF can also be used for portraiture, and helps to prioritize focus on a subject's eye for ensured sharpness.

    When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
  Combination IS
  • Combination IS uses the built-in 5-axis digital image stabilization in conjunction with lens-based image stabilization systems to effectively minimize the appearance of camera shake for sharper handheld shooting. This benefits recording while walking or moving, and can also be used in conjunction with lenses featuring optical IS for more effective overall stabilization.
  Body Design and Wireless Connectivity
  • • Large 3.0" touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle to better enable working from high and low angles.
    • Integrated 2.36m-dot OLED electronic viewfinder permits bright, clear eye-level monitoring and also permits working with Touch and Drag AF for manually moving the AF area while shooting with the EVF for more intuitive control.
    • Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
    • Bluetooth permits linking a smartphone or tablet for quick, automatic image sharing between devices as well as remote control capabilities.
    • Built-in pop-up flash provides additional illumination for working in low-light conditions. A hot shoe is also available for working with an optional external flash for greater control.
  EF-M 15-45mm f/3.5-6.3 IS STM Lens
  • Included with the camera body is the versatile standard zoom EF-M 15-45mm f/3.5-6.3 IS STM lens, which provides a 24-72mm equivalent focal length range. Three aspherical elements help to control chromatic aberrations and distortions throughout the zoom range and an optimized lens placement works to reduce flare and ghosting. An Optical Image Stabilizer works to minimize the appearance of camera shake by up to 3.5 stops for sharper handheld shooting and an STM stepping motor provides fast, smooth, and near-silent autofocus performance.
  UPC: 013803301229

• 200DLM/A Underwater TTL Housing for Canon EOS M50 asufuevvbaysauazxcvqswdztdyq
• 2cc Tube of Silicone Lubricant for O-Rings
• Control + Push Button Tip Assortment for Compact Digital Housings
• 1/16" Hex Head Allen Wrench for Gears on Housings
• Limited 2-Year Warranty

• Canon - EOS M50 Mirrorless Digital Camera with 15-45mm Lens (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite 200DLM/A Underwater TTL Housing for Canon EOS M50

  Depth Rating	200' / 60 m
  Control Type	Mechanical push-buttons, dials, and levers
  Material of Construction	Body: Polycarbonate and ABS plastic blend Back Plate: Acrylic
  Lens Port	Ships without a required lens port Accepts interchangeable dome and flat ports for various lenses For complete compatibility details, see DLM Type A port chart linked in overview
  External Flash Connector	Ikelite sync bulkhead and TTL circuitry for strobes
  Mounting	2 x 1/4"-20 threaded mounts with 3.0" / 76 mm spacing for optional tray
  Dimensions	7.5 x 5.8 x 5.4" / 19.1 x 14.7 x 13.7 cm
  Weight	2.7 lb / 1.2 kg

  Box Dimensions (LxWxH)	9.8 x 6.2 x 6.2"

• Canon EOS M50 Mirrorless Digital Camera with 15-45mm Lens (Black)

  Lens Mount	Canon EF-M
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 25.8 Megapixel Effective: 24.1 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Digital, 3-Axis (Video Only)

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 100 to 51200)
  Shutter Speed	1/4000 to 30 Seconds
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 10 fps at 24.2 MP for up to 10 Exposures (Raw Format) Up to 10 fps at 24.2 MP for up to 33 Exposures (JPEG Format) Up to 4 fps at 24.2 MP for up to 15 Exposures (Raw Format) Up to 4 fps at 24.2 MP for up to 1000 Exposures (JPEG Format) Up to 7.4 fps at 24.2 MP for up to 47 Exposures (JPEG Format)
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 UHD 4K (3840 x 2160) at 23.976p Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s] HD (1280 x 720) at 120p [52 Mb/s] HD (1280 x 720) at 59.94p [26 Mb/s]
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC LC

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 143 Phase Detection: 99
  Autofocus Sensitivity	-2 to +18 EV

  Viewfinder Type	Electronic
  Viewfinder Size	0.39"
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Coverage	100%
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	Yes
  Guide Number	16.4' / 5 m at ISO 100
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E12 Rechargeable Lithium-Ion, 7.2 VDC, 875 mAh
  Dimensions (W x H x D)	4.6 x 3.5 x 2.3" / 116.3 x 88.1 x 58.7 mm
  Weight	13.65 oz / 387 g (Body with Battery and Memory)

  Focal Length	15 to 45mm (35mm Equivalent Focal Length: 24 to 72mm)
  Maximum Aperture	f/3.5 to 6.3
  Minimum Aperture	Not Specified by Manufacturer
