Product description Capture brilliant images of the aquatic world with your Canon EOS 6D Mark II DSLR camera in Ikelite's 200DL Underwater Housing with Dry Lock Port Mount, which has a depth rating of 200'. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. The use of an optional TTL hot shoe and converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic, mechanical push-buttons, dials, and levers afford access to nearly all camera functions, including all the essential ones. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
This housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for an array of lenses. For full compatibility details, see the port chart. The Dry Lock (DL) port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Two double-passivated, stainless steel locking latches are corrosion-resistant and virtually unbreakable
- Housing is made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface

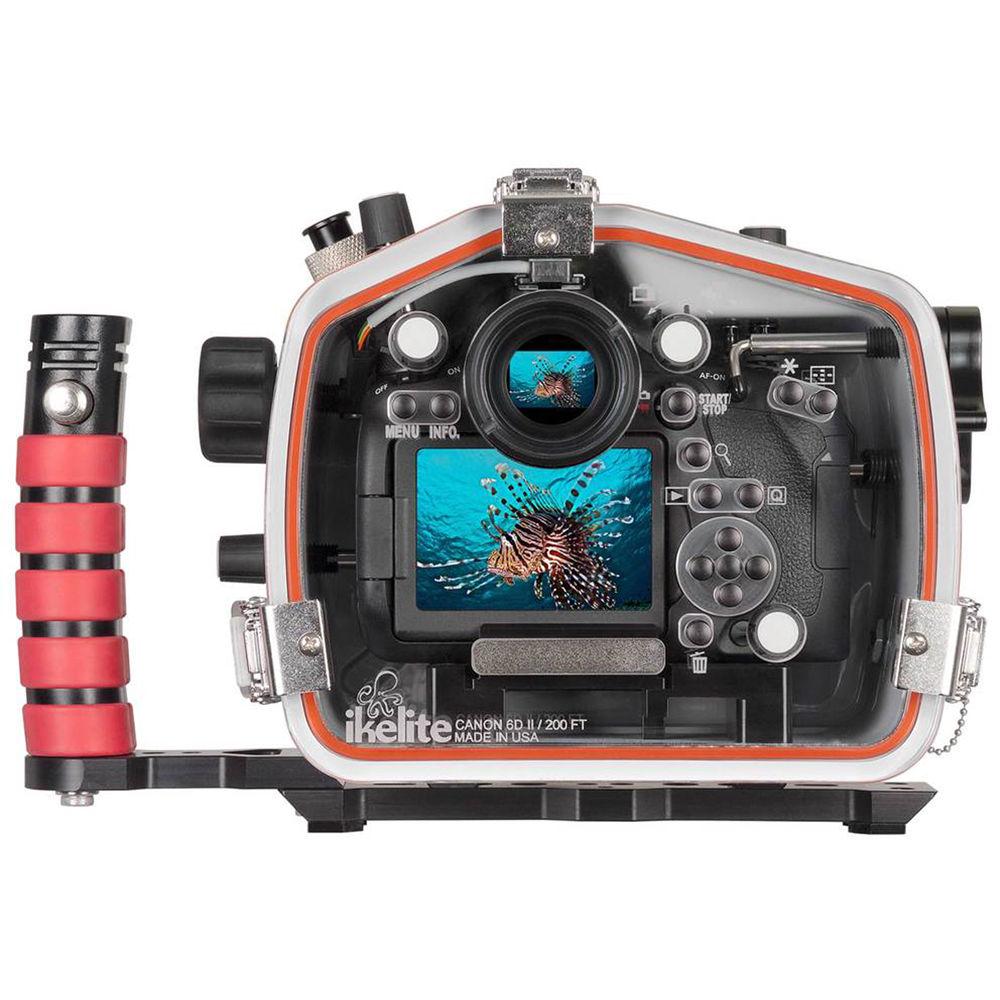

- Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
- Housing alone has nearly neutral buoyancy in fresh water, though your choice of lens and port may change the overall buoyancy of the system
- Open-groove design suspends the rear O-ring in the natural position, making maintenance easier and preventing accidental twisting or stretching
- Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
- Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
- Strobe Connection and Operation
-
- Use of an optional external strobe is highly recommended for color correction and adequate brightness, and basically essential once you descend deeper than 15-20' underwater
- Strobe restores hues that are absorbed by the water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from your subject to preserve natural colors in images
- Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
- Optional TTL hot shoe and converter, such as Ikelite's CT1K Canon TTL Kit, will enable TTL operation with compatible Ikelite DS strobes, which use the #4103.51 Single and #4103.52 Dual Sync Cords
- Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only, and can be connected via #4118.1 Single and #4118.2 Dual Sync Cords
- Older non-digital strobes can be used in manual mode via #4103.51 Single and #4103.52 Dual Cords
- Housing ships without a required sync cord for a strobe
- Bulkhead has been moved to the top of the enclosure to keep the cord out of your way and reduce strain on the ends
- Ikelite's #4403 Optical Slave Converter and Aquatica's Water Wizard system are available options that will let you trigger wireless slave strobes
- Exposure compensation is available via the camera's controls
- Controls and Handling
-
- Sensitive shutter and AF-On levers are curved and extendable, in order to increase comfort when using the optional right-hand grip
- Push-buttons have been modified to reduce weight and salt buildup
- Upgraded soft-touch knobs, including the zoom knob on the side, allow for a better, more comfortable grip with or without gloves
- Ergonomic, mechanical push-buttons, knobs, and levers afford access to all camera functions except for the LCD panel illumination button, depth-of-field preview, dioptric adjustment knob, and multi-function lock
- Control symbols are etched into the back of the housing with lasers, so they won't fade or fall off with time
- Control placement is as close as possible to the layout of functions on the camera, allowing your muscle memory to guide you--so you don't have to learn another set of controls
- LCD monitor can be tilted during camera installation to give you a better viewing angle
- Supereye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
- You can remove the Supereye quickly if you'd like to attach the optional Straight or 45° Magnified Viewfinder instead
- Hard-anodized aluminum tray with a left-hand quick-release grip improves balance and handling, while offering an attachment point for an optional lighting arm
- Optional right-hand grip can be added easily
- 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
- Tray is more than 3/4 lb lighter than Ikelite's previous model
- Housing is a 1/2 lb lighter than its FL-mount counterpart
- Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light, GoPro action camera, or other lightweight piece of equipment
- Spare 1/2-20 threaded port on top of the enclosure allows for the addition of various accessories
- Optional Cable Grip or Aluminum Top Handle can be added for easier carrying if you're using 2 strobes
- Lens Ports
-
- Ships without a required lens port
- Accepts all Ikelite Dry Lock (DL) dome and flat ports, enabling you to shoot with a wide variety of lenses
- Zoom and focus gears are available for many lenses
- For complete compatibility details, see the port chart linked above
- DL port system accommodates lenses with large diameters
- Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
- Removal of excess air to create a vacuum requires #47011 Pump with Gauge
- DL mount can be removed and replaced by the older FL (Four Lock) port locks, though this change would be irreversible unless you sent the housing back to Ikelite to have the DL mount installed again
UPC: 883711055299 In the Box Ikelite 200DL Underwater Housing for Canon EOS 6D Mark II with Dry Lock Port Mount O-Ring for Large SLR Housings babdyacxfzbs 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement) Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings Port Hole Cover for Housings with Dry Lock Mount DL Zoom Gear Retainer 0945.06 Tool for Zoom Gear Retainer ICS Bulkhead Cap (Replacement) 4-40 Hex Head Allen Wrench 1/16" Hex Head Allen Wrench for Gears on Housings 1/8" Hex Head Allen Wrench for Control Knobs on Housings Control and Push Button Covers 2cc Tube of Silicone Lubricant for O-Rings Limited 2-Year Warranty Port System Charts PDF 216.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing for Canon EOS 6D Mark II with Dry Lock Port Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DL Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knobs, dials, and levers | | Controls | Afford access to all camera functions except for LCD panel illumination button, depth-of-field preview, dioptric adjustment knob, and multi-function lock | | Material of Construction | Polycarbonate and ABS plastic | | Lens Port | Ships without required lens port
Dry Lock (DL) interchangeable port system
Accepts dome and flat ports for an array of lenses, including those with large diameters
For complete compatibility details, see port chart linked in overview | | Buoyancy | Housing Only: Nearly neutral in fresh water
Complete System: Depends on choice of lens and port | | External Flash Connector | Ikelite ICS-5 bulkhead with manual hot shoe connection for optional external strobes
Optional TTL hot shoe and converter will allow for TTL operation with compatible Ikelite DS strobes
Ikelite CT1K Canon TTL Kit is recommended
Non-Ikelite strobes will still work in manual mode only | | Mounting | 1/4"-20 threaded mounts with 3.5" / 88.9 mm spacing for included tray and grip | | Dimensions | 9.2 x 7.1 x 6.6" / 23.4 x 18 x 16.8 cm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 14.6 x 9.4 x 8.4" |
