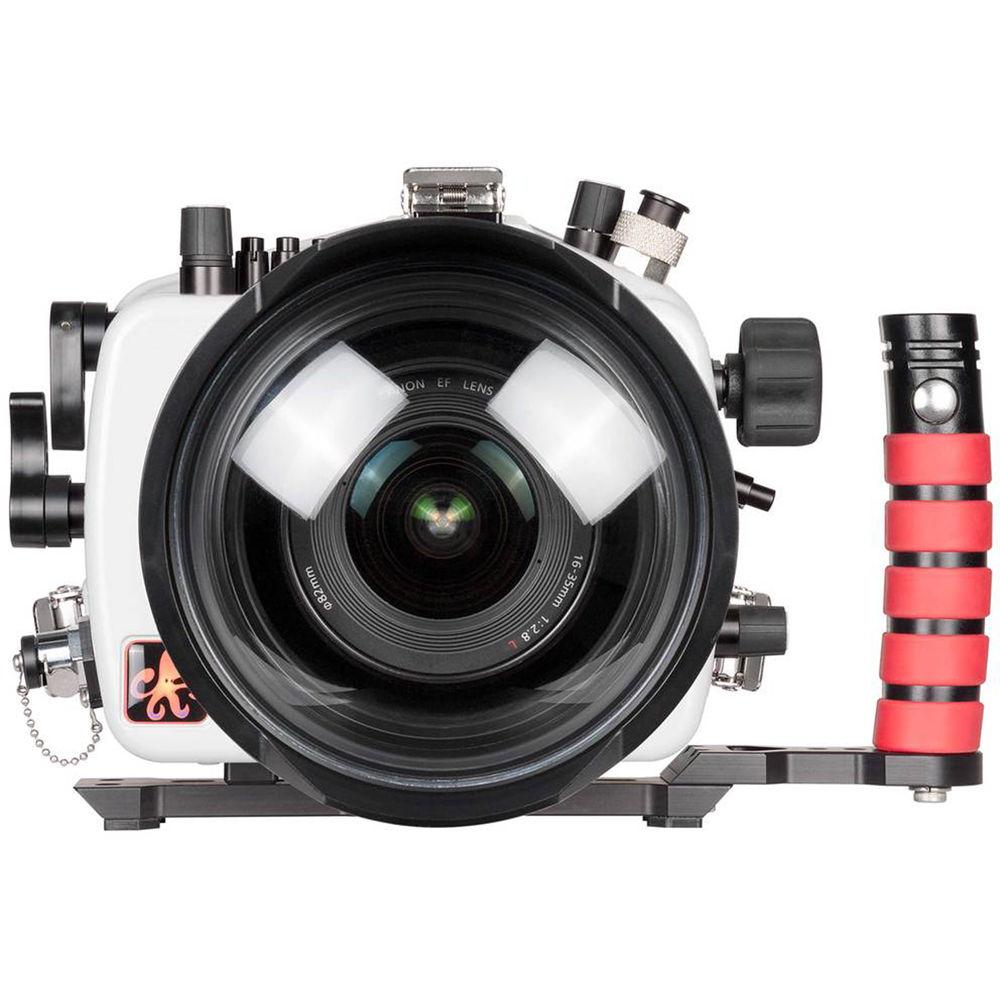

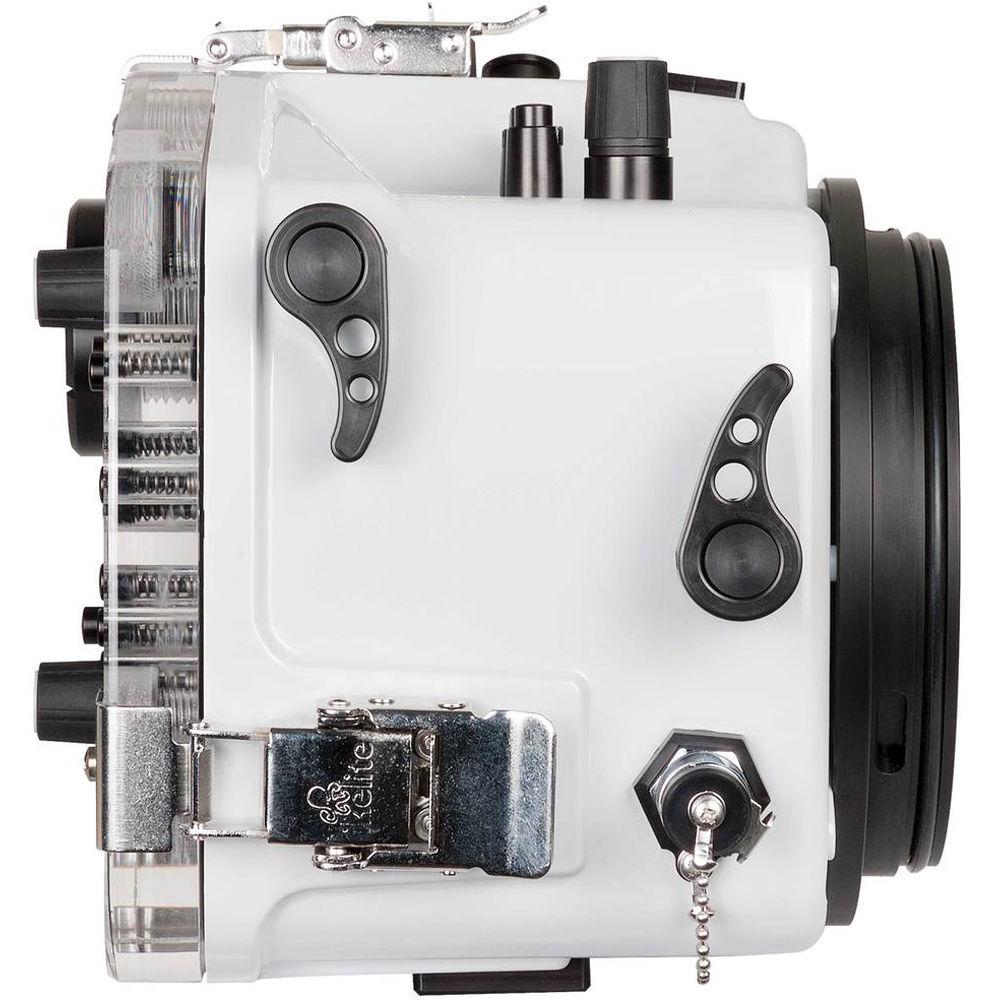

Product description You can capture sharp, detailed images and video at depths as great as 200' beneath the surface with your Canon EOS 70D DSLR camera, thanks to Ikelite's 200DL Underwater Housing with Dry Lock Port Mount. An Ikelite ICS-5 bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Use of an optional TTL hot shoe and circuitry will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but the clear acrylic back plate allows you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.

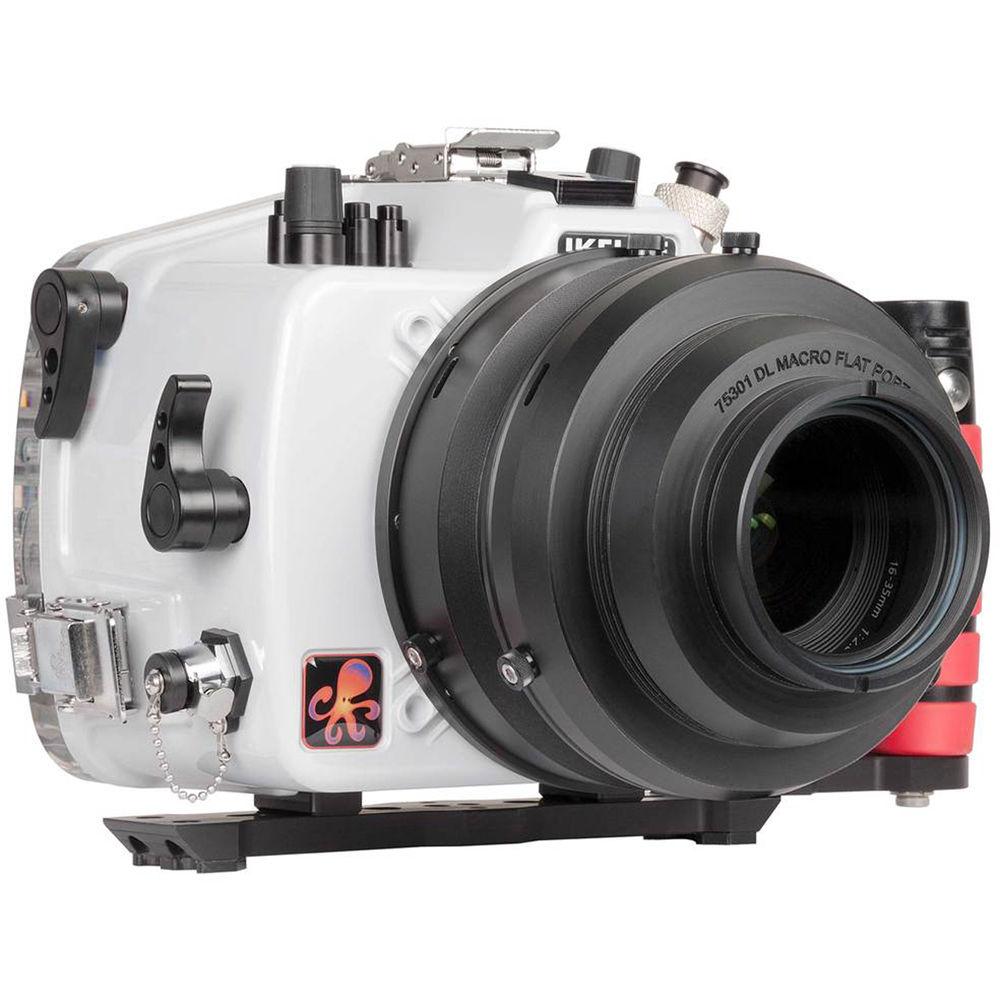

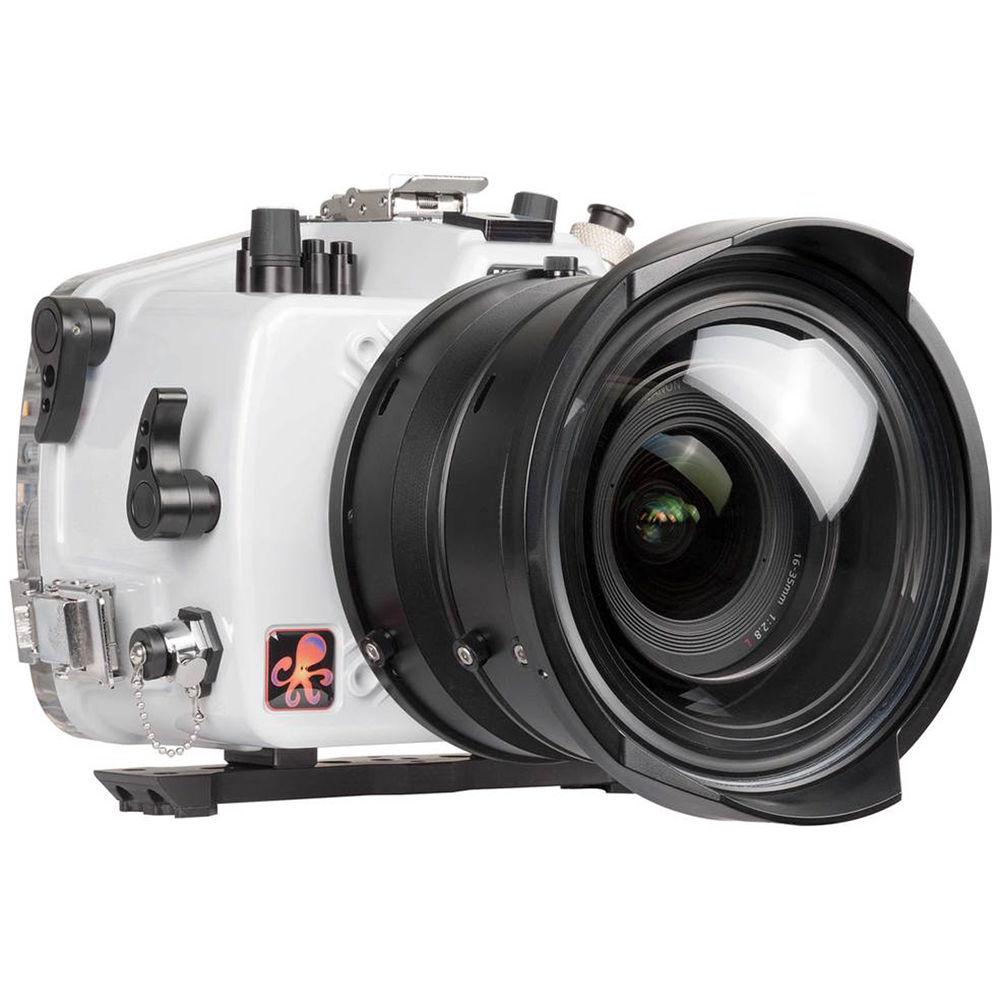

The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart.. Ikelite's Dry Lock (DL) Port System accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. The DL port mount may be removed and replaced by an older one to allow you to use standard and modular ports from Ikelite's Four Lock system. - Construction Details
-
- Depth rating: 200'
- Made in USA from corrosion-resistant polycarbonate and ABS plastic blend
- White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface

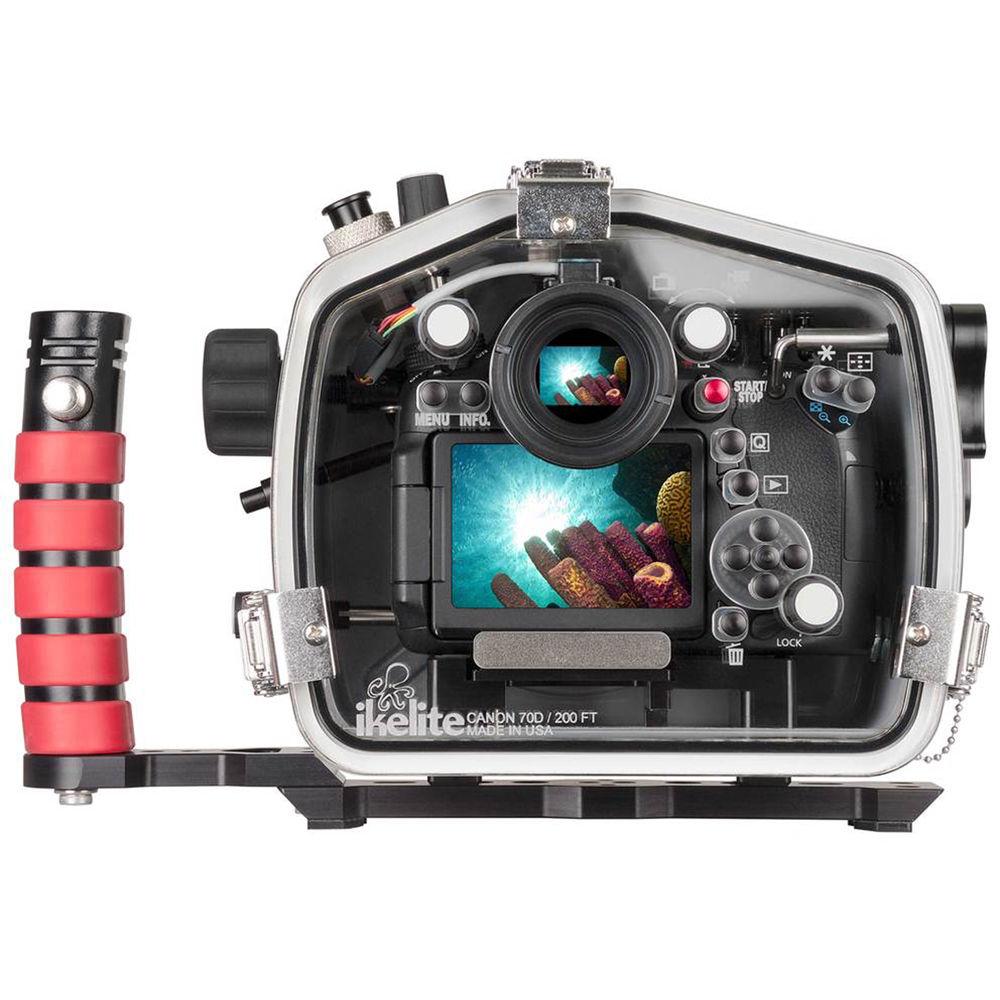

- Clear back, which is also corrosion-resistant, allows you to monitor O-ring seal and maintain view of camera's rear controls
- Housing alone has nearly neutral buoyancy in fresh water; overall system buoyancy varies based on choice of lens and port
- Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
- Front-loading camera mounting system makes installation and removal easy
- Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
- Strobe Connection and Operation
-
- Ikelite ICS-5 bulkhead with manual hot shoe connection enables reliable electrical triggering of optional, external strobes via sync cords
- Optional # 46070 CT1K Canon TTL Kit (hot shoe and circuitry) will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes such as SEA&SEA, INON, and Retra will work in manual mode only
- TTL exposure compensation adjustable in-camera
- Flash units without sync cords may be triggered as slaves by hard-wired strobes
- Ikelite DS strobes support remote triggering of additional flash units via Optical Slave Converter #4403 or Aquatica's Water Wizard system
- Flash bulkhead on to top of housing to prevent sync cord from getting in the way and to reduce strain
- Controls and Handling
-
- Ergonomic controls afford access to key camera functions
- Following functions inaccessible: LCD panel illumination button, depth-of-field preview button, dioptric adjustment knob, multi-function lock switch
- Control symbols laser-etched into rear of housing won't fade with time
- Anodized aluminum tray with a left-hand quick-release grip affords good balance and handling, while offering an attachment point for an optional lighting arm
- Optional right-hand QR grip can be added to allow for a second lighting arm to be connected
- Optional Cable Grip and Aluminum top handle can be added if shooting with 2 strobes
- Camera mounting plate has 1/4"-20 threaded hole for connection to optional tripod
- 1/4"-20 threaded hole on housing above lens port for accessories like a focus light or GoPro camera
- Lens Port System
-
- Dry Lock (DL) Port System accommodates lenses with large diameters

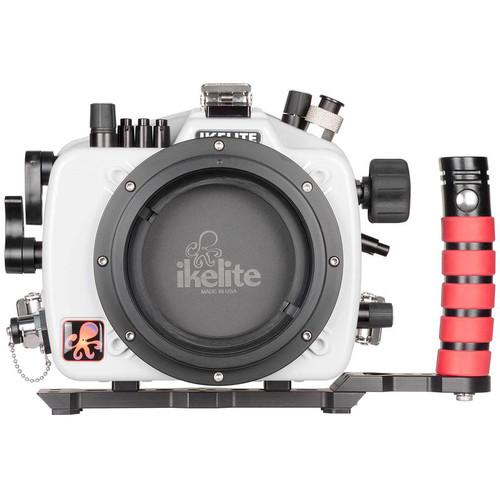

- Housing ships without a required lens port, and accepts interchangeable dome and flat ports for various zoom, macro, and wide-angle lenses
- For full compatibility, see Port Chart linked above
- Accepts array of zoom and focus gears for various lenses
- Large, soft-touch knob on side of housing makes small adjustments easy
- Provides added security against leaks at surface--thanks in large part to included vacuum valve for checking watertight integrity before dive
- # 47011 Pump with Gauge required in order to remove excess air and actually create a vacuum
- DL mount may be removed and replaced with old-style port locks to allow for mounting of standard or modular Four Lock ports; however, re-installation of DL base will require you to ship housing back to Ikelite or other authorized service center
UPC: 883711055862 In the Box Ikelite 200DL Underwater Housing for Canon EOS 70D DSLR Cameras O-Ring (Replacement) tdtxxueyrvbdsreabebdzb 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement) Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings Port Hole Cover for Housings with Dry Lock Mount ICS Bulkhead Cap (Replacement) IK75900 #0945.06 Tool for Zoom Gear Retainer 4-40 Hex Head Allen Wrench 1/16" Hex Head Allen Wrench for Gears on Housings 1/8" Hex Head Allen Wrench for Control Knobs on Housings Control and Push Button Covers 2cc Tube of Silicone Lubricant for O-Rings Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing for Canon EOS 70D DSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 71712 Specs | Depth Rating | 200' / 61 m | | Controls | Afford access to many camera functions
Following functions inaccessible: LCD panel illumination button, depth-of-field preview button, dioptric adjustment knob, multi function lock switch | | Material of Construction | Polycarbonate and ABS plastic blend | | Buoyancy | Housing Only: Nearly neutral in fresh water
Full System: Varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 sync bulkhead with manual hot shoe connection | | Mounting | Aluminum tray with left-hand quick-release grip
1/4"-20 threaded holes on bottom of camera plate and tray for mounting to optional tripod
1/4"-20 threaded hole above port mount for lightweight accessories | | Dimensions | 9.2 x 7.1 x 6.6" / 23.4 x 18 x 16.8 cm | | Weight | 4.8 lb / 2.2 kg |
