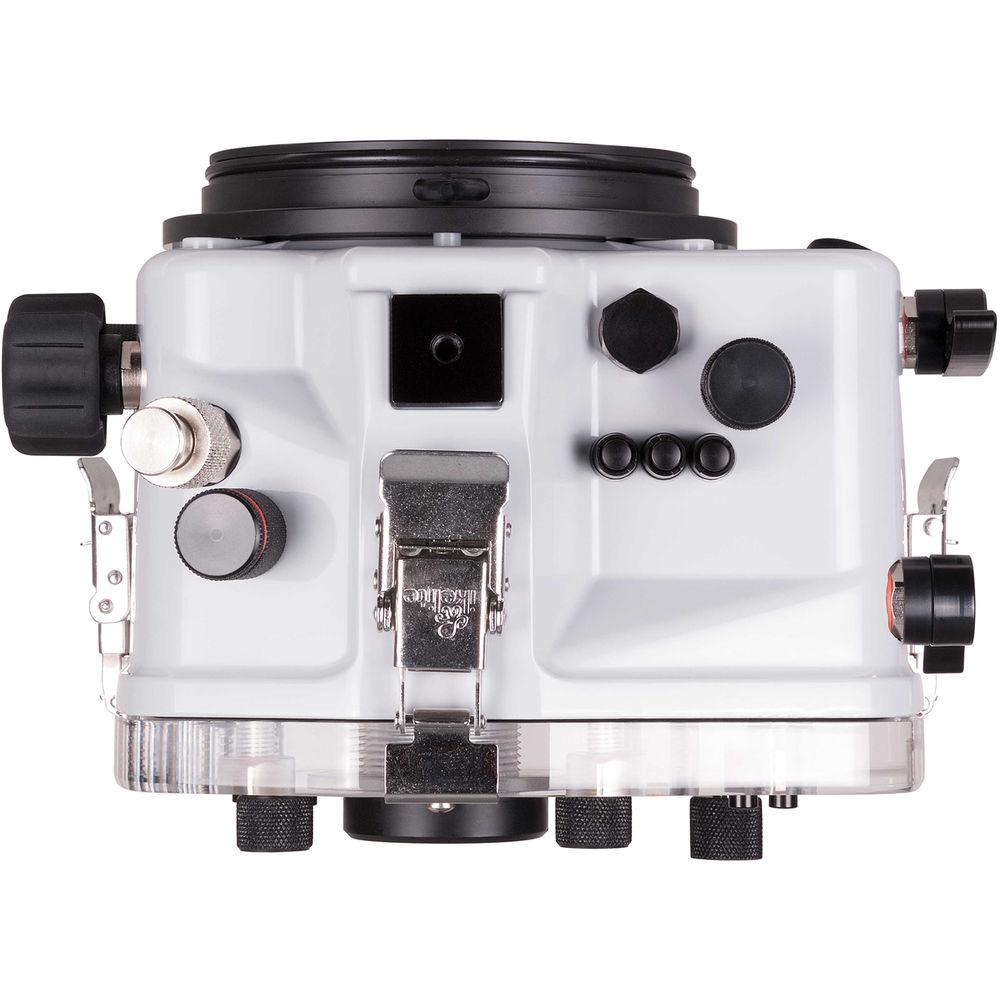

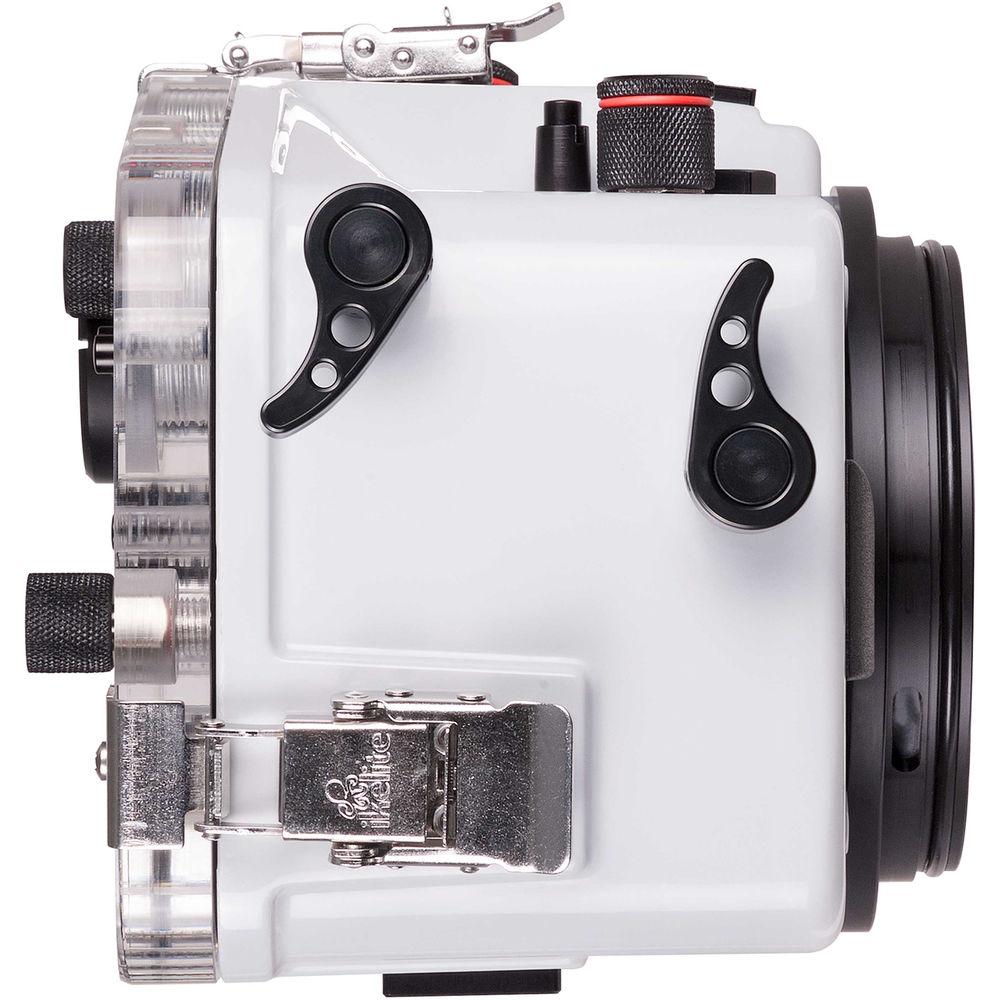

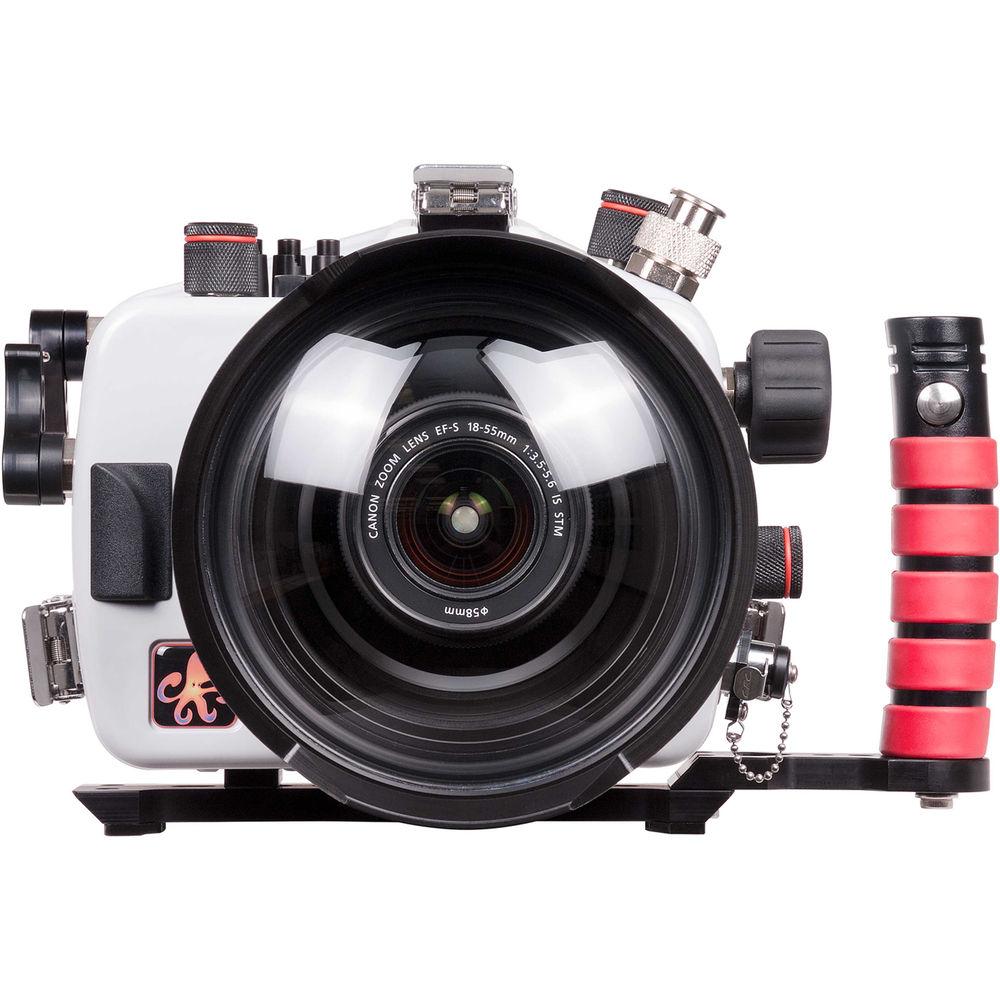

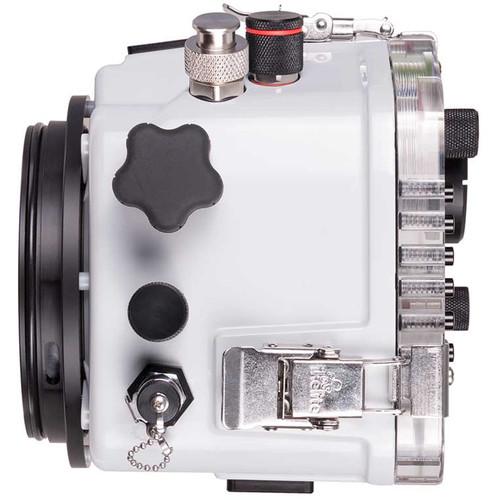

User Manual for Ikelite 200DL Underwater Housing for Canon EOS 7D Mark II with Dry Lock Port Mount Click to enlarge the picture
Contents of the user manual for the Ikelite 200DL Underwater Housing for Canon
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 200DL Underwater Housing for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture sharp, detailed photos and video beneath the surface with your Canon EOS 7D Mark II DSLR camera in Ikelite's 200DL Underwater Housing with Dry Lock Port Mount. Both the front and back are depth rated to 200'. An Ikelite ICS-5 bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Use of an optional TTL hot shoe and circuitry will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but the clear acrylic back plate allows you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart. The Dry Lock (DL) Port System accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. The DL port mount may be removed and replaced by an older one to allow you to use standard and modular ports from Ikelite's Four Lock system. - Construction Details
-
- Front and back parts are both depth rated to 200'
- Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
- White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface

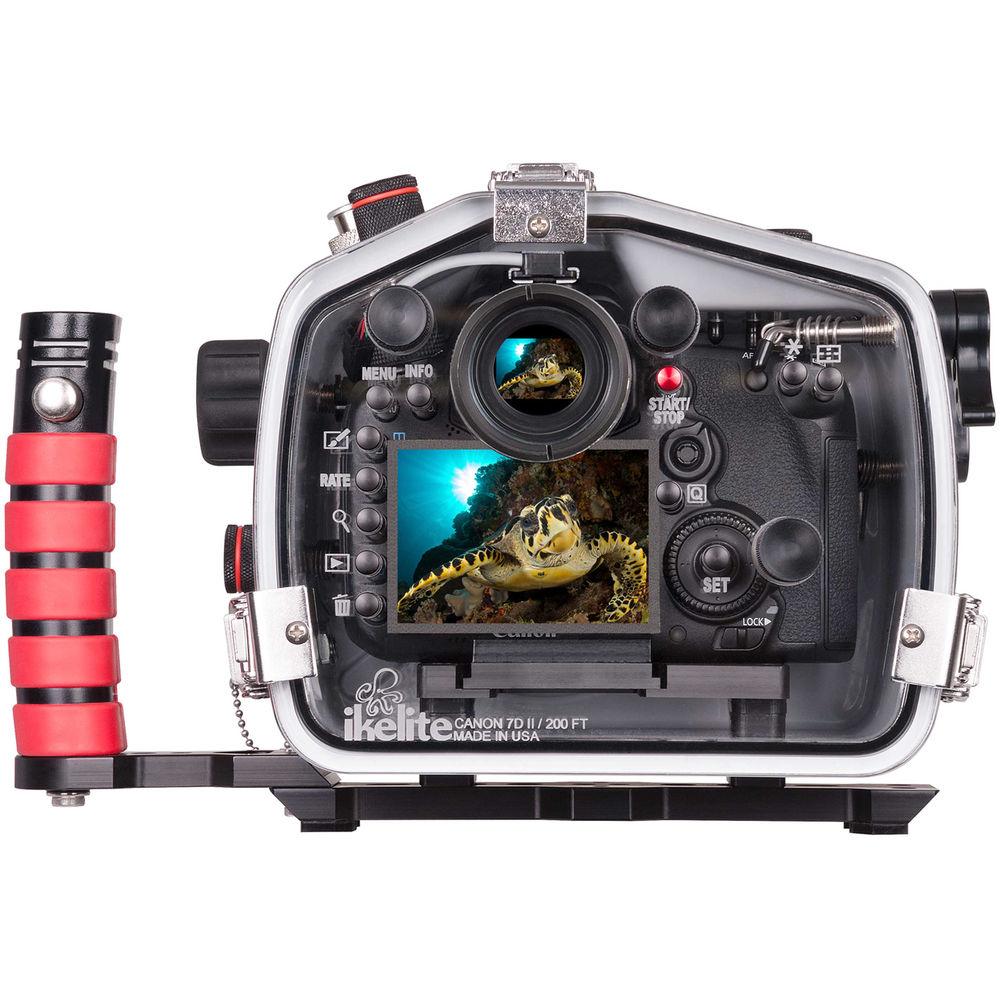

- Clear acrylic back plate lets you monitor O-ring seal and maintain view of camera's rear controls
- Open-groove design suspends O-ring in natural position, so it's easier to maintain and you don't have to force it into a channel
- Housing alone has nearly neutral buoyancy in fresh water; overall buoyancy when shooting depends on choice of lens and port
- Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
- Mounting plate has 1/4"-20 threaded hole on bottom for connection to tripod
- Strobe Connection and Operation
-
- Use of external strobe highly recommended for color correction and adequate brightness, and will be extremely helpful--if not essential--once you descend further than 15-20' underwater
- Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from subject to preserve natural colors in images
- Ikelite ICS-5 bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes via sync cords
- Optional # 46070 CT1K Canon TTL Kit (hot shoe and circuitry) will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes, such as Sea & Sea, Inon, and Nikonos models, will still work in manual mode only
- All strobes used with camera in this housing require sync cord connection, unless they are additional flash units being triggered as slaves by the hard-wired strobes
- Exposure compensation can be adjusted using in-camera controls
- Available sync cords: #4118.1 Single INON / Sea & Sea type, #4118.2 Dual INON / Sea & Sea type, #4116.31 Single Nikonos SB type, and #4116.32 Dual Nikonos SB type
- Older, non-digital strobes with ICS-5 bulkhead can be used in manual mode with #4103.51 Single or #4103.52 Dual cord
- Ikelite DS strobes support remote triggering via Optical Slave Converter #4403 or Aquatica's Water Wizard system
- Flash bulkhead moved to top of housing to keep cords out of the way and reduce strain on them
- Reliable locking connectors between hot shoe and bulkhead make installation of optional TTL electronics easy, while also allowing you to carry backup parts when traveling
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to virtually all camera functions
- Accessible controls include shutter release, start/stop video recording, menu, info, magnify, playback, set, main dial, mode dial, drive mode, AF-ON, zoom, and delete
- Extra-large, soft touch zoom/focus knob makes fine adjustments easy
- Shutter and AF-ON levers feature a curved design, and can be elongated with optional #4077.93 Shutter Trigger Extension for increased comfort when using optional right-hand QR grip
- Push-buttons have been designed to reduce weight and salt buildup
- Rear of housing has laser-engraved control symbols that won't fade over time
- Supplied, lightweight, hard-anodized aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- Tray and handle can be removed with ease for travel and storage
- 1/4"-20 threaded mounting point located front and center, above lens port mount, allowing for attachment of lightweight accessories like focus lights and GoPro action cams
- If shooting with 2 strobes, you can add optional top handle to make carrying easier
- Included Supereye Viewfinder provides enhanced view of camera's OVF when seen through dive mask
- Improve your view to an even greater extent with optional #6890 Straight Magnified Viewfinder or #6891.2 45° Magnified Viewfinder Type 2
- Lens Port System
-

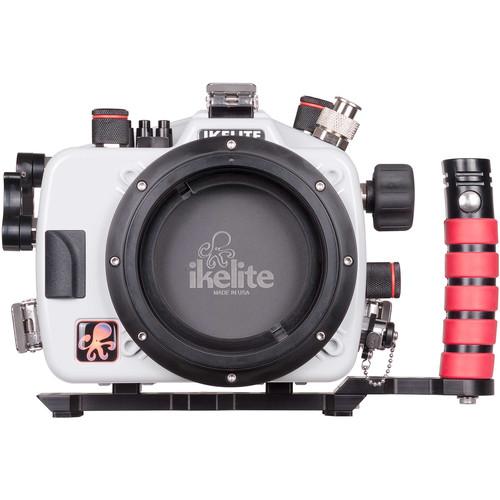

- Dry Lock (DL) Port System
- Housing ships without a required lens port, and accepts various interchangeable dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
- Zoom and focus gears also available
- Accommodates lenses with large diameters, such as Canon's EF 16-35mm Type II/III and 11-24mm
- For full compatibility, see Port Chart linked above
- Provides added security against leaks at the surface--thanks in large part to included vacuum valve for checking watertight integrity before dive
- #47011 Vacuum Pump with Gauge required in order to remove excess air and actually create a vacuum
- DL port mount may be removed and replaced by older one to allow you to use standard and modular ports from Ikelite's Four Lock system
- To have DL port mount re-installed, you will have to send housing back to Ikelite or an authorized dealer for service
UPC: 883711052823 In the Box Ikelite 200DL Underwater Housing for Canon EOS 7D Mark II with Dry Lock Port Mount (200') O-Ring for Large SLR Housings dattcqfx 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement) Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings Port Hole Cover for Housings with Dry Lock Mount DL Zoom Gear Retainer #0945.06 Tool for Zoom Gear Retainer ICS Bulkhead Cap (Replacement) 1/16" Hex Head Allen Wrench for Gears on Housings 1/8" Hex Head Allen Wrench for Control Knobs on Housings Control and Push Button Covers #0184.2 1cc Tube of Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing for Canon EOS 7D Mark II with Dry Lock Port Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DL Specs | Depth Rating | Front and Back: 200' / 61 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and levers | | Controls | Afford access to virtually all camera functions, including the following:
Shutter release
Start/stop video recording
Menu
Info
Magnify
Playback
Set
Main dial
Mode dial
Drive mode
AF-ON
Zoom
Delete | | Material of Construction | Front/Top/Sides/Bottom: Polycarbonate and ABS plastic blend
Back Plate: Acrylic | | Lens Port | Dry Lock (DL) Port System
Compatible with lenses that have large diameters
Housing ships without required lens port
Accepts various interchangeable dome and flat ports for broad array of zoom, macro, and wide-angle lenses | | Buoyancy | Housing Only: Nearly neutral in fresh water
Housing + Camera, Lens, and Port: Varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 sync bulkhead with manual hot shoe connection (sync cord required, not included)
Optional # 46070 CT1K Canon TTL Kit enables TTL operation with compatible Ikelite DS strobes | | Mounting | Aluminum tray with left-hand quick-release grip
Housing has 1/4"-20 threaded mounts with 3.5" / 8.9 cm spacing for connection to tray | | Dimensions | 9.5 x 7.1 x 6.5" / 24.1 x 18 x 16.5 cm | | Weight | 4.9 lb / 2.2 kg excluding tray and handle | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 14.7 x 9.3 x 8.6" |
