Product description Capture sharp, detailed photos and video at depths as great as 200' beneath the surface with your Nikon D500 DSLR in Ikelite's Underwater Housing with DL Port Mount and Vacuum Valve. The back can be swapped out for an optional 50' back if you're looking for something lighter in weight and slightly smaller, and you aren't venturing down a great distance below the surface. An Ikelite bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Using an optional TTL hot shoe and the #4301.3 Nikon TTL Converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including pushbuttons, knurled knobs/dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts all Ikelite Dry Lock (DL) series dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. Zoom gears are available for many lenses, as well. A complete port chart with full details is forthcoming. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Back can be swapped out for an optional 50' back
- Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
- White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface

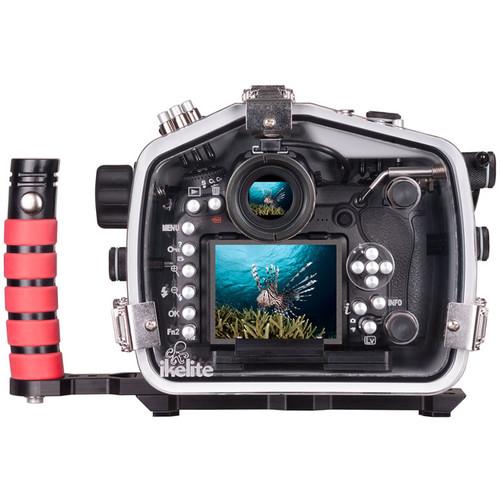

- Clear in back to allow you to monitor O-ring seal and maintain your view of camera's rear controls
- Nearly neutral buoyancy in fresh water
- Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
- Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
- Strobe Connection and Operation
-
- Use of external strobe highly recommended for color-correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
- Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from subject to preserve natural colors in images
- Ikelite ICS-5 bulkhead connector with manual hot shoe connection enables reliable electrical triggering of optional, external strobes
- Optional TTL hot shoe and Nikon TTL Converter #4301.3 enable TTL operation with compatible Ikelite DS strobes
- Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only
- Housing ships without required sync cord for strobe
- Controls and Handling
-
- Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers
- Controls afford access to virtually all camera functions: Shutter release, power, movie recording, sub-command dial, exposure compensation, ISO, mode button, white balance, metering, BKT button, lens release button, AF-ON, main command dial, multi selector, info, live view selector, Lv button, i button, playback, delete, menu, key/? button, magnify/reduce, OK, and Fn2
- Supplied aluminum tray with left-hand quick-release grip affords improved balance and handling, while offering attachment point for optional lighting arm
- Sensitive, redesigned trigger lever is extendable for comfortable use when holding optional right-hand quick-release grip
- Extra-large, soft-touch zoom knob located next to grip handle
- Control symbols are laser-etched into back of housing, so they won't fade or fall off with time
- Lens Port System
-

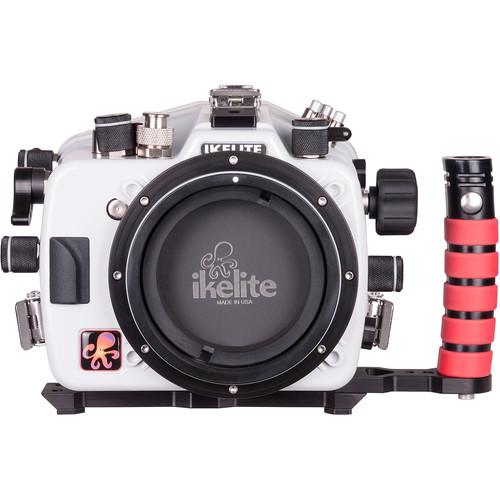

- Ships without a required lens port

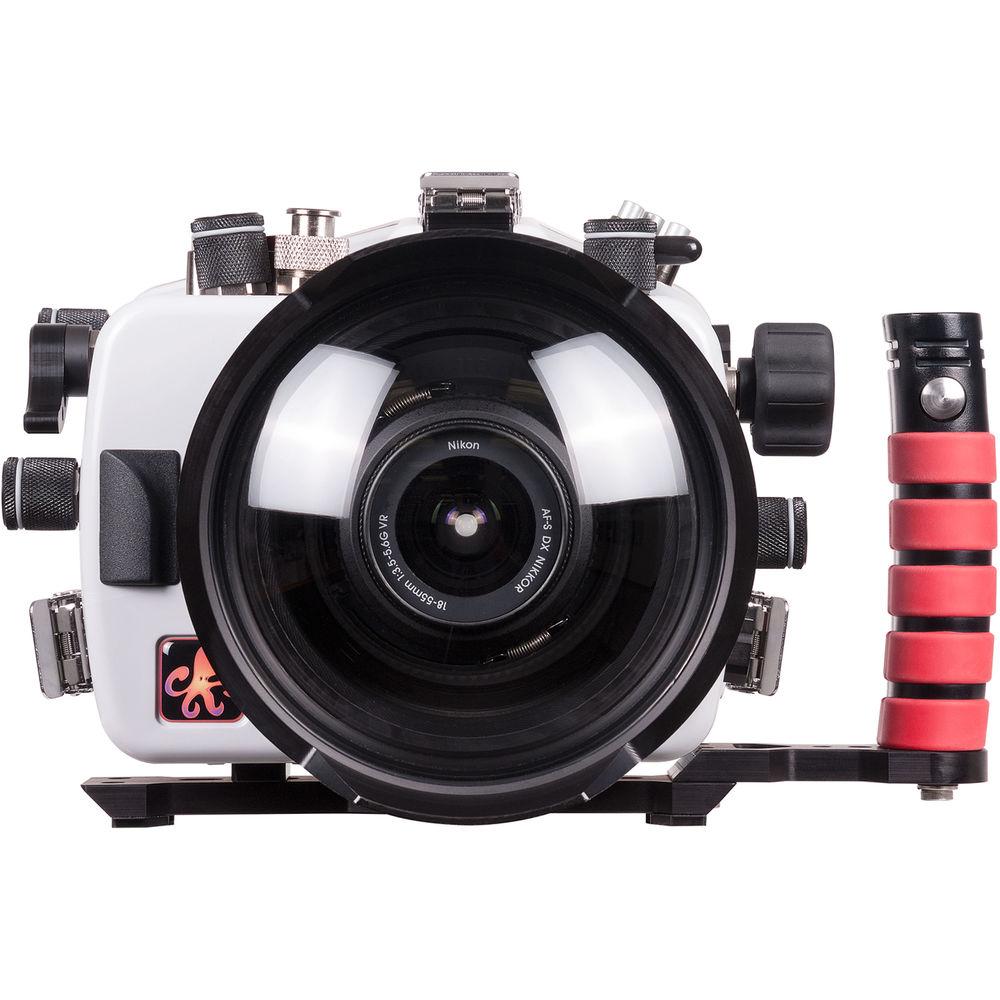

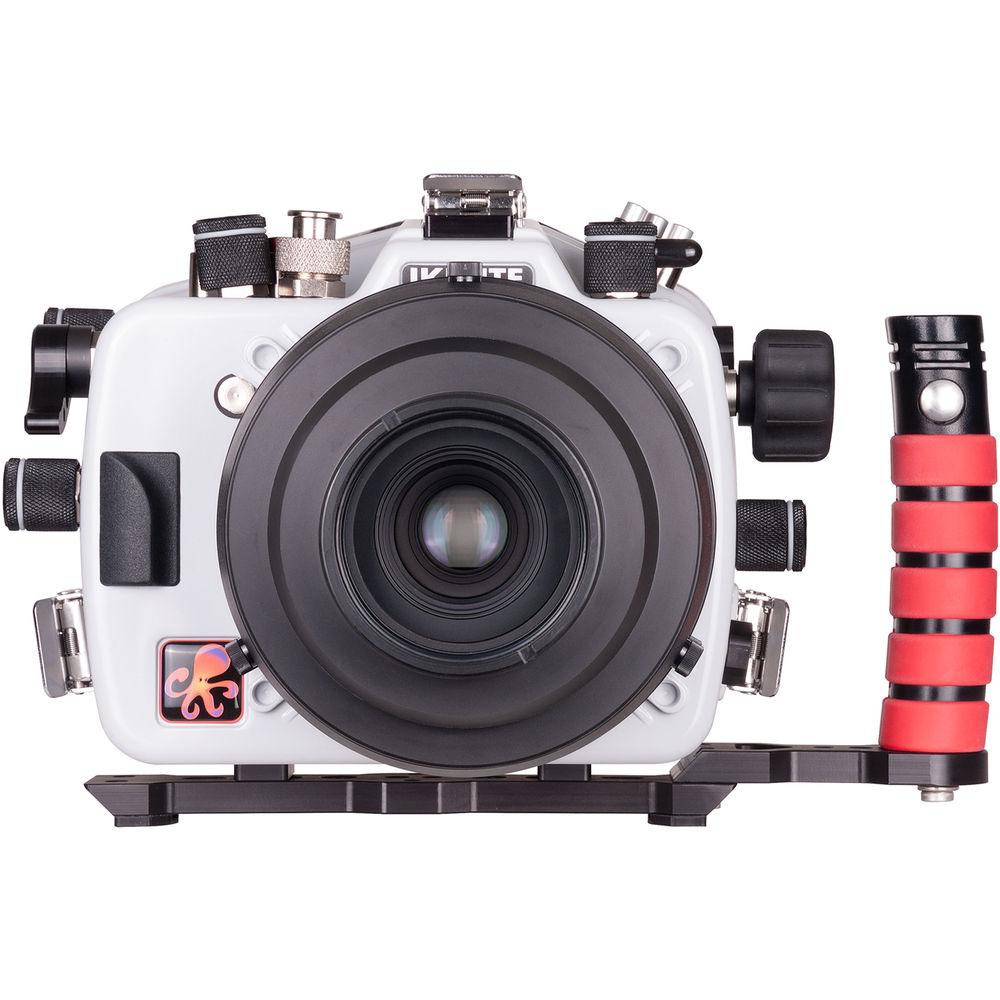

- Accepts all Ikelite Dry Lock (DL) series dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
- Zoom gears are available for many lenses
- Complete port chart with full details coming soon
- DL port system accommodates lenses with large diameters
- Provides added security against leaks at the surface--thanks in large part to included vacuum valve for checking watertight integrity before dive
- Pump required in order to remove excess air and actually create a vacuum
UPC: 883711052755 In the Box Ikelite 200DL Underwater Housing for Nikon D500 with Dry Lock Port Mount and Vacuum Valve (200') Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings uyubvsrftwbdrxeqftfaccetrafvxe ICS Bulkhead Cap (Replacement) 0184.1 Silicone Lubricant (1cc Tube) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing for Nikon D500 with Dry Lock Port Mount and Vacuum Valve in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 71005 Specs | Depth Rating | 200' / 61 m | | Control Type | Mechanical pushbuttons, knurled knobs/dials, and levers | | Controls | Access to virtually all camera functions: shutter release, power, movie recording, sub-command dial, exposure compensation, ISO, mode button, white balance, metering, BKT button, lens release button, AF-ON, main command dial, multi selector, info, live view selector, Lv button, i button, playback, delete, menu, key/? button, magnify/reduce, OK, and Fn2 | | Material of Construction | Polycarbonate and ABS plastic | | Lens Port | Ships without required lens port
Dry Lock (DL) interchangeable port system
Accepts dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
Complete port chart with full details coming soon
Designed to accommodate large-diameter lenses and provide greater security against leaks | | Buoyancy | Nearly neutral in fresh water
Precise buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 bulkhead connector with manual hot shoe connection for optional, external strobes
Optional TTL hot shoe and #4301.3 Nikon TTL Converter will allow for TTL operation with compatible Ikelite DS strobes
Non-Ikelite strobes will still work in manual mode only | | Mounting | 1/4"-20 threaded mounts with 3.5" / 88.9 mm spacing for connecting included tray/base with left QR grip
Optional right-hand QR grip with extension available
Spare threaded mount on front of housing for accessory connection | | Dimensions | 9.2 x 7.1 x 6.6" / 23.4 x 18 x 16.8 cm | | Weight | 5.1 lb / 2.3 kg excluding tray and handle | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 14.6 x 9.4 x 8.3" |
