User Manual for Ikelite 200DL Underwater Housing for Nikon Z7 & Z6 Mirrorless Digital Cameras Click to enlarge the picture
Contents of the user manual for the Ikelite 200DL Underwater Housing for Nikon
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 200DL Underwater Housing for Nikon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

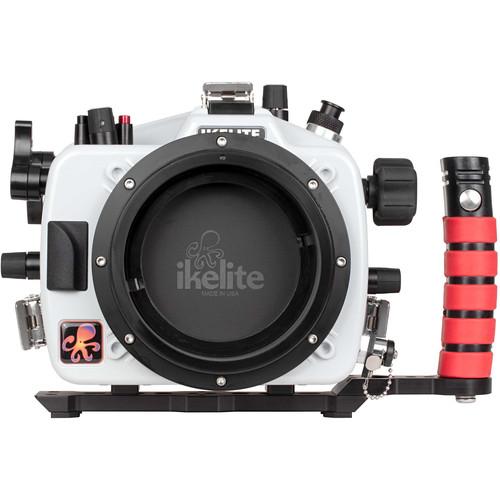

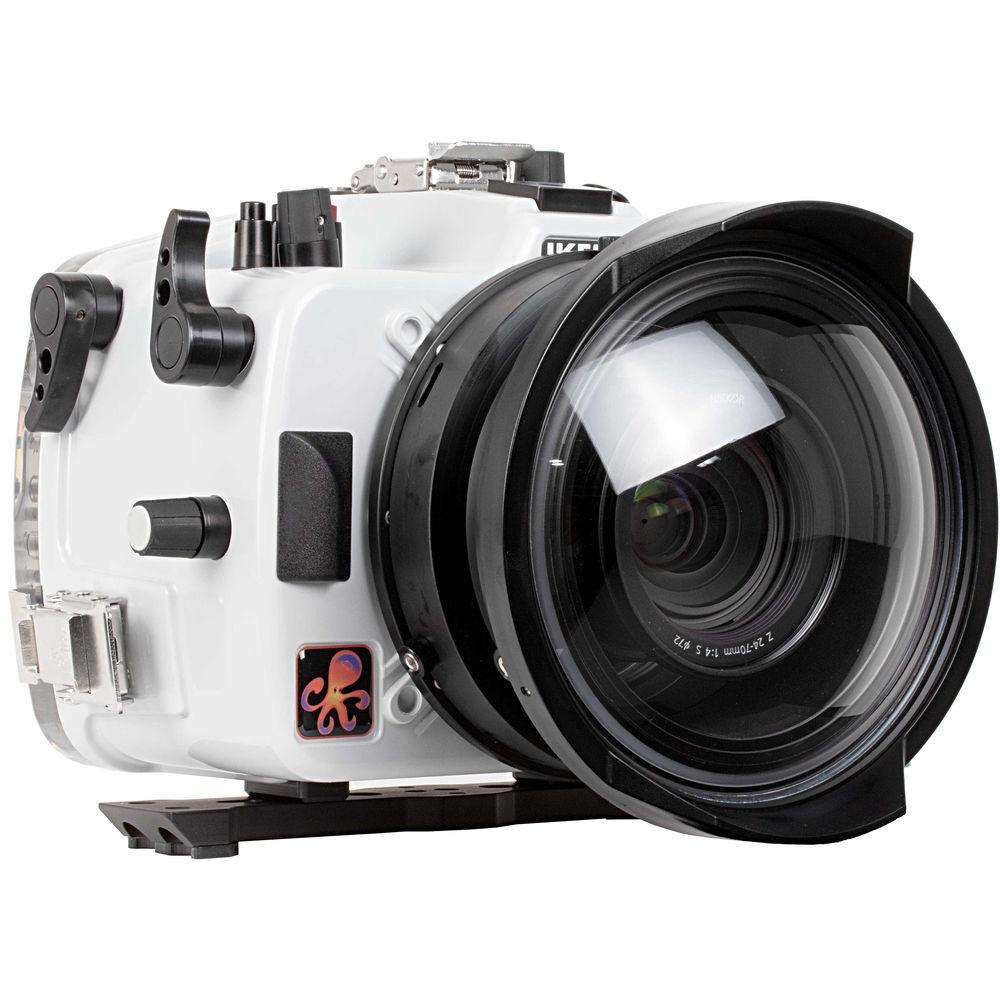

Product description Capture brilliant images at depths as great as 200' with your Nikon Z7 or Z6 Mirrorless Digital Camera in Ikelite's 200DL Underwater Housing, which features their Dry Lock Port Mount and vacuum valve. An Ikelite bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional external strobes via sync cords. Using an optional TTL hot shoe and the Nikon TTL Converter will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push buttons, dials, and levers, afford access to all essential camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the port chart. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface

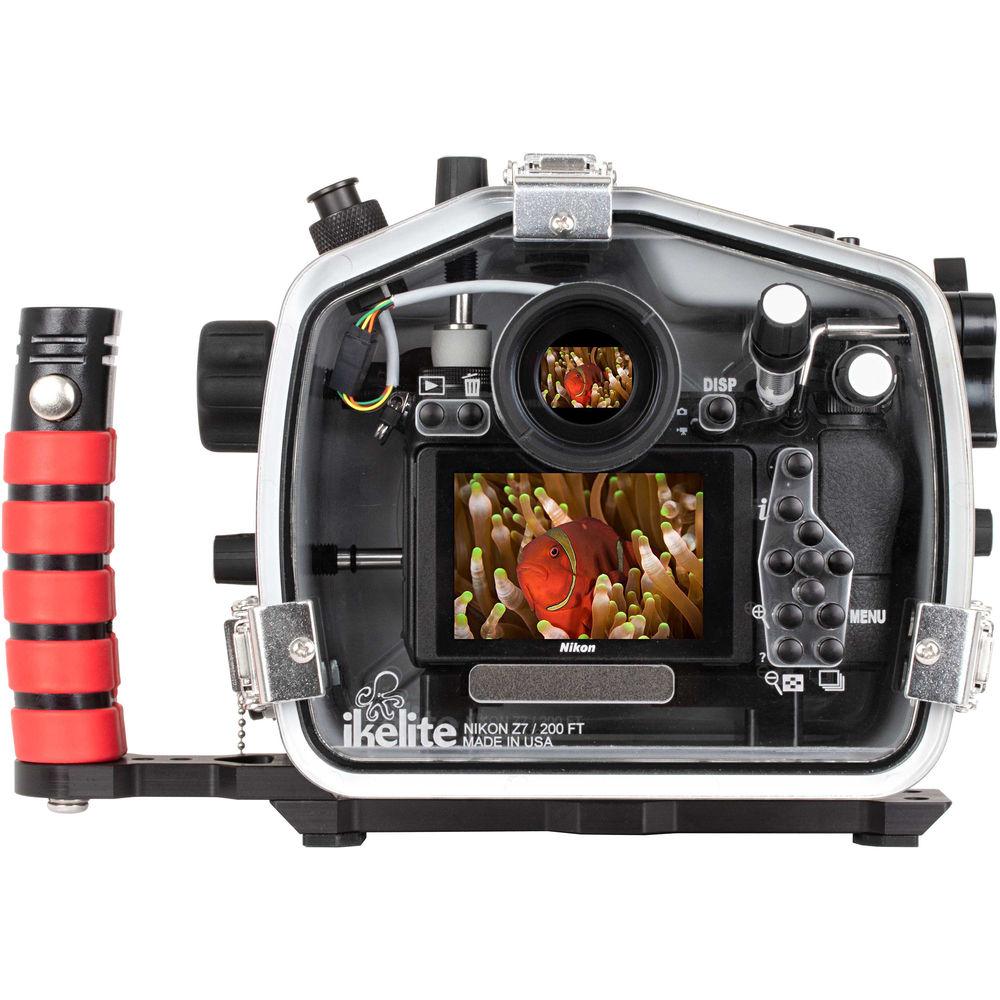

- Clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
- Nearly neutral buoyancy in fresh water
- Open-groove design suspends the rear O-ring in the natural position, allowing for easier maintenance and preventing accidental twisting or stretching
- Front-loading mounting plate enables quick camera installation, and does not need to be removed in order for you to gain battery or memory card access
- Mounting plate has a 1/4"-20 threaded hole on the bottom for connection to an optional tripod
- Strobe Connection and Operation
-
- Ikelite ICS-5 bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of strobes
- Optional DL1 DS Link TTL Converter #46054 enables TTL operation with compatible Ikelite DS strobes
- DL1 supports rear curtain synchronization and allows exposure compensation to be adjusted using the control in the camera
- Non-Ikelite strobes, such as those from Sea & Sea, INON, and Nikonos, will still work in manual mode only
- Controls and Handling
-

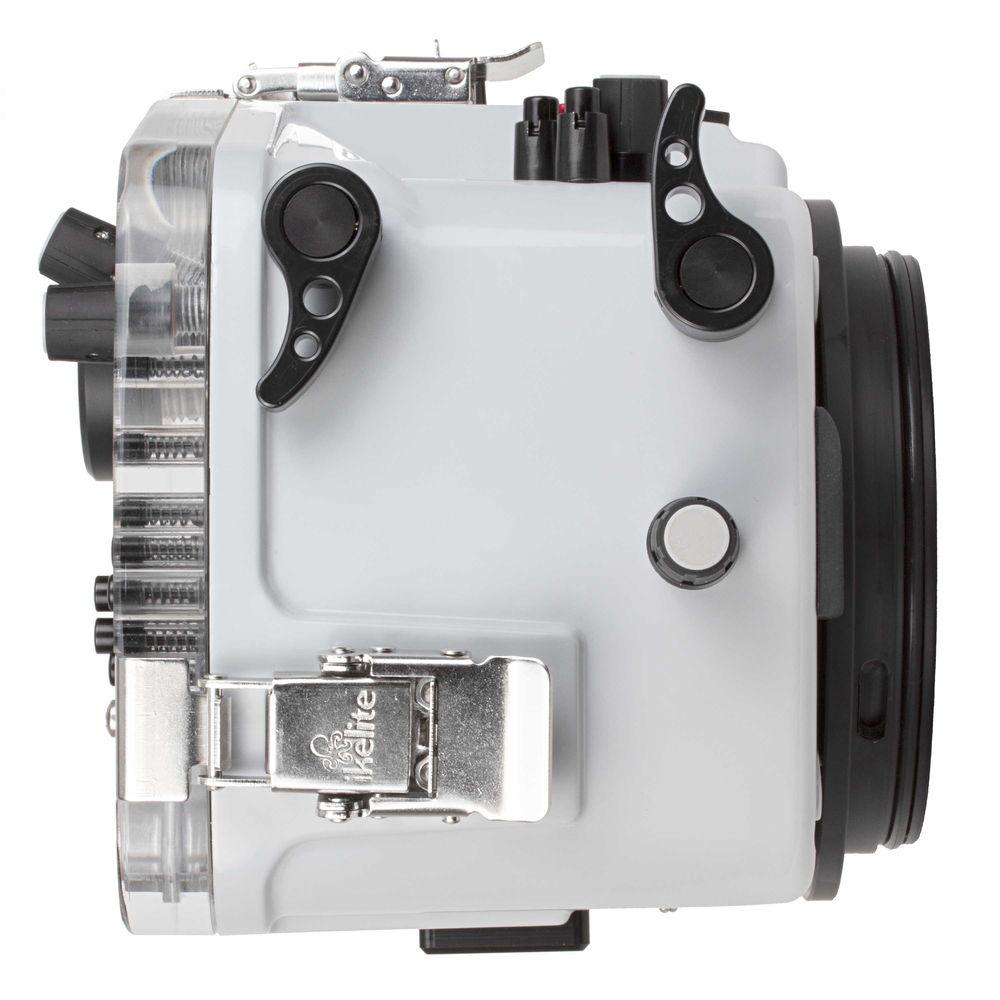

- Shutter and AF-ON (back-button focus) levers are curved and extendable for comfortable use when holding the optional right-hand quick release grip
- Extra-large, soft-touch zoom knob is located next to the grip handle
- All push-button controls are machined and hard anodized aluminum to reduce weight and resist salt build-up
- Ergonomic mechanical push buttons, dials, and levers afford access to all camera functions except: joystick up/down/left/right, Fn1, Fn2, diopter adjustment dial, or DOF button
- Control symbols are laser-etched into the back of the housing, so they won't fade or fall off with time
- Supereye Viewfinder enhances your view through the camera's OVF when you're wearing a mask
- You can remove the Supereye quickly if you'd like to attach the separately sold Straight or 45° Magnified Viewfinder instead
- Hard anodized aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- 1/4"-20 mounts and other mounting points enable connection to a tripod and the addition of accessories
- Another 1/4"-20 threaded mount is located front and center on the housing above the port mount, allowing for the attachment of a focus light, GoPro action camera, or other lightweight piece of equipment
- Optional Cable Grip or Aluminum Top Handle can be added for easier carrying if you're using 2 strobes
- Lens Port System
-
- Ships without a required lens port

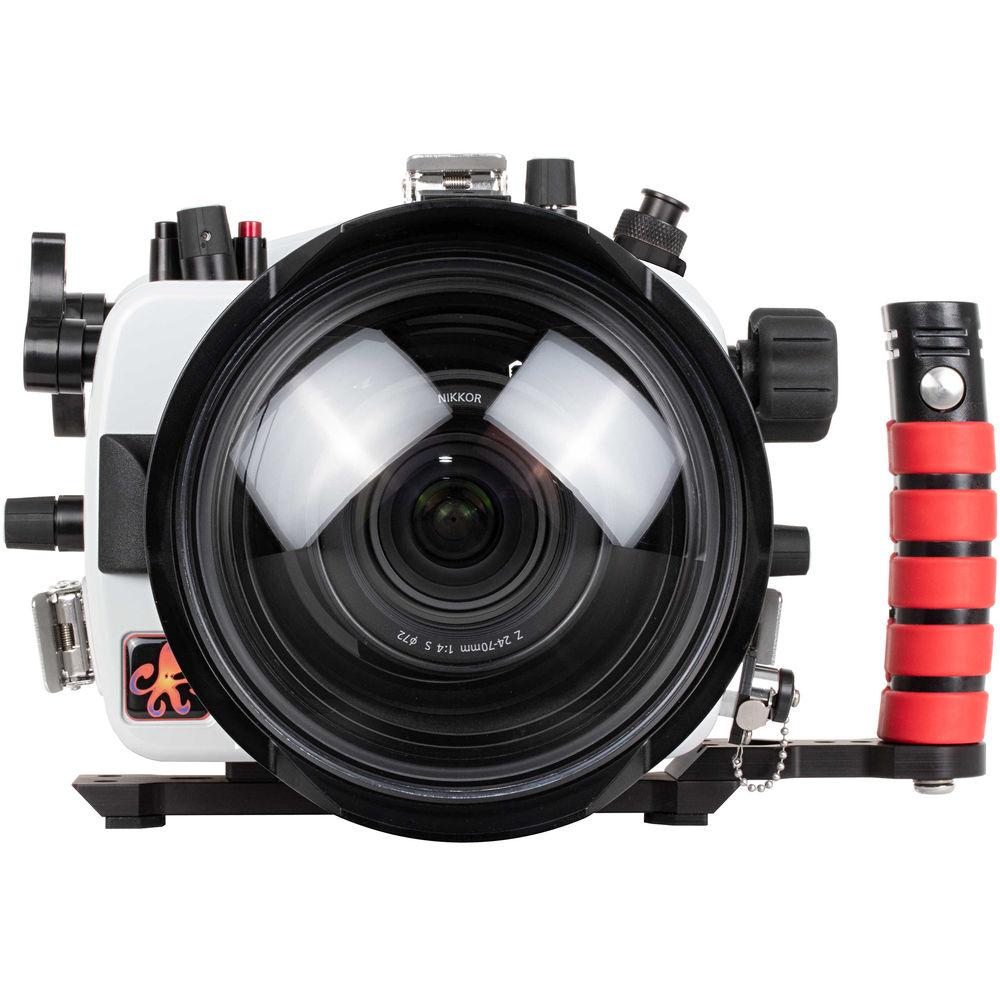

- Accepts all Ikelite Dry Lock (DL) dome and flat ports, allowing you to shoot with a wide variety of lenses
- Zoom gears are available for many lenses
- For complete compatibility details, see the port chart linked above
- DL port system accommodates lenses with large diameters
- Provides added security against leaks at the surface, thanks in large part to the included vacuum valve that helps you check watertight integrity before the dive
- #47011 pump is required in order to remove excess air and actually create a vacuum
UPC: 883711057033 In the Box Ikelite 200DL Underwater Housing for Nikon Z7 & Z6 Mirrorless Digital Cameras O-Ring for Large SLR Housings bfxbwwzxuuxddvuq 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement) Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings Port Hole Cover for Housings with Dry Lock Mount DL Zoom Gear Retainer Tool for Zoom Gear Retainer #0945.06 ICS Bulkhead Cap (Replacement) 4-40 Hex Head Allen Wrench 1/16" Hex Head Allen Wrench for Gears on Housings Silicone Lubricant #0184.1 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing for Nikon Z7 & Z6 Mirrorless Digital Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DL Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical Push Buttons, Dials, and Levers | | Controls | Afford Access to All Camera Functions except for the Following: Joystick Up/Down/Left/Right, Fn1, Fn2, Diopter Adjustment Dial, DOF Button | | Material of Construction | Polycarbonate and ABS Plastic | | Lens Port | Dry Lock (DL) Interchangeable Port System
Ships without Required Lens Port | | External Flash Connector | Ikelite ICS-5 Bulkhead with Manual Hot Shoe Connection for Optional External Strobes
Optional TTL Hot Shoe Will Allow for TTL Operation with Compatible Ikelite DS Strobes
Non-Ikelite Strobes Work in Manual Mode Only | | Mounting | 1/4"-20 Threaded Mounts with 3.5" / 88.9 mm Spacing for Connecting Included Tray/Base with Left QR Grip | | Dimensions | 8.8 x 6.9 x 6.5" / 22.0 x 17.5 x 16.5 cm | | Weight | 4.7 lb / 2.2 kg | | | | Package Weight | 6.99 lb | | Box Dimensions (LxWxH) | 15.0 x 9.0 x 8.0" |
