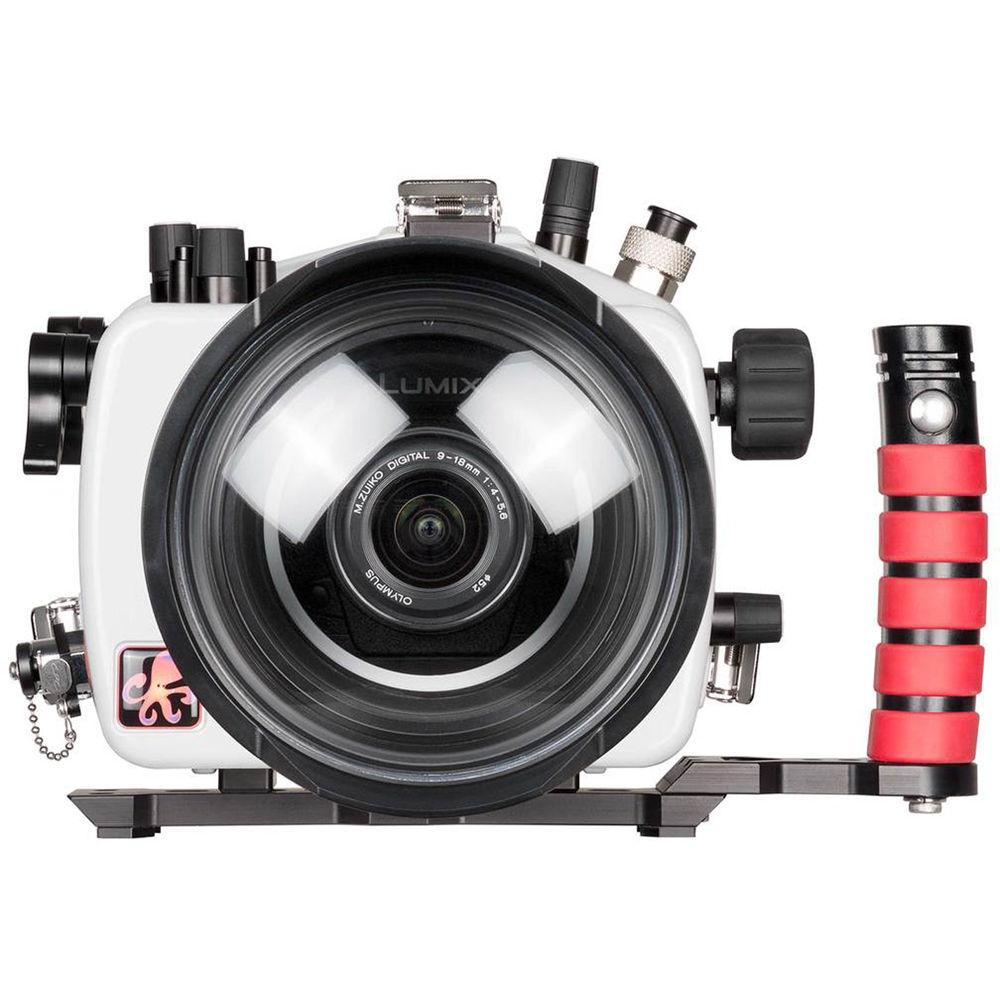

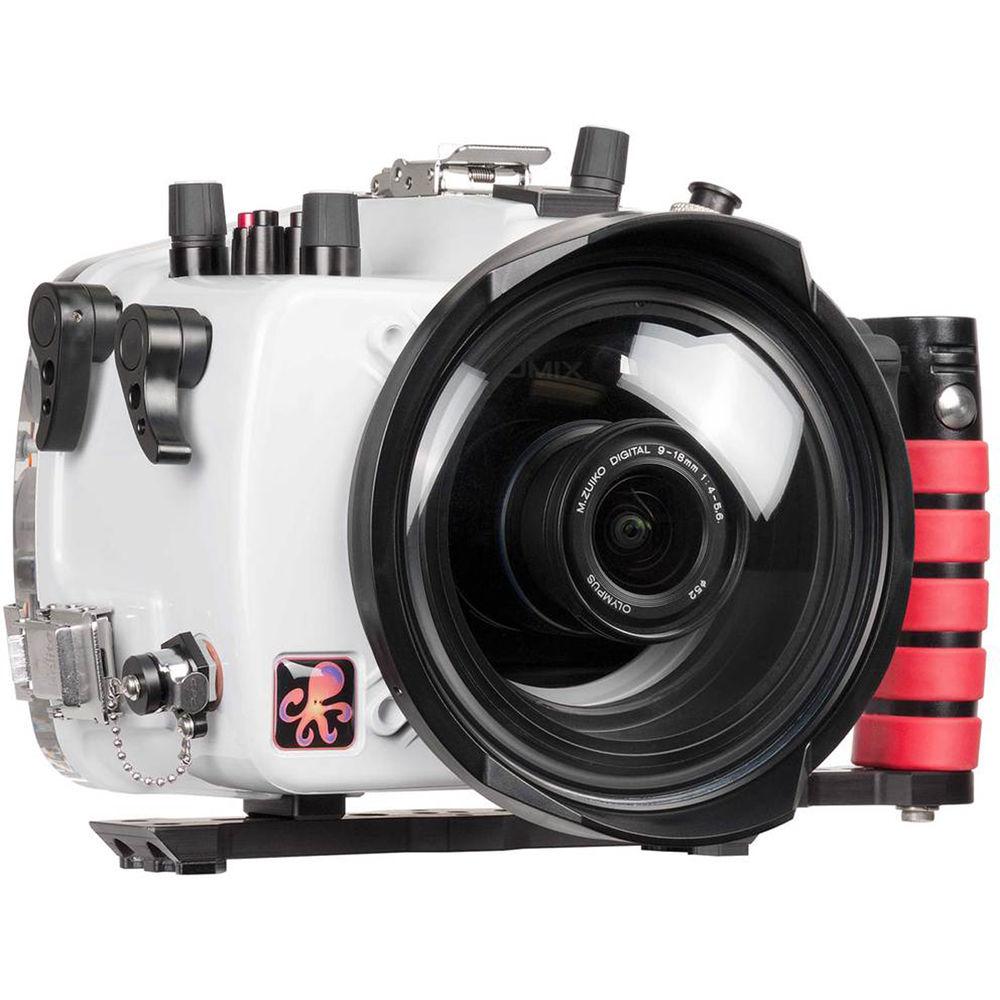

Product description Capture sharp, detailed images at depths as great as 200' with Ikelite's 200DL Underwater Housing for your Panasonic DC-G9 Micro Four Thirds Mirrorless Camera. An Ikelite bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Using the optional #46031 TTL circuit and hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.
Ergonomic mechanical controls, including push buttons, knurled knobs/dials, and levers, afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate-ABS plastic blend. It's white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm.
The housing ships without a required lens port and accepts all Ikelite Dry Lock (DL) series domes and flat ports for a broad array of zoom, macro, and wide-angle lenses. See the Port Chart for compatibility. The DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve that allows you to check watertight integrity before the dive. You'll need to pick up the required pump in order to remove excess air and actually create a vacuum. - Construction Details
-
- Depth rating of 200'
- Made in USA from corrosion-resistant polycarbonate-ABS plastic blend
- White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface

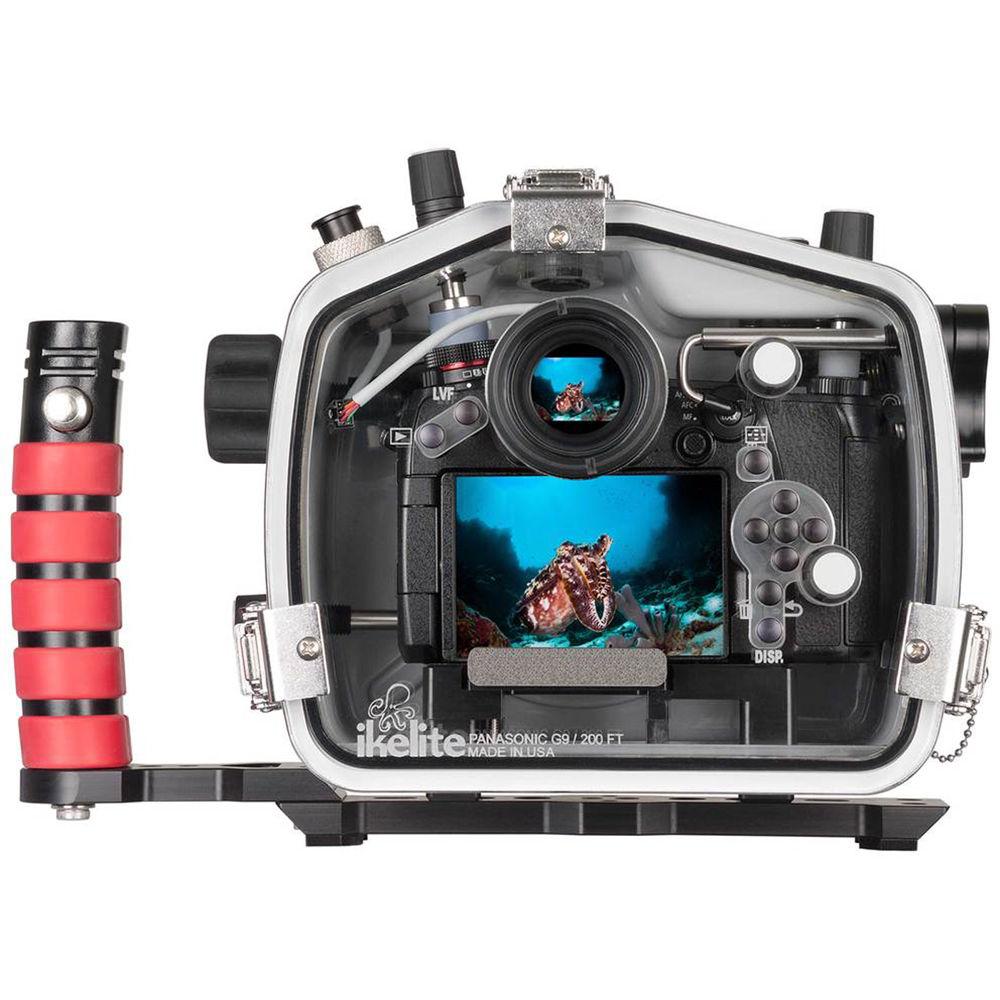

- Clear in back to allow you to monitor O-ring seal and maintain your view of camera's rear controls
- Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
- Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
- Strobe Connection and Operation
-
- Ikelite ICS-5 bulkhead connector with manual hot shoe connection enables reliable electrical triggering of optional, external strobes
- Using optional #46031 TTL circuit and hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only
- Controls and Handling
-

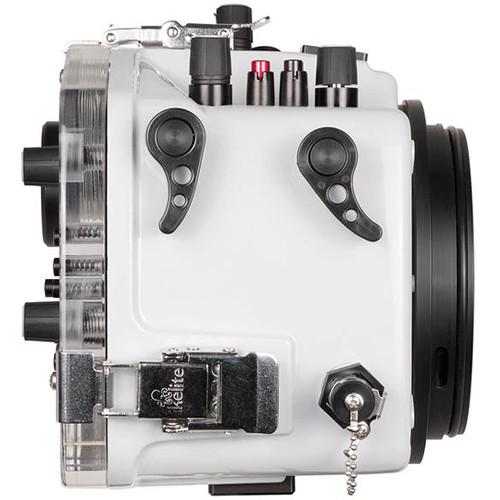

- Ergonomic mechanical controls, including push buttons, knurled knobs/dials, and levers
- Controls afford access to all camera functions except for diopter adjustment control, rear control dial, and mode dial lock
- Mode dial must be unlocked prior to installation in housing to enable use underwater
- Extra-large, soft-touch zoom knob works with universal zoom gear system
- Control symbols are laser-etched into back of housing so they won't fade or be rubbed off over time
- Supplied aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm
- Nearly neutral buoyancy in fresh water (precise buoyancy varies depending on choice of lens and port)
- Lens Port System
-

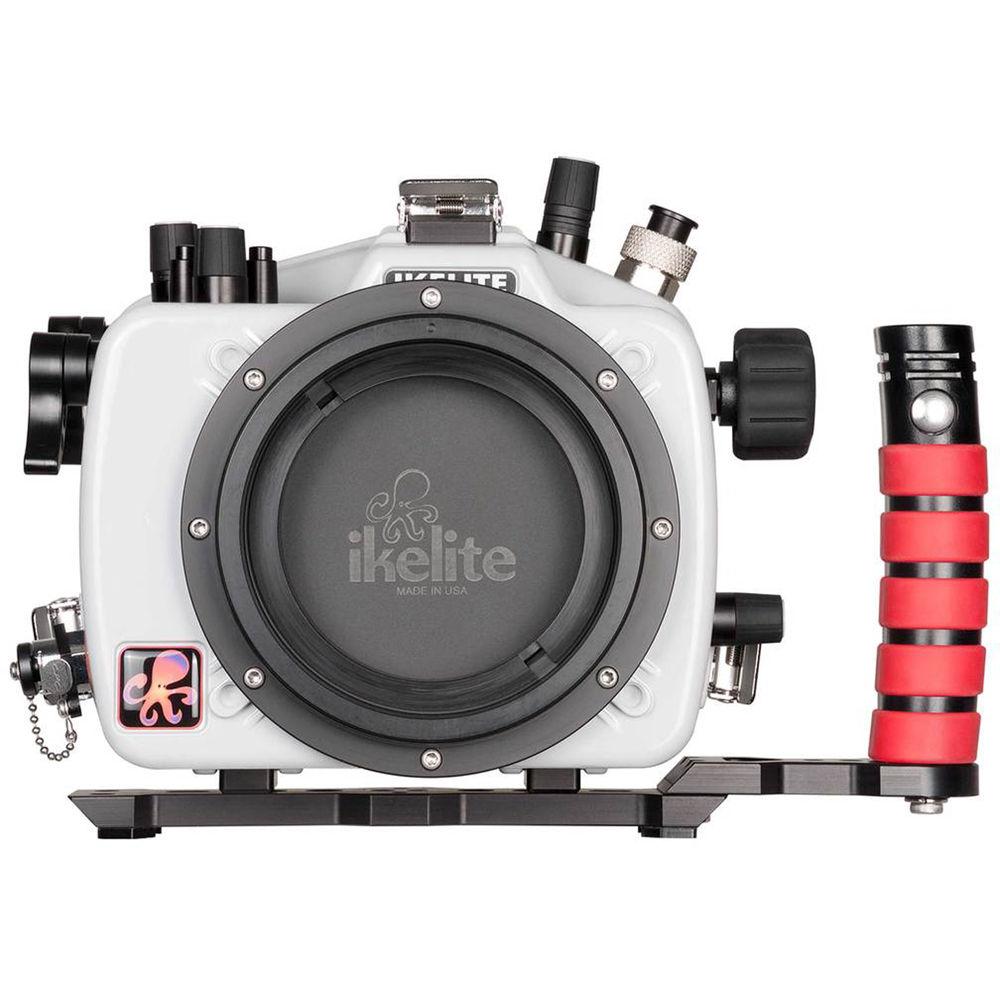

- Ships without a required lens port
- Accepts all Ikelite Dry Lock (DL) series domes and flat ports for a broad array of zoom, macro, and wide-angle lenses
- See Port Chart linked above for full compatibility details
- DL port system accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before diving
- Pump required in order to remove excess air and actually create a vacuum
UPC: 883711055893 In the Box Ikelite 200DL Underwater Housing for Panasonic DC-G9 Mirrorless Camera O-Ring (Replacement) 0132.45 O-Ring for Ikelite Ultra Compact Digital Camera Housings (Replacement) Base with Left Handle for 6800-Series Underwater DSLR and Mirrorless Housings Port Hole Cover for Housings with Dry Lock Mount ICS Bulkhead Cap (Replacement) DL Zoom Gear Retainer Zoom Gear Retainer Tool 4-40 Hex Head Allen Wrench 1/16" Hex Head Allen Wrench for Gears on Housings 1/8" Hex Head Allen Wrench for Control Knobs on Housings 2cc Tube of Silicone Lubricant for O-Rings Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DL Underwater Housing for Panasonic DC-G9 Mirrorless Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DL Specs | Depth Rating | 200' / 61 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, and levers | | Controls | Provide access to most camera functions | | Material of Construction | Polycarbonate-ABS plastic blend | | Lens Port | Ships without a required lens port
Accepts all Ikelite Dry Lock (DL) series domes and flat ports for various lenses
See Port Chart linked in Overview for full compatibility details | | Buoyancy | Nearly neutral in fresh water
Precise buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite ICS-5 bulkhead connector with manual hot shoe
Optional #46031 TTL circuit and hot shoe will allow for TTL operation with compatible Ikelite DS strobes
Non-Ikelite strobes will work in manual mode only | | Mounting | 2 x 1/4"-20 threaded mounts with 3.5" / 8.9 cm spacing for included tray | | Dimensions | 8.9 x 7.3 x 6.5" / 2.3 x 1.9 x 1.7 cm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 14.5 x 9.0 x 8.0" |
