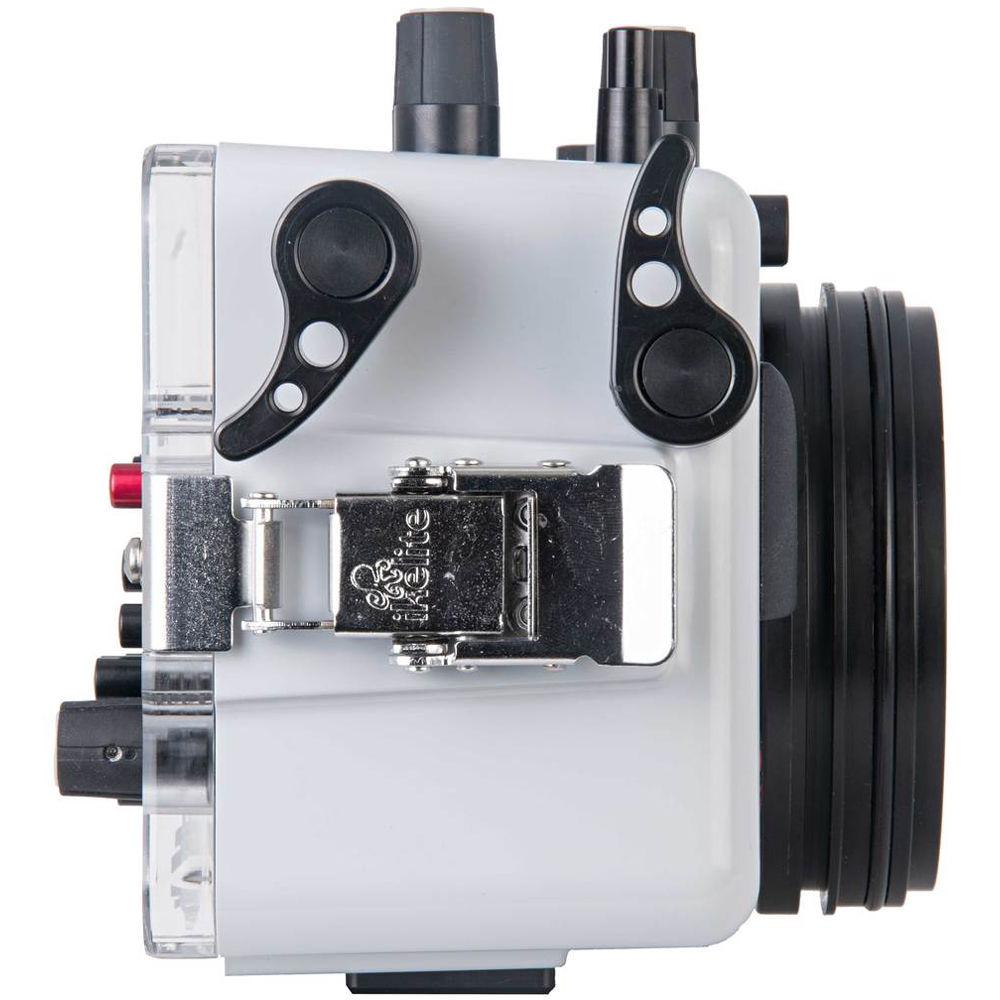

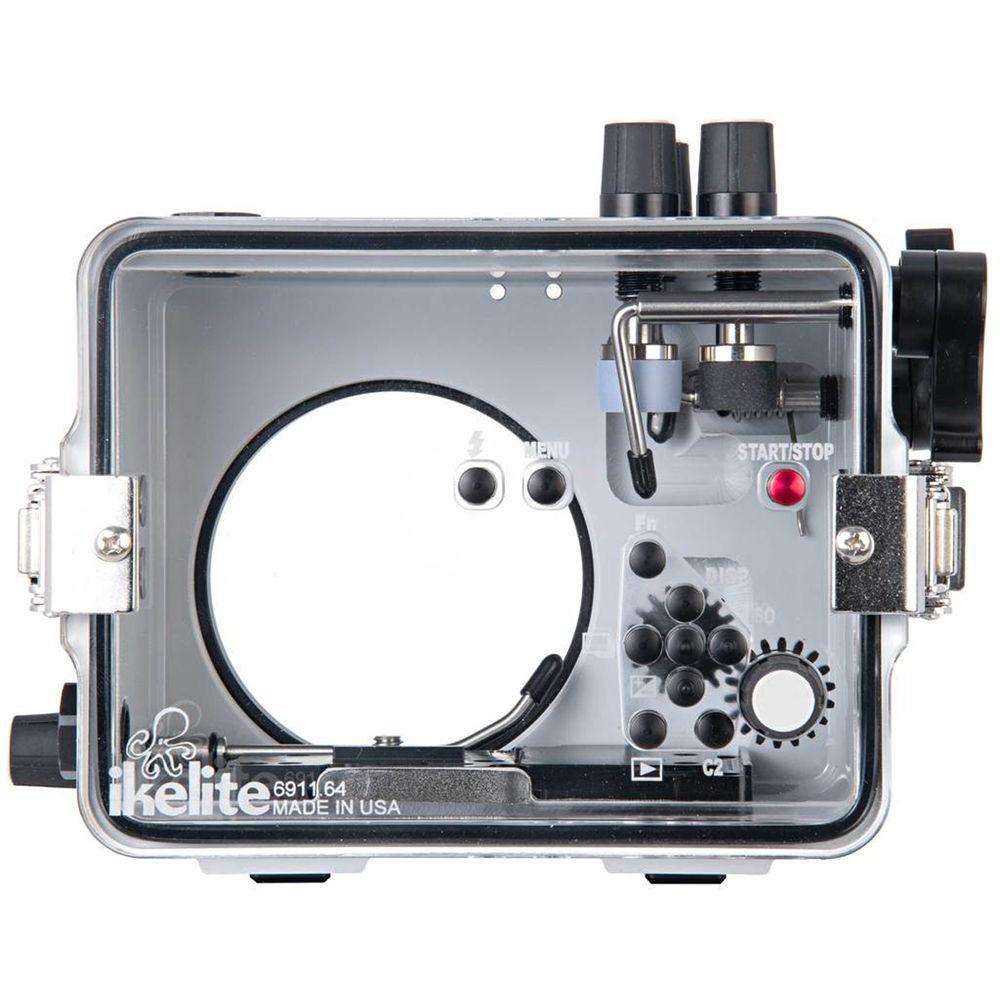

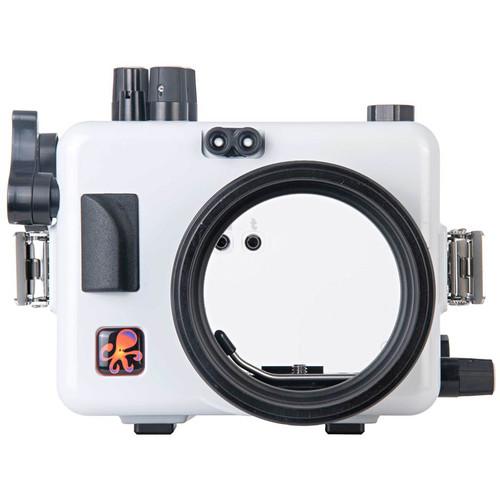

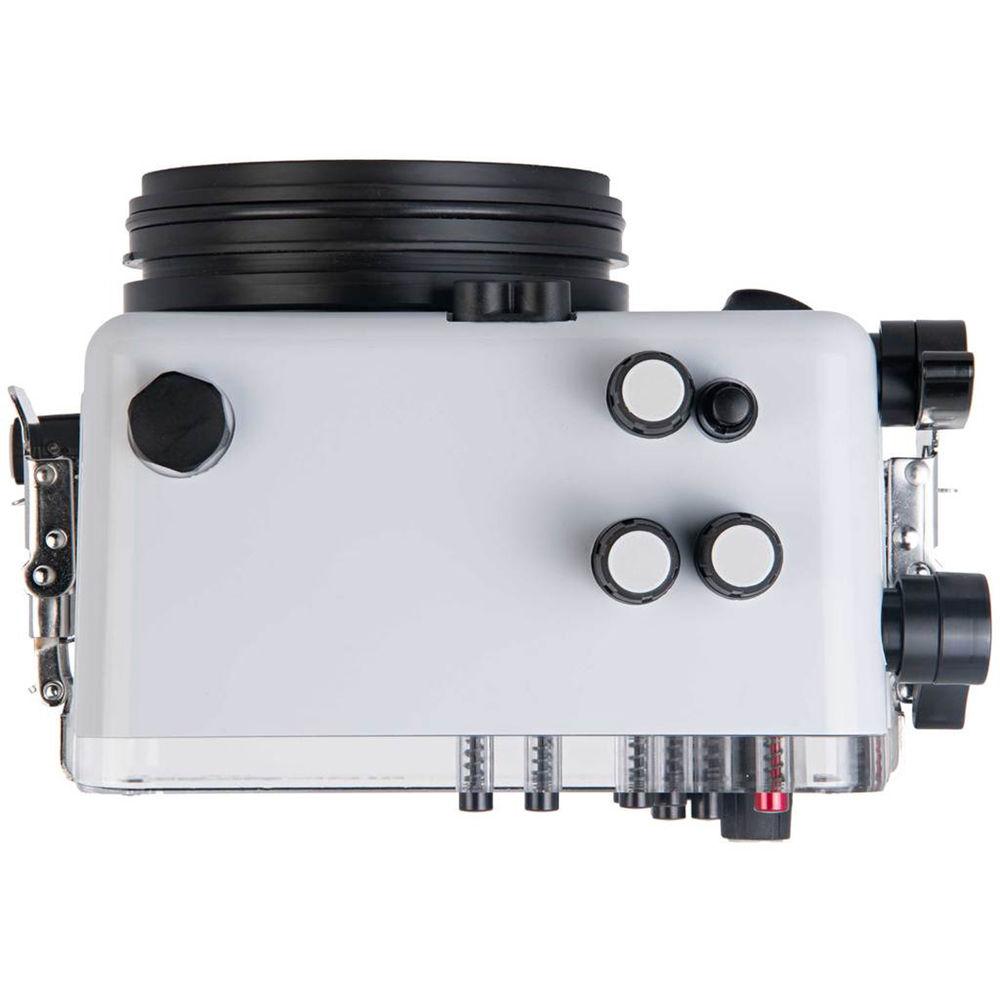

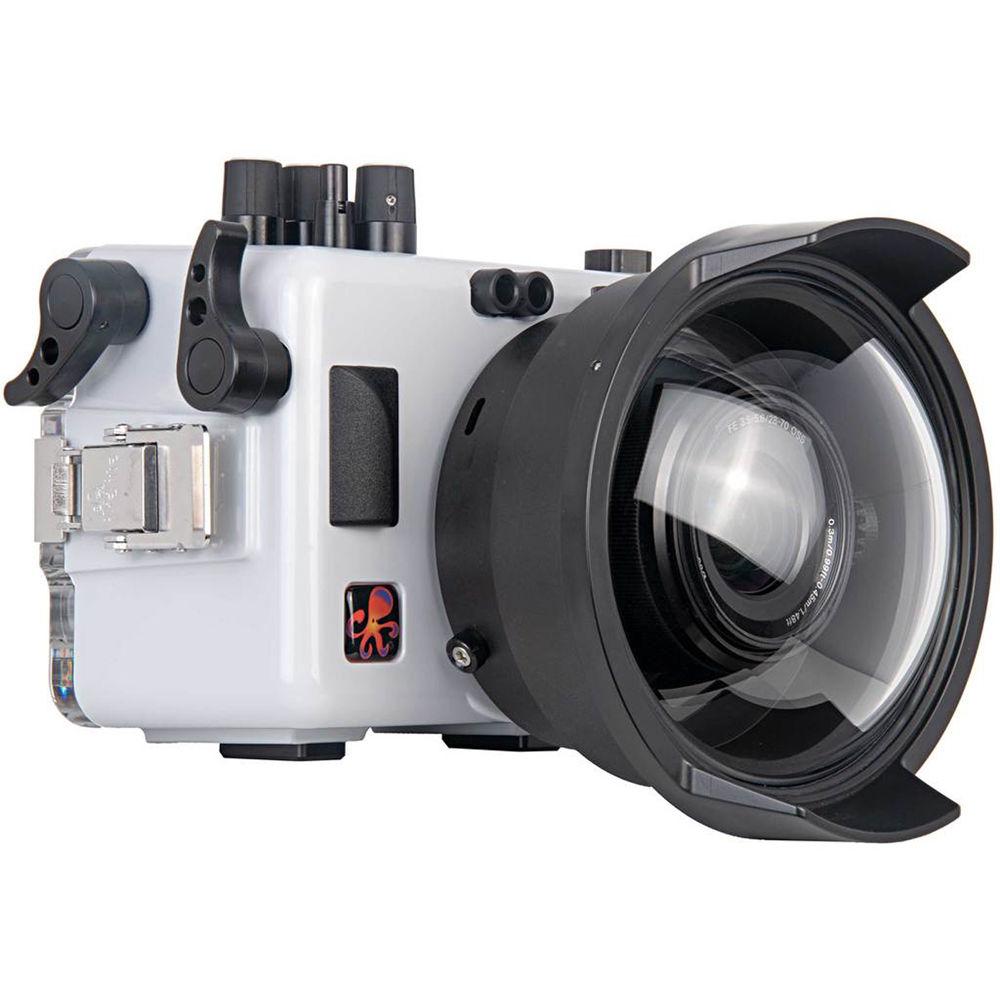

User Manual for Ikelite 200DLM A Underwater Housing for Sony Alpha A6300, A6400, A6500 Mirrorless Camera Click to enlarge the picture
Contents of the user manual for the Ikelite 200DLM A Underwater Housing for
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 200DLM A Underwater Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture images and video as deep as 200' beneath the surface using this Ikelite 200DLM/A Underwater Housing for Sony Alpha A6300, A6400, and A6500 Mirrorless Camera. The shutter and autofocus are operated by large, curved levers that can be extended for use with a tray and grips, and ergonomic aluminum buttons and soft-touch knobs provide access to all key camera functions.
The waterproof enclosure is equipped with two ports for fiber-optic strobe control, and supports use of the separately sold DL2 DS Link Sony TTL Converter Ikelite ST1 Hot Shoe and B1A Bulkhead Kit #46045 for electrical sync cord flash. Built for durability, the housing is made in the USA from corrosion-resistant white ABS-polycarbonate with a clear acrylic back to allow you to monitor the camera and O-ring seal. It ships without a required lens port and is compatible with a series of interchangeable ports for various lenses. For full details, see the Port Chart. - Construction Details
-
- Depth Rating: 200'
- Made in the USA from white ABS-polycarbonate with clear back for viewing LCD and monitoring O-ring seal
- Controls and Handling
-
- Trigger-style shutter and AF/MF control levers accept optional extension for use with grips
- Soft-touch knobs and hard-anodized aluminum buttons provide control for all important camera functions
- Camera's LCD screen can be viewed edge-to-edge through rear of housing
- LCD can be tilted in housing for more comfortable viewing
- 1/2"-20 accessory port for optional vacuum kit for testing seal before dive
- Front-loading camera mount
- Mounting plate does not need to be removed from camera for surface use or when changing battery or memory cards
- Mounting plate has 1/4"-20 tripod mount for surface use
- Lens Port System
-
- Ships without a required lens port
- Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses. For details, see Port Chart link above
- Attaching/changing ports is easy--just press on and tighten 3 thumb screws
- Strobe Connection and Operation
-
- Dual fiber-access ports allow camera flash to control external strobes
- Compatible with separately sold TTL converter hot shoe and bulkhead for electrical sync cord flash
UPC: 883711057507 In the Box Ikelite 200DLM/A Underwater Housing for Sony Alpha A6300, A6400, A6500 Mirrorless Camera 4-40 Hex Head Allen Wrench zaquqeufrdybszuwszfutzyeqwe 1/16" Hex Head Allen Wrench for Gears on Housings Silicone Lubricant 1cc Tube Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DLM A Underwater Housing for Sony Alpha A6300, A6400, A6500 Mirrorless Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DLM/A Specs | Depth Rating | 200' / 60 m | | Material of Construction | ABS-Polycarbonate, Acrylic, Acetal | | Controls | Mechanical Controls for All Functions Except AF/MF/AEL Switch Lever and Diopter Adjustment Dial | | Lens Port | Accepts Interchangeable Ports for a Variety Lenses
See Port Chart Link in Overview | | External Flash Connector | 2 x Fiber-Optic Ports | | Mounting | 2 x 1/4"-20 Threaded Tray Mounts with 3" / 76 mm Spacing | | Dimensions | 7.3 x 5.5 x 6" / 18.4 x 14.0 x 15.2 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 3.205 lb | | Box Dimensions (LxWxH) | 9.8 x 6.4 x 6.4" |
