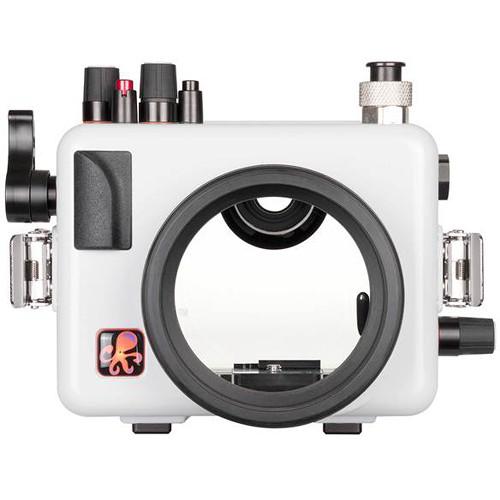

User Manual for Ikelite 200DLM A Underwater TTL Housing for Canon EOS M50 Click to enlarge the picture
Contents of the user manual for the Ikelite 200DLM A Underwater TTL Housing
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 200DLM A Underwater TTL Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

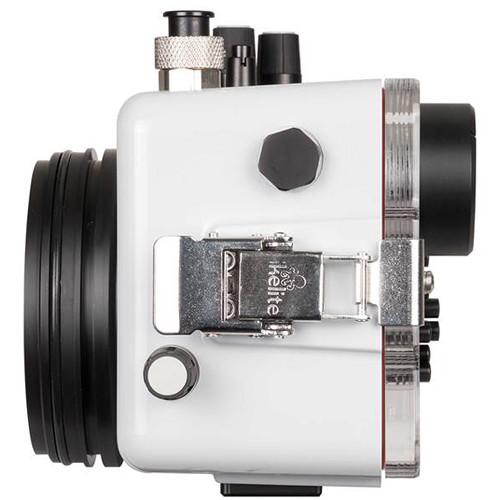

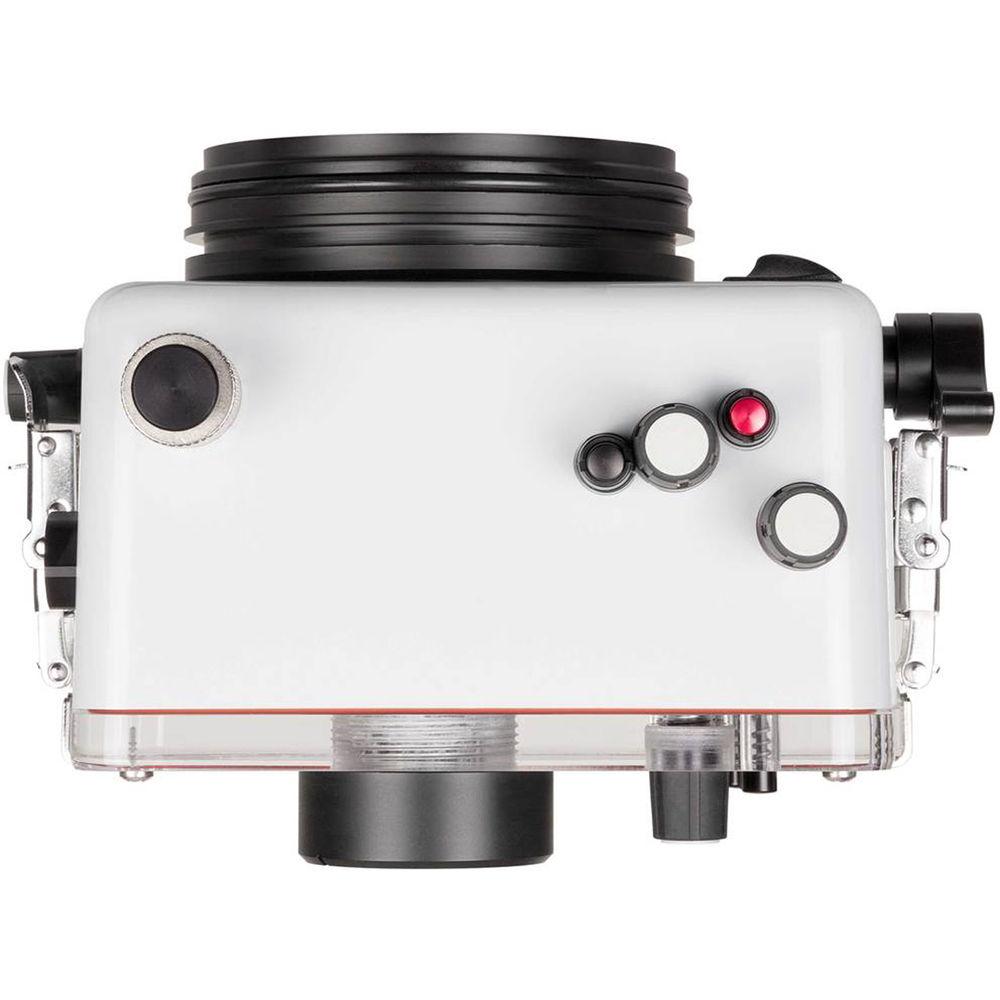

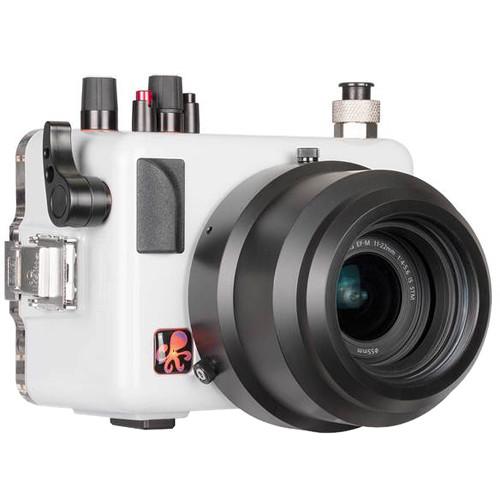

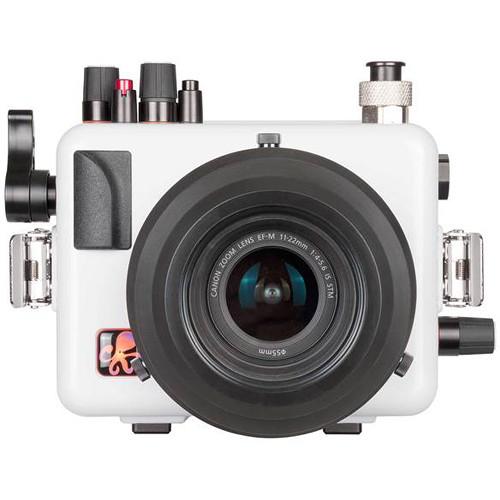

Product description With your Canon EOS M50 mirrorless camera inside this Ikelite 200DLM/A Underwater Housing, you can capture brilliant images and video at depths as great as 200'. An Ikelite sync bulkhead and built-in TTL circuitry enable the connection of optional external strobes. Ikelite DS flash units can be used in TTL or manual exposure mode, while third-party strobes will work in manual mode.

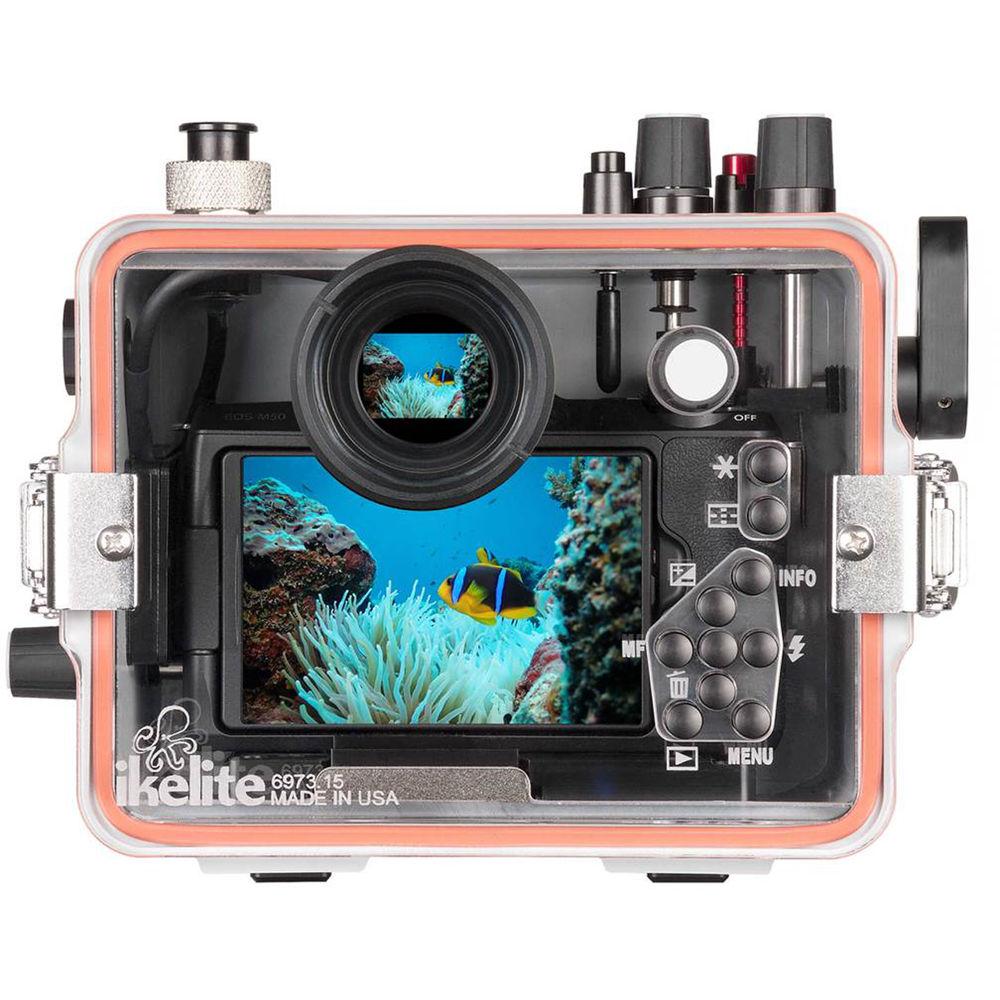

Ergonomic controls, including push-buttons, dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. An optional aluminum tray with a quick release grip or two will afford improved balance and handling, while offering a way to attach optional lighting arms.
The housing ships without a required lens port, and accepts various interchangeable dome and flat ports for a broad array of lenses. For full compatibility details, see the DLM Type A Port Chart. - Construction Details
-
- Depth rating: 200'
- Made by hand in the USA from corrosion-resistant polycarbonate and ABS plastic blend
- Stainless-steel locking latches
- Open-groove rear O-ring is easy to maintain and offers visual confirmation of seal
- 1/2"-20 threaded accessory port for optional Vacuum Kit
- Camera is installed and removed through the front of the housing
- Mounting plate allows for secure camera placement without hindering access to battery compartment or memory card slot
- Mounting plate has 1/4"-20 threaded hole for connection to a tripod
- Controls and Handling
-
- Large, ergonomic controls including push-buttons, dials, and levers
- Afford access to all camera functions except Wi-Fi
- Soft-touch knobs are easy to grip with or without gloves

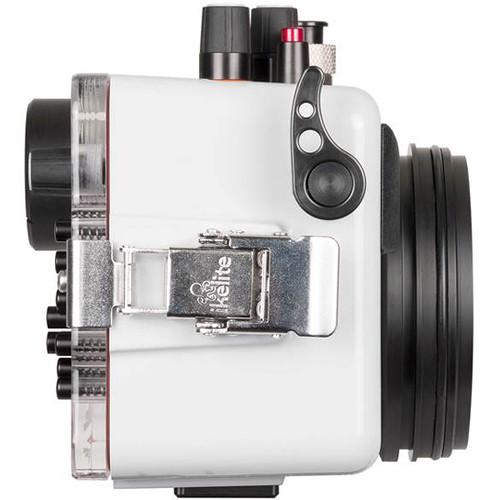

- Curved shutter lever hugs side of housing
- Optional Shutter Trigger Extension can be added on to allow for easy shutter activation when using a grip
- Laser-engraved control symbols on the back of the housing won't come off or fade with time
- Supereye Viewfinder gives you a clear view through the camera's optical finder when you're wearing a dive mask
- Camera's LCD screen can be tilted prior to installation for easier viewing
- Two 1/4"-20 threaded mounts on the bottom of the housing allow for connection to optional tray
- Lens Ports
-
- Ships without a required lens port

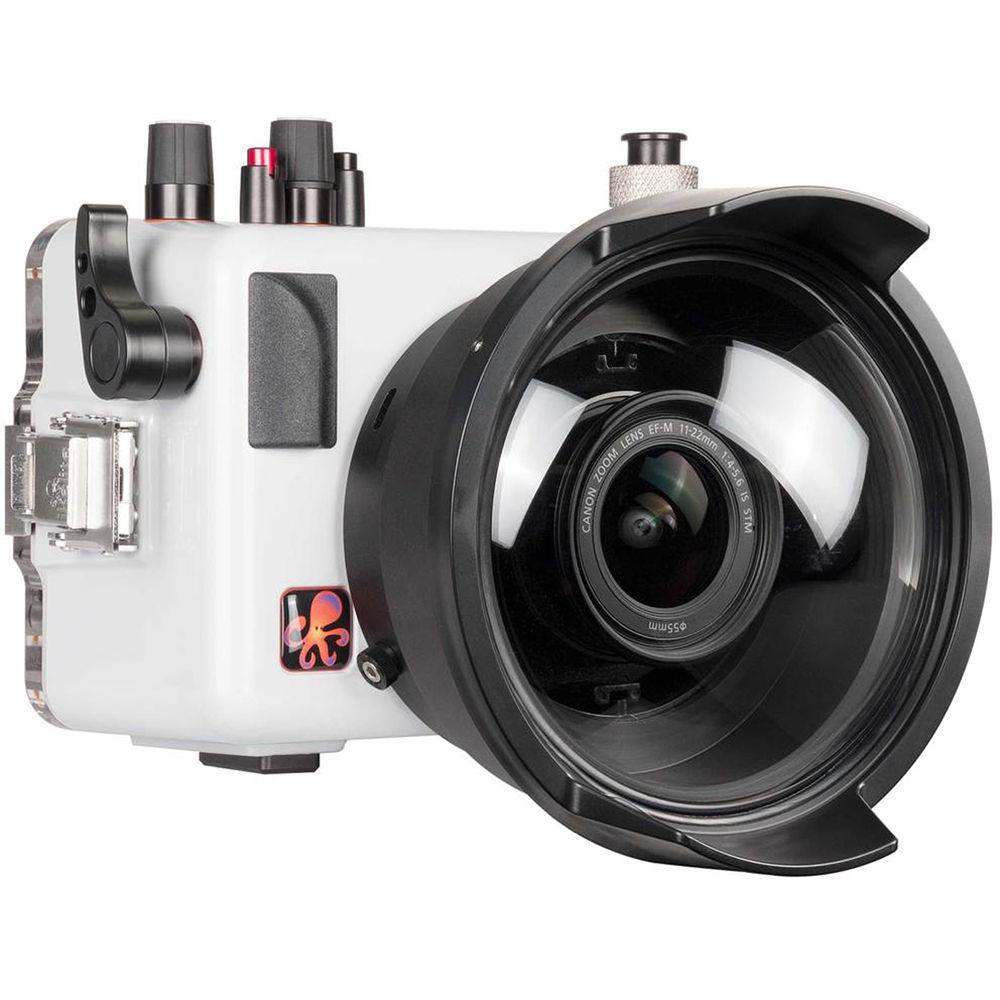

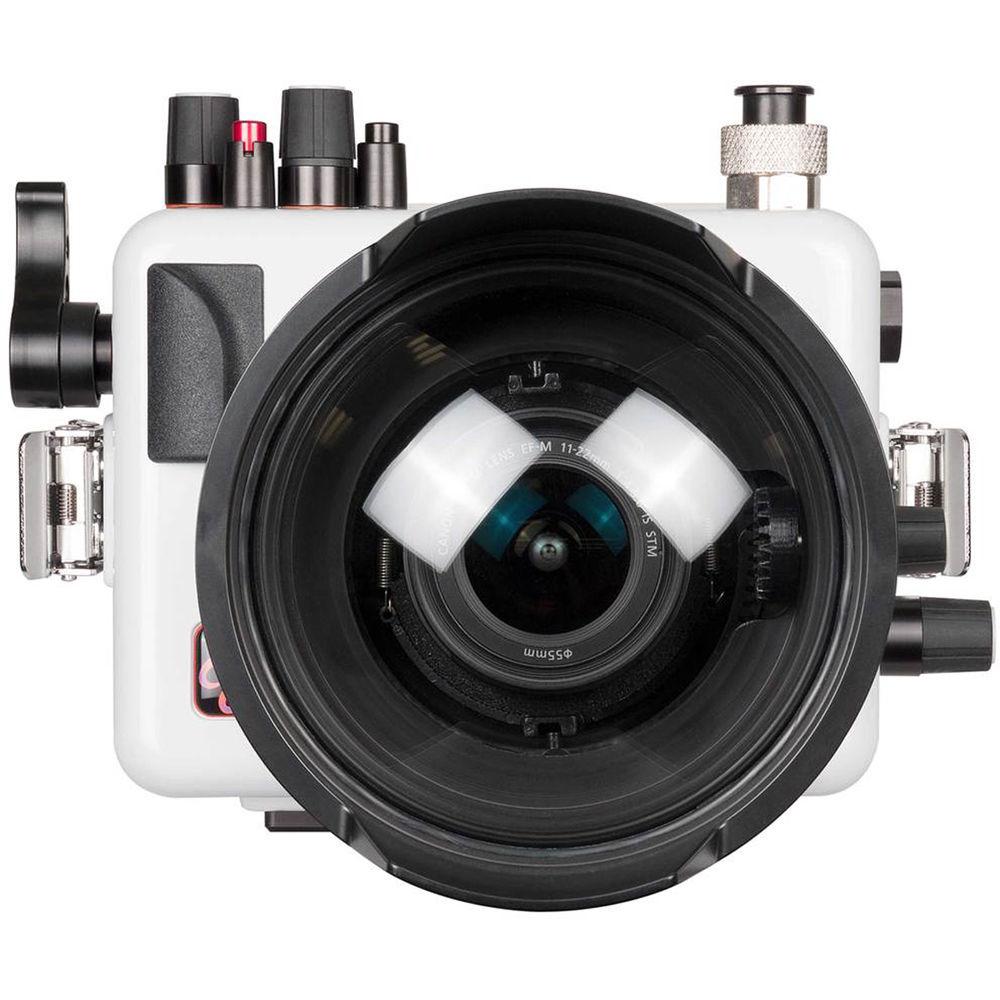

- Accepts various interchangeable dome and flat ports for a broad array of lenses
- For complete compatibility details, see the port chart linked above
- Simply press the port on and tighten three thumbscrews
- Strobe Connection and Operation
-
- Circuit is powered by strobe
- Exposure compensation in TTL mode is supported using the camera's built-in control
- Ikelite DS strobe are operable in TTL or manual mode
- Third-party strobes operable in manual mode only
- Sync cord is sold separately
UPC: 883711056067 In the Box Ikelite 200DLM/A Underwater TTL Housing for Canon EOS M50 2cc Tube of Silicone Lubricant for O-Rings Control + Push Button Tip Assortment for Compact Digital Housings 1/16" Hex Head Allen Wrench for Gears on Housings Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DLM A Underwater TTL Housing for Canon EOS M50 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DLM/A Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Material of Construction | Body: Polycarbonate and ABS plastic blend
Back Plate: Acrylic | | Lens Port | Ships without a required lens port
Accepts interchangeable dome and flat ports for various lenses
For complete compatibility details, see DLM Type A port chart linked in overview | | External Flash Connector | Ikelite sync bulkhead and TTL circuitry for strobes | | Mounting | 2 x 1/4"-20 threaded mounts with 3.0" / 76 mm spacing for optional tray | | Dimensions | 7.5 x 5.8 x 5.4" / 19.1 x 14.7 x 13.7 cm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 9.8 x 6.2 x 6.2" |
