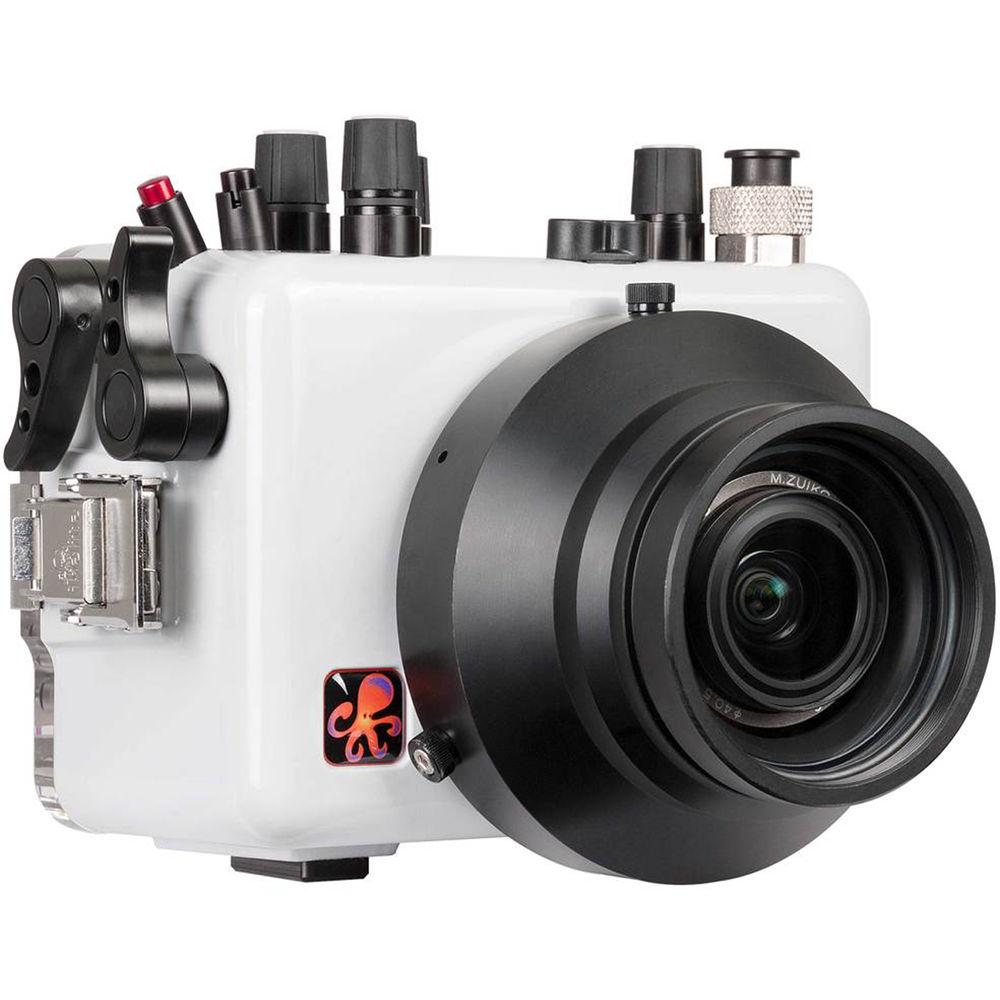

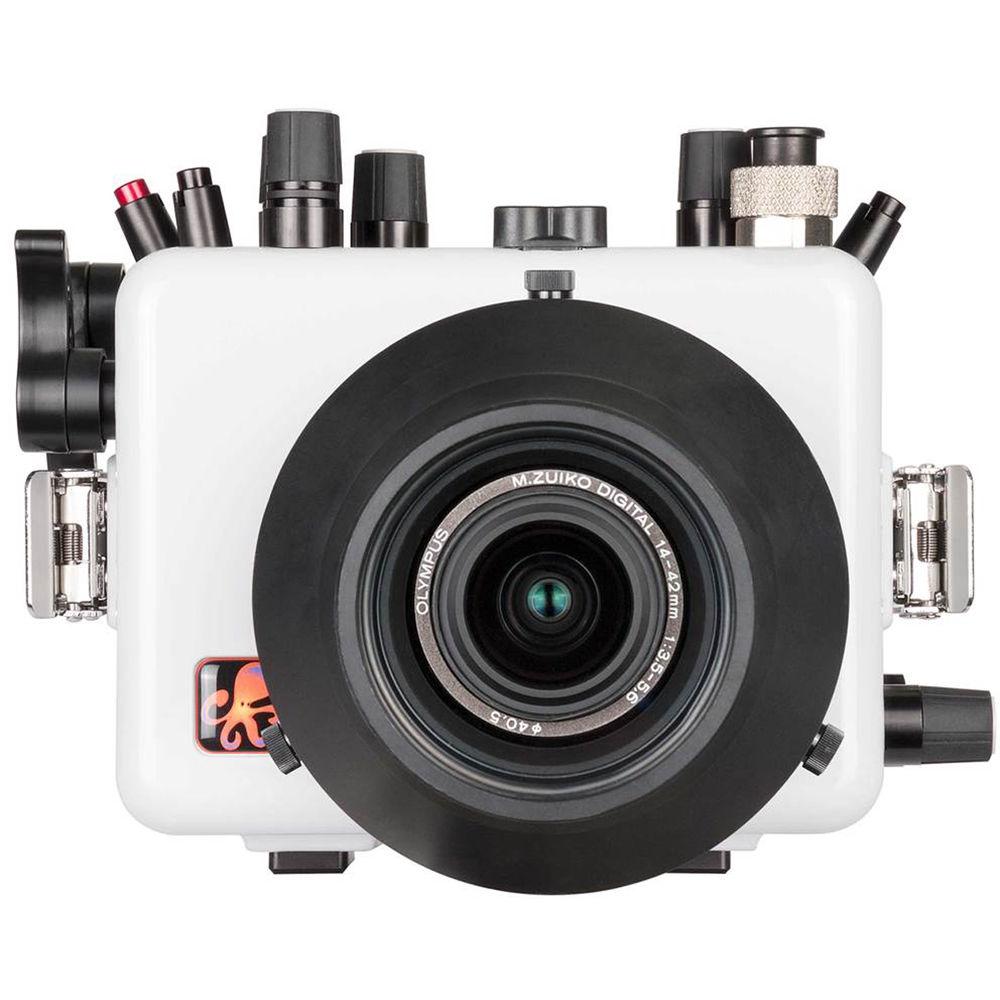

User Manual for Ikelite 200DLM A Underwater TTL Housing for Olympus OM-D E-M10 Mark III Click to enlarge the picture
Contents of the user manual for the Ikelite 200DLM A Underwater TTL Housing
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 200DLM A Underwater TTL Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture images and video at depths 200' beneath the surface using this Ikelite Underwater Housing with TTL Circuitry for the Olympus OM-D E-M10 Mark III Mirrorless Micro Four-Thirds camera. Large, ergonomic mechanical controls provide access to virtually all camera functions.
The waterproof enclosure is equipped with built-in TTL circuitry, an Ikelite bulkhead sync cord connector, and an electrical hot shoe to enable the connection and firing of optional external strobes. The circuitry enables TTL exposure with Ikelite DS strobes only. Third-party strobes will work in manual mode. Your camera's built-in flash can trigger optional external strobes via cables connected to the housing's dual fiber-optic ports.
Built for durability, the housing is made in the USA from corrosion-resistant polycarbonate – white on the front, top, and sides, but clear in the back to allow you to monitor the camera and O-ring seal. It ships without a required lens port and is compatible with a series of interchangeable ports for various lenses. For full details, see the Port Chart. - Construction Details
-
- Depth Rating: 200'
- Made in the USA from white polycarbonate with clear back to allow you to monitor O-ring seal and maintain a full view of camera

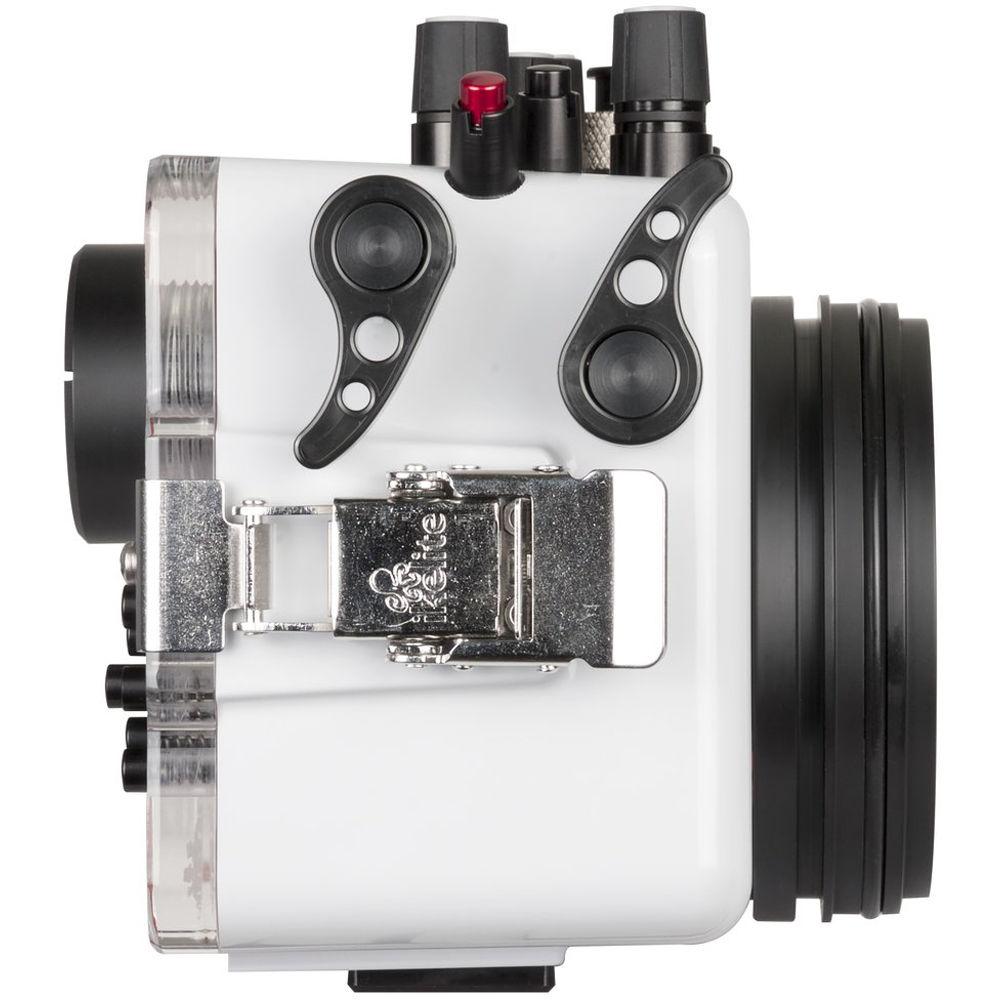

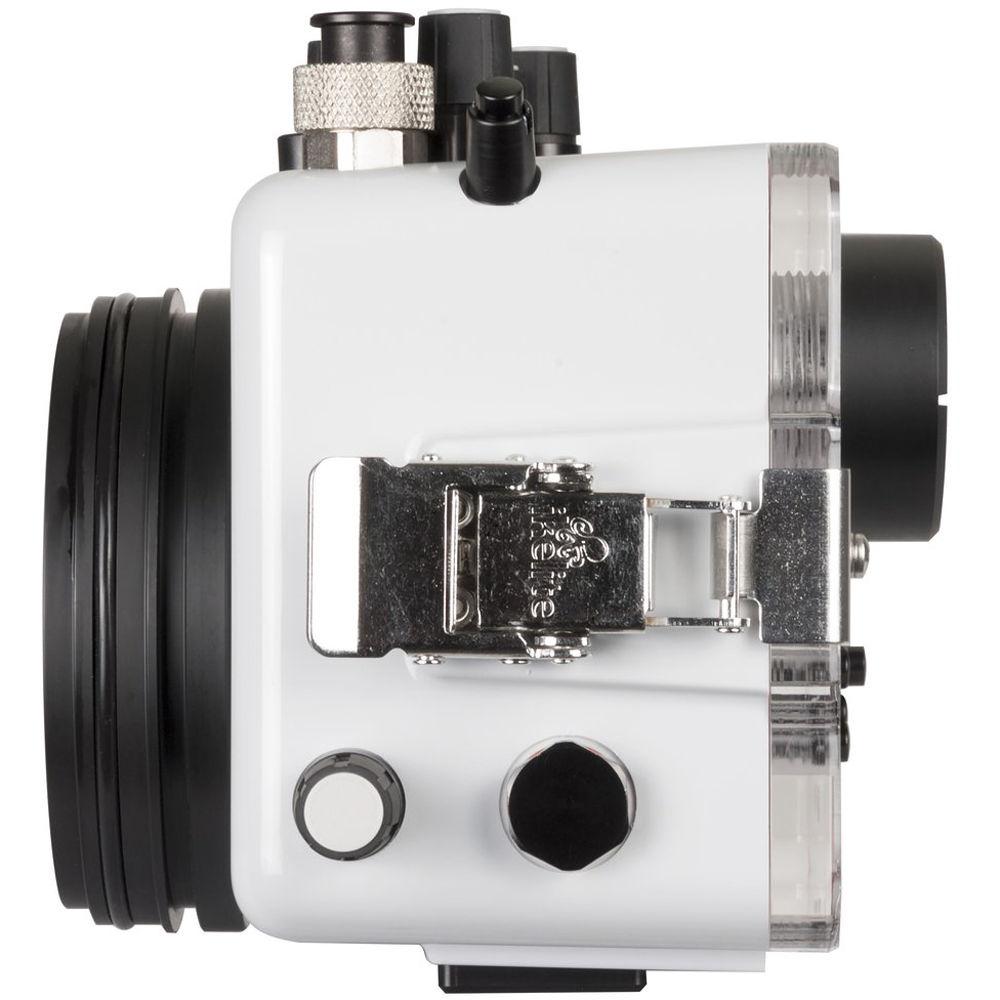

- Close two locking snaps on sides to see O-ring form watertight seal
- Controls and Handling
-

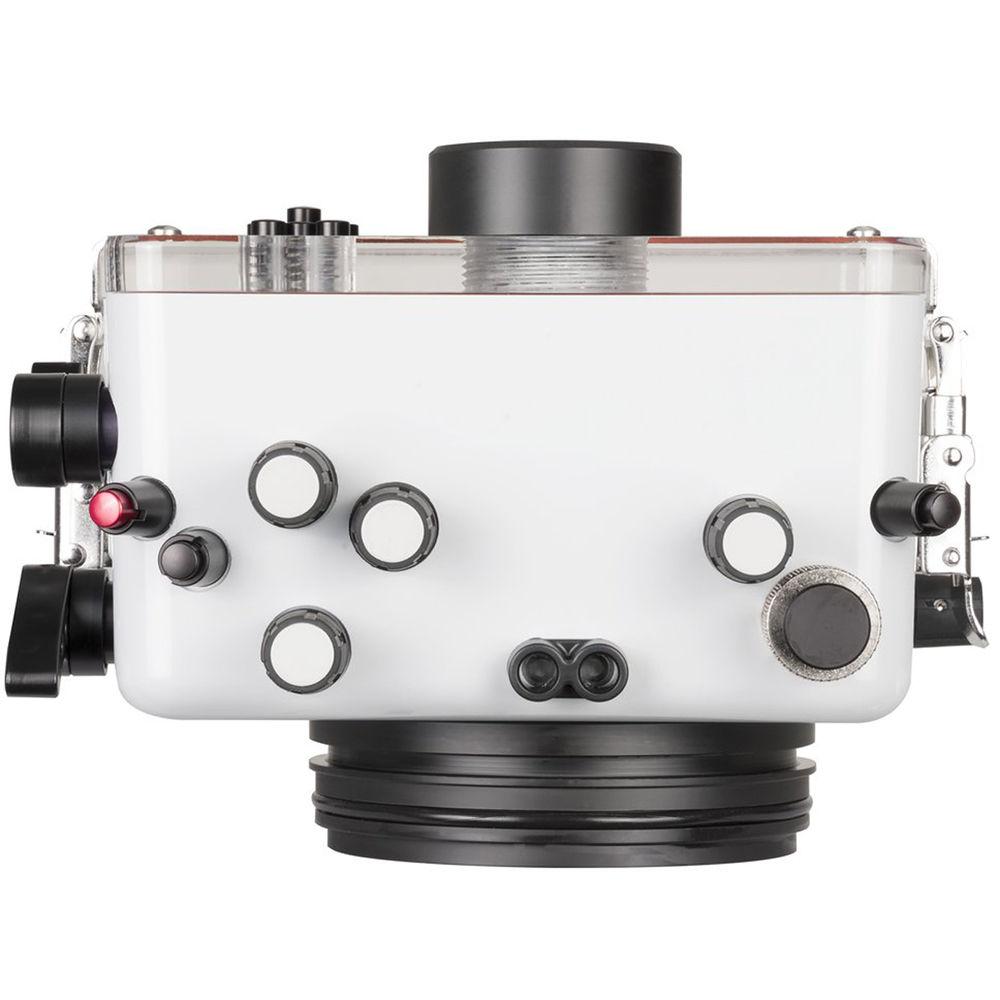

- Trigger-style shutter control lever, soft-touch knobs and hard-anodized aluminum buttons provide control for all important camera functions with or without gloves
- Lever access to AEL/AFL button

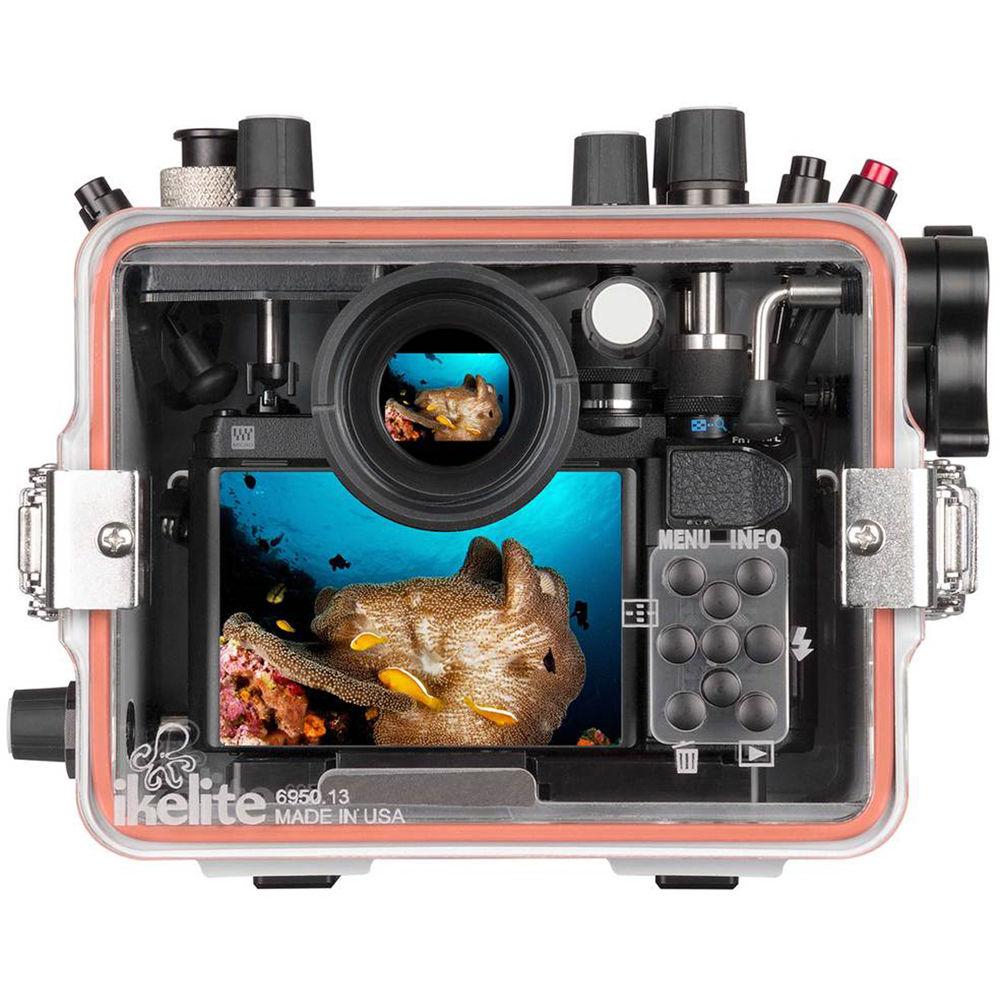

- Camera's LCD screen can be viewed edge-to-edge through rear of housing
- Supereye Viewfinder provides an enhanced view of the camera's optical viewfinder when viewed through a dive mask
- This OVF can be replaced easily by the optional Straight or 45° Magnified Optical Viewfinders, which enhance your view while eliminating vignetting and offering greater long-term comfort
- Lens Port System
-

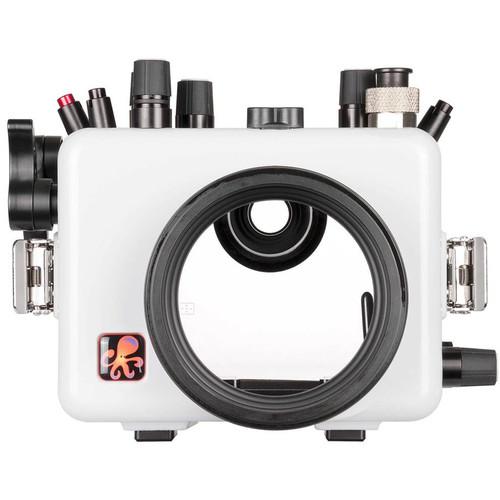

- Ships without a required lens port

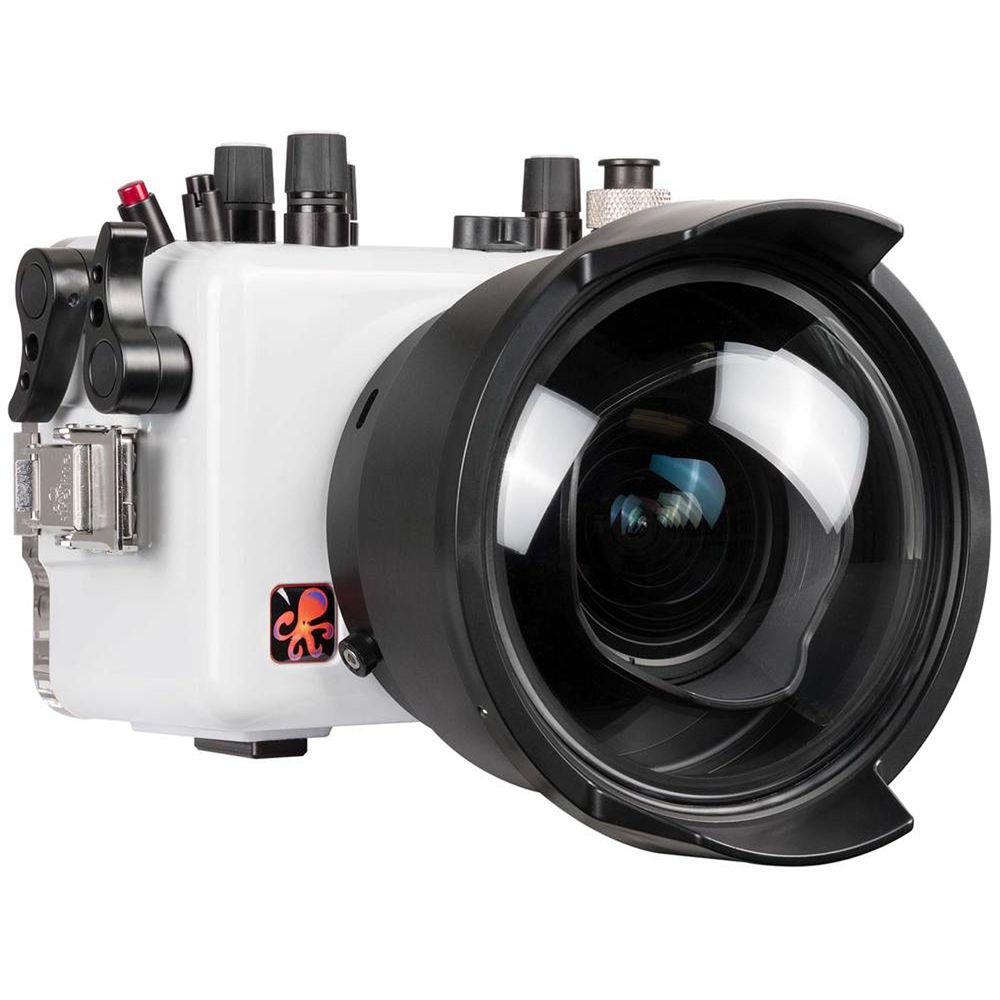

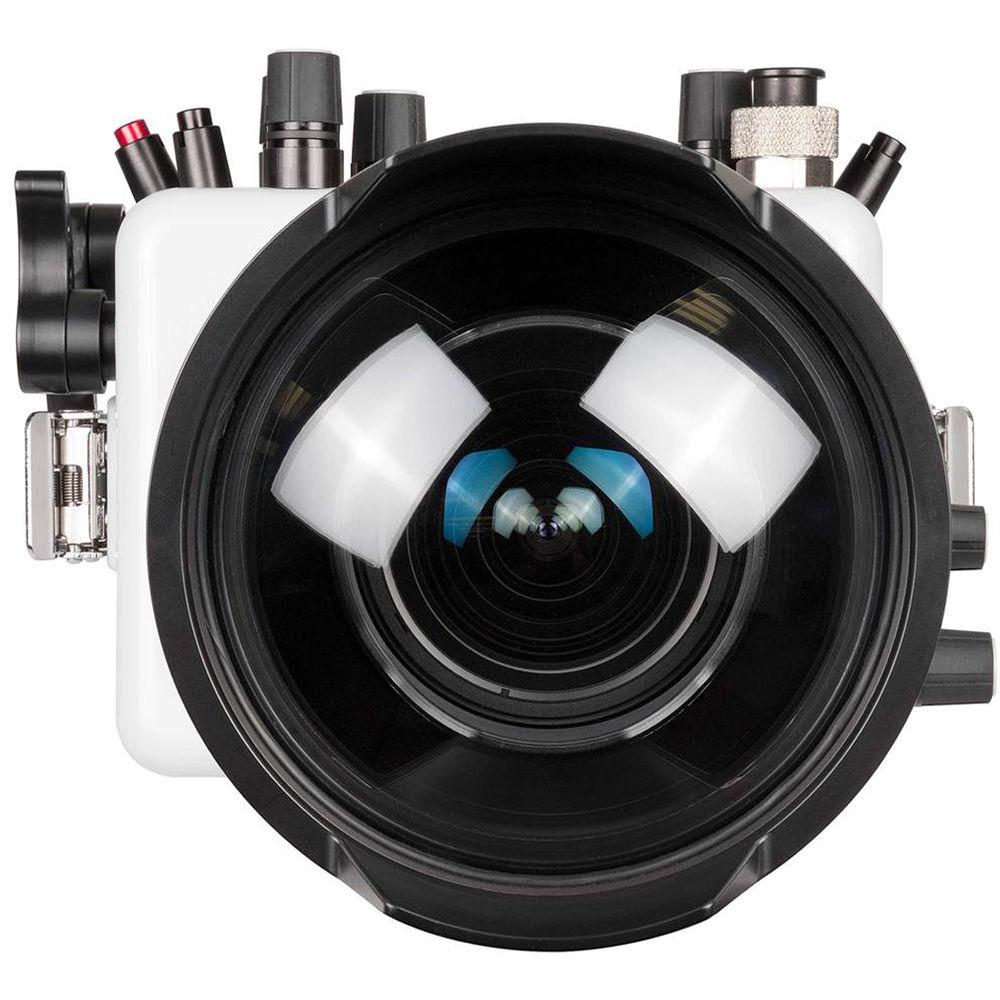

- Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses. For details, see Port Chart link above
- Attaching/changing ports is easy--just press on and tighten 3 thumb screws
- Strobe Connection and Operation
-
- Built-in TTL circuitry, Ikelite bulkhead sync cord connector, and electrical hot shoe to enable the connection and firing of non-Ikelite strobes in manual exposure modes
- Circuitry enables TTL exposure with Ikelite DS strobes only
- Camera-specific TTL encoding for automatic exposure fine-tuned to the E-M10 Mark III's flash protocol
- Circuit powered by strobe so batteries and maintenance are not required
UPC: 883711055886 In the Box Ikelite 200DLM/A Underwater TTL Housing for Olympus OM-D E-M10 Mark III 2cc Tube of Silicone Lubricant for O-Rings tszwctvxaxacwrzutarbzrzabbbbuyydz Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DLM A Underwater TTL Housing for Olympus OM-D E-M10 Mark III in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DLM/A Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knurled knobs/dials, trigger-style shutter control lever | | Material of Construction | Polycarbonate | | Lens Port | Ships without a required port
Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses
For details, see Port Chart link in Overview | | Buoyancy | Slightly negative buoyancy in fresh water
Actual buoyancy varies depending on choice of lens and port | | Internal Flash Usable | Yes | | External Flash Connector | Built-in TTL circuitry, Ikelite bulkhead sync cord connector, and electrical hot shoe for optional, external strobe

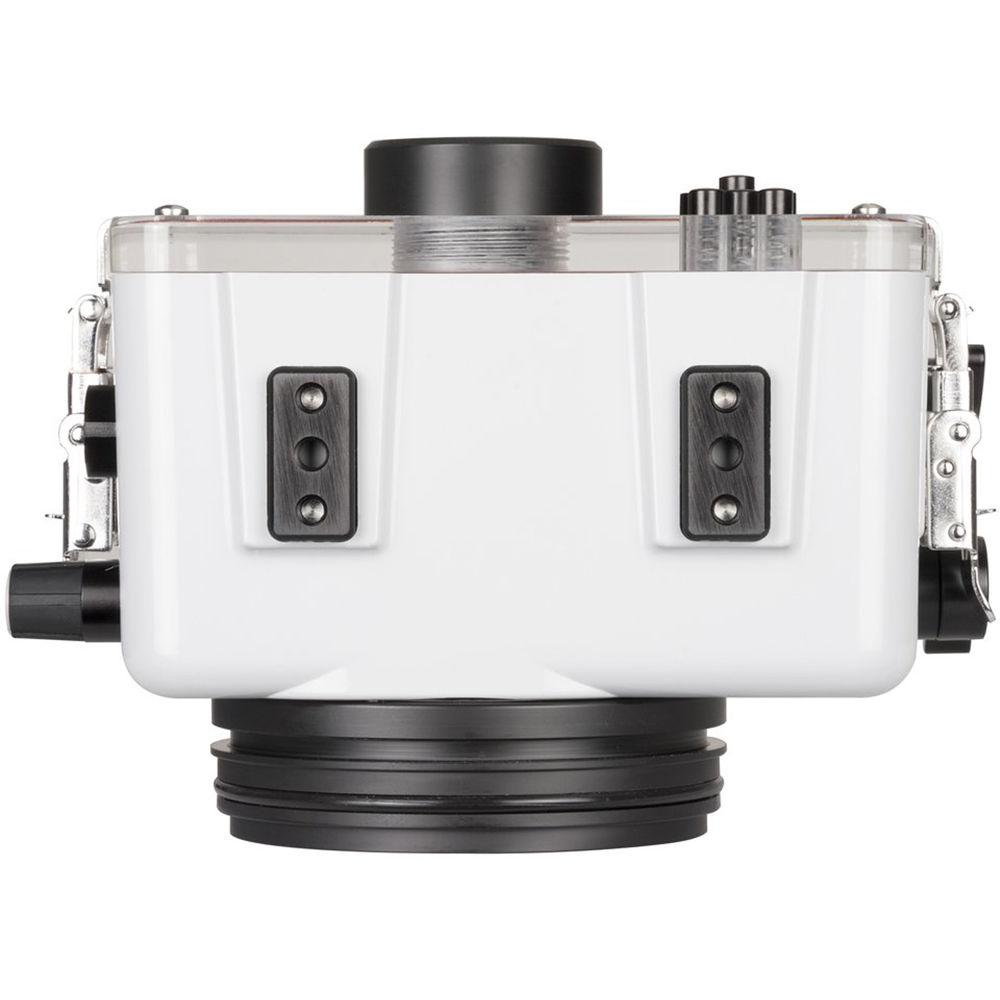

2 x fiber-optic ports | | Mounting | 2 x 1/4"-20 threaded tray mounts with 3" / 76 mm spacing | | Dimensions | 7.4 x 6.0 x 5.5" / 18.7 x 15.2 x 13. 9 cm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 9.7 x 6.5 x 6.4" |
