User Manual for Ikelite 200DLM C Underwater Housing for Nikon D3500 DSLR Click to enlarge the picture
Contents of the user manual for the Ikelite 200DLM C Underwater Housing for
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 200DLM C Underwater Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

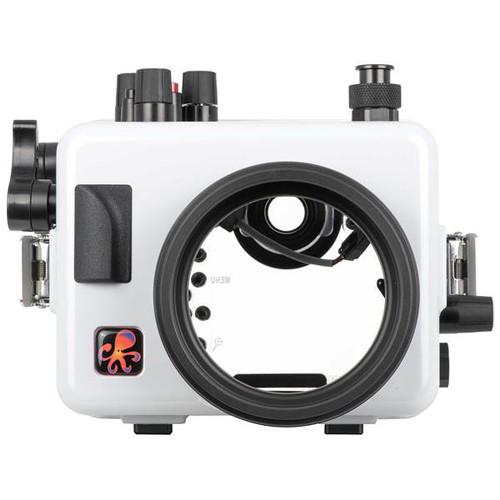

Product description Capture images of the underwater world with your Nikon D3500 DSLR camera in this 200DLM/C Underwater Housing from Ikelite. The housing accepts interchangeable dome and flat ports for a broad array of lenses. For complete compatibility details, see the DLM Type C Port Chart. The enclosure is depth-rated for 200'. An Ikelite sync cord bulkhead with manual hot shoe enables the connection of optional external strobes. Ergonomic mechanical controls including push buttons, dials, and levers afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. - Construction Details
-
- Depth rating: 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface

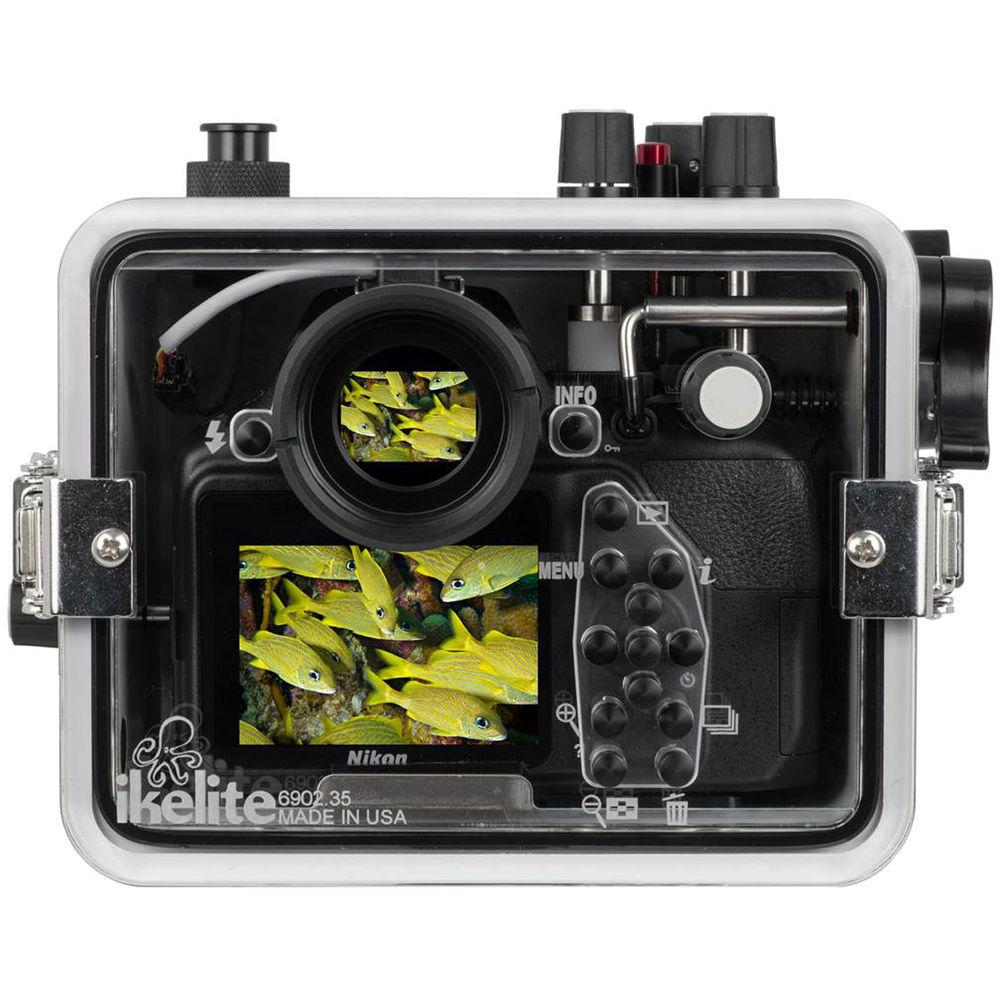

- Clear in the back to allow you to monitor the O-ring seal and camera

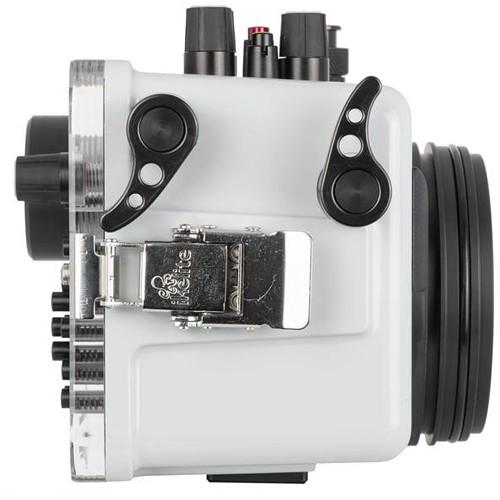

- Two double-passivated, stainless steel locking latches are virtually unbreakable and make it easy to open and close the housing
- Rear O-ring seal design and placement prevent accidental twisting or stretching, and eliminate the need for a groove that can trap sand, dirt, or debris

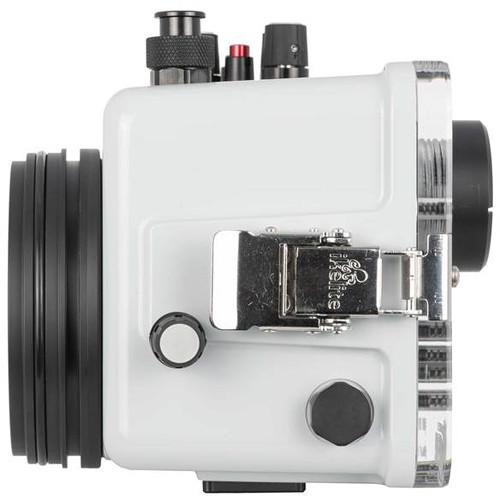

- 1/2-20 threaded accessory port on the side of the housing allows for the easy installation of an optional Vacuum Kit, which will allow you to confirm the integrity of the watertight seal before diving
- Camera is installed and removed through the front of the housing
- Mounting plate allows for secure camera placement, and does not need to be removed for you to access the battery compartment or memory card slot
- Mounting plate has a 1/4"-20 threaded hole for connection to a tripod
- Controls and Handling
-

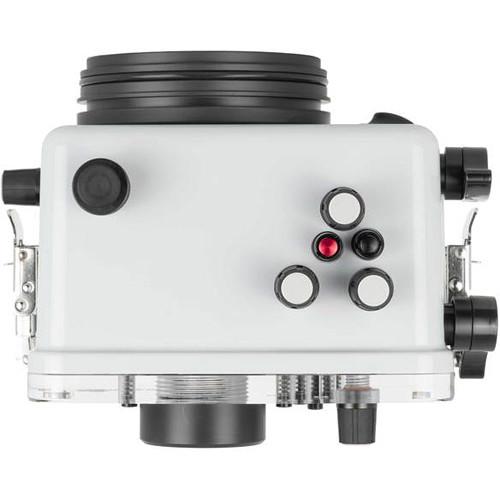

- Large ergonomic mechanical controls including push-buttons, dials, knobs, and levers afford access to all camera functions except for the diopter adjustment knob
- Soft knobs increase comfort and prevent your fingers from slipping when operating the most commonly used controls
- Curved shutter lever
- Corrosion-proof, smooth-action acetal buttons
- Laser-engraved control symbols on the back of the housing won't come off or fade with time
- Camera's large, bright LCD screen is fully visible from edge to edge through the rear of the housing
- Supereye Viewfinder gives you an enhanced view through the camera's OVF
- Two 1/4"-20 threaded mounts on the bottom of the housing allow for connection to an optional tray with grips, which improves balance and handling while adding attachment points for lighting arms
- Lens Ports
-

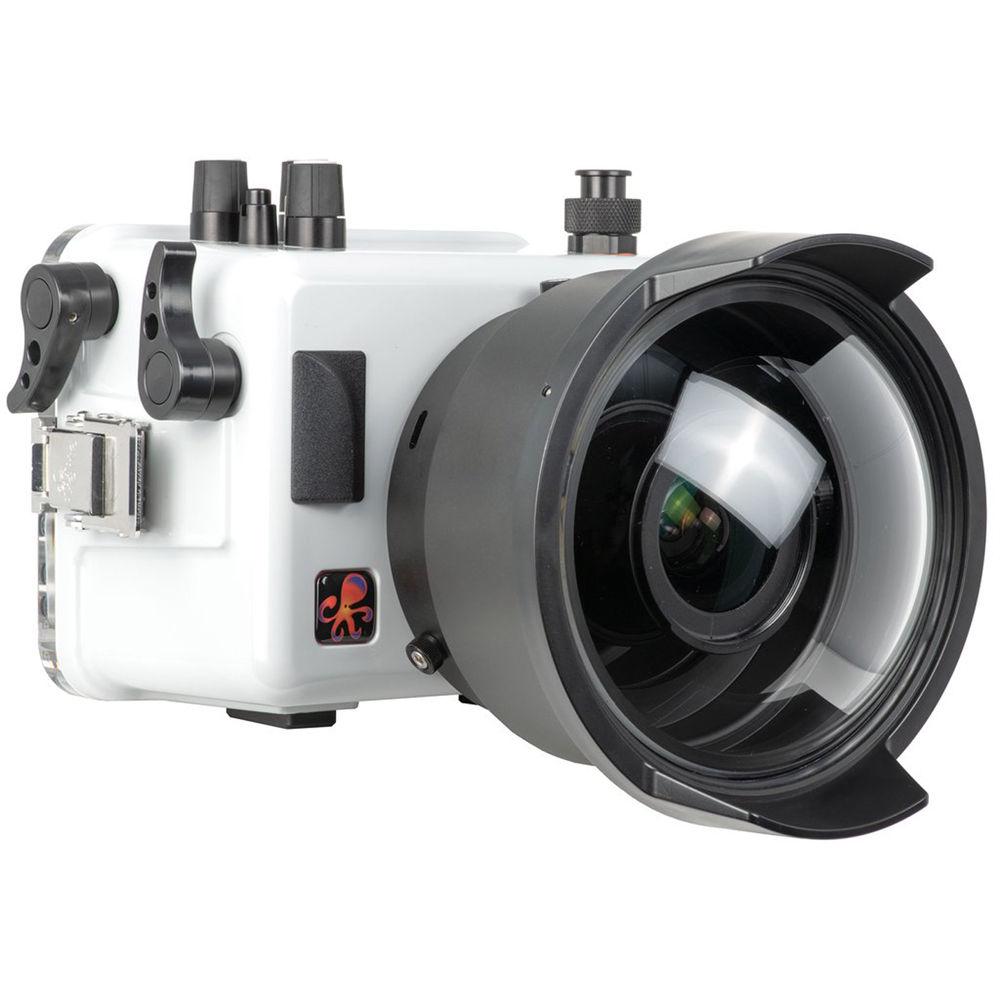

- Housing accepts separately sold dome and flat ports for a broad array of other lenses
- For complete compatibility details, see the DLM Type C Port Chart linked above
- Strobe Connection and Operation
-
- Ikelite bulkhead with a manual hot shoe enables the connection of optional external strobes via sync cords
- For TTL functionality, use separately sold DL1 DS Link Nikon TTL Converter Ikelite NT3 Hot Shoe Kit #46056 and a compatible Ikelite DS strobe
UPC: 883711057057 In the Box Ikelite 200DLM/C Underwater Housing for Nikon D3500 DSLR 0110 O-Ring O-Ring for Select Strobes and Housings Zoom Gear for Canon EF 18-55mm f/4 Lens in DLM/C Port zrawaeru 9104.7 Waterproof Bulkhead Cap (Aluminum) Silicone Lubricant 1cc Tube Limited 2-Year Warranty Lens Port PDF 111.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DLM C Underwater Housing for Nikon D3500 DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DLM/C Specs | Depth Rating | 200' / 60 m | | Port | Ikelite DLM/C | | Material of Construction | Body: Polycarbonate and ABS Plastic
Back Plate: Acrylic
Small Parts: Acetal Plastic | | External Flash Connector | Ikelite Bulkhead with Manual Hot Shoe Connection | | Mounting | 1 x 1/4"-20 Tripod Mount on Camera Plate
2 x 1/4"-20 Tray Mounts on Bottom of Housing | | Dimensions | 7.5 x 5.7 x 5.9" / 19.1 x 14.6 x 15.0 cm | | Weight | 2.8 lb / 1.3 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
