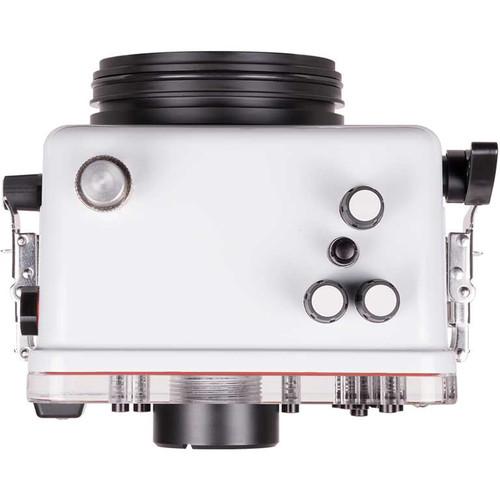

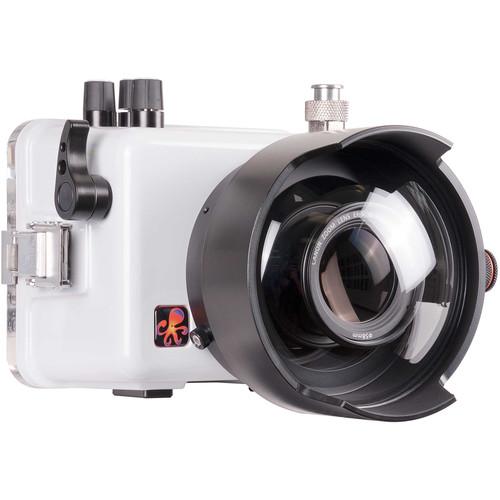

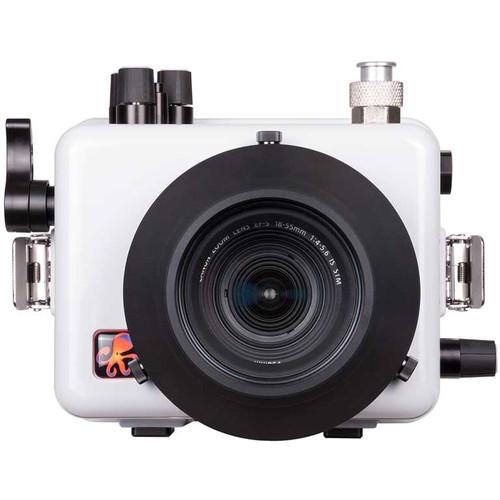

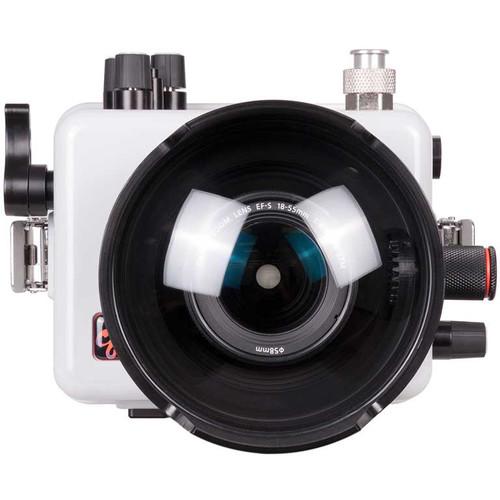

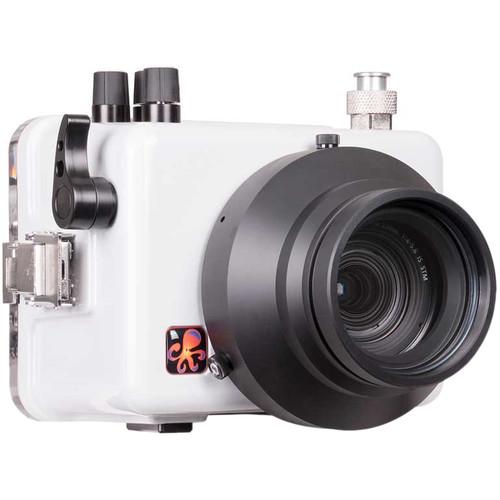

User Manual for Ikelite 200DLM C Underwater TTL Housing for Canon EOS Rebel SL2 with 6" Dome Port for Select Lenses Click to enlarge the picture
Contents of the user manual for the Ikelite 200DLM C Underwater TTL Housing
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 200DLM C Underwater TTL Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture images of coral, sharks, and blue-ringed octopi with your Canon EOS Rebel SL2 DSLR, a.k.a. 200D, in Ikelite's 200DLM/C Underwater Housing with TTL Circuitry, which ships with the 6" DLM Dome Port for select lenses. It also accepts optional, interchangeable dome and flat ports for a broad array of other lenses. For complete compatibility details, see the DLM Type C Port Chart. The enclosure features a depth rating of 200'. An Ikelite sync cord bulkhead and built-in TTL circuitry enable the connection of optional external strobes.
Ergonomic mechanical controls, including push-buttons, dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. An optional aluminum tray with a quick-release grip or two will afford improved balance and handling, while offering a way to attach optional lighting arms. - Construction Details
-
- Depth rating: 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above the water's surface
- Clear in the back to allow you to monitor the O-ring seal and camera

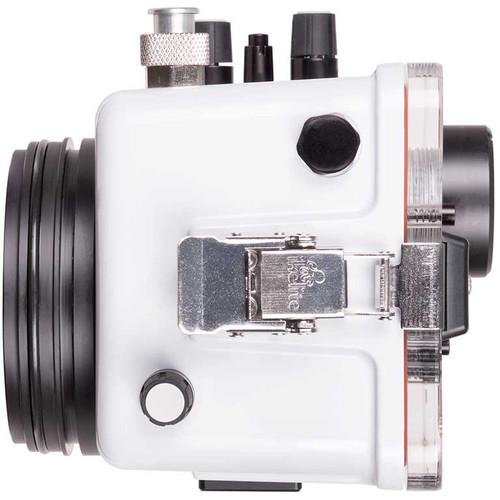

- Two double-passivated, stainless steel locking latches are virtually unbreakable and make it easy to open and close the housing
- Rear O-ring seal design and placement prevent accidental twisting or stretching, and eliminate the need for a groove that can trap sand, dirt, or debris
- 1/2-20 threaded accessory port on the side of the housing allows for the easy installation of an optional Vacuum Kit, which will allow you to confirm the integrity of the watertight seal before diving

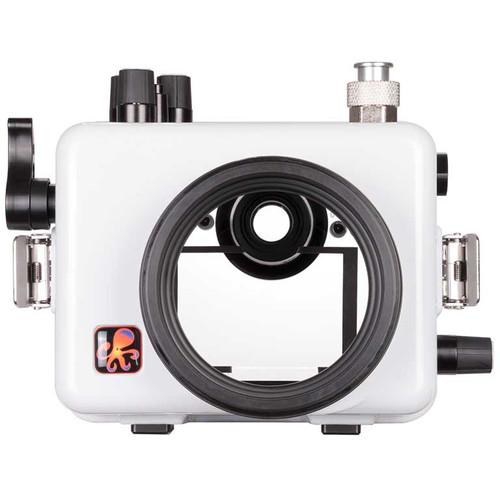

- Camera is installed and removed through the front of the housing
- Mounting plate allows for secure camera placement, and does not need to be removed for you to access the battery compartment or memory card slot
- Mounting plate has a 1/4"-20 threaded hole for connection to a tripod
- Controls and Handling
-
- Large, ergonomic, mechanical controls, including push-buttons, dials/knobs, and levers, afford access to all camera functions except for the diopter adjustment knob, display button, Wi-Fi button, depth-of-field preview, and flash button
- Soft knobs increase comfort and prevent your fingers from slipping when operating the most commonly used controls
- Updated, curved shutter lever on the side is more sensitive and ergonomic than the levers on many previous housings
- Optional Shutter Trigger Extension can be added on to allow for easy shutter activation without removing your hand from a grip
- Redesigned push-buttons are even lighter in weight than the previously existing ones, and are also less prone to salt buildup
- Laser-engraved control symbols on the back of the housing won't come off or fade with time
- Camera's large, bright LCD screen is fully visible from edge to edge through the rear of the housing
- Supereye Viewfinder gives you an enhanced view through the camera's OVF, and can be replaced quickly and easily by the optional Straight or 45° Magnified Viewfinder
- Two 1/4"-20 threaded mounts on the bottom of the housing allow for connection to an optional tray with grips, which improves balance and handling while adding attachment points for lighting arms
- Lens Ports
-
Ships with 6" DLM Dome Port and zoom gear for select lenses:- Canon EF-S 10-18mm f/4.5-5.6 IS STM
- Canon EF 18-55mm f/3.5-5.6 IS STM
- Canon EF 18-55mm f/4.0-5.6 IS STM
- Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye
- Sigma 15mm f/2.8 EX DG Diagonal Fisheye
Port Details:- Acrylic front element corrects for the underwater distortion that makes everything appear 25% larger and closer, thus restoring the original wide angle of view of your lens
- Durable Delrin acetal resin body is resistant to corrosion
Housing accepts optional, interchangeable dome and flat ports for a broad array of other lenses:- For complete compatibility details, see the DLM Type C Port Chart linked above
- Simply press the port on and tighten three thumb screws to complete the installation
- Strobe Connection and Operation
-
- Optional external strobe will be extremely helpful--and virtually essential--once you descend further than 15-20' underwater, except when shooting with color filters on very clear days with bright sunlight
- Strobe acts as a color-correction tool, restoring hues that get absorbed by water so that your images are vibrant and accurate
- Try to stay no more than 3-4' away from subject to preserve natural colors in images
- Ikelite bulkhead with a hot shoe connection and built-in TTL circuitry enable the connection of optional external strobes via sync cords
- Circuit is powered by the strobe, so there are no batteries to change and there is no maintenance to be done
- Exposure compensation in TTL mode is supported using the camera's built-in control
- Ikelite DS strobes, such as DS50 (above serial number 70000), 51, 125 (above serial number 5000), 160, 161, and 200, are operable in TTL or manual mode
- Third-party strobes with electrical bulkheads, such as those from Sea & Sea, INON, and Nikonos, are operable in manual mode only
- Cord attachment is as easy as screwing in a light bulb, and the threaded fit prevents accidental detachment during use
- Bulkhead connector has been moved to the top of the housing to keep cords out of your way and reduce strain on the cord ends
- Housing ships without a required sync cord and accepts various cords with single and dual connectors for Ikelite, Sea & Sea, INON, and Nikonos-type strobes
- Instead of or in addition to a strobe, you may use a constant video light
UPC: 883711055022 In the Box Ikelite 200DLM/C Underwater TTL Housing for Canon EOS Rebel SL2 with 6" Dome Port for Select Lenses DLM 6" Dome Port with Zoom Control for Wide-Angle Mirrorless Lenses Zoom Gear for Canon EF 18-55mm f/4 Lens in DLM/C Port 0110 O-Ring O-Ring for Select Strobes and Housings Zoom Gear for Canon EF 18-55mm f/4 Lens in DLM/C Port ICS Bulkhead Cap (Replacement) 2cc Tube of Silicone Lubricant for O-Rings Limited 2-Year Warranty Port System Charts PDF 76.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 200DLM C Underwater TTL Housing for Canon EOS Rebel SL2 with 6" Dome Port for Select Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 200DLM/C Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Enable access to all camera functions except for diopter adjustment knob, display button, Wi-Fi button, depth-of-field preview, and flash button | | Material of Construction | Body: Polycarbonate and ABS plastic
Back Plate: Acrylic
Small Parts: Acetal plastic | | Lens Port | Ships with 6.0" DLM Dome Port and zoom gear for lenses listed in overview section
Accepts optional, interchangeable dome and flat ports for a broad array of other lenses
For complete compatibility details, see the DLM Type C Port Chart linked in overview | | Buoyancy | Housing Only: Slightly negative in fresh water
Complete System: May vary with choice of lens and port | | External Flash Connector | Ikelite bulkhead with hot shoe connection and TTL circuitry for external strobes (sync cord required) | | Mounting | 1x 1/4"-20 tripod mount on camera plate
2x 1/4"-20 tray mounts on bottom of housing | | Dimensions | 7.5 x 5.9 x 6.0" / 19.1 x 15 x 15.2 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 10.4 x 9.3 x 8.7" |
