User Manual for Ikelite 45-Degree Magnified Optical Viewfinder for DSLR and Mirrorless Housings Click to enlarge the picture
Contents of the user manual for the Ikelite 45-Degree Magnified Optical Viewfinder for
- Product category: Misc. Accessories Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Misc. Accessories
 |
User manual for the Ikelite 45-Degree Magnified Optical Viewfinder for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

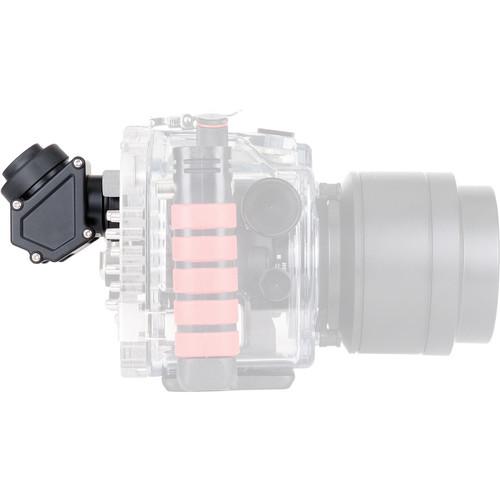

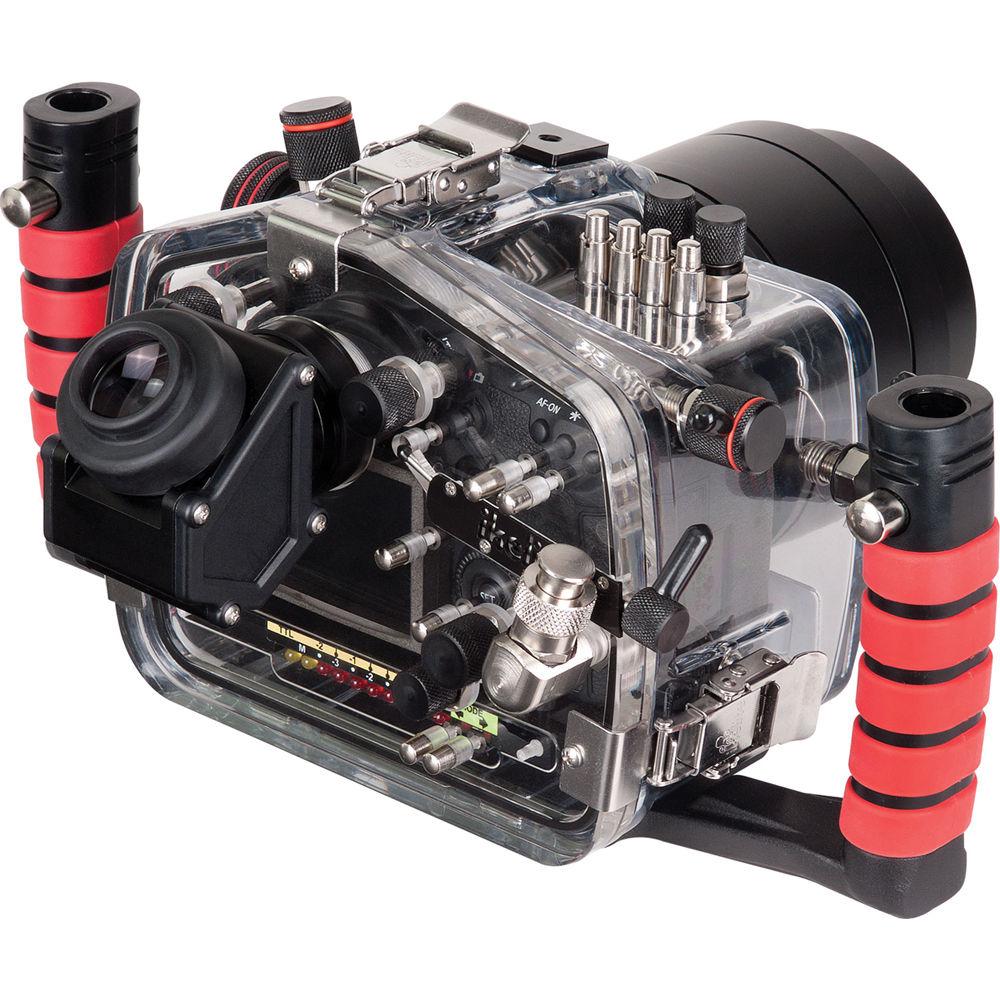

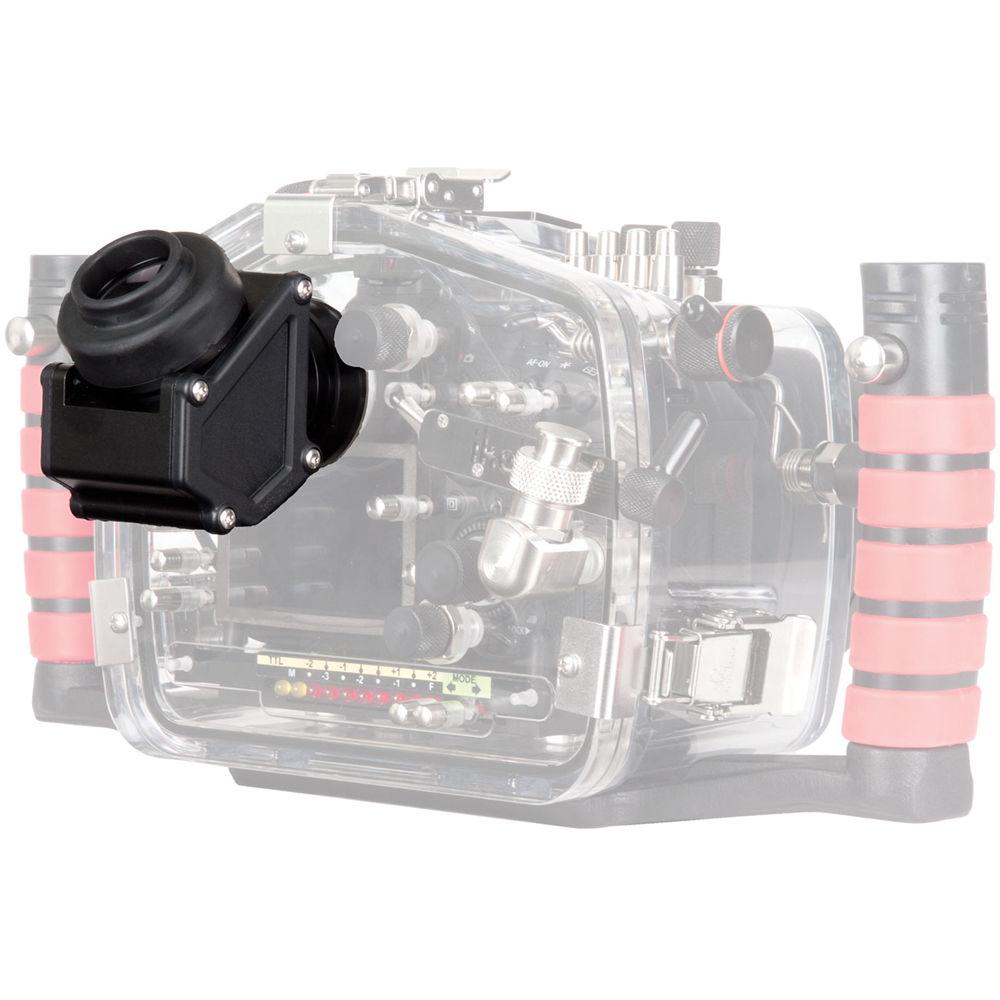

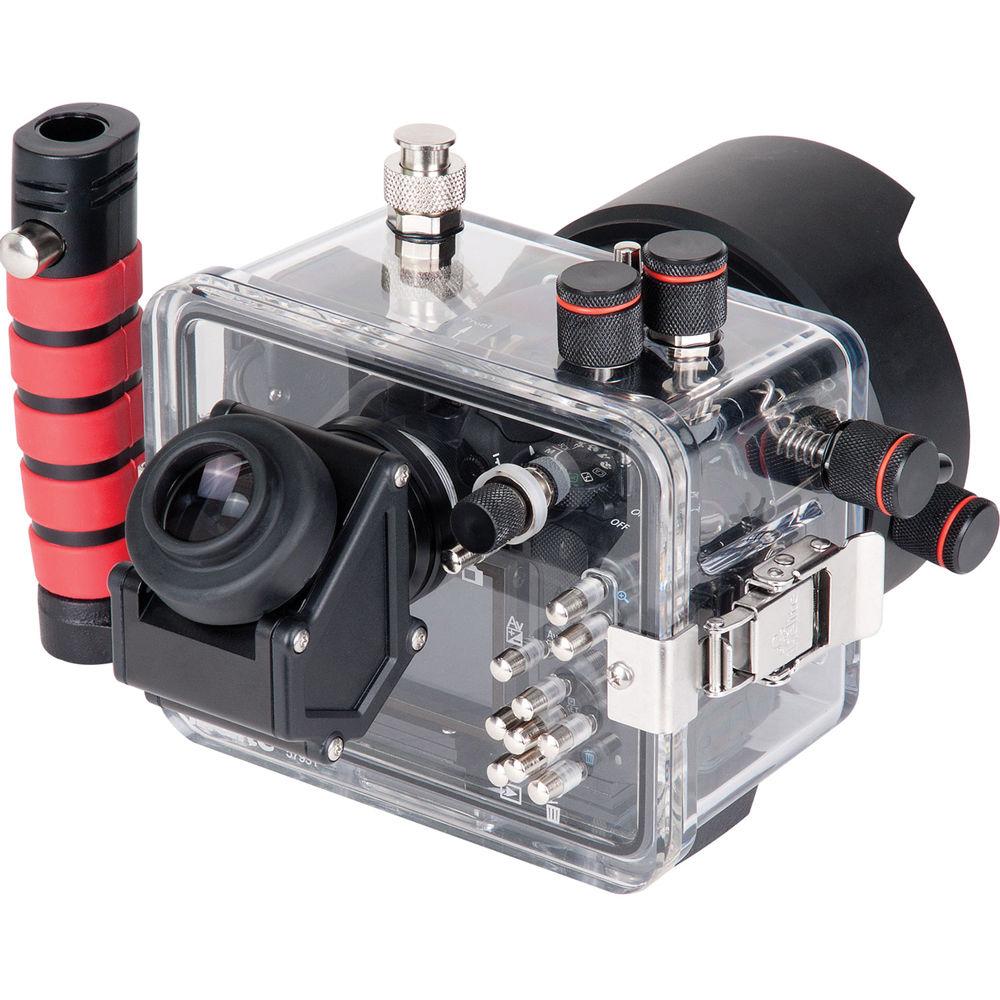

Product description An upgrade to their standard OVF, Ikelite's 1.0x (Type 2) 45-Degree Magnified Optical Viewfinder enhances your view through your camera's OVF when using a DSLR or Mirrorless housing. It also provides greater long-term comfort. Since you're typically horizontal when diving, viewing your frame at a 45° angle reduces fatigue and often makes composition easier when the subject is below you or tucked into a reef. The OVF features a depth rating of 200'.
The viewfinder rotates at virtually any angle around its attachment point on the housing, enabling easy switching between landscape and portrait orientation. It extends farther away from the housing than the standard OVF without changing the image size. It also eliminates the vignetting of the standard model, and gives you a brighter and larger image.

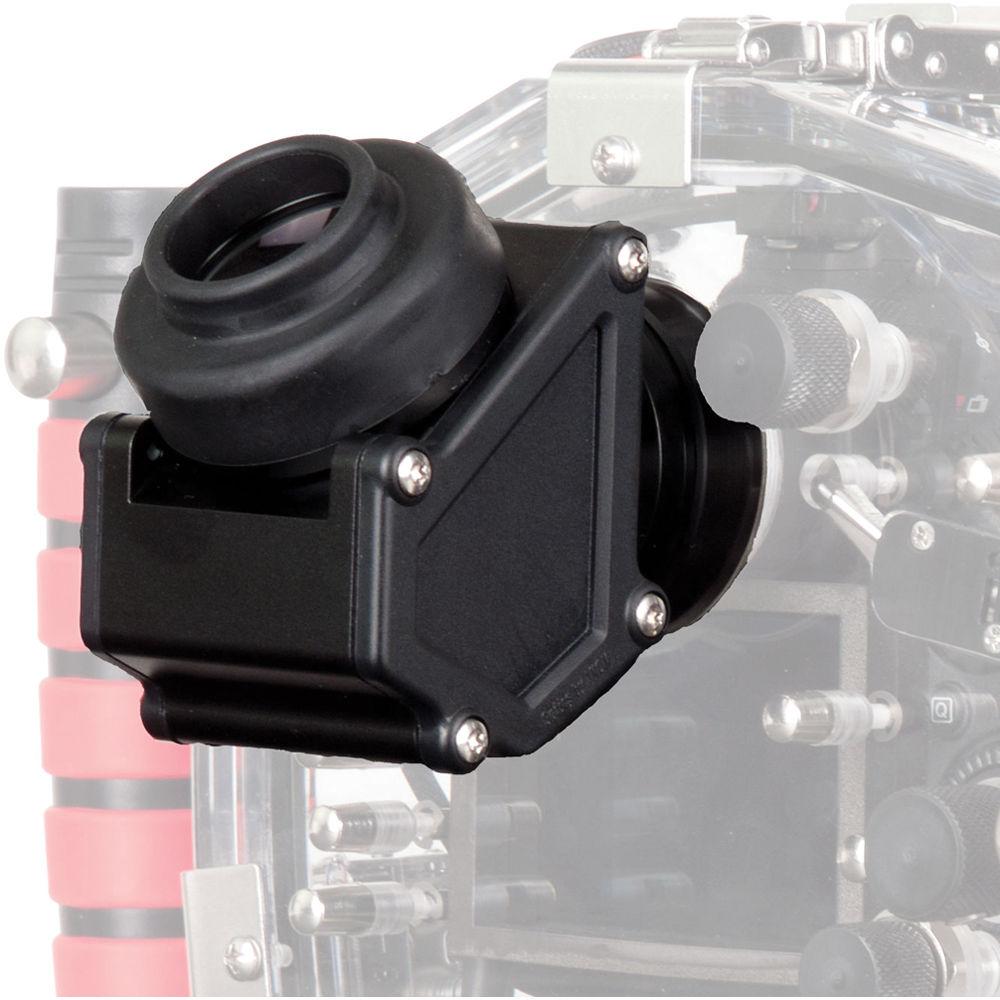

The 45° OVF is constructed from corrosion-resistant anodized aluminum with durable Delrin acetal resin and a glass eyepiece. The included tool makes it easy to remove your housing's original viewfinder, and to install and remove this one with no housing modification. This (Type 2) OVF is designed for use only with select Ikelite housings, in order to ensure adequate control clearance. See Compatibility Chart. UPC: 883711050171 In the Box Ikelite 45-Degree Magnified Optical Viewfinder for DSLR and Mirrorless Housings (Type 2) Protective Cap Attachment Tool Spare O-Ring Limited 1-Year Warranty Viewfinder Compatibility Chart PDF 127.4kbdsxqtbbbaqsqbfbfcy Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 45-Degree Magnified Optical Viewfinder for DSLR and Mirrorless Housings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 6891.2 Specs | Depth Rating | 200' / 60 m | | Magnification | 1.0x | | Material of Construction | Body: Anodized aluminum and Delrin acetal resin
Eyepiece: Glass | | Coverage | Approx. 100% | | Diopter Correction | None
Adjustments are made using your camera's viewfinder | | Dimensions | 2.2 x 3.2 x 3.8" / 57 x 82 x 97 mm | | Weight | 11.7 oz / 332 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 4.8 x 4.4 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
