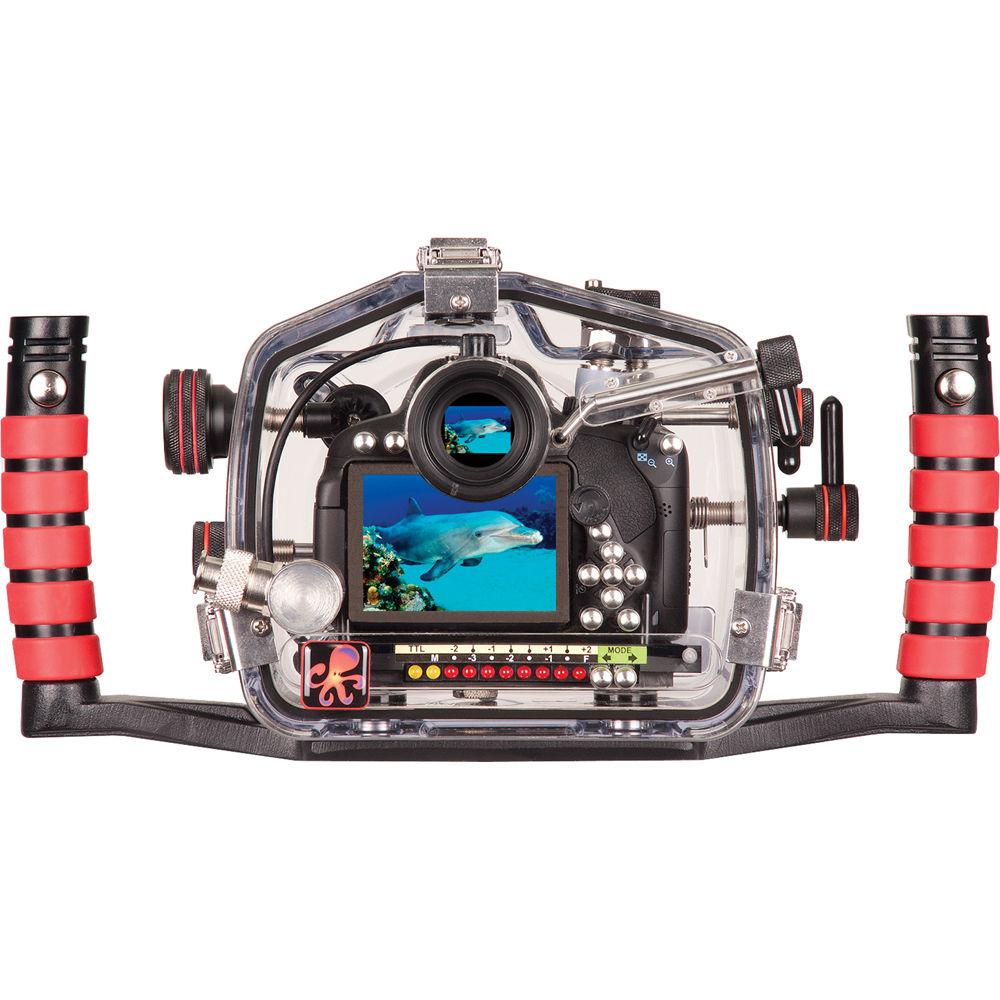

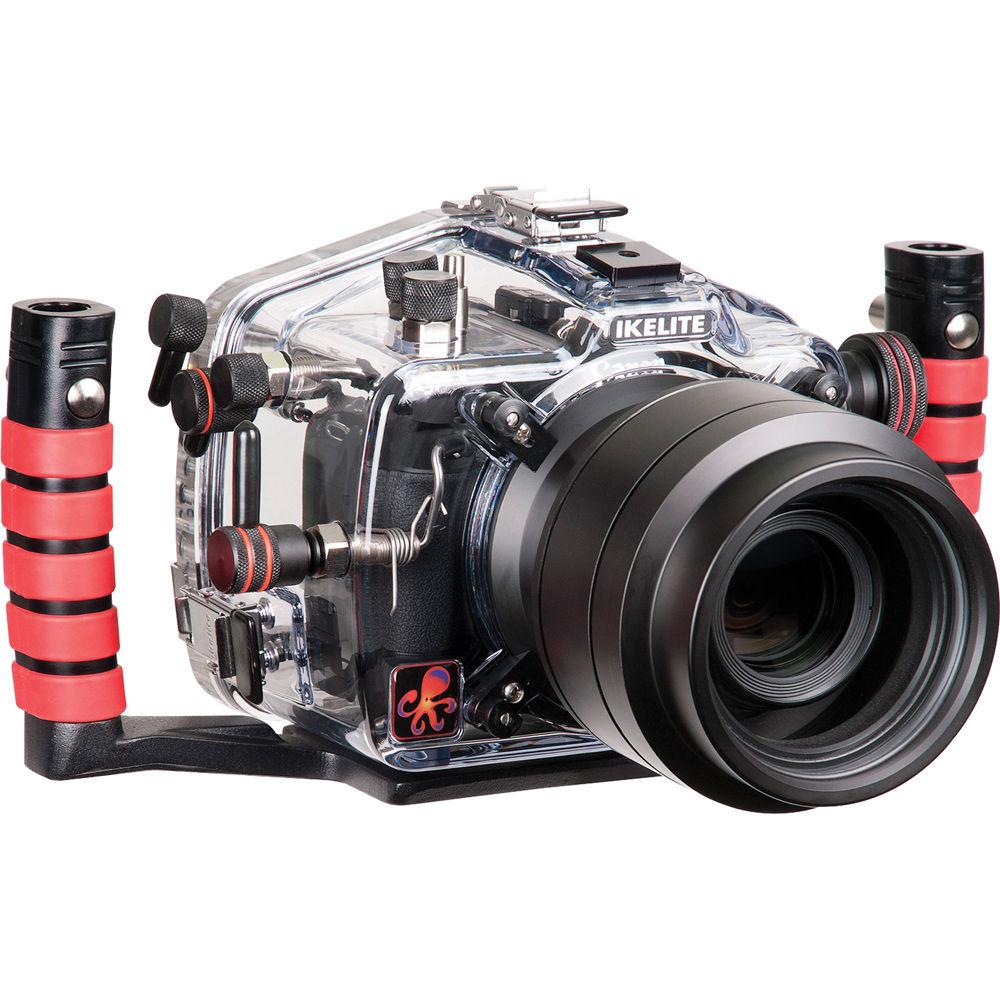

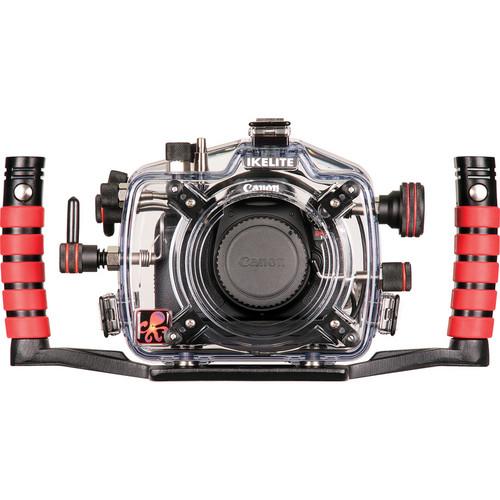

User Manual for Ikelite 6871.65 Underwater Housing for Canon EOS Rebel T4i T5i Click to enlarge the picture
Contents of the user manual for the Ikelite 6871.65 Underwater Housing for Canon
- Product category: Still Cameras & Housings Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Still Cameras & Housings
 |
User manual for the Ikelite 6871.65 Underwater Housing for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description The Ikelite 6871.65 Underwater Housing for Canon EOS Rebel T4i/T5i is a waterproof case for your Canon T4i or T5i camera. Made of durable clear polycarbonate, a material known for its corrosion-resistant properties, the housing has a depth rating of 200' (60 m) and features visible O-ring seals. It offers access to all important camera functions via mechanical controls.
Comfortable rubber grips afford comfort and ease of use, while offering quick-release attachment points for strobes and accessories. These handles, along with the tray, are removable for travel. The optical glass viewfinder is designed to provide enhanced viewing beneath the surface. Ports are available--but not included--for most popular lenses, and can be removed and replaced quickly with a simple positive locking system. The housing's buoyancy is neutral or slightly negative in freshwater, depending upon your choice of port.
Controls are present and accessible for every camera function except the Diopter Adjustment Control and Flash button. Shutter, video recording start/stop, and a large zoom control knob can all be comfortably reached without taking your hands off the handles
The housing is capable of electrical TTL exposure with strobes, thanks to its built-in, hard-wired Canon eTTL2 circuitry. The camera's built-in flash does not have to fire, giving you extended battery life and eliminating lag between exposures. The eTTL2 circuitry enables direct communication between the camera and Ikelite DS Substrobes for highly accurate TTL metering control of an off-camera flash. Exposure with an Ikelite DS Substrobe is quickly and easily adjustable through the rear of the housing via two push buttons.
Settings are clearly indicated even in the dark by a series of LED lights. TTL mode provides four half f/stop increments over or under flash compensation to fine-tune exposure. Alternatively, you can control strobe output completely through the back of the housing via one of the of eight manual power settings provided in half-stop increments. Construction - Made of durable clear polycarbonate. Has a depth rating of 200' (60 m) and features visible O-ring seals. Buoyancy is neutral or slightly negative in freshwater, depending upon your choice of port
Controls - Mechanical controls are present and accessible for every camera function except the Diopter Adjustment Control and Flash button. Shutter, video recording start/stop, and a large zoom control knob can all be comfortably reached without taking your hands off the handles. The optical glass viewfinder is designed to provide enhanced viewing beneath the surface
- Comfortable rubber grips afford comfort and ease of use, while offering quick-release attachment points for strobes and accessories. These handles, along with the tray, are removable for travel
Port - Port is required but not included, and can be removed and replaced quickly with a simple positive locking system. Housing accepts a wide range of modular and standard dome and flat ports accommodating the following EF and EF-S lenses:
8-15mm f/4L EF USM Fisheye
10-22mm f/3.5-4.5 EF-S USM
14mm EF 1:2.8
14mm EF 1:2.8 II USM
15mm EF f/2.8 Fisheye
16-35mm USM
17-35mm
17-40mm f/4L EF USM
17-85mm f4-5.6 EF-S IS USM
18-55mm EF-S USM
18-55mm f/3.5-5.6 EF-S IS and IS II
18-135mm f/3.5-5.6 EF-S IS
20mm f/2.8 USM
20-35mm
20-35mm Ultrasonic
22-55mm Ultrasonic
24mm f/2.8
24mm f/1.4L USM
24-85mm
28mm
28mm-70mm
28-105mm 1:3.5-4.5 EF USM II
28-105mm 1:4-5.6 USM
35mm f/1.4L USM
35mm f/2
35-80mm
35-135mm
50mm f/1.4 USM
50mm f/1.8 II
50mm f/2.5 Compact Macro
60mm f/2.8 EF-S Macro
100mm Macro
100mm f/2.8 EF Macro
100mm f/2.8 EF USM Macro
100mm f/2.8L EF IS USM Macro TTL Exposure - Capable of electrical TTL exposure with strobes, thanks to built-in, hard-wired Canon eTTL2 circuitry. The camera's built-in flash does not have to fire, giving you extended battery life and eliminating lag between exposures. The eTTL2 circuitry enables direct communication between the camera and Ikelite DS Substrobes for highly accurate TTL metering control of an off-camera flash. Exposure with an Ikelite DS Substrobe is quickly and easily adjustable through the rear of the housing via two push buttons
- Settings are clearly indicated even in the dark by a series of LED lights. TTL mode provides four half f/stop increments over or under flash compensation to fine-tune exposure. Alternatively, you can control strobe output completely through the back of the housing via one of the of eight manual power settings provided in half-stop increments
Recommended Optional Accessories - The PRO-2800 LED Video Light features a compact light head producing an impressive 2800 lumens with a natural, daylight balanced color temperature. The 100° angle of coverage is great for shooting with wide-angle lenses. The PRO-2800 can also double as a focus light for macro shooting.
- Accepts Ikelite 4103.51 single or 4103.52 dual sync cord to attach an Ikelite DS Substrobe. Other sync cords are available for connecting compatible Nikonos, Sea & Sea or Inon strobes, but these will disable the housing's built-in TTL circuitry and offer manual flash exposure only.
UPC: 883711044866 In the Box Ikelite 6871.65 Underwater Housing for Canon EOS Rebel T4i/T5i Port Hole Cap Tray and Handles Standard Zoom Clamp & Sleeve Set Large Diameter Zoom Clamp & Sleeve Set 1/16" Hex Head Wrench for Gears 1/8" Hex Head Wrench for Knobs Lens Cleaning Cloth Spare Control Tips Spare Pushbutton E-Clips Silicone Lubricant 1-Year Warranty Guides & Manuals uwsqcatbvcysdxuexqrxbuzawczbzueubc Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite 6871.65 Underwater Housing for Canon EOS Rebel T4i T5i in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Ikelite 6871.65 Underwater Housing for Canon EOS Rebel T4i T5i can be downloaded in PDF format at the link stated below.
Technical parametersIkelite 6871.65 Specs | Construction | Clear polycarbonate | | Control Type | Mechanical | | Controls | Access to all camera controls except Diopter Adjustment Control and Flash Button | | Depth Rating | 200' (60 m) | | Buoyancy | Neutral or slightly negative in freshwater, depending upon choice of lens port | | Port | Required but not included
Accepts a wide range of modular and standard dome and flat ports accommodating the following EF and EF-S lenses:
8-15mm f/4L EF USM Fisheye
10-22mm f/3.5-4.5 EF-S USM
14mm EF 1:2.8
14mm EF 1:2.8 II USM
15mm EF f/2.8 Fisheye
16-35mm USM
17-35mm
17-40mm f/4L EF USM
17-85mm f4-5.6 EF-S IS USM
18-55mm EF-S USM
18-55mm f/3.5-5.6 EF-S IS and IS II
18-135mm f/3.5-5.6 EF-S IS
20mm f/2.8 USM
20-35mm
20-35mm Ultrasonic
22-55mm Ultrasonic
24mm f/2.8
24mm f/1.4L USM
24-85mm
28mm
28mm-70mm
28-105mm 1:3.5-4.5 EF USM II
28-105mm 1:4-5.6 USM
35mm f/1.4L USM
35mm f/2
35-80mm
35-135mm
50mm f/1.4 USM
50mm f/1.8 II
50mm f/2.5 Compact Macro
60mm f/2.8 EF-S Macro
100mm Macro
100mm f/2.8 EF Macro
100mm f/2.8 EF USM Macro
100mm f/2.8L EF IS USM Macro | | Internal Flash Usable | No | | External Strobe Connector | Yes - accepts optional Ikelite 4103.51 single or 4103.52 dual sync cord to attach an Ikelite DS Substrobe (not included)
Accepts other sync cords for connecting compatible Nikonos, Sea & Sea or Inon strobes | | TTL Compatible | Yes, via built-in, hard-wired Canon eTTL2 circuitry - only with Ikelite DS Substrobes
4 half f/stop increments over or under flash compensation | | Moisture Alarm | None | | Mounting | Tray: 12-24 thread with 3.0" (7.6 cm) spacing | | Dimensions (WxHxD) | 9.5 x 6.7 x 6.5" (24 x 17 x 16.5 cm) | | Weight (without Camera) | 5.5 lb (2.5 kg) without tray and handles | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 14.6 x 9.3 x 8.4" |
