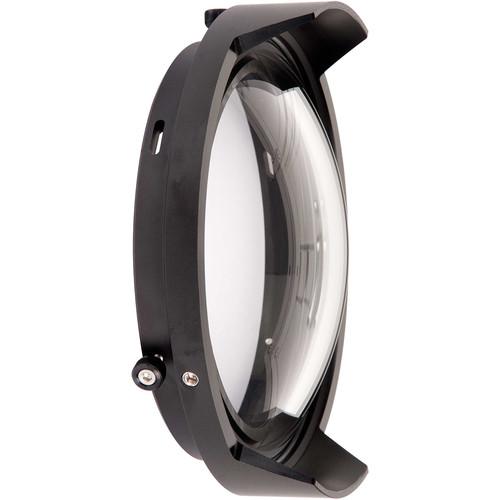

User Manual for Ikelite DL 8" Compact Dome Port for Wide-Angle and Zoom Lenses in DSLR Mirrorless Housings Click to enlarge the picture
Contents of the user manual for the Ikelite DL 8" Compact Dome Port
- Product category: Lens Ports Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Lens Ports
 |
User manual for the Ikelite DL 8" Compact Dome Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture shots of coral reefs, parrot fish, and humpback whales with various wide-angle and zoom lenses in Ikelite's DL 8" Compact Dome Port, which has a depth rating of 200'. It accommodates many different lenses, including Canon, Nikon, Sigma, and Tokina models ranging from 8 to 105mm in focal length. The port can be mounted onto Ikelite's underwater DSLR and mirrorless camera housings that have the Dry Lock mount. Additionally, it can be attached to optional DL extensions to enable the use of long lenses. For complete compatibility details, see the port chart.
The clear dome magnifies images to a lesser degree than a flat port does, and corrects for the underwater distortion that makes things appear 25% larger and closer--thus helping to restore a wide angle of view. This compact version has a much slimmer profile than the standard 8" port, resulting in lower volume and making it a great choice for close focusing during wide-angle shots. The smaller size also saves space in your photo bag.

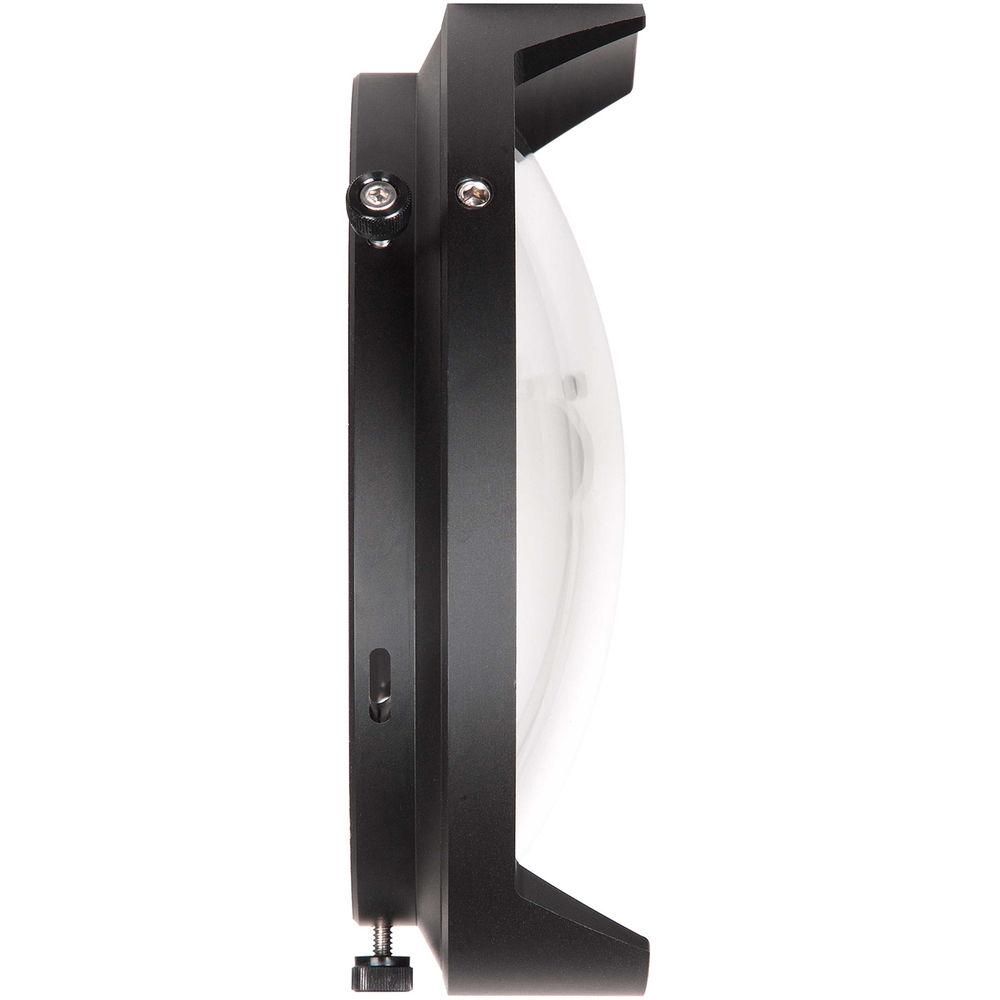

Built for durability, this American-made port features an optical acrylic front element and an acetyl plastic body. Protruding edges on the top and bottom act as a built-in shade, shielding the dome from excess light to prevent glare and lens flare. These edges also provide a little added protection against impact if you get a bit too close to your subject. - Compatible Lenses
- Various wide-angle and zoom lenses, including but not limited to the following:
Canon EF/EF-S:- 8-15mm f/4L USM Fisheye
- 16-35mm f/2.8L II/III USM
- 16-35 mm f/4L IS USM
- 17-85mm f/4.0-5.6 IS USM
- 18-55mm f/3.5-5.6 USM/IS/IS II/STM
- 24-70mm f/4L IS USM
Nikon AF/AF-S:- 8-15mm f/3.5-4.5E ED Fisheye
- 10-24mm f/3.5-4.5G ED
- 18-55mm f/3.5-5.6G ED II/VR/VR II
- 18-105mm f/3.5-5.6G ED VR
- 24-70mm f/2.8G ED VR
Sigma:- 10-20mm f/4.0-5.6 EX DC HSM
Tokina:- 10-17mm f/3.5-4.5 AT-X 107 DX
- 11-16mm f/2.8 AT-X Pro DX II
- 16-28mm f/2.8 PRO FX
For complete compatibility details, please see the port chart link above. UPC: 883711052977 In the Box Ikelite DL 8" Compact Dome Port for Wide-Angle and Zoom Lenses in DSLR/Mirrorless Housings Shade Neoprene Cover Set of Thumb Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DL 8" Compact Dome Port for Wide-Angle and Zoom Lenses in DSLR Mirrorless Housings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 75344 Specs | Depth Rating | 200' / 60 m | | Material of Construction | Front Element: Optical acrylic
Body: Acetyl plastic | | Mount Type | Dry Lock (DL) | | Dimensions | Interior Diameter: 8.0" / 203 mm
Length: 2.0" / 50.8 mm | | Weight | 8.1 oz / 229.6 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.9 x 6.5 x 3.4" |
