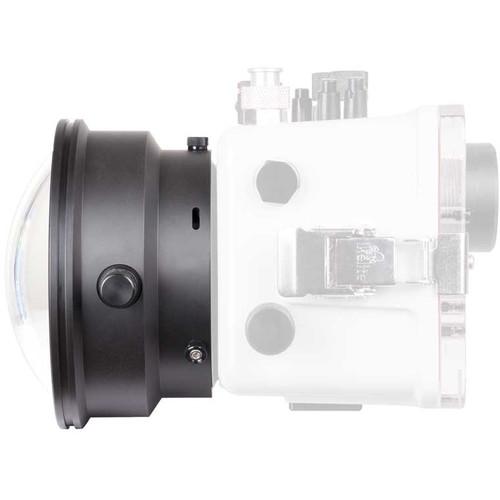

User Manual for Ikelite DLM 6" Dome Port with Zoom Control and 0.375" Extension for Mirrorless Lenses Click to enlarge the picture
Contents of the user manual for the Ikelite DLM 6" Dome Port with
- Product category: Lens Ports Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Lens Ports
 |
User manual for the Ikelite DLM 6" Dome Port with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

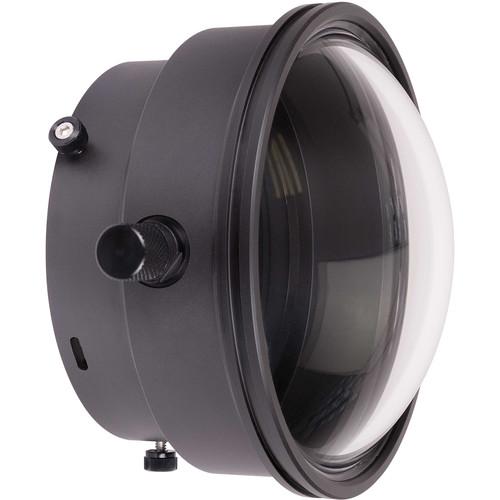

Product description Capture broad shots of coral reefs, parrot fish, and shipwrecks at depths as great as 200' with the help of this Ikelite DLM 6" Dome Lens Port with Zoom Control. It fits onto Ikelite underwater camera housings with DLM mounts, and is compatible with many wide-angle, mirrorless lenses that have the appropriate zoom gears. For more compatibility information, see the list below and check out the DLM/A, DLM/B, and DLM/C port charts.
The dome shape corrects for the underwater size distortion that makes everything appear 25% larger and closer, thereby helping to restore the original wide angle of view of the lens. The position of the front element allows for sharp images even at the widest focal length--without vignetting. With a 6" diameter, the dome is large enough to provide sufficient coverage for wide shots, yet small enough to keep the port at an easily manageable size and weight for convenient travel. Additionally, a convenient, knurled zoom knob on the side enables focal length adjustments as you compose and shoot.

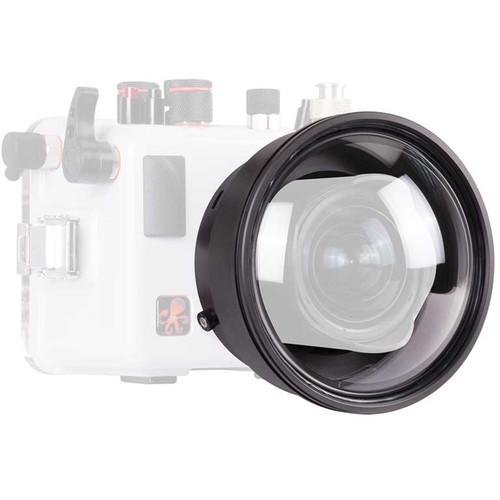

To connect the port to the housing, just press it on and secure it via three thumbscrews. The American-made port has a front element made of clear, optical-grade acrylic, and a body made of durable Delrin acetyl plastic. A neoprene cover is supplied to shield the front of the port against dust, debris, and scratches when it's not in use. The included, removable shade blocks excess light to prevent glare, while also offering some protection against impact. - Compatible Lenses
-
Many wide-angle, mirrorless zoom lenses with the appropriate zoom gears, including the following:- Panasonic Lumix G Vario 7-14mm f/4 ASPH.
- Olympus ED 7-14mm f/2.8 PRO
- Canon EF-S 10-22mm f/3.5-4.5 USM
UPC: 883711054872 In the Box Ikelite DLM 6" Dome Port with Zoom Control and 0.375" Extension for Mirrorless Lenses Neoprene Port Cover 2cc Tube of Silicone Lubricant for O-Rings Removable Dome Shade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DLM 6" Dome Port with Zoom Control and 0.375" Extension for Mirrorless Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 5516.16 Specs | Depth Rating | 200' / 60 m | | Mount Type | Press-on
Secure via screws | | Material of Construction | Front Element: Optical-grade acrylic
Body: Delrin acetyl resin | | Dimensions | Diameter: 6.0" / 152 mm
Extension Length: 0.375" / 9.5 mm | | | | Package Weight | 1.34 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 4.0" |
