User Manual for Ikelite DLM Extended 6" Dome Port for Wide-Angle Lenses Click to enlarge the picture
Contents of the user manual for the Ikelite DLM Extended 6" Dome Port
- Product category: Lens Ports Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Lens Ports
 |
User manual for the Ikelite DLM Extended 6" Dome Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

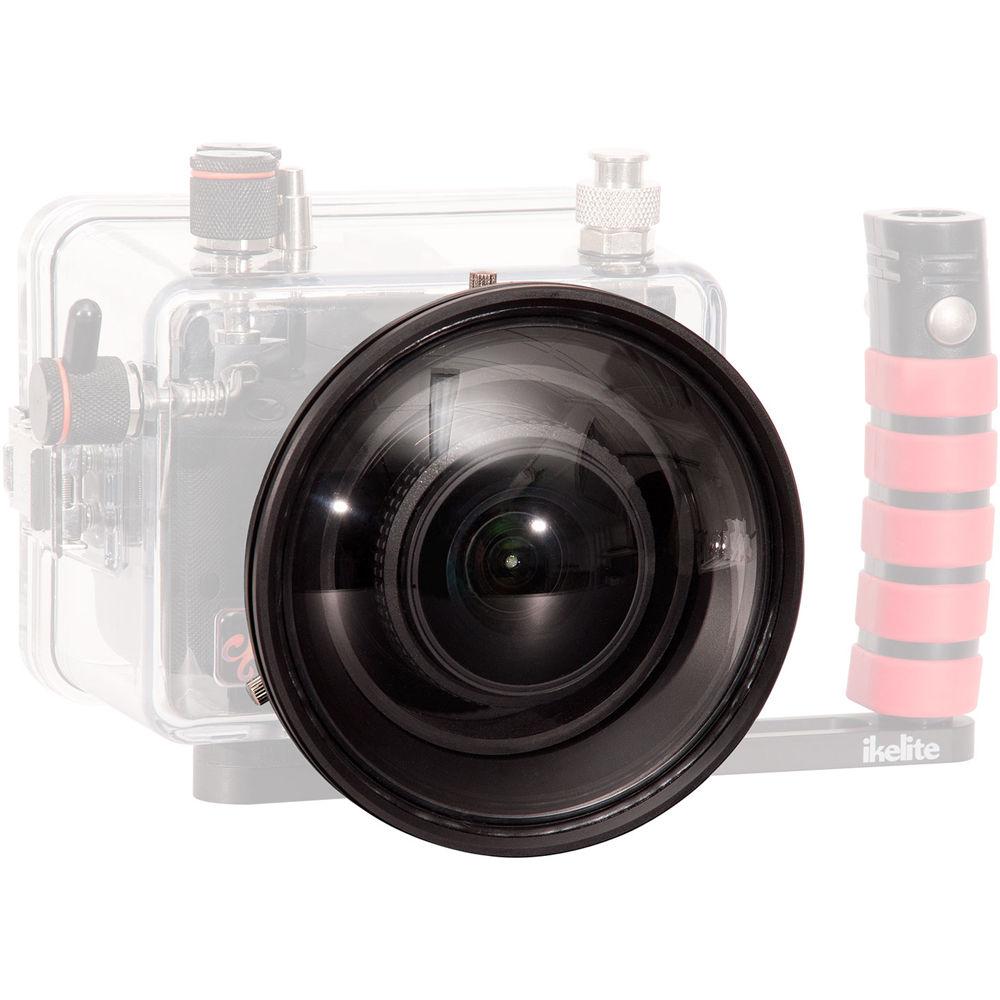

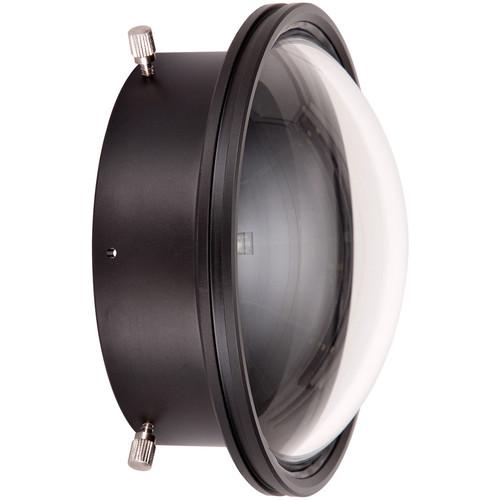

Product description Capture expansive shots of coral reefs, parrot fish, and shipwrecks at depths as great as 200' with the help of this DLM Extended 6" Dome Port, which fits onto Ikelite underwater camera housings with DLM mounts. It is compatible with the Tokina 10-17mm when used with a Compact DSLR housing, and accommodates certain lenses from Canon, Sigma, Olympus, Zeiss, and Sony when used with a mirrorless enclosure. For complete compatibility information, see the DLM/Abfquufysyscydsytx, DLM/B, and DLM/C port charts.
The 6" dome corrects for the underwater size distortion that makes everything appear 25% larger and closer, thus helping to restore the original wide angle of view of the lens. The position of the front element allows for sharp images even at the widest focal lengths--without vignetting. Be sure to set the lens to the desired focal length before you commence your dive, as zoom control is not enabled with the port in place. With a 6" diameter, the dome is large enough to provide sufficient coverage for wide shots--yet small enough to keep the port at an easily manageable size and weight for travel.

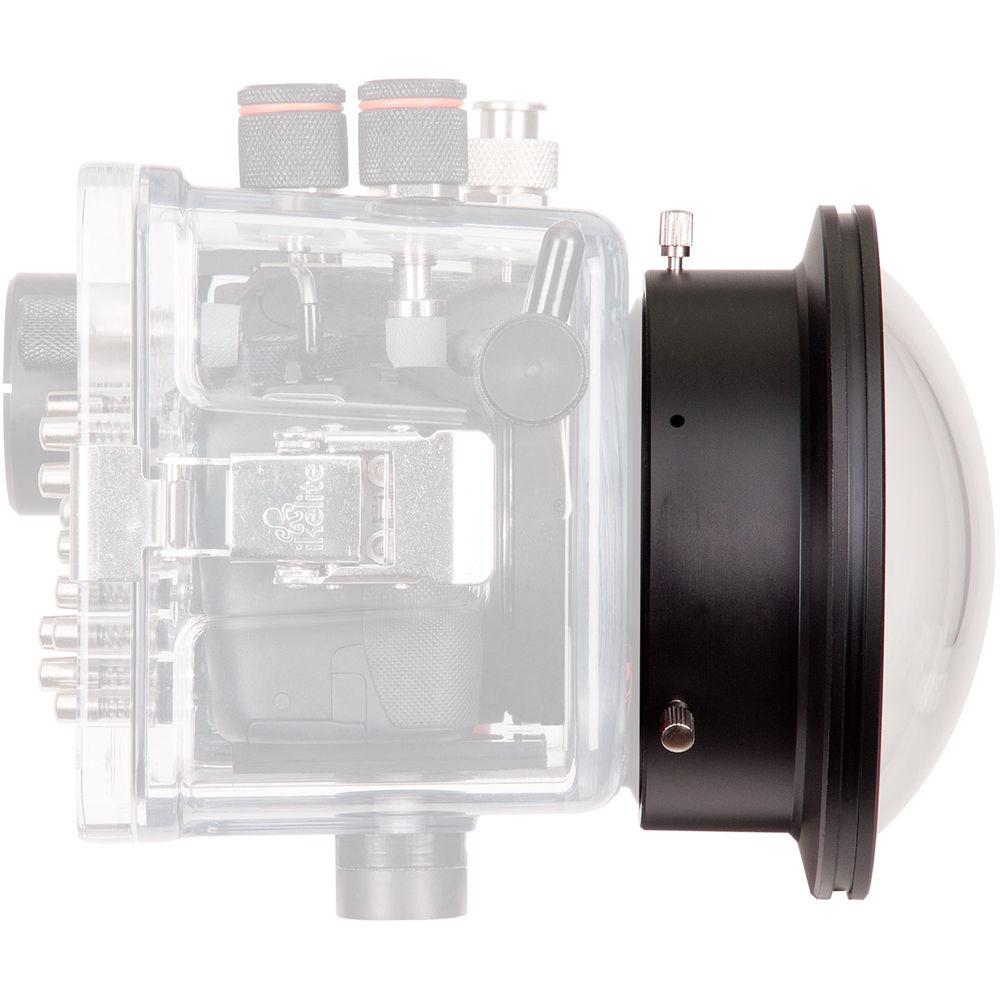

Connecting the port to the housing is simple, as you need only press it on and secure it via three thumbscrews. The American-made port has a front element that's crafted from clear, optical-grade acrylic, and a body that's constructed from durable acetyl plastic. - Compatible Lenses
-
Wide-angle DSLR and mirrorless lenses, including the following:- Canon EF 16-35mm f/4L USM + Metabones EF-to-E Mount Adapter
- Sigma 15mm f/2.8 EX DG Diagonal Fisheye + Canon EF-to-EOS M Mount Adapter
- Olympus M.Zuiko Digital ED 12mm f/2
- Tokina 10-17mm f/3.5-4.5 AT-X Fisheye
- Tokina 10-17mm f/3.5-4.5 AT-X Fisheye + Metabones EF-to-E Mount Adapter
- Zeiss Touit 12mm f/2.8 (Sony E-mount)
- Sony E 20mm f/2.8 + Fisheye Converter VCL-ECF2
- Sony FE 28mm f/2 + Ultra-Wide Converter
- Sony E/FE 50mm f/1.8 OSS
UPC: 883711051093 In the Box Ikelite DLM Extended 6" Dome Port for Wide-Angle Lenses Neoprene Port Cover DLM Lens Port Thumb Screws (Set of 3) 0184.1 1cc Tube of Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DLM Extended 6" Dome Port for Wide-Angle Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 5516.12 Specs | Depth Rating | 200' / 60 m | | Mount Type | DLM (Dry Lock Micro) | | Material of Construction | Front Element: Optical-grade acrylic
Body: Acetyl plastic | | Dimensions | Diameter: 6.0" / 152 mm | | Weight | 12.8 oz / 363 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.8 x 6.5 x 3.4" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
