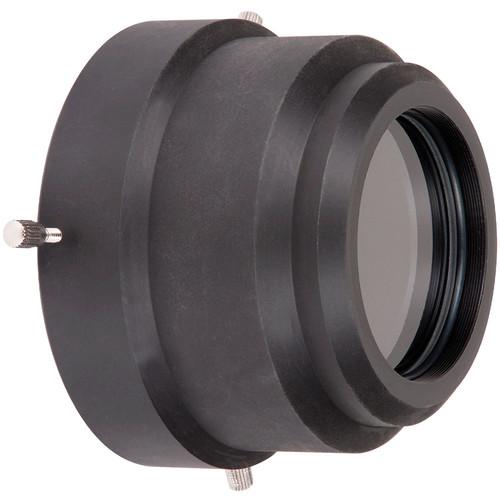

User Manual for Ikelite DLM Extended Flat Port for Macro Lenses Click to enlarge the picture
Contents of the user manual for the Ikelite DLM Extended Flat Port for
- Product category: Lens Ports Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Lens Ports
|
User manual for the Ikelite DLM Extended Flat Port for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture close-up shots of coral, pygmy seahorses, and other wonders of the sea with various macro lenses in Ikelite's DLM Extended Flat Macro Port, which has a depth rating of 200'. It accommodates large lenses from Canon, Olympus, Panasonic, and Sony that range from 12 to 100mm in focal length. The port is compatible with extensions for long lenses, such as the Canon 100mm f/2.8L. It can be attached to Ikelite underwater mirrorless and Compact DSLR camera housings that have DLM mounts. For complete compatibility details, see the DLM/A, DLM/B, and DLM/C port charts.
A flat glass front element does not correct for the underwater distortion that makes everything appear larger and closer, thus allowing for ample magnification. Built for durability, the port is American-made and features a corrosion-resistant Delrin resin body. Additionally, it has a 67mm front thread diameter for the connection of optional color-correction filters, yellow barrier filters, and external wet lenses. - Compatible Lenses
- Large mirrorless and DSLR macro lenses, including the following:
Canon:- EF 40mm f/2.8 STM + EF-EOS M Mount Adapter
- EF-S 60mm f/2.8 Macro USM + EF-EOS M Adapter
- EF-S 100mm f/2.8L Macro IS USM + EF-EOS M Adapter
Olympus:- M.Zuiko Digital ED EZ 12-50mm f/3.5-6.3
- M.Zuiko Digital ED 12-100mm f/4 IS Pro
- M.Zuiko Digital ED 30mm f/3.5 Macro
- M.Zuiko ED 60mm f/2.8 Macro
Panasonic:- 45mm f/2.8 ASPH Mega OIS
Sony:- 90mm f/2.8G OSS Macro
UPC: 883711049984 In the Box Ikelite DLM Extended Flat Port for Macro Lenses #0200.09 Neoprene Cover DLM Lens Port Thumb Screws (Set of 3) Spare O-Ring #0184.1 1cc Tube of Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DLM Extended Flat Port for Macro Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 5516.50 Specs | Depth Rating | 200' / 60 m | | Material of Construction | Front Element: Glass
Body: Delrin acetyl resin | | Mount Type | DLM (Dry Lock Micro) | | Front Filter Thread Size | 67 mm | | Dimensions | Diameter: 4.4" / 111 mm
Length: 3.0" / 76 mm | | Weight | 14.7 oz / 417 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 5.7 x 5.5 x 4.4" |
