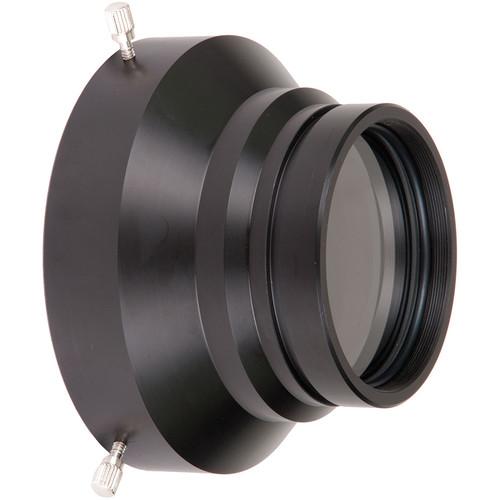

User Manual for Ikelite DLM Standard Flat Port for Macro Lenses Click to enlarge the picture
Contents of the user manual for the Ikelite DLM Standard Flat Port for
- Product category: Lens Ports Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Lens Ports
|
User manual for the Ikelite DLM Standard Flat Port for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture close-ups of coral, parrot fish, and other sea life at depths as great as 200' with Ikelite's DLM Standard Flat Port, which accommodates a variety of short macro lenses. Compatible models include those from Canon, Panasonic, Olympus, and Sony. See the DLM/A, DLM/B, and DLM/C port charts for complete compatibility. The port mounts onto Ikelite underwater mirrorless or compact DSLR housings with DLM mounts.
A flat front element made of glass does not correct for the underwater size distortion that makes everything appear larger and closer, thus allowing for ample magnification. The durable port body is constructed from corrosion-resistant Delrin acetyl resin. Additionally, the DLM Standard port has 67mm front threads for the attachment of optional, external, macro wet lenses, which will allow you to capture extreme close-ups of tiny sea creatures. Filters with 3.0" diameters, including the color-correction type and the yellow barrier type, can be pressed onto the front of the port, as well. - Compatible Lenses
-
Short mirrorless and DSLR macro lenses, including the following:- Canon 15-45mm f/3.5-6.3 IS STM
- Canon EF-M 28mm f/3.5 Macro IS STM
- Canon EF 18-55mm f/3.5-5.6 IS STM
- Canon EF 18-55mm f/4.0-5.6 IS STM
- Panasonic Lumix G Vario HD 12-32mm f/3.5-5.6
- Panasonic Leica DG Vario-Elmarit 12-60 mm f/2.8-4.0 ASPH Power OIS
- Panasonic 14-42mm f/3.5-5.6 II ASPH Mega OIS
- Panasonic 20mm f/1.7 II ASPH
- Panasonic 45mm f/2.8 ASPH Mega OIS
- Panasonic 25mm f/1.4 ASPH
- Olympus 25mm f/1.8
- Olympus M.Zuiko Digital ED 30mm f/3.5 Macro
- Olympus 45mm f/1.8
- Olympus M.Zuiko ED 60mm f/2.8 Macro
- Sony E Vario-Tessar T* 16-70mm f/4 ZA OSS
- Sony E 30mm f/3.5 Macro
- Sony E 50mm f/1.8 OSS
- Sony FE 50mm f/1.8
- Sony 50mm f/2.8 Macro
- Zeiss Touit 50mm f/2.8
UPC: 883711049748 In the Box Ikelite DLM Standard Flat Port for Macro Lenses Neoprene Cover DLM Lens Port Thumb Screws (Set of 3) Vinyl Port Cover for 3" Diameter 0184.1 1 cc Tube of Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DLM Standard Flat Port for Macro Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 5516.45 Specs | Depth Rating | 200' / 60 m | | Material of Construction | Front Element: Glass
Body: Delrin acetyl resin | | Mount Type | DLM (Dry Lock Micro) | | Front Filter Thread Size | 67 mm | | Dimensions | Interior Diameter: 3.0" / 76 mm
Exterior Diameter: 4.4" / 111 mm
Length: 2.6" / 67 mm | | Weight | 11.8 oz / 336 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.7 x 5.4 x 4.4" |
