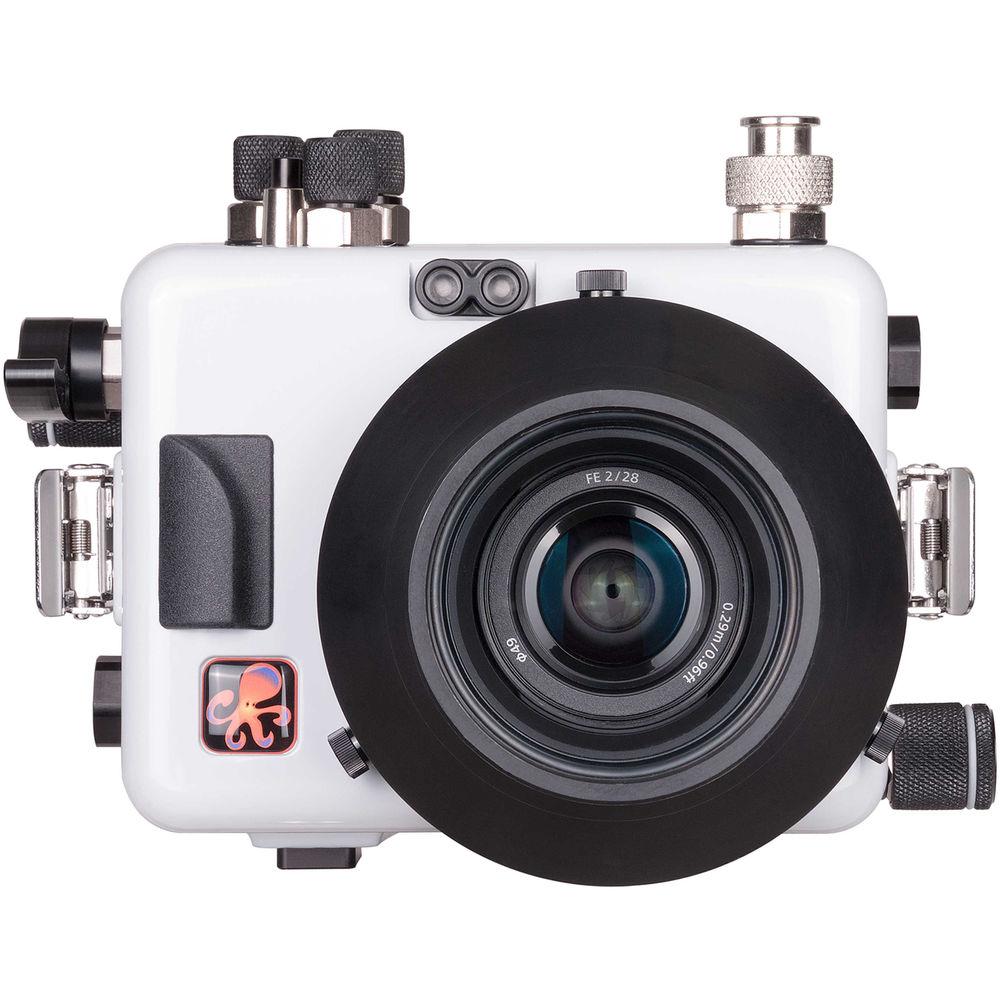

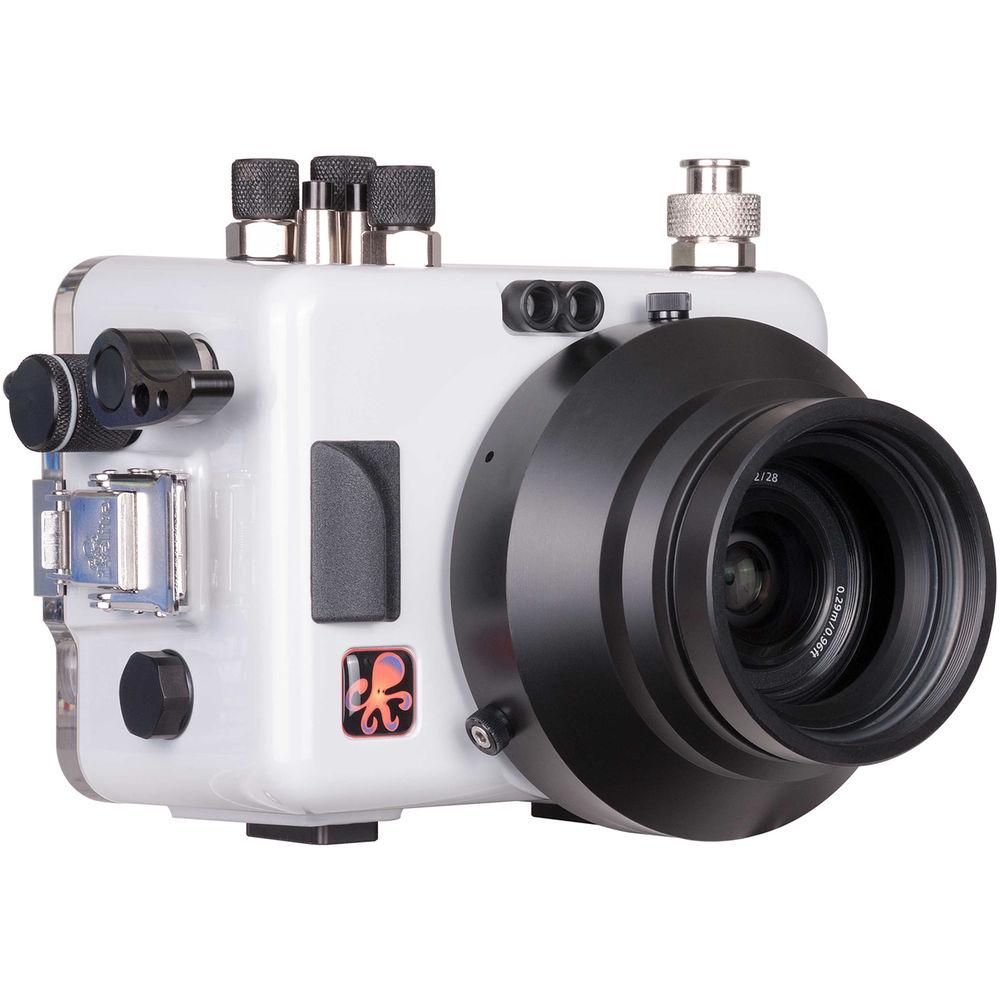

Product description Capture sharp, detailed photos and video at depths as great as 200' beneath the surface, thanks to Ikelite's DLM200 Underwater Housing with TTL Circuitry for your Sony Alpha a6500 Mirrorless Camera. An Ikelite 5-pin sync bulkhead and integrated TTL circuitry enable the connection of optional, external strobes. Ikelite DS flash units can be used in TTL or manual exposure mode, while third-party strobes will work in manual mode.
Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford access to virtually all camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It is light gray/white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. An optional aluminum tray with a quick-release grip handle or two will afford improved balance and handling, while offering a way to attach optional lighting arms.
The housing ships without a required lens port, and accepts various, interchangeable dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the DLM Port Chart. - Construction Details
-
- Depth rating of 200'
- Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
- White/light gray on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface

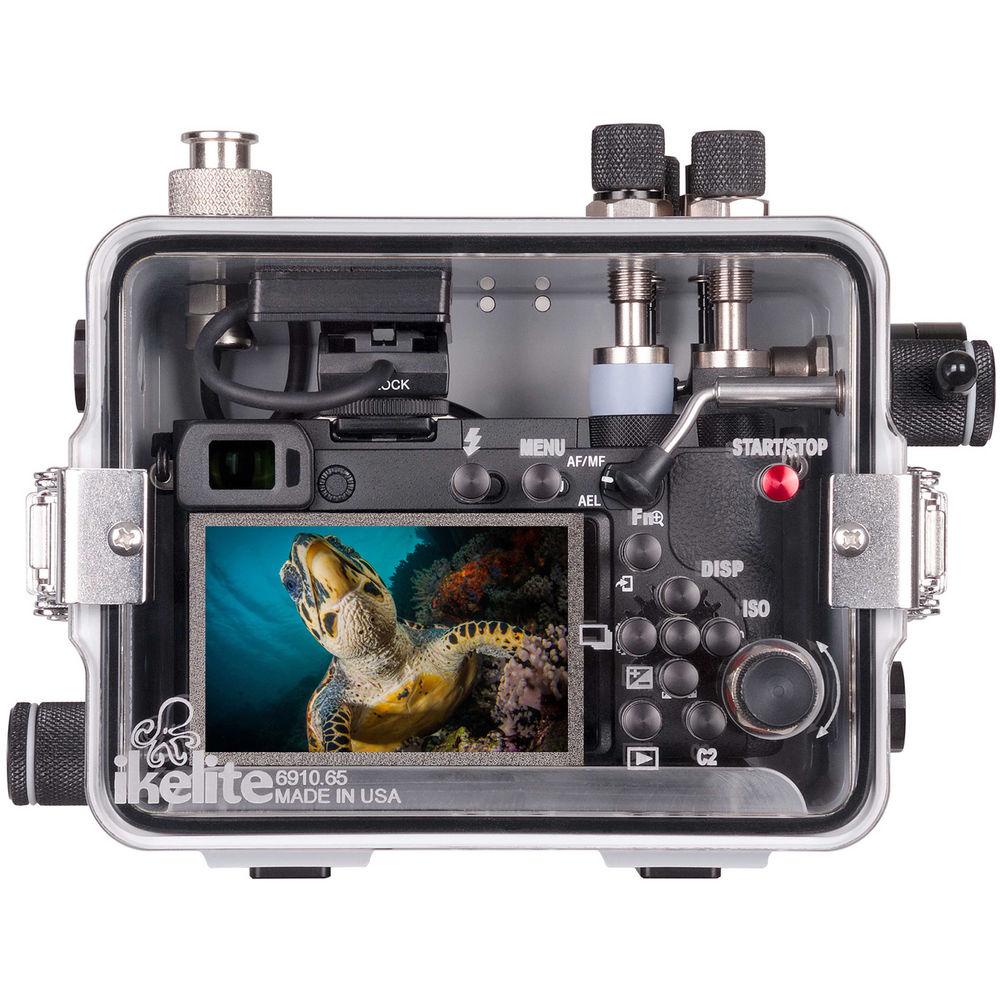

- Clear in back to allow you to monitor O-ring seal and maintain view of camera's rear controls
- Slightly negative buoyancy in fresh water; actual buoyancy varies depending on choice of lens and port
- Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
- Spare 1/2-20 threaded accessory port on side of housing allows for easy installation of optional #47012 Vacuum Kit
- Front-loading camera-mounting system makes for quick and easy setup
- Mounting plate enables hassle-free access to battery and memory card
- Two double-passivated, stainless steel locking latches are virtually unbreakable
- Strobe Connection and Operation
-
- Camera's built-in flash suitable for firing an external strobe, but not for lighting a shot underwater
- Use of external strobe highly recommended for color-correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
- Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
- Try to stay no more than 3-4' away from subject to preserve natural colors in images
- Ikelite bulkhead with hot shoe connection and integrated TTL circuitry enables reliable electrical triggering of optional, external strobes via sync cords
- Circuit powered by strobe, so there are no batteries to change and there is no maintenance to be done
- Exposure compensation in TTL mode is supported using camera's built-in control
- Ikelite DS strobes, such as DS50 (above serial number 70000), 51, 125 (above serial number 5000), 160, 161, and 200 (above serial number 7163), are operable in TTL or manual mode
- Third-party strobes, such as those from Sea & Sea, INON, and Nikonos, operable in manual mode only
- Housing provides direct electrical connection to camera's hot shoe
- Cord attachment is as easy as screwing in a lightbulb, and threaded fit prevents accidental detachment during use

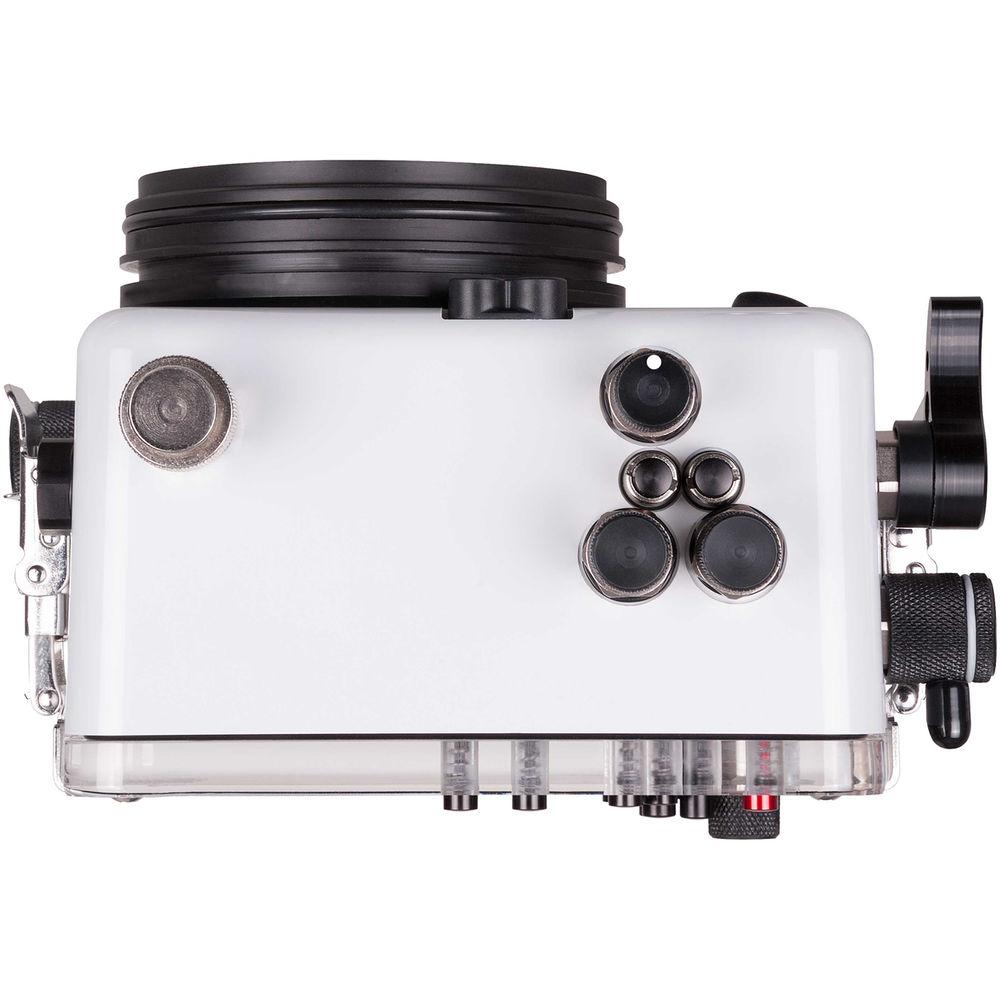

- Bulkhead connection has been moved to top of enclosure to keep cords out of the way and reduce strain on ends
- Housing ships without required sync cord and accepts following ones: Ikelite-to-Ikelite TTL (#4103.51), Ikelite-to-Ikelite TTL Dual (#4103.52), Sea & Sea/INON-to-Ikelite Non-TTL (#4118.1), Sea & Sea/INON-to-Ikelite Non-TTL Dual (#4118.2), Nikonos SB-to-Ikelite Non-TTL (#4116.31), and Nikonos SB-to-Ikelite Non-TTL Dual (#4116.32)
- Housing also has dual fiber-optic ports for strobe attachment
- Fiber-optic connection requires camera's built-in flash to fire, which reduces battery life and bypasses TTL functionality
- Accepts following fiber-optic cables: Ikelite 4501 Coiled Cord, INON Optical D Cable with L-Connector, Sea & Sea 50107 L-type, Olympus PTCB-E02, Nauticam-to-INON 26211, and Nauticam-to-Sea & Sea 26212
- Controls and Handling
-
- Large, ergonomic, mechanical push-buttons, knurled knobs/dials, and levers are easily operable with or without thick gloves
- Controls afford access to virtually all camera functions and, whenever possible, are located in same configuration as they are on camera
- Rear control symbols are laser-engraved so as not to peel or fade off with time
- Camera's large, bright LCD screen is visible edge-to-edge through rear of housing
- Two 1/4"-20 threaded mounts on bottom permit attachment to optional aluminum tray with grip handle(s), which supports optional lighting arm(s) for strobe(s) or video light(s)
- Lens Port System
-

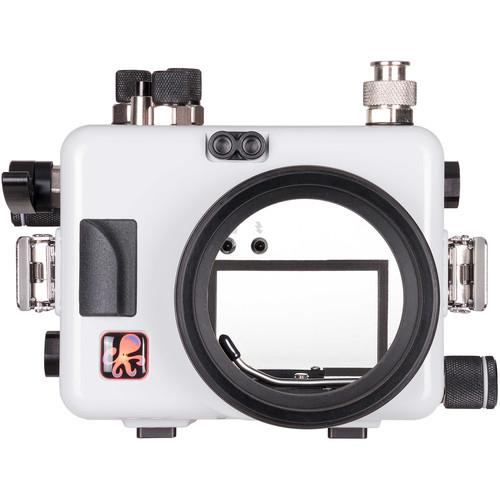

- Ships without a required lens port

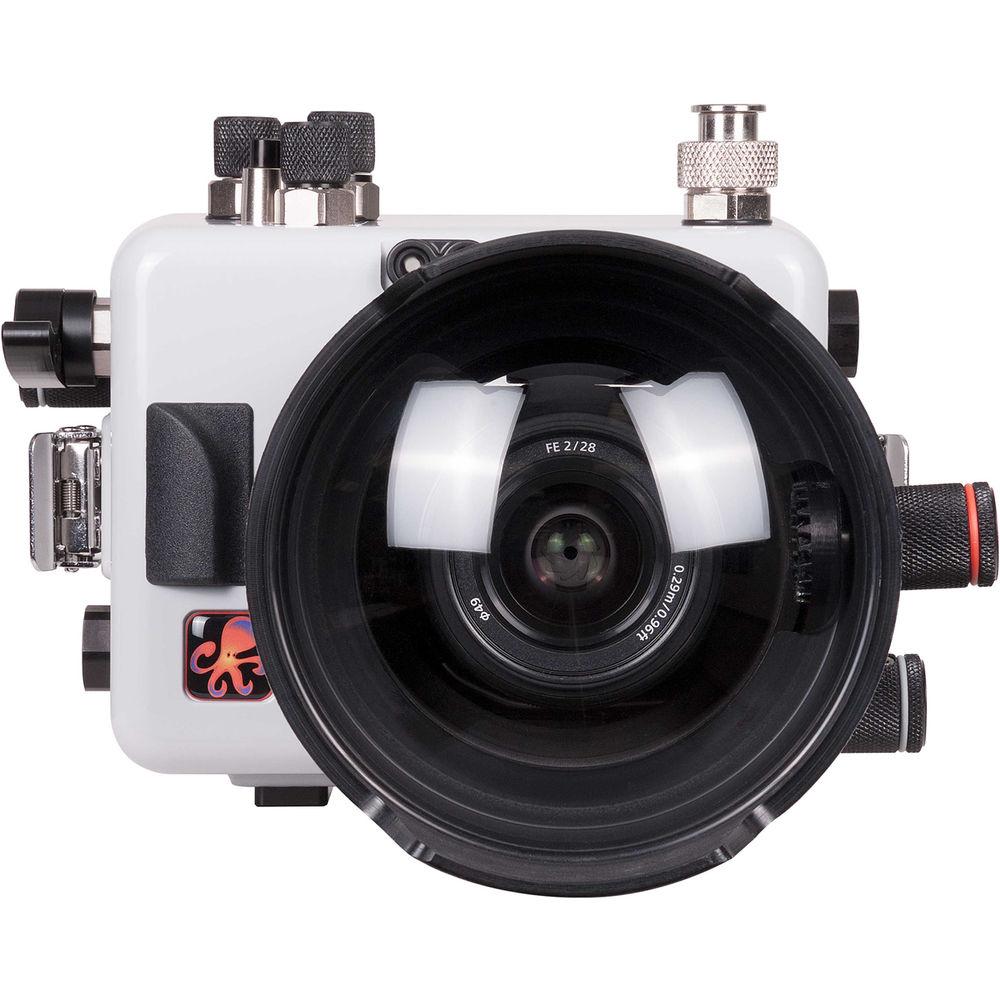

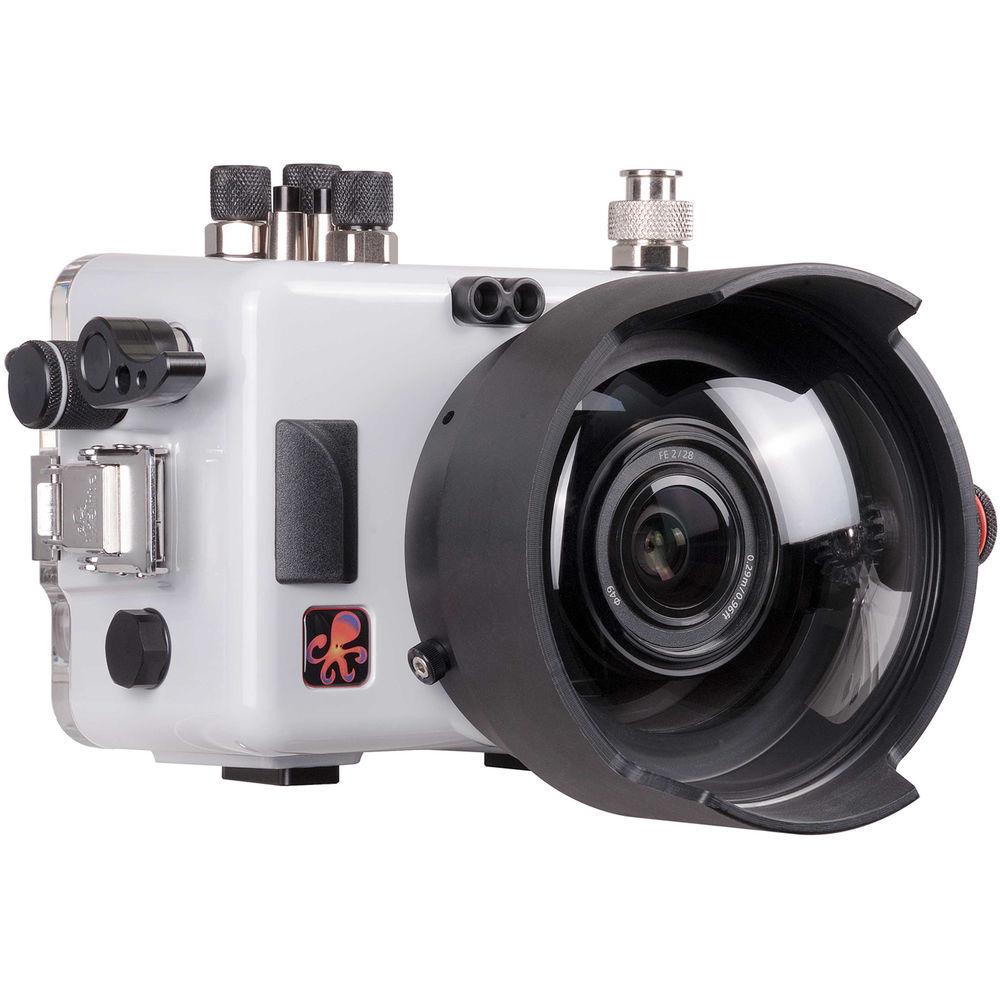

- Accepts various, interchangeable dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
- For full compatibility, see the DLM Port Chart linked above
- Simply press port on and tighten three thumb screws
UPC: 883711053769 In the Box Ikelite DLM200 Underwater Housing with TTL Circuitry for Sony Alpha a6500 0110 O-Ring fyzteyvxayrfew O-Ring for Select Strobes and Housings ICS Bulkhead Cap (Replacement) Limited 2-Year Warranty Port Charts PDF 171.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DLM200 Underwater Housing with TTL Circuitry for Sony Alpha a6500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite DLM200 Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical, i.e., push-buttons, knurled knobs/dials, and levers | | Controls | Provide access to virtually all camera functions | | Material of Construction | Body: Polycarbonate and ABS plastic blend
Back Plate: Acrylic
Also has acetyl parts | | Lens Port | Ships without required lens port
Accepts various, interchangeable dome and flat ports for different lenses
For full compatibility, see DLM Port Chart linked in Overview | | Buoyancy | Slightly negative in fresh water
Precise buoyancy varies depending on choice of lens and port | | External Flash Connector | Ikelite 5-pin bulkhead connector with built-in TTL circuitry
Ikelite DS strobes can be used in TTL or manual mode
Third-party strobes can be used in manual mode only | | Mounting | 2x 1/4"-20 threaded holes with 3.0" / 76 mm spacing for tray attachment | | Dimensions | 5.9 x 7.6 x 5.2" / 15 x 19.3 x 13.2 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 9.7 x 6.4 x 6.4" |
