User Manual for Ikelite DS-51 Underwater Substrobe Head Click to enlarge the picture
Contents of the user manual for the Ikelite DS-51 Underwater Substrobe Head
- Product category: Strobe Lights Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Strobe Lights
|
User manual for the Ikelite DS-51 Underwater Substrobe Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

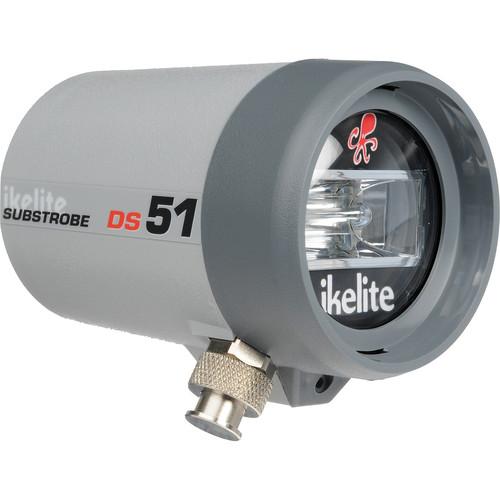

Product description The Ikelite Digital SubStrobe DS-51 was created specifically for use with digital cameras because of their use of preflash metering, but it is completely compatible with all film cameras and film camera housings. The DS-51 offers 50 watt-seconds of power in a compact size with coverage adequate for lenses as wide as 28 mm, or add the included diffuser for wider coverage and softer lighting. Combine multiple strobes to cover very wide angle lenses with minimal illumination of particles suspended in the water.The DS-51 operates TTL when connected by an appropriate sync cord to some Ikelite housings. Alternatively, the DS51 provides a manual exposure mode with six manual power settings in one-half f-stop increments for precise illumination of subjects.For even more precise control the DS-51 can be connected to The Manual Controller. This provides ten power settings in half/stop increments. The Manual controller can operate as a wireless sensor triggered by another strobe, or it can be connected by one of the Ikelite sync cords. - 50 Watt/seconds power with a guide #28 (underwater at ISO 100)
- Operates TTL when connected by an appropriate sync cord to some Ikelite housings or manual exposure mode with six manual power settings in one-half f-stop increments
- 70° angle of coverage, 80° with diffuser
- Recycle time of 3.5 seconds (Full power)
- Up to 200 flashes with full power batteries
- 5700° kelvin color temperature
- Includes 1" Ball Mount Mark II to enable strobe attachment to optional ball arms with 1" diameters, such as those from Ikelite, Aquatica TLC, Ultralight, Nauticam, and other brands
UPC: 883711038186 In the Box Ikelite DS-51 Underwater Substrobe Head Diffuser 1" Ball Mount Mark II for DS51, DS125, DS160, and DS161 Strobes 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DS-51 Underwater Substrobe Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite DS-51 Specs | Configuration | Strobe head only | | Guide No. | 56 Surface, 28 Underwater | | Power Rating | 50 Watt/seconds | | Coverage Angle | 70° (28mm Lens Coverage)
80° with diffuser | | Depth Rating | 300' (90 m) | | Flash Modes | TTL, Manual | | Exposure Control | Six manual power settings in one-half f-stop increments | | Slave | No | | Targeting Light | No | | Audible Signal | No | | Color Temperature | 5700° K | | Recycle Time | 3.5 Seconds | | Flashes (Full Power) | Approx. 200 | | Power Source | 4x AA Batteries | | Mount | Ikelite 1" Ball Mount Mark II (included) for connection to optional ball arms | | Dimensions | 3.2 x 3.2 x 4.7" (81 x 81 x 119 mm) | | Weight (Land) | 1.3 lb (0.59 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 6.8 x 5.4 x 4.4" |
