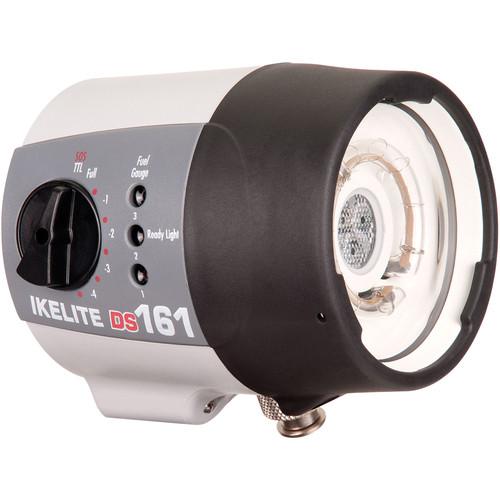

User Manual for Ikelite DS161 Underwater Substrobe Head Click to enlarge the picture
Contents of the user manual for the Ikelite DS161 Underwater Substrobe Head
- Product category: Strobe Lights Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Strobe Lights
|
User manual for the Ikelite DS161 Underwater Substrobe Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description The DS161 Underwater Substrobe Head from Ikelite is a strobe flash equipped with a built-in 500-lumen video light. The strobe has a power rating of 160 watt-sec and a guide number of 38-76' at ISO 100, depending on whether you're underwater or above water. It provides a 90° angle of coverage, which is increased to 100° when using the included diffuser. The DS161 has a color temperature of 4800K. Its depth rating is 300'. When combined with a compatible TTL system, the DS161 automatically adjusts brightness to provide ideal TTL flash exposure--whether you're shooting at macro, portrait, or wide-angle focal lengths. Manual exposure control is also available. The strobe is equipped with an Ikelite ICS-5 bulkhead connector, which is also present on many Ikelite underwater camera housings, and requires a sync cord, which is available separately. Additionally, you can use the optional #4401 Fiber Optic Adapter to convert the bulkhead to a fiber-optic cable port for manual exposure. The #4067 Battery Pack and #4066.1 Smart Charger are sold separately. - The round flashtube and reflector are designed specifically to deliver the softest, most even coverage possible
- Diffuser softens the light of the flash to reduce backscatter and hard shadows
- Approximately neutral buoyancy in saltwater
- Built-in video light with a diffused beam for close-up recording and focusing. Benefit from adjustable brightness in 10 settings and SOS mode for emergency situations. Automatic shut-off when the flash fires ensures that light won't have undesirable effects on your photos
- The #4067 Li-Ion Battery Pack, which is available separately, can produce about 450 full-power flashes at a recycle time of 1.4 sec. A quick-release toggle system makes for easy attachment. The battery is 18% lighter than the 4066.5 NiMH battery pack, making the strobe neutrally buoyant in saltwater. Redundant safety features prevent the battery from overheating or exploding
- The 4066.1 Smart Charger, also sold separately, utilizes pulse charge technology, allowing for near-complete charging while also conditioning cells over time - for longer battery life and more flashes per charge. Trickle charge mode helps maintain battery's charge without overcharging or overheating. Charger is rated for switching 100-240V power, enabling worldwide use, and includes AC adapters for US, Europe, UK and Australia.
Recommended Accessories - Optional single and dual strobe kits, which are arm and sync cord combination packages, enable you to attach your strobe to Ikelite TTL housings. You can also purchase arms and sync cords separately. The #4401 Fiber Optic Adapter lets you convert the strobe's electrical bulkhead into a fiber-optic port, offering manual exposure (non-TTL) only
UPC: 883711047751 In the Box Ikelite DS161 Underwater Substrobe Head Diffuser for SubStrobe DS-161, DS160, DS-125 (Replacement) ICS Bulkhead Cap (Replacement) 0184.1 Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite DS161 Underwater Substrobe Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite DS161 Specs | Configuration | Strobe head only | | Guide No. | Land: 76' (23.2 m) at ISO 100
Underwater: 38' (11.6 m) at ISO 100 | | Power Rating | 160 watt-sec | | Coverage Angle | 90°
100° with diffuser | | Depth Rating | 300' / 91.4 m | | Flash Modes | TTL, Full, 9 fractional powers in 1/2-stop increments | | Exposure Control | TTL, manual | | Targeting Light | Built-in 5.0 W LED video light
Brightness: 500 lumens
Coverage angle: 45°
Color Temperature: 5000K
Burn Time: 8.0 hr at full intensity
Modes: Full, 9 fractional powers, SOS | | Color Temperature | 4800 K | | Recycle Time | 1.4 sec (shorter in fractional power settings) | | Flashes (Full Power) | Approx. 450 | | Connector | Ikelite ICS-5 Bulkhead
Convert bulkhead to fiber optic cable port for manual exposure only via #4401 Fiber Optic Adapter | | Buoyancy | Approximately neutral in saltwater | | Power | Battery (not included):
Chemistry: Lithium-ion
Type: NiMH
Output voltage: 7.4 V
Capacity: 4500 mAh
Recharge Time: 5.0 hr
O-ring: #0132.36
Smart charger (not included):
Input voltage: 100-240 V
Includes AC adapters for USA, Europe, United Kingdom, and Australia | | Dimensions | Main unit (Diam. x L): 3.75 x 7.0" / 9.5 x 17.8 cm
Charger: 2.7 x 4.1 x 1.5" / 6.9 x 10.4 x 3.8 cm | | Weight | Main unit: 2.5 lb / 1.13 kg
Battery: 1.1 lb / 0.5 kg
Charger: 12 oz / 340 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 7.008 x 6.378 x 6.299" |
