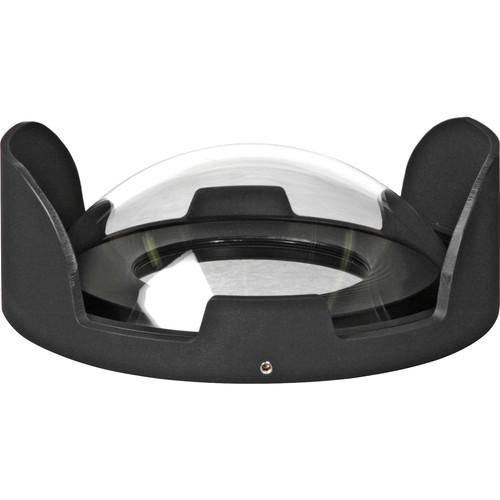

User Manual for Ikelite FL DLM Modular 8" Dome Port for Wide-Angle DSLR Mirrorless Lenses Click to enlarge the picture
Contents of the user manual for the Ikelite FL DLM Modular 8" Dome
- Product category: Lens Ports Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Lens Ports
|
User manual for the Ikelite FL DLM Modular 8" Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|
Product description Capture wide shots of coral reefs, whale sharks, and shipwrecks with the help of Ikelite's FL/DLM Modular 8" Dome Lens Port, which has a depth rating of 200'. It is designed for wide-angle and zoom lenses on DSLR and mirrorless cameras that are inside Ikelite's FL and DLM-mount underwater housings. The dome ships without a required lens extension, and accepts a variety of models to accommodate most wide and zoom lenses. These extensions connect directly to the mounts on the camera housings. Please click on the links below for complete compatibility details.
The 8" dome magnifies images to a lesser degree than a flat port does, and corrects for the underwater size distortion that makes everything appear 25% larger and closer--thus helping to restore a wide angle of view. It also enables the capture of over / under photos, where half the image is above the water's surface and the other half is below it. Additionally, the included shade blocks excess light, preventing glare and lens flare when shooting towards the surface.
For a full list of compatible lenses and extensions, please see the following port charts:
FL (Four Lock)txrzsuautrrvtfryrcwy
FL (Four Lock) for Panasonic Lumix GH3/GH4 Housings
FL (Four Lock) for Sony Alpha 7 Housings
DLM/A (Dry Lock Micro Type A)
DLM/B (Dry Lock Micro Type B)
DLM/C (Dry Lock Micro Type C) UPC: 883711038759 In the Box Ikelite FL/DLM Modular 8" Dome Port for Wide-Angle DSLR/Mirrorless Lenses Shade for Modular 8" Dome Port Neoprene Front Cover for 8" Dome Ports Neoprene Rear Cover for 8" Dome Ports #0184.1 Silicone Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite FL DLM Modular 8" Dome Port for Wide-Angle DSLR Mirrorless Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 5510.45 Specs | Depth Rating | 200' / 60 m | | Material of Construction | Front Element: Acrylic
Base: Aluminum | | Mount Type | Attaches to required extensions, which have FL (Four Lock) and DLM (Dry Lock Micro) mounts | | Dimensions | Diameter: 8.0" / 203 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 10.4 x 10.3 x 5.9" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
