User Manual for Ikelite Tray with Dual Release Handles for Compact Underwater Housings Click to enlarge the picture
Contents of the user manual for the Ikelite Tray with Dual Release Handles
- Product category: Arms & Accessories Ikelite
- Brand: Ikelite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikelite Arms & Accessories
 |
User manual for the Ikelite Tray with Dual Release Handles contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikelite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikelite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikelite product will considerably shorten its lifespan!
|

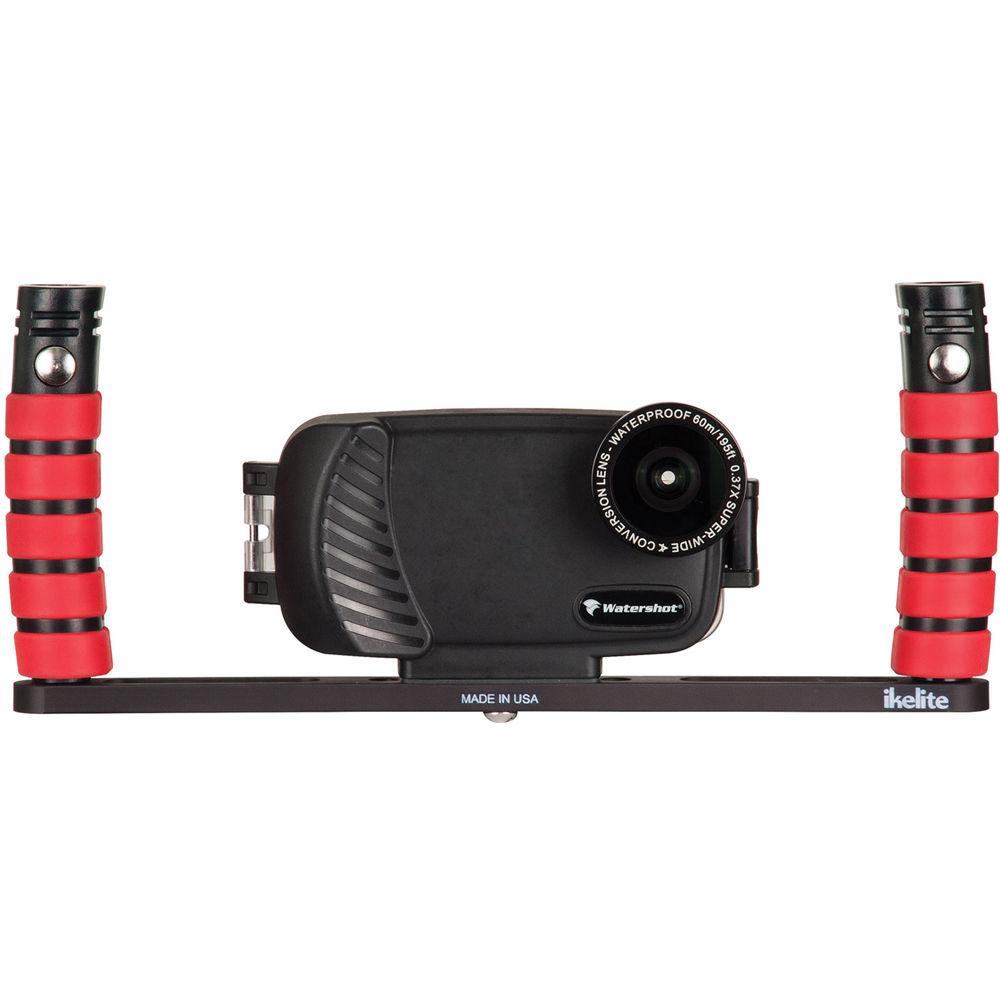

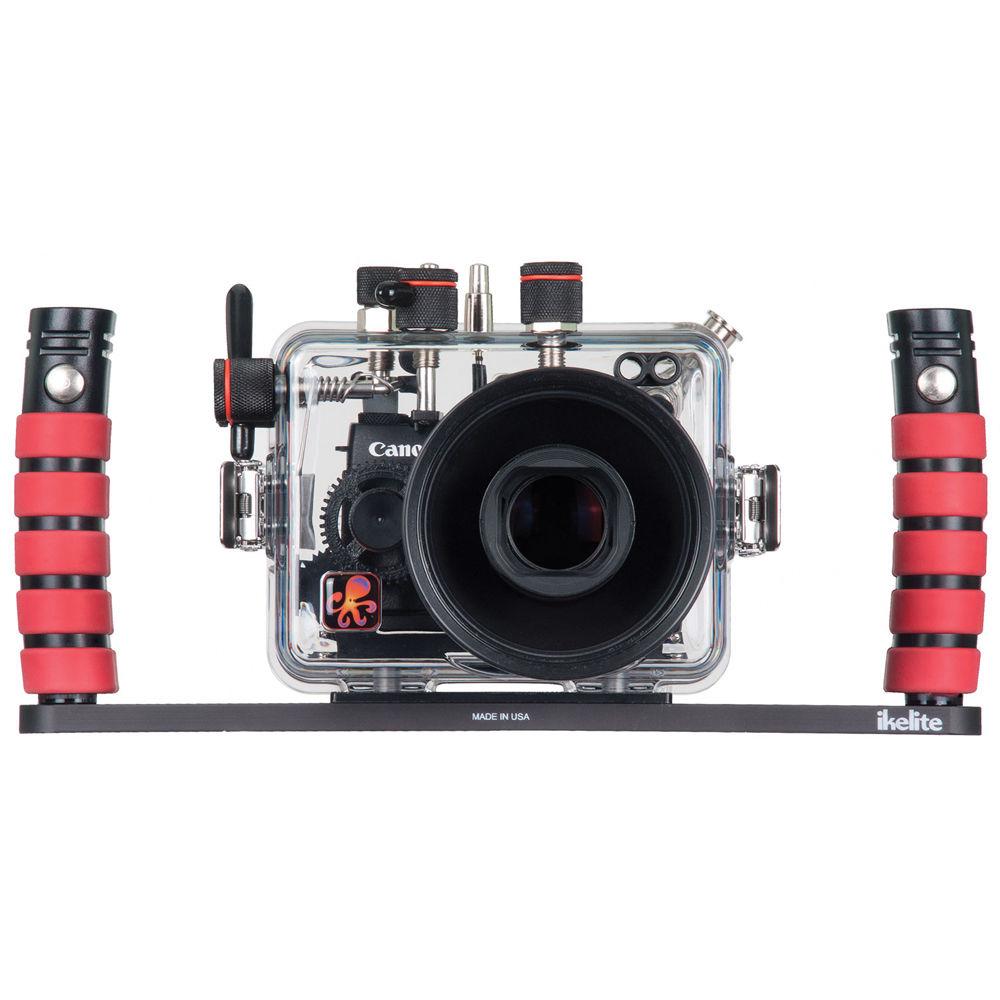

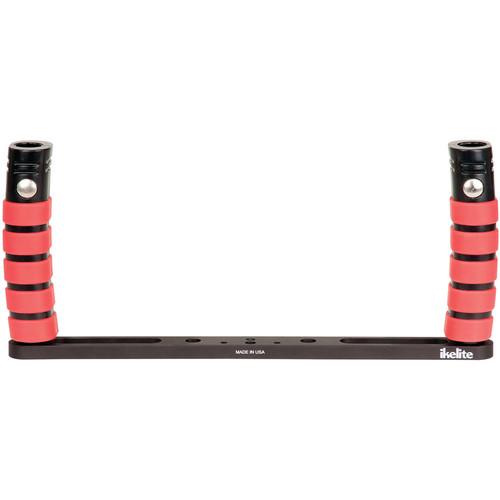

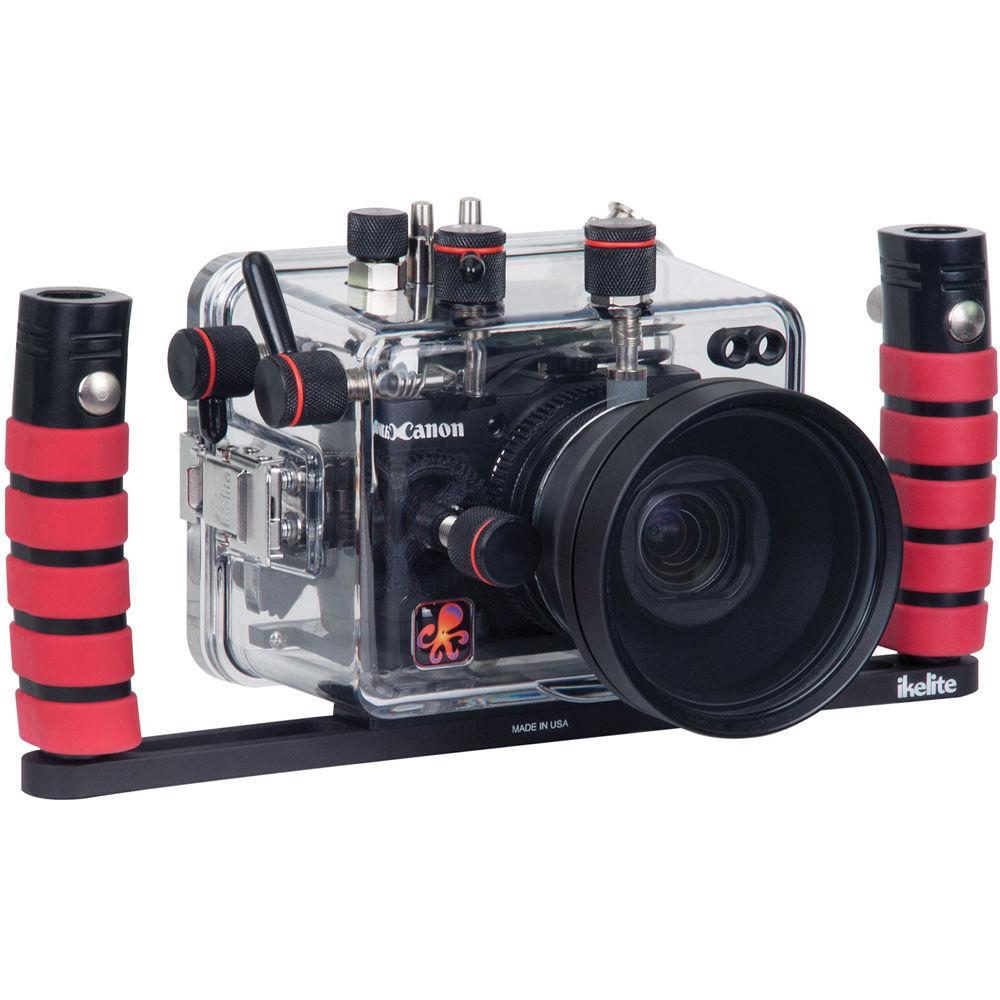

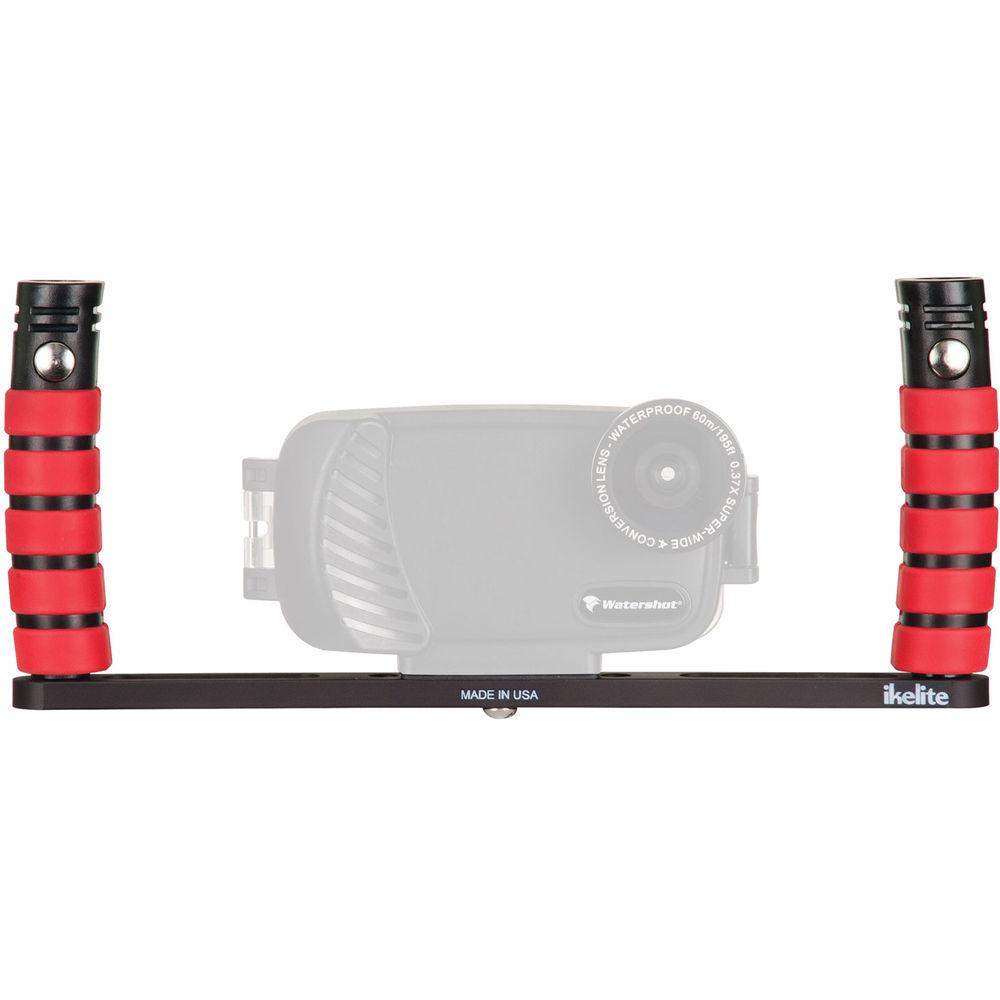

Product description Gain improved balance and attachment points for optional lighting arms with this Tray with Dual Release Handles for Compact Underwater Housings from Ikelite. This support system accommodates Ikelite Compact Digital and ULTRAcompact Digital Still camera housings, as well as non-Ikelite compact housings with standard, central, 1/4"-20 tripod mounts. It features two comfortable rubberized grip handles with quick-release connection points on top.
Built for durability, the tray and handles are made from aluminum that has been hard anodized for resistance to corrosion. To make it even more convenient for travel and handling, Ikelite made this system a 1/4 lb lighter than its previous #9523.62 Dual Tray with Handles. The central 1/4"-20 threaded mount allows you to connect your camera housing to the tray using the provided mounting hardware and also enables connection to an optional tripod. The supplied hardware is for mounting Ikelite housings that have female mounting points with 3" spacing. Housings below serial number 37100 with male threaded bolts on the bottom require the separate #9523.09 Tray Spacer. Attached lighting arms can be disconnected quickly at the push of a button. UPC: 883711049267 In the Box Ikelite Tray with Dual Release Handles for Compact Underwater Housings Tray 2 x Grip Handles Mounting Hardware for Ikelite Housing Mounting Hardware for Non-Ikelite Housings Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikelite Tray with Dual Release Handles for Compact Underwater Housings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkelite 9523.64 Specs | Material of Construction | Tray: Aluminum
Handles: Aluminum, ABS, and rubber | | Mounting | 1/4"-20 tripod mount
Includes hardware for non-Ikelite housings and for Ikelite housings with female mounting points with 3.0" / 7.6 cm spacing | | Dimensions | Width: 11.25" / 28.6 cm handle to handle
Height: 5.1" / 13 cm | | Weight | 1.0 lb / 0.45 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 14.2 x 6.4 x 2.8" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
