Product description Brilliant Full HD 1080i/p video and beautiful photos of sea life are a click away, thanks to the Ikelite Underwater Action Housing and Sony Cyber-shot DSC-RX100 II Digital Camera Kit from . This package provides everything you need for an aquatic imaging adventure, bundling the durable waterproof enclosure and the advanced, 20MP point-and-shoot with its fast Zeiss 28-100mm f/1.8 lens (35mm equivalent). Add a video light or other constant light source to your system to ensure sufficient illumination and color accuracy at all depths on cloudy days, and at depths beyond 20-30' or so on clear, sunny days. - Ikelite Underwater Action Housing for Sony Cyber-shot RX100 or RX100 II Capture Full HD 1080 video and still images at depths as far down as 200' beneath the surface with Ikelite's compact, lightweight Underwater Action Housing for the Sony Cyber-shot RX100 or RX100 II Digital Camera. The enclosure is designed primarily for video recording, as there is no strobe connector and the camera's flash is not accessible. However, quality photos are still possible with an optional constant light source at any depth or with available sunlight down to about 60' underwater.
The housing affords access to important camera functions via ergonomic, mechanical controls, including pushbuttons and a knurled dial with a small lever. Built for durability, the housing is made in the USA from a corrosion-resistant ABS and polycarbonate blend, which is light gray/white on the front, sides, top, and bottom but clear in the back to allow you to monitor the O-ring seal and rear camera controls.
The housing features a built-in, flat, optical glass lens port with a 3.0" diameter. Optional, accessory wide-angle and macro conversion lenses as well as color-correction filters can be attached to the front of the port to enhance your images. - Construction Details
-
- Features a depth rating of 200'
- Constructed by hand in USA from corrosion-resistant ABS and polycarbonate blend, which is light gray/off-white on front, sides, top, and bottom, but clear in back to allow you to monitor O-ring seal and rear camera controls
- Light gray/off-white color reflects sunlight to keep camera cool when shooting at or above water's surface, and also offers better contrast for improved viewing of camera, monitor, and O-ring seal
- Controls made of acetyl plastic
- Compact, lightweight design is well-suited to action video recording and also makes for easy storage and transport
- Optional Lighting
-
- Designed primarily for video recording, as there is no strobe connector and the camera's flash is not accessible
- Quality photos still possible with an optional constant light source at any depth, or with available sunlight down to about 60' underwater
- Many optional lights designed for video and photo capture can be mounted to optional lighting arms for use with housing
- At depths greater than about 60', or when diving in dark conditions, an external light source is necessary to provide adequate illumination and restore colors that get absorbed by water and turned into muted blue and green shades
- Choose a light with a high lumen output, a wide and even beam, and--ideally--a daylight-balanced color temperature for best results
- To preserve natural colors of subjects and environments in images, try to stay within arm's reach of what you're shooting. The further away you go, the more light is absorbed by water--which acts like a big blue/green filter
- Controls and Handling
-
- Affords access to important camera functions via ergonomic, mechanical controls, including push-buttons and a knurled dial with a small lever
- Shutter button, power on/off, zoom (wide/telephoto) lever, movie recording, Fn button, menu, up/down/left/right controls, FUNC/SET, playback, and delete button are all accessible
- Control symbols engraved into back of housing won't peel off or fade with time
- Central, bottom-mounted 1/4"-20 threaded hole provides attachment point for optional tray with handles, which improves balance while offering mounting points for lighting arms
- Slightly positive buoyancy in fresh water
- Lens Port
-
- Built-in, flat, optical glass lens port with a scratch-resistant front element, 3.0" diameter, and 67mm filter thread
- Provides full use of the camera's zoom range without vignetting
- Optional, external, 67mm threaded wide-angle and macro accessory lenses from Ikelite, INON, Epoque, and other manufacturers can be attached directly to front of port
- Wide-angle lenses provide greater angle of coverage to allow you to fit more in frame, while macro lenses magnify your image to enable close-ups with greater clarity and detail
- Both types of conversion lenses get you closer to subjects, reducing amount of water in between you and therefore minimizing distortion
- Wide-angle lenses often result in some vignetting, which can be reduced/eliminated by zooming in, using smaller aperture, or cropping in editing/post-production phase
- Recommended WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting
- Optional, external color-correction filters, available for tropical blue and green water, can be attached via press-fit method to front of port to restore hues that get absorbed underwater
- Since color filters reduce amount of light that enters lens, they are most effective in sunny conditions at depths of about 80' or less
- Color filters not recommended for use in conjunction with external lighting, as combination can throw off color accuracy in images
- Most wide-angle lenses require a filter with a 3.6" diameter
UPC: 883711052007 - Sony Cyber-shot DSC-RX100 II Digital Camera The Sony Cyber-shot DSC-RX100 II Digital Camera is a compact point-and-shoot camera that features a large 20.2 megapixel 1" Exmor R CMOS sensor to produce high resolution still imagery and full HD 1080i/p video. This sensor's design utilizes backside-illuminated technology to improve clarity and image quality when working in dimly-lit conditions as well as increase the sensitivity to an expandable ISO 12800. Benefitting the performance of this sensor is the BIONZ image processor, which helps to produce images with smooth quality and gradations as well as provide expedited performance throughout all aspects of the camera. Full-resolution continuous shooting up to 10 fps is possible as well as a quick autofocus speed of just 0.13 seconds.
The built-in Carl Zeiss Vario-Sonnar T* 10.4-37.1mm f/1.8-4.9 lens provides a 35mm-equivalent focal length range of 28-100mm, covering wide-angle to portrait-length perspectives to suit working in a wide variety of environments. On the wide end of the lens, the bright maximum f/1.8 aperture benefits working in low lighting as well as aiding in controlling focus. Optical SteadyShot image stabilization is also available to help minimize the appearance of camera shake when working in dimly-lit conditions and with greater zoom magnifications. The lens also features a Carl Zeiss T* anti-reflective coating, which helps to reduce surface reflections, lens flare, and ghosting in order to produce imagery that is rich in contrast and clarity.
While small in overall size, the RX100 II incorporates a large 3.0" 1,229k-dot Xtra Fine LCD monitor that utilizes a tilting design to better serve working from both high and low viewing angles. WhiteMagic technology is incorporated into the display to increase the effective brightness of the screen for clearer, more vivid live view monitoring, image playback, and menu navigation. An intuitive menu structure provides access to applying a host of camera features, including Picture Effects, Auto HDR mode, Auto Object Framing, and for connecting to mobile devices using built-in wireless and NFC connectivity. A multi interface shoe is also incorporated into the camera's design to facilitate the use of an external flash, auxiliary viewfinders, and external microphones. For control over aperture settings, camera zoom, and Picture Effects, a control ring is built around the lens and offers intuitive control over these settings in a manner similar to working with an interchangeable lens camera. - 20.2MP 1" Exmor R BSI CMOS Sensor and BIONZ Image Processor
- The large 20.2 megapixel 1" Exmor R CMOS sensor features backside-illuminated technology to enhance its low-light capabilities to an expanded ISO 12800 while still retaining vivid clarity. Using Sony's Column A/D Conversion, images are rendered with impressive image quality and smooth gradations between tones and colors due to the marked reduction in apparent noise.
Also benefitting the image quality, as well as overall camera performance, is the BIONZ image processor, which provides full-resolution continuous shooting up to 10 fps, high-speed auto focusing as quickly as 0.13 sec., and full HD 1080i/p video recording. Still images can be recorded in JPEG or RAW file formats, or both simultaneously. - Carl Zeiss Vario-Sonnar T* 3.6x Optical Zoom Lens
- The built-in Carl Zeiss Vario-Sonnar T* 10.4-37.1mm f/1.8-4.9 lens provides a 35mm-equivalent focal length range of 28-100mm, covering wide-angle to portrait-length perspectives to suit working in a wide variety of situations. The bright f/1.8 maximum aperture on the wide end enables enhanced low-light capabilities as well as greater control over focus placement for selective focus imagery. The lens also features a Carl Zeiss T* anti-reflective coating to help minimize lens flare and ghosting in order to produce imagery with rich contrast and clarity.
- Built-In Wireless and NFC Connectivity
- Built-in wireless connectivity enables the RX100 II to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. This technology also provides the ability to use Smart Remote Control, which provides for remote shutter release that is controlled by a smart device.
- High Speed Autofocus
- Aided by the rapid throughput of the BIONZ image processor, high speed auto focusing is possible that is equally as precise as it is quick. Utilizing intelligent response data and a refined high speed actuator motor, the RX100 II can acquire focus in a similar manner and speed to top-performing DSLR focus systems in a variety of lighting conditions.
- Camera Design
- An efficiently designed control ring around the lens lends itself to intuitive adjusting of some of the most crucial camera controls. This ring can be assigned to control an array of features, including zooming and aperture settings as well as more creative functions like Picture Effect modes. Its click-less design permits quick and quiet changing of settings, too, to benefit its use while recording HD movies. Additionally, for expedited changing of camera settings, a customizable function button allows you to assign one of seven different functions for quick modification when working in any shooting mode.
Also promoting greater efficiency while shooting is the inclusion of a multi interface shoe that allows for the use of external flashes, auxiliary viewfinders, and external microphones. Remote camera controls can also be connected via this accessory shoe.
A built-in pop-up flash is incorporated into the design as well, and features a unique design that allows for tilting of the flash head for bouncing off of walls, ceilings, or reflectors. - High-Resolution LCD Monitor
- For live view monitoring, image playback and review, and menu navigation, a 3.0" 1,229k-dot Xtra Fine LCD monitor is integrated into the camera body and features a tilting design to promote easier use from high and low angles. The screen can tilt approximately 84° up and 45° down, giving a wide range of viewing angles. The LCD also employs WhiteMagic technology, which enhances the brightness of the display for easier use in bright conditions.
- Full HD 1080p Video Recording
- Full HD 1920 x 1080 video recording is supported in multiple frames rates, including 60p, 60i, and 24p. When recording in full HD, the AVCHD Ver. 2.0 codec is used for highly detailed image quality that translates well to editing and sharing on HDTVs. Recording in the Internet-friendly MP4 format is also supported in 1440 x 1080 and 640 x 480 sizes at 30 fps. Sound is recorded during filming using the built-in stereo microphone or, additionally, an external microphone can be used in conjunction with the multi interface shoe.
- Optical SteadyShot Image Stabilization
- Optical SteadyShot image stabilization works to minimize the appearance of camera shake when working in low-light conditions or with greater zoom magnifications. The system can counter the effects of both vertical and horizontal movements, and, furthermore, Active 3-Way stabilization adds digital rolling control that balances both clockwise and counter-clockwise movements while recording videos.
- Other Camera Features
-
- Auto Object Framing is an intelligent shooting mode that can automatically analyze the scene and subjects within it and determine an aesthetically-pleasing composition. The subsequent imagery will be cropped according to subject matter, resulting in a well-balanced composition that utilizes Face Detection and Tracking Focus to ensure high image quality and sharpness.
- Auto HDR mode will automatically record a bracketed range of exposures of the same scene in order to capture greater highlight and shadow detail than a single exposure can record. These multiple exposures will then be composited into a single file that exhibits an extended dynamic range.
- Face Detection/Registration technology can detect and register up to eight individual faces and adjust the focus, exposure, white balance, and flash settings in order to deliver optimal image settings for pictures of people. Children or adults can be prioritized within this mode.
- 1:1, 3:2, 4:3, and 16:9 aspect ratios are available and can be chosen depending on specific shooting purposes.
- To extend the effective reach of the 3.6x optical zoom lens, 2x Clear Image digital zoom can be used to intelligently magnify scenes up to 7.2x. This digital zoom technology uses an intelligent interpolation process to minimize the amount of image degradation in order to produce realistic, high-quality images.
- Picture Effect modes allow you to apply creative settings and emphasize certain facets of individual images for a richer, more aesthetic picture quality. Soft Focus, Posterization, Retro Photo, High Contrast Monochrome, Rich-Tone Monochrome, Miniature, Soft High-Key, Toy Camera, Pop Color, Partial Color, Watercolor Painting, HDR Painting, and Illustration modes are available.
- Creative Style settings provide control over how the camera processes images based on six different predetermined styles: Standard, Vivid, B&W, Sunset, Portrait, and Landscape. Within these settings, contrast, saturation, and sharpness can also be adjusted depending on personal preference.

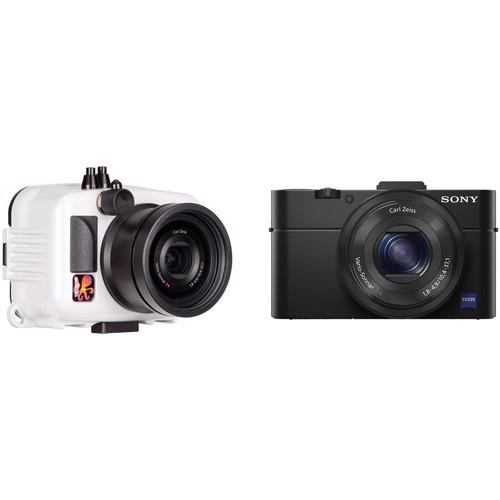

UPC: 027242870802 In the Box - Underwater Action Housing for Sony Cyber-shot RX100 or RX100 II ufbubzyz
- 1cc Tube of Silicone Lubricant
- Port Cover
- Lanyard
- Limited 2-Year Warranty
- Sony - Cyber-shot DSC-RX100 II Digital Camera
