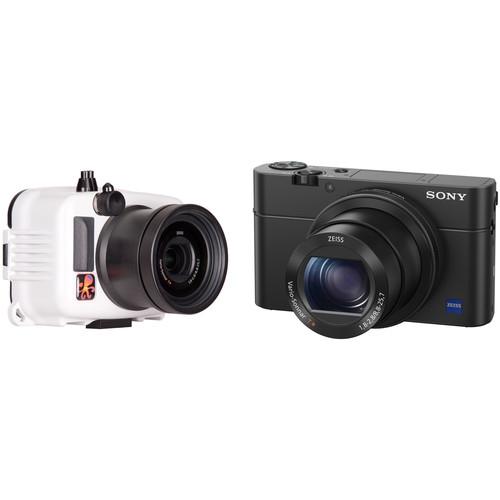

User Manual for Ikelite Underwater Action Housing and Sony Cyber-shot DSC-RX100 IV Camera Kit

• Product category: Still Cameras & Housings Ikelite
• Brand: Ikelite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ikelite Still Cameras & Housings

Product description

• Ikelite Underwater Action Housing for Sony Cyber-shot RX100 III, RX100 IV or RX100 V Capture Full HD 1080 video and still images at depths as far down as 200' beneath the surface with Ikelite's compact, lightweight Underwater Action Housing for the Sony Cyber-shot RX100 III, RX100 IV or RX100 V Digital Camera. The enclosure is designed primarily for video recording, as there is no strobe connector and the camera's flash is not accessible. However, quality photos are still possible with an optional constant light source at any depth or with available sunlight down to about 60' underwater.

  The housing affords access to important camera functions via ergonomic, mechanical controls, including pushbuttons and a knurled dial with a small lever. Built for durability, the housing is made in the USA from a corrosion-resistant ABS and polycarbonate blend, which is light gray/white on the front, sides, top, and bottom but clear in the back to allow you to monitor the O-ring seal and rear camera controls.

  The housing features a built-in, flat, optical glass lens port with a 3.0" diameter. Optional, accessory wide-angle and macro conversion lenses as well as color-correction filters can be attached to the front of the port to enhance your images.
  Construction Details
  • • Features a depth rating of 200'
    • Constructed by hand in USA from corrosion-resistant ABS and polycarbonate blend, which is light gray/off-white on front, sides, top, and bottom, but clear in back to allow you to monitor O-ring seal and rear camera controls
    • Light gray/off-white color reflects sunlight to keep camera cool when shooting at or above water's surface, and also offers better contrast for improved viewing of camera, monitor, and O-ring seal
    • Controls made of acetyl plastic
    • Compact, lightweight design is well-suited to action video recording and also makes for easy storage and transport
  Optional Lighting
  • • Designed primarily for video recording, as there is no strobe connector and the camera's flash is not accessible
    • Quality photos still possible with an optional constant light source at any depth, or with available sunlight down to about 60' underwater
    • Many optional lights designed for video and photo capture can be mounted to optional lighting arms for use with housing
    • At depths greater than about 60', or when diving in dark conditions, an external light source is necessary to provide adequate illumination and restore colors that get absorbed by water and turned into muted blue and green shades
    • Choose a light with a high lumen output, a wide and even beam, and--ideally--a daylight-balanced color temperature for best results
    • To preserve natural colors of subjects and environments in images, try to stay within arm's reach of what you're shooting. The further away you go, the more light is absorbed by water--which acts like a big blue/green filter
  Controls and Handling
  • • Affords access to important camera functions via ergonomic, mechanical controls, including push-buttons and a knurled dial with a small lever
    • Shutter button, power on/off, zoom (wide/telephoto) lever, movie recording, Fn button, menu, up/down/left/right controls, FUNC/SET, playback, and delete button are all accessible
    • Control symbols engraved into back of housing won't peel off or fade with time
    • Central, bottom-mounted 1/4"-20 threaded hole provides attachment point for optional tray with handles, which improves balance while offering mounting points for lighting arms
    • Slightly positive buoyancy in fresh water
  Lens Port
  • • Built-in, flat, optical glass lens port with a scratch-resistant front element, 3.0" diameter, and 67mm filter thread
    • Provides full use of the camera's zoom range without vignetting
    • Optional, external, 67mm threaded wide-angle and macro accessory lenses from Ikelite, INON, Epoque, and other manufacturers can be attached directly to front of port
    • Wide-angle lenses provide greater angle of coverage to allow you to fit more in frame, while macro lenses magnify your image to enable close-ups with greater clarity and detail
    • Both types of conversion lenses get you closer to subjects, reducing amount of water in between you and therefore minimizing distortion
    • Wide-angle lenses often result in some vignetting, which can be reduced/eliminated by zooming in, using smaller aperture, or cropping in editing/post-production phase
    • Recommended WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting
    • Optional, external color-correction filters, available for tropical blue and green water, can be attached via press-fit method to front of port to restore hues that get absorbed underwater
    • Since color filters reduce amount of light that enters lens, they are most effective in sunny conditions at depths of about 80' or less
    • Color filters not recommended for use in conjunction with external lighting, as combination can throw off color accuracy in images
    • Most wide-angle lenses require a filter with a 3.6" diameter
  UPC: 883711052014
• Sony Cyber-shot DSC-RX100 IV Digital Camera The Sony Cyber-shot DSC-RX100 IV Digital Camera is a versatile and advanced point-and-shoot featuring a large 20.1-megapixel 1" Exmor RS CMOS sensor to produce high-resolution still imagery and 4K video. This sensor's construction utilizes a stacked backside-illuminated design to improve clarity and image quality when working in dimly-lit conditions as well as to increase its sensitivity to a native ISO 12,800. By completely placing the camera's photodiodes over the sensor's processing structure, the light-gathering ability of the Exmor RS CMOS sensor is further improved over previous backside-illuminated devices and faster image processing capabilities are added as well. 16 fps of continuous shooting is made possible as well as UHD 4K movie recording with the option of Super Slow Motion frame rates of up to 960 fps. Also benefitting the performance of this sensor is the BIONZ X image processor, which helps to produce images with smooth quality and tonal gradations.

  To make ultra-high definition video captures convenient, short 4K clips of up to five minutes can be recorded with no line skipping or pixel binning as well as with minimal moiré and visual aliasing. The Sony Cyber-shot DSC-RX100 IV Digital Camera is NTSC and PAL switchable, while utilizing the XAVC S format to maximize high-bitrate shooting up to 100 Mbps for professional-quality video. When recording, creative potential is further extended with the ability to capture Super Slow Motion High Frame Rate movies at up to 40x slower than real time. These slow motion clips are recorded at 960 fps, 480 fps, or 240 fps and can then be played back at 1920 x 1080, in 60p, 30p, or 24p, when the camera is set to NTSC. For PAL, slow motion clips are recorded at 1000 fps, 500 fps, or 250 fps and can then be played back at 1920 x 1080, in either 50p or 25p. While recording at video resolutions lower than 4K, such as Full HD 1920 x 1080p, video clips up to 29 minutes in length can be saved.

  The Sony Cyber-shot DSC-RX100 IV Digital Camera's enhanced Exmor RS CMOS sensor also helps to supplement the camera's top mechanical shutter speed of 1/2,000. It does so by enabling electronic shutter speeds of up to 1/32,000 second which minimizes distortion caused by "rolling shutter" which can become apparent when shooting fast moving subjects. Additionally, this high-speed shutter provides the ability to shoot photos with defocused backgrounds even while using large aperture settings under very bright lighting conditions. This is achieved by a combination of the 1/32,000 second electronic shutter speed and a built-in, three-stop ND filter that allows photos to be shot under extremely bright light at a maximum of EV19 with a fully open aperture setting. The built-in Zeiss Vario-Sonnar T* 2.9x zoom lens provides a 35mm-equivalent focal length range of 24-70mm, covering wide-angle to portrait-length perspectives to suit working in a wide variety of environments. An f/1.8-2.8 maximum aperture benefits working in low lighting and controlling focus throughout the zoom range. Optical SteadyShot image stabilization is also available to help minimize the appearance of camera shake when working in dimly-lit conditions and with greater zoom magnifications. The lens also features a Zeiss T* anti-reflective coating, which helps to reduce surface reflections, lens flare, and ghosting in order to produce imagery that is rich in contrast and clarity.

  Complementing the imaging capabilities of the RX100 IV is a sleek body design featuring both an electronic viewfinder and an LCD screen. The 0.39" 2,359k-dot SVGA OLED Tru-Finder has provides a bright, clear means for eye-level viewing. It features a unique pop-up mechanism that helps to maintain the compact form factor of the camera when carrying or if preferring to work with the rear screen. The 3.0" 1,229k-dot Xtra Fine LCD incorporates WhiteMagic technology for easier visibility in bright conditions and its tilting design permits greater usability from high, low, and front-facing angles. Furthermore, built-in Wi-Fi connectivity with NFC allows instant image sharing to, as well as remote camera control and monitoring from, linked mobile devices.
  20.1 MP 1" Exmor RS BSI CMOS Sensor and BIONZ X Image Processor
  • The large 20.1-megapixel 1" Exmor RS CMOS sensor features stacked backside-illuminated technology to enhance its low-light capabilities over previous designs to a native ISO 12,800 while still retaining vivid clarity. By placing its photodiodes between the rear of the lens and sensor's underlying processing structure, the light-gathering ability of the Exmor RS CMOS sensor is further improved over previous backside-illuminated devices and faster image processing capabilities are added as well. 16 fps of continuous shooting is made possible as well as UHD 4K movie recording with the option of Super Slow Motion frame rates of up to 960 fps. Also benefitting the performance of this sensor is the BIONZ X image processor, which helps to produce images with smooth quality and tonal gradations.
  UHD 4K Video Recording
  • Ultra-high definition video capture is made convenient with the ability to record short 4K clips of up to five minutes with no line skipping or pixel binning and with minimal moiré or visual aliasing. The XAVC S format is utilized to maximize high-bitrate shooting up to 100 Mbps for professional-quality video. When recording in either the NTSC or PAL video standard, creative potential is further extended with the ability to capture Super Slow Motion High Frame Rate movies at up to 40x slower than real time. These slow motion clips are recorded at 960 fps, 480 fps or 240 fps and can then be played back at 1920 x 1080, in 60p, 30p, or 24p when the camera is set to NTSC. When set to PAL, slow motion clips are recorded at 1000 fps, 500 fps, or 250 fps and can then be played back at 1920 x 1080, in either 50p or 25p. At resolutions below 4K, including Full HD 1920 x 1080p, movies up to 29 minutes in length can be saved.
  Zeiss Vario-Sonnar T* Lens
  • The built-in Zeiss Vario-Sonnar T* lens provides a 35mm-equivalent focal length range of 24-70mm, covering wide-angle to portrait length perspectives to suit working in a wide variety of shooting conditions. An f/1.8-2.8 maximum aperture benefits working in difficult lighting conditions throughout the entire zoom range and also enables greater control over focus placement for shallow depth of field imagery.

    Nine aspherical elements, including two AA (advanced aspherical) elements, are incorporated into the lens design to minimize chromatic aberrations throughout the zoom range to benefit creating sharp, clear imagery. The lens also features a Zeiss T* anti-reflective multi-layered coating to help minimize lens flare and ghosting in order to produce imagery with rich contrast and color neutrality.

    Benefitting the 2.9x reach of this lens, as well as supporting working in difficult lighting conditions and with longer shutter speeds, is Optical SteadyShot image stabilization, which helps to offset the effects of camera shake. Additionally, a neutral density 0.9 filter is incorporated into the camera's design, which provides a reduction of three stops in exposure to enable working in bright conditions with wider aperture settings and for greater control over how subject movement is rendered.
  Camera Design
  • Within the compact design of the RX100 IV is both a high-resolution electronic viewfinder and a large rear LCD monitor. The 2,359k-dot SVGA OLED Tru-Finder EVF provides a bright, clear means for eye-level monitoring, which is well-suited to critical compositions and working in bright conditions. It features 100% frame coverage, and a unique pop-up mechanism. Alternatively, a 3.0" 1,229k-dot Xtra Fine LCD screen is also available and features a tilting design (180° up, 45° down) to benefit working from high, low, and front-facing angles. WhiteMagic technology has been applied to the LCD's design, too, to increase effective brightness for easier viewing in bright lighting.

    For intuitive, SLR-like adjustments over a variety of camera settings, a manual control ring surrounds the lens and features a smooth, click-less design for quick and quiet changing of settings. The ring can be assigned to control a variety of features, at different values, such as zoom, aperture, and Picture Effects. A step-zoom feature can be utilized, too, to allow instant switching between commonly used focal lengths.
  Super-Speed Anti-Distortion Electronic Shutter
  • While a mechanical shutter featuring a top shutter speed of 1/2,000 second is suitable for most subjects, an electronic shutter provides the ability to capture at 1/32,000 second. This minimizes distortion caused by "rolling shutter" which can become apparent when shooting fast moving subjects. This high-speed shutter also provides the ability to shoot photos with defocused backgrounds even while using large aperture settings under very bright lighting conditions. This is achieved by a combination of the 1/32,000 second shutter speed and a built-in, three-stop ND filter which allows photos to be shot under extremely bright light at a maximum of EV19 with a fully open aperture setting.
  Built-In Wi-Fi Connectivity with NFC
  • Built-in Wi-Fi connectivity enables instant transferring of imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices, with no complex set-up required. Once connected, the linked mobile device can also display a live view image on its screen and, using Smart Remote Control, remotely control the camera's shutter release.

    Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.
  UPC: 027242892798

• Underwater Action Housing for Sony Cyber-shot RX100 III, RX100 IV or RX100 V exsxxaqzxduqbxbvzafzedvewtszddzfvtszr
• 1cc Tube of Silicone Lubricant
• Port Cover
• Lanyard
• Limited 2-Year Warranty

• Sony - Cyber-shot DSC-RX100 IV Digital Camera

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ikelite Underwater Action Housing for Sony Cyber-shot RX100 III, RX100 IV or RX100 V

  Depth Rating	200' / 61 m
  Control Type	Mechanical pushbuttons and knurled dial with a small lever
  Controls	Afford access to important camera functions: Shutter button, power on/off, Zoom (wide/telephoto) lever, movie recording, manual white balance, Fn button, menu, up/down/left/right controls, FUNC./SET, playback, and delete button
  Material of Construction	Housing: ABS and polycarbonate blend Controls: Acetyl plastic
  Lens Port	Built-in, flat, optical glass lens port Scratch-resistant front element 3.0" / 76 mm diameter Accepts optional, external 67mm threaded wide-angle and macro accessory lenses from Ikelite, INON, Epoque, and other manufacturers Accepts optional, external color-correction filters via press-fit method
  Buoyancy	Slightly positive in fresh water
  Lighting	Optional constant light source with high lumen output and a wide, even beam highly recommended No strobe connector on housing Camera's flash not usable
  Mounting	Central, bottom-mounted 1/4"-20 threaded hole provides attachment point for optional tray with handles Tray improves balance while offering mounting points for lighting arms
  Dimensions	6.0 x 4.6 x 4.5" / 15.2 x 11.7 x 11.4 cm
  Weight	1.1 lb / 0.5 kg

  Box Dimensions (LxWxH)	6.8 x 5.5 x 5.3"

• Sony Cyber-shot DSC-RX100 IV Digital Camera

  Pixels	Actual: 21.0 Megapixel Effective: 20.1 Megapixel
  Sensor	1" (13.2 x 8.8 mm) CMOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, MP4, XAVC S Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical
  Color Spaces	sRGB, Adobe RGB

  Lens	Carl Zeiss Vario-Sonnar, 10 Elements in 9 Groups 9 Aspherical Effective Focal Length: 8.8 to 25.7mm (35 mm Equivalent: 24 to 70mm) Aperture: f/1.8 (W) to f/2.8 (T)
  Zoom	Optical: 2.9x Clear Image Zoom: 5.8x Digital: 11x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 11.81" to Infinity / 30 cm to Infinity

  ISO Sensitivity	Auto, 125 to 12800 (Extended Mode:80 to 12800)
  Shutter	Type: Mechanical Speed: 4 to 1/2000 Second in Auto Mode Type: Mechanical Speed: 30 to 1/2000 Second in Program Mode Type: Mechanical Speed: 30 to 1/2000 Second in Manual Mode 30 to 1/2000 Second in Aperture Priority Mode Type: Mechanical Speed: 30 to 1/2000 Second in Shutter Priority Mode Type: Electronic Speed: 4 to 1/32000 Second in Auto Mode Type: Electronic Speed: 30 to 1/32000 Second in Bulb Mode Type: Electronic Speed: 30 to 1/32000 Second in Program Mode Type: Electronic Speed: 30 to 1/32000 Second in Aperture Priority Mode Type: Electronic Speed: 30 to 1/32000 Second in Shutter Priority Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Panorama Shot, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto
  Shooting Modes	Anti-Motion Blur Fireworks Gourmet Handheld Twilight High Sensitivity Landscape Macro Night Portrait Night Scene Pet Mode Portrait Sports Sunset
  White Balance	Auto, Cloudy, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
  Continuous Shooting	Up to 16 fps at 20.1 MP for up to Exposures
  Self-Timer	2, 5, 10 Sec
  Remote Control	Optional

  Flash Modes	Auto Flash On Off Rear Sync Red-Eye Reduction Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.31 to 33.46' / 0.4 to 10.2 m Telephoto:1.31 to 21.33' / 0.4 to 6.5 m

  Memory Card Type	Memory Stick Duo Memory Stick Pro Duo Memory Stick PRO Duo (High Speed) Memory Stick PRO HG-Duo SD SDHC SDXC

  Video Recording	Yes, NTSC/PAL
  Resolution	3840 x 2160p: 30 fps, 25 fps, 24 fps 1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps 1920 x 1080i: 60 fps, 50 fps 1280 x 720p: 30 fps, 25 fps 1920 x 1080p: 240 fps, 480 fps, 960 fps 1824 x 1026p: 240 fps, 480 fps, 960 fps 1676 x 566p: 240 fps, 480 fps, 960 fps 1920 x 1080p: 250 fps, 500 fps, 1000 fps 1824 x 1026p: 250 fps, 500 fps, 1000 fps 1676 x 566p: 250 fps, 500 fps, 1000 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Diopter Adjustment	-4 to +3 m
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Screen Tilt (1,228,800 Pixels)

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Battery	1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh
  AC Power Adapter	AC-UB10C (Included)

  Dimensions (W x H x D)	4.0 x 2.4 x 1.6" / 101.6 x 61.0 x 40.6 mm
  Weight	10.51 oz / 298 g with battery and memory card

  Box Dimensions (LxWxH)	6.1 x 4.6 x 2.9"
